How to Adjust Chamfer Using CNC Machine

A chamfer is one of the last features cut on a part, and one of the first things an inspector measures. This guide shows how to adjust chamfer using cnc machine settings without scrapping the part: what to check before touching offsets, which parameter changes width versus angle, and how to verify the result on the bench.

Get Instant Quote Talk to an Engineer

±0.005 mm tolerance3-axis to 5-axis100% inspectionDFM in 12 hours

On this page

1
What matters before you touch an offset
2
How chamfer geometry responds to cnc machine offsets
3
Pre-adjustment checks that prevent a scrapped batch
4
Adjust chamfer using cnc machine by axis count
5
Post-adjustment verification on the bench
6
Step-by-step chamfer adjustment
7
Symptom, cause, and what to change

Key takeaways

What matters before you touch an offset

Width and angle move on different parametersCompensation changes how deep the edge is cut; the toolpath angle and tool geometry set the angle itself.

Measure the tool, not the drawingA chamfer mill with a 90° included angle cuts a 45° face only when the tool axis is normal to the surface.

Depth offsets drift with wearOn a 45° chamfer, 0.05 mm of tool wear adds roughly 0.1 mm to the measured face width.

Verify on the bench, then in the machineA quick optical check on a trimmed part saves an offset guess that runs the whole batch off nominal.

Fundamentals

How chamfer geometry responds to cnc machine offsets

A chamfer is defined by two numbers on the drawing: the leg length or face width, and the angle. On a 45° chamfer, those two numbers are linked. Push the tool 0.10 mm deeper along the tool axis and the face width grows by about 0.14 mm on each side. That is why a tiny Z shift can throw a chamfer out of a ±0.10 mm callout while leaving the angle perfectly correct.

The angle itself comes from tool geometry and toolpath orientation, not from depth. A 90° included chamfer mill cutting with its axis normal to the face produces a 45° chamfer. Tilt the tool or machine a non-normal surface and the effective angle changes. On a sloped or contoured edge, a 3-axis path with a ball or chamfer mill will produce a varying angle along the edge — that is a geometry problem, not an offset problem.

When you adjust chamfer using cnc machine controls, you are usually working in one of three places: the wear offset for the tool, a Z depth value in the program, or a cutter compensation value on the chamfer pass. Each one moves the cut differently. Wear offset shifts the whole tool; a Z change moves depth only; cutter comp moves the path sideways in the plane of the cut. Know which one you are touching before you press enter.

The material matters too. Aluminium 6061 and 7075 cut clean chamfers at high spindle speeds, so the edge break stays close to programmed size. Stainless 304 and 316 work-harden, so a light chamfer pass with a dull tool can smear instead of cut, and the measured width reads larger than the actual metal removed. Titanium TC4 (Ti-6Al-4V) behaves similarly at low surface speed. Adjust feed and speed before you chase the offset.

1
Face width follows depthOn 45°, expect roughly 1.4× the axial move in added face width.
2
Angle follows tool and setupIncluded angle of the cutter plus axis orientation, not offset value.
3
Comp changes position, not sizeCutter comp shifts the path sideways; it will not fix a wrong angle.

Preparation

Pre-adjustment checks that prevent a scrapped batch

Before you change a single number, confirm the tool. Measure the chamfer mill's included angle on a comparator or with a shadowgraph if the tool is new to the job. Tool suppliers ship 90° and 82° chamfer mills that look identical in the holder. A 82° tool used where the drawing calls for 90° will cut a visibly wrong angle no matter how you adjust offsets.

Check tool runout in the holder. At 0.02 mm TIR, a chamfer mill cuts an uneven edge break around a bore or along a long edge. The width will read correct on one side and under on the other. If runout is over 0.01 mm, reseat the collet or swap the holder before adjusting anything.

Confirm the stock condition. A cast or forged surface has skin that varies in height. If your chamfer depth is referenced from the raw surface, the finished width will vary part to part. Reference the chamfer from a machined face, a datum hole, or a probed surface instead. On 5-axis work, probe the actual surface and shift the work offset before the chamfer pass.

Finally, note the programmed values. Write down the current wear offset, the Z depth in the chamfer block, and the cutter comp value. When you adjust chamfer using cnc machine controls, you want a known starting point so you can step back if the first part comes out wrong.

Check coolant delivery as well. A chamfer pass is short, so operators often run it with flood coolant aimed at the previous operation. If chips from the pocket operation are still sitting on the edge, the chamfer mill recuts them and the width reads oversize. Blow the part off or reposition the nozzle before the chamfer pass.

1
Tool angleVerify included angle against the drawing, not the label.
2
Runout under 0.01 mmReseat or replace the holder if TIR is higher.
3
Stable datumReference the chamfer from a machined face, not raw stock.

By machine type

Adjust chamfer using cnc machine by axis count

On a 3-axis machine, the chamfer pass is a 2D contour or a simple edge break along a straight or curved edge. Adjust width with the tool wear offset in Z, or with cutter compensation if the toolpath uses it. Adjust angle only by changing the tool or by reprogramming the path. If the drawing calls for a chamfer on the top of a sloped surface, a 3-axis machine cannot hold a constant face width along that edge. That is a machine capability limit, not an offset problem.

On a 4-axis machine with a rotary table, chamfers on cylindrical or indexed faces can be cut with the tool normal to the surface. Adjust the chamfer width through the rotary work offset or through the tool's Z wear offset. Watch the rotary centerline: if the part is not concentric, the chamfer widens on one side of the rotation and narrows on the other. Indicate the part before the offset adjustment.

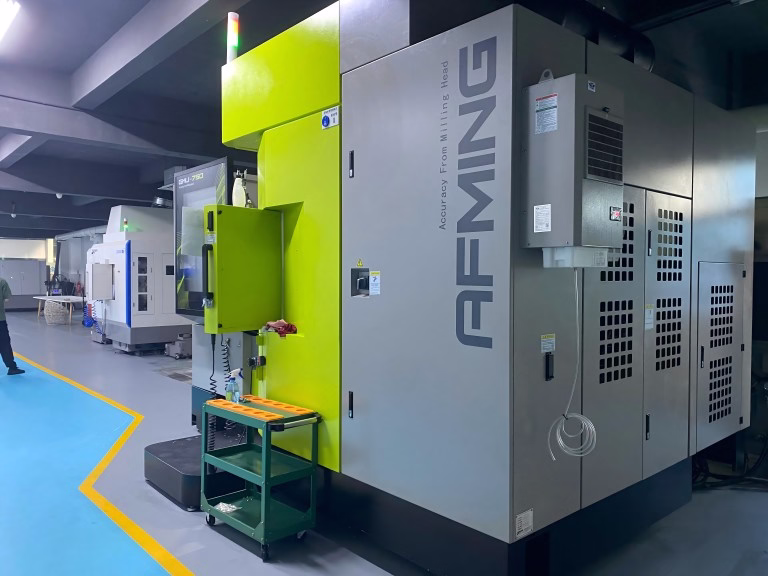

On a 5-axis machine, the cutter can stay normal to a contoured edge, so the chamfer width stays constant along a complex profile. Adjustments here usually involve the tool center point (TCP) and the tool vector. A small error in TCP or in the tool length shows up as a varying chamfer width along the path. Re-measure tool length after any holder change, and verify TCP with a test cut on scrap before running the part.

Mill-turn centers add a fourth case: chamfers on turned diameters. These are usually cut with the same tool that turns the OD, or with a separate chamfer tool brought in on the B-axis. Adjust width through the turning tool's X wear offset, not Z. Confusing the two is a common cause of an oversize chamfer on a turned shoulder.

1
3-axisFlat or simple edges only; no constant width on sloped surfaces.
2
4-axisIndicate concentricity before adjusting the rotary offset.
3
5-axisRe-verify TCP and tool length after any holder change.
4
Mill-turnAdjust turned chamfers in X wear, not Z.

Verification

Post-adjustment verification on the bench

Measure the chamfer the same way the customer will. If they use an optical comparator, use one too. If they use a chamfer gauge or a radius gauge, match that. Measuring with a caliper on a 45° chamfer is unreliable because the jaw sits on the two faces and the reading depends on how the operator holds it.

Check the edge break on both ends of a long chamfer. On a 400 mm edge, tool wear and thermal growth can change the width by 0.05 mm or more from one end to the other. If the drawing tolerances the width tightly, cut in two passes or use a smaller stepover to keep the load even.

Record the final values. The next setup should start from the same wear offset and cutter comp values, not from a blank setup sheet. That is the difference between a repeatable process and one that depends on who is running the machine.

For parts that will be anodized, plated, or powder coated, allow for coating buildup. A 0.02 mm anodize layer adds roughly 0.02 mm to the face on each side. If the drawing calls for a 45° × 0.5 mm chamfer after coating, cut it slightly smaller before finishing.

1
Match the customer's methodComparator, gauge, or projector — use the same instrument.
2
Check both endsOn long edges, width can drift with tool wear.
3
Allow for coatingAnodize adds roughly 0.02 mm per face at typical thickness.

Procedure

Step-by-step chamfer adjustment

1
1. Confirm the drawing calloutWrite down face width, angle, and any edge break range such as 0.3–0.5 mm × 45°. Note whether the callout is on the finished face or the theoretical sharp corner.
2
2. Measure the tool and runoutCheck included angle and TIR. Reject or reseat if TIR exceeds 0.01 mm. Record the tool's actual angle for later.
3
3. Set a stable datumReference from a machined face or a probed surface. On castings and forgings, probe the actual surface and shift the work offset before the chamfer pass.
4
4. Cut one test part to nominalRun the chamfer pass at programmed values on a single part. Do not adjust on the first part — measure it first.
5
5. Measure the face width and angleUse an optical comparator, a chamfer gauge, or a profile projector. For a 45° chamfer, a face width of 0.50 mm corresponds to roughly 0.35 mm of axial depth.
6
6. Calculate the correctionIf width is 0.10 mm over on a 45° chamfer, reduce axial depth by about 0.07 mm. Change the Z wear offset, not the cutter comp, unless the angle is also off.
7
7. Re-cut and verify on the benchCut a second part and re-measure. If width and angle are within callout, release the batch. If not, repeat step 6 once; do not stack more than two corrections without rechecking the tool.
8
8. Lock the offset and log itRecord the final wear offset and cutter comp value in the setup sheet so the next run starts from a known point.

Troubleshooting

Symptom, cause, and what to change

Use this when the first part is out of callout. Each row is one symptom with the most likely cause and the adjustment that fixes it.

Symptom	Likely cause	Adjustment
Chamfer too wide, angle correct	Tool pushed too deep in Z	Reduce Z wear offset by ~0.7× the excess width
Chamfer too narrow, angle correct	Tool not reaching depth	Increase Z wear offset in small steps of 0.02 mm
Angle off by more than 1°	Wrong tool included angle	Swap to the correct chamfer mill and re-cut
Width varies along one edge	Tool runout or part not seated	Reseat holder; indicate the part before re-cutting
Width varies around a bore	Spindle axis not normal to face	Check setup angle; on 5-axis verify TCP
Edge break smeared, not cut	Dull tool or wrong speed on stainless	Change insert or tool; raise surface speed
Oversize chamfer on turned shoulder	Adjusted Z instead of X wear	Move the turning tool in X wear, then re-measure
Chamfer looks right, gauge reads over	Burr left on the edge	Deburr or run a light finishing pass before measuring

When to adjust in-house, when to send it out

If you have the tool on hand and a stable datum, adjust the offset and re-cut. If the chamfer is on a contoured edge, a sloped surface, or a turned shoulder with a tight callout, send it to a shop with 5-axis and mill-turn capacity. It is faster than chasing offsets on a machine that cannot hold the geometry.
