How to Control the Tool Ejection During the Cutting Process of a CNC Machining Center
Tool ejection is a clamping failure, not a programming accident. This guide shows engineers and setup staff how to find the cause, set safe cutting limits, and keep the taper locked. You will finish with a checklist you can run on the floor today.
Key takeaways
Why a Tool Ejection Happens at All

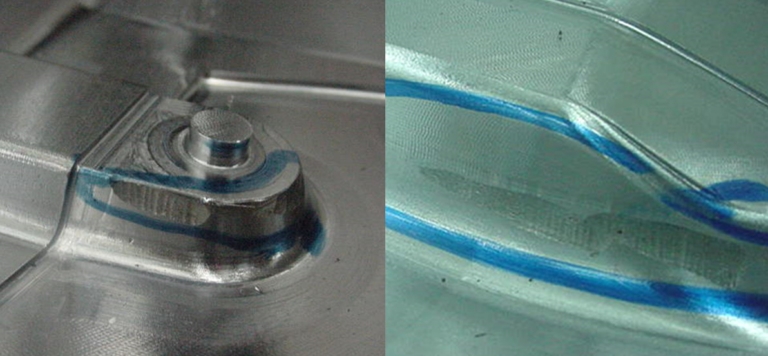

A CNC machining center holds the tool with two forces working together. The drawbar pulls the pull stud upward, which wedges the taper into the spindle nose. Friction and elastic deformation in the taper do the rest. When the sum of cutting forces exceeds that grip, the tool creeps out of the seat. The first sign is usually a size drift of 0.02 to 0.05 mm, not a flying holder.
Ejection is not a single failure mode. It can come from a weak drawbar spring, a stretched pull stud, a contaminated taper, or a radial load that is simply too large for the interface. Each cause needs a different fix, so guessing wastes hours. Measure first, then change one variable.
The classic example is a corner cut. When an end mill exits a corner at high feed, the radial load spikes and pushes the tool sideways. On a 40-taper spindle, a long reach holder with 4× diameter overhang is much more likely to eject than a stub holder. Shorten the assembly before you slow the feed.
Ejection risk also rises with spindle speed. Above 10,000 rpm, centrifugal growth of the spindle nose can reduce taper contact. If the machine runs a 20,000 rpm spindle, use an HSK or dual-contact holder for finishing passes.
- 1Weak drawbarSpring stack loses 20–30% force over years of use.
- 2Worn pull studNeck stretch and flange wear reduce clamping length.
- 3Dirty taperChips or coolant film cut friction and contact area.
- 4Excess side loadLong overhang and heavy radial engagement.
How to Inspect the Holder and Spindle Before Cutting
Start with a clean taper. Wipe the spindle nose and the holder taper with a lint-free cloth and a light oil, then check for fretting marks. A shiny ring near the large end of the taper means the holder is rocking in the seat. A dull band with no contact pattern means the taper is not seating at all.
Measure drawbar force with a pull-force gauge at the spindle. For a 40-taper machine, typical working force is 8 to 12 kN. Below 7 kN, the interface is at risk during heavy roughing. For a 30-taper machine, expect 3.5 to 5 kN and keep radial engagement lower.
Inspect every pull stud in the rack. Check the thread for stretch with a thread gauge, look for a worn neck, and make sure the flange radius is still sharp. A pull stud that has been tightened with too much torque can crack at the neck. Replace it rather than reusing it.
Check runout at the holder nose. If runout exceeds 0.01 mm at 50 mm from the gauge line, the holder or the spindle taper is damaged. Fix the spindle first, because a bad taper will wear every new holder you install.
- 1Taper contactAim for 80–85% blue contact on a check gauge.
- 2Drawbar force8–12 kN for 40-taper; 3.5–5 kN for 30-taper.
- 3Pull stud torqueFollow the holder maker's value; do not over-tighten.
- 4RunoutKeep under 0.01 mm at 50 mm from the gauge line.
Cutting Parameters That Keep the Taper Locked
The cutting load must stay below the clamping force. For a 40-taper holder with a 12 mm carbide end mill in 6061 aluminium, a radial depth of 30% of diameter and a feed of 0.08 mm per tooth is normally safe. Push radial depth to 60% and the side load doubles. That is where ejection starts.
Use the shortest holder that reaches the feature. Every 50 mm of extra overhang increases the bending moment at the taper. If the part needs long reach, step down to a smaller diameter tool and take lighter passes. A 6 mm tool at 80 mm overhang cuts better than a 12 mm tool at the same reach.
Watch spindle load and sound. A rising load curve with a sudden drop often means the tool has moved. Stop the program and check the tool length offset. If the holder has crept out, the offset will read short by 0.05 mm or more.
Coolant helps. A dry taper runs hotter and loses friction. Use through-spindle coolant where the holder allows it, and keep the taper clean between tool changes. Thermal growth of 0.01 to 0.02 mm is normal on a warm spindle, but it should not change clamping.
- 1Radial depthKeep under 30% of diameter for long-reach tools.
- 2OverhangAdd no more than 4× diameter where possible.
- 3Load watchA sudden load drop means the tool moved.
- 4CoolantThrough-spindle flow keeps the taper temperature steady.
Step by Step: Control Tool Ejection on the Floor
Run this sequence after any ejection event or every 500 spindle hours, whichever comes first.
- 11. Stop and lock outStop the program, retract the spindle to the safe plane and lock out the machine. Do not touch the holder until the spindle has stopped and the tool has been removed with the manual release.
- 22. Clean the taperWipe the spindle nose and holder taper with a lint-free cloth. Remove chips, dried coolant and any fretting debris. Inspect for a shiny ring or a dull contact band.
- 33. Measure drawbar forceFit a pull-force gauge and read the force three times. Compare against 8–12 kN for 40-taper and 3.5–5 kN for 30-taper. Record the value in the machine log.
- 44. Inspect the pull studRemove the stud and check the thread, neck and flange under good light. Replace any stud with stretch, cracking or a worn flange. Re-torque to the holder maker's value.
- 55. Check taper contactBlue the holder taper and seat it in the spindle. Aim for 80–85% contact, evenly spread around the large end. Less than 70% means the holder or spindle needs regrinding.
- 66. Measure runoutIndicate the holder nose at 50 mm from the gauge line. Keep runout under 0.01 mm. If it is higher, check the spindle taper before blaming the holder.
- 77. Reset cutting dataReduce radial engagement to 30% of diameter, shorten overhang, and lower feed per tooth by 20% for the first part. Bring the values back up only when the load curve is stable.
- 88. Run a first-article checkMachine one part and measure the critical dimensions. A size drift of more than 0.02 mm across the run is an early warning that the interface is still moving.
Symptom, Likely Cause and Correct Action
Match the symptom you see on the machine to the cause and the first fix to apply.
| Symptom | Likely cause | First action |
|---|---|---|
| Tool length offset reads short after a pass | Holder crept out of the taper | Stop, re-measure drawbar force, inspect pull stud |
| Shiny ring near the large end of the taper | Taper rocking under side load | Shorten overhang, reduce radial depth to 30% |
| Dull band, no contact pattern | Taper not seating, dirty or worn | Clean and blue the taper, check contact percentage |
| Drawbar force below 7 kN on 40-taper | Worn spring stack or weak air pressure | Service the drawbar, check air line pressure |
| Crack at the pull stud neck | Over-torque or fatigue | Replace the stud, re-torque to spec |
| Size drift over 0.05 mm in one run | Interface moving during the cut | Reduce feed per tooth by 20%, re-check runout |
| Ejection only at high rpm | Centrifugal taper growth | Use HSK or dual-contact holder for that pass |
Fix the Interface, Not the Program
If a tool ejects, the interface moved. Measure drawbar force and inspect the pull stud before you change a single feed value.
Questions Engineers Ask
Can tool ejection happen with a new holder?
Yes. A new holder with an old pull stud or a weak drawbar will still eject. The holder is only one part of the interface.
Check drawbar force and stud condition before you blame the holder.
How often should pull studs be replaced?
Treat them as consumables. Replace at the first sign of neck wear, thread stretch or flange damage, or every 12 to 18 months in heavy production.
Keep a spare set in the tool crib so a suspect stud is never reused.
Does a dual-contact holder stop ejection?
It helps a lot. Dual contact adds face contact at the spindle nose, which raises stiffness and reduces taper movement.
It does not fix a weak drawbar. Measure force first.
What radial depth is safe for long-reach tools?
Keep radial engagement under 30% of diameter and overhang under 4× diameter where the feature allows it.
If you must go longer, step down to a smaller tool and take lighter passes.
Why does ejection show up at corners?
Corner exits create a radial load spike. The tool gets pushed sideways when the engagement suddenly changes.
Use a smaller radial depth or a trochoidal path at corners to smooth the load.
How do we record this for ISO audits?
Log drawbar force, pull stud replacement, taper contact and runout at each service interval.
Keep the records with the machine maintenance file so the trend is visible.
