How to Deal With Burrs After Machining
Burrs after machining are the thin raised metal left on an edge when the tool exits the cut. This guide is for engineers and buyers who need to decide how much deburring a part really needs. You will see where burrs come from, which removal method fits which edge, and what to put on the drawing so the shop and the inspector agree.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Five things to settle before you quote
Why burrs after machining form where they do

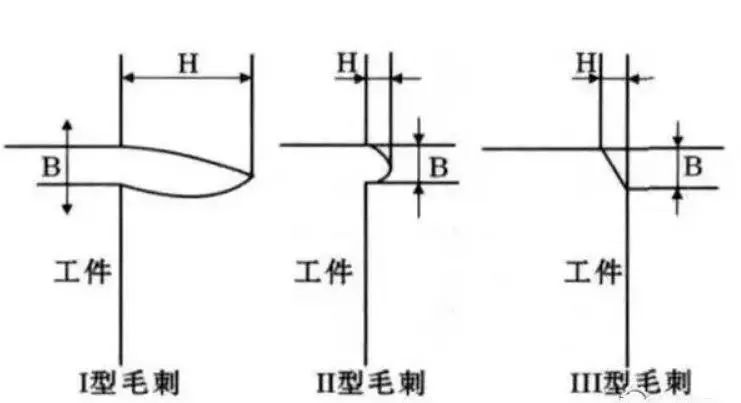

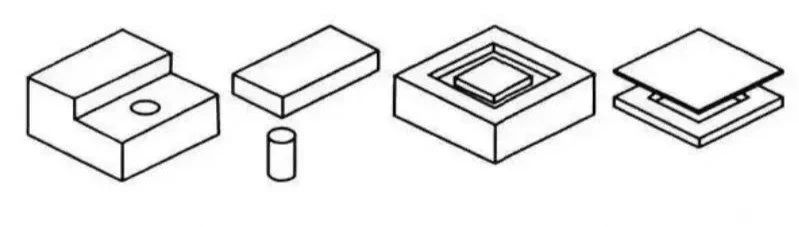

A burr is material that was compressed instead of sheared. As the insert pushes through the workpiece, the metal ahead of the edge deforms plastically. When the edge finally exits, that deformed layer stays attached as a thin flap. Softer alloys such as 6061 and 5052 bend into long, ductile burrs. Hardened 17-4PH and 440C tend to break off short, leaving a rough edge instead of a curl.

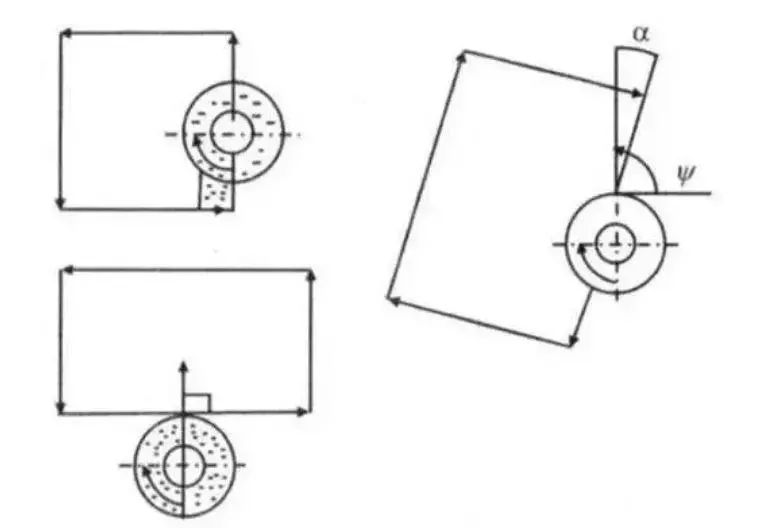

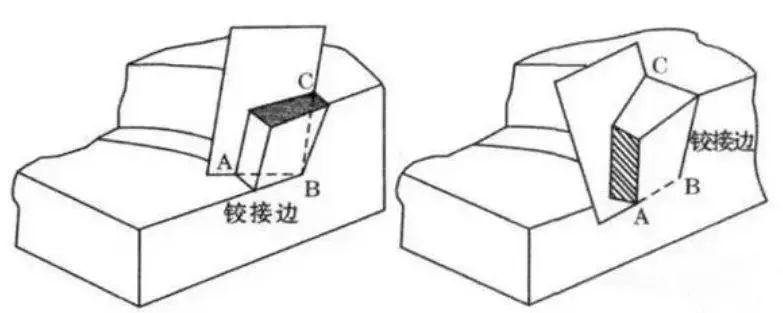

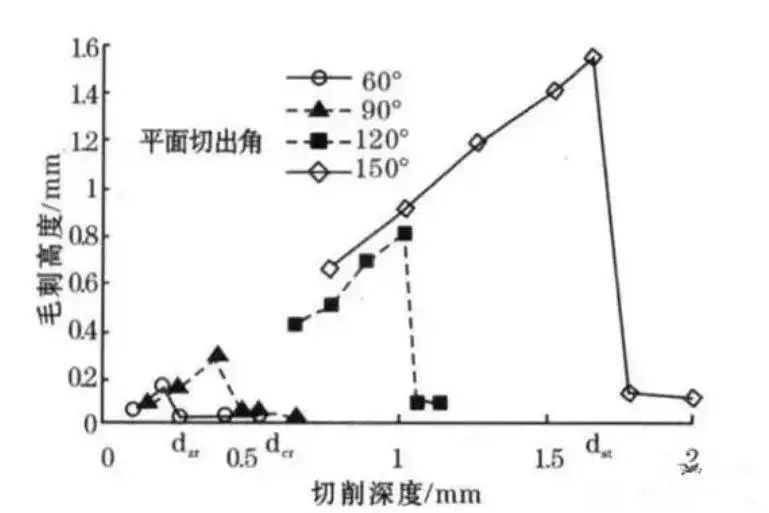

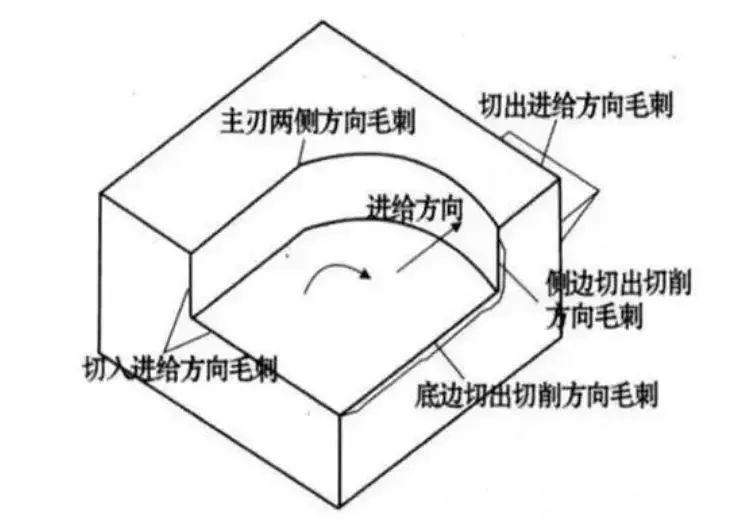

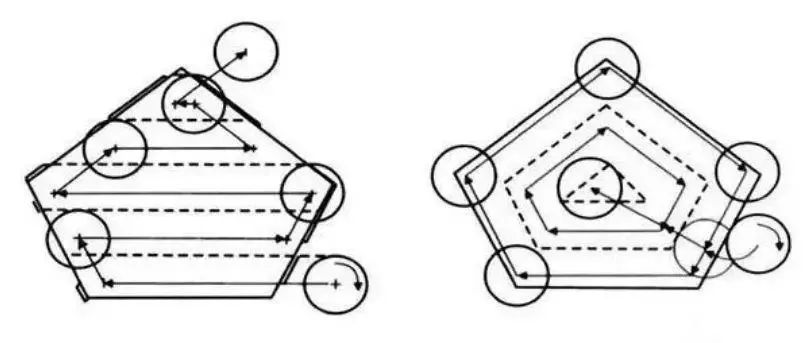

Tool exit angle decides size more than spindle speed does. A 90° corner exit leaves a heavier burr than a 30° exit. Face milling a flat top face usually leaves a small burr on the entry side and a larger one on the exit side. Drilling is worse: the drill pushes material out at breakthrough, so the back side of every through hole carries a burr ring.

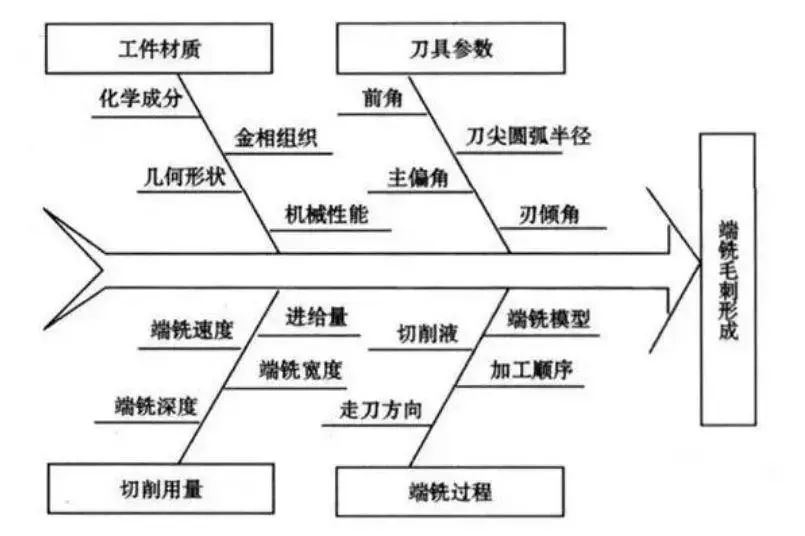

Cutting parameters shift the picture but rarely remove it. Increasing feed per tooth from 0.05 mm to 0.15 mm on aluminium often turns a tall thin burr into a smaller, more brittle one. Too light a finishing pass, under 0.05 mm radial engagement, rubs the surface and can make the burr worse. That is why a roughing pass followed by a proper finishing allowance works better than one light pass.
Heat matters too. Titanium and Inconel work-harden in the cut zone. A dull insert heats the surface, and the hardened layer tears instead of cutting cleanly, leaving a jagged edge that is difficult to file. Fresh inserts and adequate coolant do more for edge quality on these alloys than any bench work afterwards.
- 1Ductile alloysAluminium and mild steel bend into long burrs that need cutting, not just brushing.
- 2Hard alloysTitanium and tool steel chip at the edge; expect a rough burr and possible micro-cracks.
- 3Cross-holesWhere a drilled hole meets a bore, the burr sits inside and no file will reach it.
Define the edge, not the process
Most arguments about burrs start on the drawing. 'Deburr all edges' means nothing measurable, so the shop does what is quick and the inspector cannot reject it. Replace it with a callout: edge break 0.1–0.3 mm, no sharp edges, burr height 0.05 mm maximum on sealing faces. Those numbers can be checked with a radius gauge or an optical comparator.
Not every edge needs the same treatment. A mounting face that sits against a gasket needs a clean break so the seal does not tear. A press-fit bore needs a small chamfer so the pin enters without shaving material. A cosmetic external edge on a housing may need a 0.5 mm radius blended by hand. Group edges into functional classes and give each class one number.
Edges that must stay sharp are just as important to mark. Cutting blades, shearing edges and some fluidic channels rely on a crisp corner. If you write 'deburr all edges' on that print, you have asked the shop to destroy the function. Write 'keep sharp' on those edges and let the rest be broken.
Add the requirement to the inspection plan. If burr height is on the drawing, it belongs in the first article report and in the in-process checks. Before shipment we inspect 100% of parts, and edge conditions can be photographed and reported on request. That closes the loop between drawing, machining and inspection.
- 1Give a number0.1–0.3 mm edge break is a specification. 'Deburr' is a wish.
- 2Class the edgesSealing, press-fit, cosmetic and sharp edges each get their own note.
- 3Name the gaugeRadius gauge, optical comparator or visual standard, stated up front.
Choosing a deburring method that fits the part
Manual deburring with a file, scraper or rotary burr is still the most flexible option. It suits low volumes, large parts and edges you can see. The risk is variability: two operators can leave two different edge breaks on the same feature. For parts above a few hundred pieces, that spread becomes a quality problem unless you add a radius gauge at the bench.
Mechanical methods cover the middle ground. Vibratory tumbling with ceramic media removes small burrs and rounds edges uniformly, and it works well on parts under roughly 200 mm that have no fragile features. Brush deburring with an abrasive nylon wheel targets specific edges. Bead blasting cleans surfaces and softens light burrs but will not remove a heavy one, and it can round a sharp edge you wanted to keep.
Thermal energy method (TEM) puts the part in a chamber filled with combustible gas and ignites it. The flash reaches roughly 3,000 °C for a few milliseconds and burns away burrs wherever gas reaches, including internal cross-holes. It suits complex manifolds and hydraulic bodies. The limits are real: it oxidizes the surface, so a subsequent acid clean or finish is needed, and thin walls can distort.
Electrochemical deburring removes material by anodic dissolution. It leaves no thermal damage and no mechanical stress, which makes it a good fit for medical and aerospace parts where edge metallurgy matters. It needs a tool electrode shaped to the edge, so it pays off on repeat production rather than one-offs. For most prototype work, hand and mechanical methods are enough.
- 1ManualBest for prototypes, large parts and hard-to-reach external edges.
- 2TumblingUniform edges on small parts; avoid parts with fine threads or thin walls.
- 3TEMReaches internal cross-holes; leaves an oxide layer that must be cleaned.
- 4ElectrochemicalNo heat, no stress; needs a dedicated electrode, so it suits production runs.
Three mistakes that keep burrs coming back
The first is deburring too early. If you break an edge before the final finishing pass, the next pass re-creates a burr on the same edge. Sequence finishing first, then deburring, then cleaning. The only exception is an edge that the finishing pass cannot reach, such as a back-side chamfer.
The second is using the wrong media for the material. Ceramic media that rounds aluminium edges nicely will barely touch a hardened steel edge. On soft alloys, tumbling also peens the surface and can close a small drilled hole. Run a test with a few parts before committing a whole lot.
The third is treating deburring as a cost with no owner. When nobody owns the edge spec, the shop does the fastest thing and the customer rejects the result. Put the edge callout on the print, put the check in the inspection plan, and name who signs it off. That is how burrs after machining stop being a recurring surprise.
- 1Wrong orderDeburring before finishing creates the burr all over again.
- 2Wrong mediaTest on a few parts; soft alloys peen and small holes can close.
- 3No ownerAn edge spec with no inspector is not a spec.
Step by step: dealing with burrs after machining
Follow this order. Skipping a step usually moves the problem downstream instead of removing it.
- 11. Identify the critical edges firstWalk the print and mark every edge that touches a seal, a bearing, a pin or a human hand. Mark edges that must stay sharp. This list drives everything after it. Common mistake: starting at the bench before reading the drawing.
- 22. Fix the tool path before adding bench timeAdd a 0.2–0.5 mm chamfer pass with the same tool on external contours, or use a chamfer mill on a separate operation. Increase feed per tooth on aluminium to 0.10–0.15 mm to make burrs thinner and more brittle. Ramp the cutter off the edge instead of exiting perpendicular.
- 33. Control the finishing allowanceLeave 0.15–0.30 mm radial allowance for the finishing pass. Do not drop below 0.05 mm radial engagement, or the tool rubs and the burr grows. Change inserts before the wear land reaches 0.2 mm on titanium and stainless.
- 44. Remove internal burrs while the part is still locatedDeburr cross-holes from the parent bore with a flexible abrasive tool or a back-spotting tool. Doing this on the machine keeps the datum you just machined. If the part has many internal channels, send it to TEM or electrochemical deburring instead.
- 55. Deburr external edges to the calloutBreak external edges to 0.1–0.3 mm with a file, scraper or abrasive brush. Check with a radius gauge every 10–20 parts, not once per shift. Avoid over-breaking: a 0.5 mm break on a 2 mm wall removes 25% of the wall thickness.
- 66. Deburr before surface finishingAnodizing, electroless nickel and powder coating all follow the edge geometry you leave. Sharp corners stay sharp and can chip the coating. Finish deburring, then clean, then coat. Laser marking with a minimum character height of 1.5 mm comes after the finish.
- 77. Inspect and record the edge conditionCheck burr height against the drawing limit, typically 0.05 mm on sealing faces. Photograph the first article and keep the image with the report. Note any edge that was hand-blended so the next run starts from the same standard.
Which deburring method fits which edge
Pick the method from the edge type and the production volume, not from habit.
| Method | Best for | Typical edge result | Watch out for |
|---|---|---|---|
| Hand file or scraper | Prototypes, large parts, visible edges | 0.1–0.5 mm break | Operator-to-operator spread |
| Abrasive brush | External edges on turned parts | 0.1–0.2 mm break | Rounds edges you wanted sharp |
| Vibratory tumbling | Small parts, 100+ pieces | Uniform 0.05–0.2 mm radius | Damages fine threads and thin walls |
| Bead blasting | Light burrs plus surface cleaning | Softens, does not cut | Will not remove a heavy burr |
| Thermal energy method | Internal cross-holes, manifolds | Burns burrs to 3,000 °C | Oxide layer, thin-wall distortion |
| Electrochemical | Medical and aerospace edges | No heat, no stress | Needs a dedicated electrode |
A number on the drawing beats a note every time
If you specify edge break 0.1–0.3 mm and a maximum burr height of 0.05 mm on critical faces, the shop can machine, deburr and inspect to the same target. If you write 'deburr all edges', you will keep paying for the argument.
Questions engineers ask about deburring
How much does deburring add to part cost?
It depends on how many edges are critical and how they are reached. Hand deburring of a few external edges is a small addition. Internal cross-holes, deep bores and complex manifolds add more because they need special tooling or a chamber process.
The cheapest way to control cost is to design edges that a chamfer pass can reach on the machine. If you send a drawing with an edge callout and a list of critical edges, we can quote the deburring step separately instead of hiding it in the cycle time.
Can burrs be avoided instead of removed?
Partly. A chamfer pass on the same setup, a controlled cutter exit angle and a proper finishing allowance all reduce burr size. On aluminium, the right feed per tooth can turn a tall ductile burr into a small brittle one that brushes off.
You cannot eliminate burrs on every feature. A drill breaking through a hole will always push material out. Design for access to that edge, or accept a controlled burr height and specify it.
What edge break should I put on a sealing face?
A 0.1–0.2 mm break is typical for a face that sits against an O-ring or gasket. The aim is to remove the sharp lip that would cut the seal, without removing so much material that the sealing width shrinks.
State a maximum burr height as well, usually 0.05 mm. Both numbers can be checked with a radius gauge and a visual comparator.
Does deburring change the part dimensions?
It can, if the edge break is large relative to the feature. A 0.5 mm break on a 2 mm wall removes a quarter of the wall. On a press-fit bore, an oversized chamfer reduces the contact length and lowers retention force.
Keep edge breaks small and put them on the drawing so the machinist and the inspector work from the same number. Critical dimensions should be measured after deburring, not before.
How do you check a burr inside a cross-hole?
You cannot see it with the naked eye on most parts. Use a borescope, a flexible probe or a controlled flow test if the part is a fluid channel. For production runs, a cast of the intersection or a sectioned sample gives a clear picture.
If the internal edge is critical, it is usually cheaper to specify thermal energy or electrochemical deburring than to inspect for a burr that hand tools cannot reach.
When should deburring happen relative to anodizing?
Always before. Anodizing follows the substrate edge. A sharp corner stays sharp and the oxide layer there is more likely to chip or crack. Any hand blending after anodizing removes the coating and leaves a color difference.
The order is: machine, deburr, clean, anodize or plate, then laser mark. If a mark is needed, plan for a minimum character height of 1.5 mm so it stays legible on the finished surface.
