How to Distinguish Left-Handed Thread From Right-Handed Thread

Thread direction decides whether a part tightens or walks loose under load. This guide shows five checks that work on a bench, a lathe, or a printed drawing. By the end you will know which test to trust on a finished thread and when a visual call is not enough.

Metric and inch threadsLeads 0.5–6 mmGauge and caliper checks

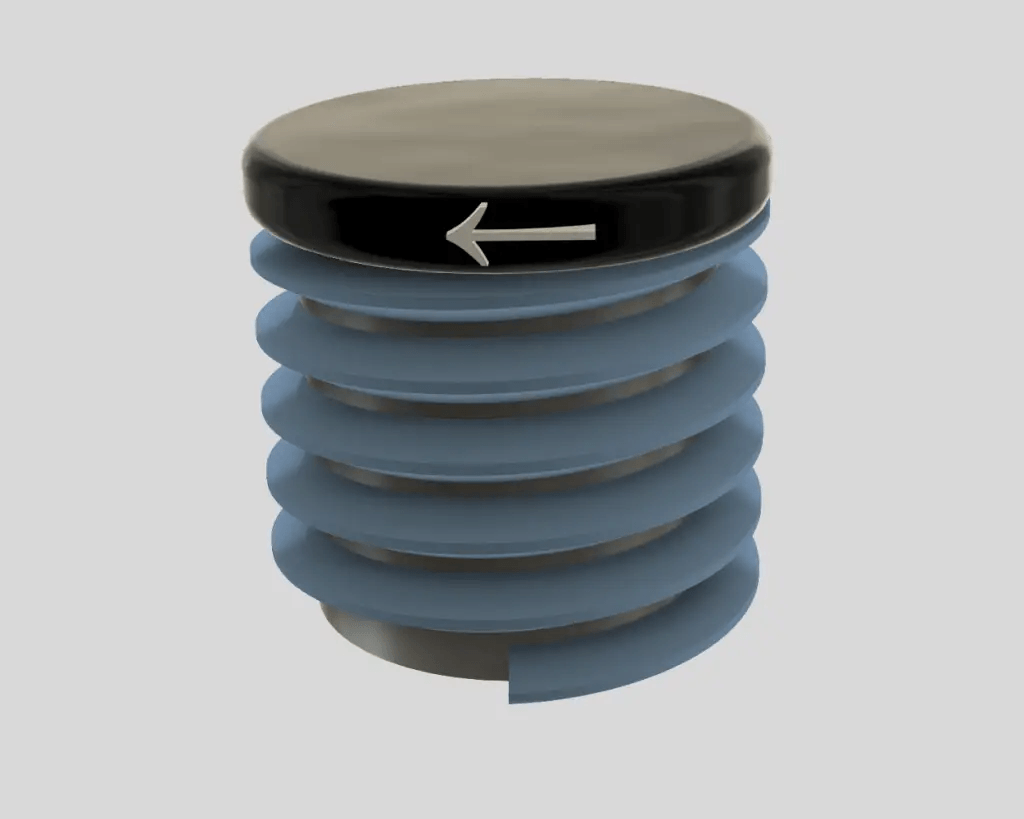

Distinguish left-handed thread from right-handed thread on CNC machined parts
Key takeaways

What matters before you measure

Right-hand wins by defaultAbout 95% of fasteners on machines and vehicles are right-hand; ISO and ASME call right-hand the default unless marked.
The tilt test is fastestRest the thread in your hand and tilt it. Right-hand ridges lean toward the right shoulder; left-hand ridges lean the other way.
The axial test is the proofTurn the nut or gauge one full turn axially and measure advance. It walks in counterclockwise on left-hand, clockwise on right-hand.
Left-hand is chosen for a reasonIt appears where rotation would otherwise loosen the joint, such as a spindle nose, a turnbuckle end, or a gas fitting.
Marking is cheap insuranceAdd LH or a left-hand note on the drawing and laser mark the part. A 1.5 mm character height is the practical floor.
Basics

What the terms mean, and when direction is set

A thread is a helix. Its hand describes which way the helix winds as it travels away from you. A right-hand thread advances when you rotate it clockwise, viewed from the end you are turning. A left-hand thread does the opposite. That single difference decides whether a spinning shaft tightens its nut or throws it off.

Most engineers never think about it because the default is right-hand. ISO 68-1 and ASME B1.1 treat right-hand as the assumed direction; a left-hand thread must be called out on the drawing. If a print says M10 × 1.5 with nothing else, it is right-hand. If it says M10 × 1.5 LH, it is left-hand.

Direction is not a cosmetic choice. It is picked so that the operating rotation tightens the joint. A grinding spindle that turns clockwise gets a left-hand nose thread so the wheel nut self-tightens. A turnbuckle has one of each so the assembly shortens when you rotate the body one way. A propane regulator uses left-hand threads so a fuel hose cannot be swapped onto an oxidizer port.

When you inspect a part, the question is narrow: does this feature match the drawing? You do not need thread geometry theory to answer it. You need one reliable check and a second one to confirm. The sections below give both, plus the mistakes that make people call it wrong.

Check 1 and 2

Visual and tilt checks: how to distinguish left-handed thread from right-handed thread fast

Hold the part so the threaded end faces you. Look at the crest closest to the top edge and follow it as it recedes. On a right-hand thread the visible ridge slopes up to the right, like the middle stroke of a capital N. On a left-hand thread it slopes up to the left. This works on a bolt, a nut, an internal bore, and a rolled stud.

The tilt test is the same check with your hands doing the work. Lay the thread across your fingertips with the axis running left to right. Tilt the far end down slightly and look along the flanks. Right-hand ridges lean toward the right shoulder; left-hand ridges lean left. Two seconds per part once you have done a few hundred.

Light matters. A shallow 60° flank on a fine pitch reflects almost the same in both directions under a single overhead lamp. Move the part until the light rakes across the flanks at about 30°. The shadow line then sits on one side of each crest and the lean becomes obvious.

Do not judge by the start of the thread. Chamfers, incomplete threads, and rolled thread run-out all lean in ways that have nothing to do with hand. Read the middle of the full thread form, at least three pitches in from either end.

The trap is painted or plated parts. Thick zinc or a heavy anodize can round the crest enough that the lean disappears. If the surface hides the flanks, stop looking and go to a gauge. Visual calls on coated threads are how wrong parts get shipped.

Check 3

Axial check with a nut, gauge, or mating part

This is the test to trust on a finished thread. Thread a nut, ring gauge, or mating part on by hand one or two turns until it is seated. Mark a line across both parts with a paint pen. Rotate the nut one full turn and measure how far it advanced along the axis with a caliper or a steel rule.

On a right-hand thread, rotating clockwise advances the nut away from you by one lead. On a left-hand thread, that same clockwise rotation backs the nut off. Reverse the rotation and the result flips. The lead is the number you compare against: 1.25 mm for M8 × 1.25, 0.05 in for a 1/4-20 UNC, 6 mm for a 60 mm lead screw.

The rule is simple: rotation direction that produces forward travel defines the hand. If counterclockwise walks the nut in, the thread is left-hand. Write the result on the inspection sheet next to the lead you measured. Two numbers, one conclusion.

Common errors. Turning the nut more than one turn and assuming linear behavior on a worn gauge. Measuring from the nut face to a chamfer instead of to a flat reference. Using a nut that has been forced onto a damaged thread, which galls and gives a false reading.

For internal threads, the same test runs with a screw or a plug gauge. For a blind hole, stop before the screw bottoms out. If the gauge bottoms on chips or on the drill point, the travel number is meaningless and the thread may pass a good gauge while failing in service.

Check 4

Reading the drawing and the machine setup

On a print, direction lives in the callout or in a note. M12 × 1.75 LH, 1/2-13 UNC LH, and G 3/4 LH are explicit. A note such as LEFT HAND THREAD or LH ALL THREADED FEATURES is equally binding. When the callout has no LH and no note, the default is right-hand and you should machine it that way.

Look at the thread note before the geometry. A left-hand callout can appear on one feature of a part that is otherwise all right-hand, and that single feature is usually the one that matters. On a shaft with a threaded nose, check the nose separately.

On a lathe or mill, the setup tells you the answer before the first chip. A right-hand turning tool fed toward the chuck with the spindle turning forward cuts a right-hand thread. To cut left-hand, reverse the spindle or feed away from the chuck depending on the control and the tool.

The classic crash is a mixed setup. The operator leaves the spindle in reverse from the previous job and cuts a left-hand thread where the drawing called right-hand. Single-point threading on a CNC lathe depends on the synchronization between spindle index and Z feed. Log the spindle direction and the feed direction for each thread feature.

On a mill with a thread mill, the interpolation direction and the tool helix must match. A right-hand thread mill cutting a left-hand thread will produce a form that looks close and gauges wrong. Verify the tool helix angle and the intended hand before you run the cycle.

Check 5

Gauges, measurement, and the limits of each method

A thread ring gauge marked GO and NO-GO settles hand in one pass. The GO member must thread on by hand over the full length of the thread. The NO-GO member should not go on more than about two turns. If a left-hand gauge is what you have, it simply will not start on a right-hand thread of the same size.

Plug gauges work the same way for internal threads. Buy them in matched pairs and keep them in the same hand. A set that has both members in left-hand will tell you nothing about a right-hand part except that it does not fit.

Pitch diameter measurement with thread wires and a micrometer gives you size, not hand. It is still worth doing on critical parts because a correct-hand thread can be out of pitch diameter and fail torque. Record the measured pitch diameter against the drawing limits.

Optical comparators and thread profilometers resolve direction and flank angle at the same time. Use them for first-article inspection on aerospace and medical parts, where a wrong hand is a scrap event, not a rework. Our inspection reports are available on request for such runs.

No single method covers every case. A visual check is fast but fails on coated or damaged threads. A gauge is definitive but only if it is the right hand. The axial travel test is the best general-purpose check because it needs nothing but a mating part and a caliper. Use two methods on any part where direction is safety-related.

Step by step

How to run the checks in order

Work from cheapest to most definitive.

  • 1
    Read the callout firstFind the thread note on the drawing. Look for LH, LEFT HAND, or a left-hand gauge callout. If the note is silent, the part is right-hand. Confirm the size, pitch, and class before touching the part.
  • 2
    Clean the threadRemove chips, cutting oil, and burrs with a brass brush and compressed air. Grit on the flanks causes false drag and scratches the gauge. Degrease coated parts if the finish hides the flanks.
  • 3
    Do the visual tilt checkHold the part with the axis left to right and rake light across the flanks at about 30°. Read the middle of the thread form, at least three pitches from either end. Note the lean direction.
  • 4
    Confirm with axial travelSeat a nut or gauge one or two turns by hand. Mark across both parts. Rotate one full turn and measure the axial advance with a caliper. Counterclockwise travel in means left-hand.
  • 5
    Verify against the lead valueCompare the measured advance with the nominal lead: 1.25 mm for M8 × 1.25, 0.05 in for 1/4-20 UNC, 2 mm for M16 × 2. A mismatch means the pitch or the class is wrong, not just the hand.
  • 6
    Run the GO/NO-GO gaugeThread the GO member on by hand over the full length. The NO-GO member should not pass more than about two turns. Confirm the gauge is stamped with the correct hand before you trust a result.
  • 7
    Log both resultsWrite the visual call, the axial direction, the measured lead, and the gauge result on the inspection sheet. Two agreeing methods are the release criterion on any part where loosening is a safety issue.
Method comparison

Which check to use, and when it fails

Pick the method by part condition and inspection stage.

MethodBest forTime per partWhen it misleads
Visual tiltBare, clean threads on the bench2–5 secondsCoated, plated, or damaged crests
Axial travelAny finished thread with a mating nut30–60 secondsWorn gauge; blind holes with chips
GO/NO-GO gaugeProduction release, internal and external10–20 secondsWrong-hand gauge set; damaged flanks
Drawing calloutSetup planning before machining1–2 minutesMissing or ambiguous LH note
Thread profilometerFirst article, aerospace and medicalSeveral minutesNot practical for 100% inspection

Check the callout, then prove it with travel

A visual lean is a fast first call, but the axial travel test is what settles direction on a finished part. Run both, log both, and treat any disagreement as a reason to stop and re-read the drawing.

FAQs

Frequently asked questions

Can I tell thread direction just by looking at a bolt?

Usually yes, if the thread is clean and bare. Hold the axis left to right, rake light across the flanks, and read the lean of the crests in the middle of the thread. Coated, plated, or rolled threads with heavy run-out can hide the lean, so confirm with an axial travel test before releasing the part.

What does LH mean on a thread callout?

LH means left-hand. The thread advances when rotated counterclockwise as viewed from the end you are turning. A callout such as M12 × 1.75 LH is explicit. If a drawing has no LH and no note, the thread is right-hand by ISO and ASME default, so machine it right-hand unless the customer confirms otherwise.

Why do some spindles and turnbuckles use left-hand threads?

So the operating rotation tightens the joint instead of loosening it. A spindle nose that turns clockwise uses a left-hand thread so the wheel nut self-tightens. A turnbuckle has one right-hand and one left-hand end so rotating the body shortens or lengthens the assembly. Gas fittings use left-hand threads to prevent cross-connection between fuel and oxidizer lines.

Does a left-hand thread need a different tap or die?

Yes. A left-hand tap or die has the opposite helix and must be run in the matching direction. Using a right-hand tap on a left-hand hole cuts the wrong form and usually ruins the gauge fit. Order left-hand tooling for the specific size and pitch, and keep it separated from the right-hand set on the shop floor.

How do I inspect a small internal left-hand thread?

Use a left-hand plug gauge in GO and NO-GO members. The GO member must enter by hand over the full thread length; the NO-GO member should not pass more than about two turns. For blind holes, clear chips first and stop before the gauge bottoms on the drill point, which gives a false pass.

What tolerance does GreatLight hold on threaded features?

We machine to ±0.005 mm on critical dimensions and inspect 100% of parts before shipment, with reports available on request. Threads are checked against the drawing callout, including hand, pitch, and class. Production can start within 24 hours of an approved order, and parts typically ship in 3–5 days.
