A turn surface is the helical track left by the tool corner as the workpiece rotates. Its sweetness is the visual and tactile result: even, bright, without chatter lines, smeared metal or torn patches. On a drawing this becomes a Ra callout, but on the machine the machinist judges it by eye and fingernail before the profilometer ever arrives.

Two parts can measure the same Ra and still look different. A surface cut with a sharp, fresh edge looks clean under a bench light. The same Ra produced by a dull edge and a high feed shows directional scratches. That is why the sweetness of the turn surface cannot be tuned by chasing one number on the controller.

The main drivers on a CNC lathe are nose radius, feed per revolution, surface speed, depth of cut, coolant delivery and machine rigidity. Each one has a working window. Push one outside that window and the others cannot compensate, no matter how carefully they are set.

This guide is for engineers and operators turning aluminium, stainless, steel or titanium on 3-axis, 4-axis, mill-turn or 5-axis equipment. It follows the order we use on the floor at GreatLight: tool first, then parameters, then coolant, then setup stiffness.

A worn or chipped corner is the single most common cause of a poor turn surface. The flank wear land rubs instead of cuts, so the surface is burnished and torn at the same time. Rule of thumb: replace the insert once flank wear reaches 0.2–0.3 mm on a finishing pass. On stainless and titanium, do not wait that long.

Built-up edge is the second cause. At low surface speed on ductile material, workpiece metal welds to the edge and breaks off in cycles. The surface looks like it has been scratched by grit. The cure is usually more speed, not less feed, plus more coolant aimed at the cutting zone.

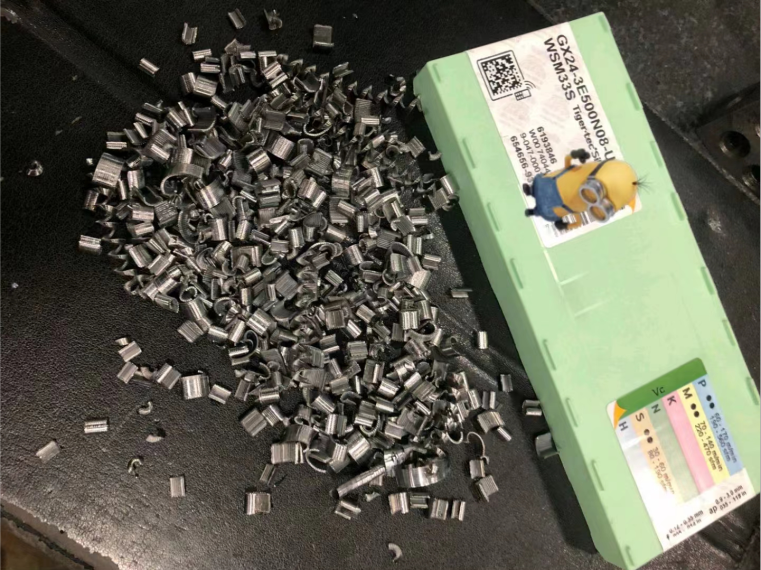

Chip recutting is the third. A nest of chips around the tool drags across the finished diameter on the next revolution. Check the chipbreaker range against your feed and depth of cut. A breaker designed for 0.25 mm/rev will not form a chip at 0.08 mm/rev; it will rub.

Vibration is the fourth. Chatter marks repeat at a fixed pitch, and their spacing points to the source. Pitch equal to one spindle revolution usually means the workpiece or chuck is loose. Irregular pitch points to the toolholder, turret or a boring bar that is too slender for the length.

• 1

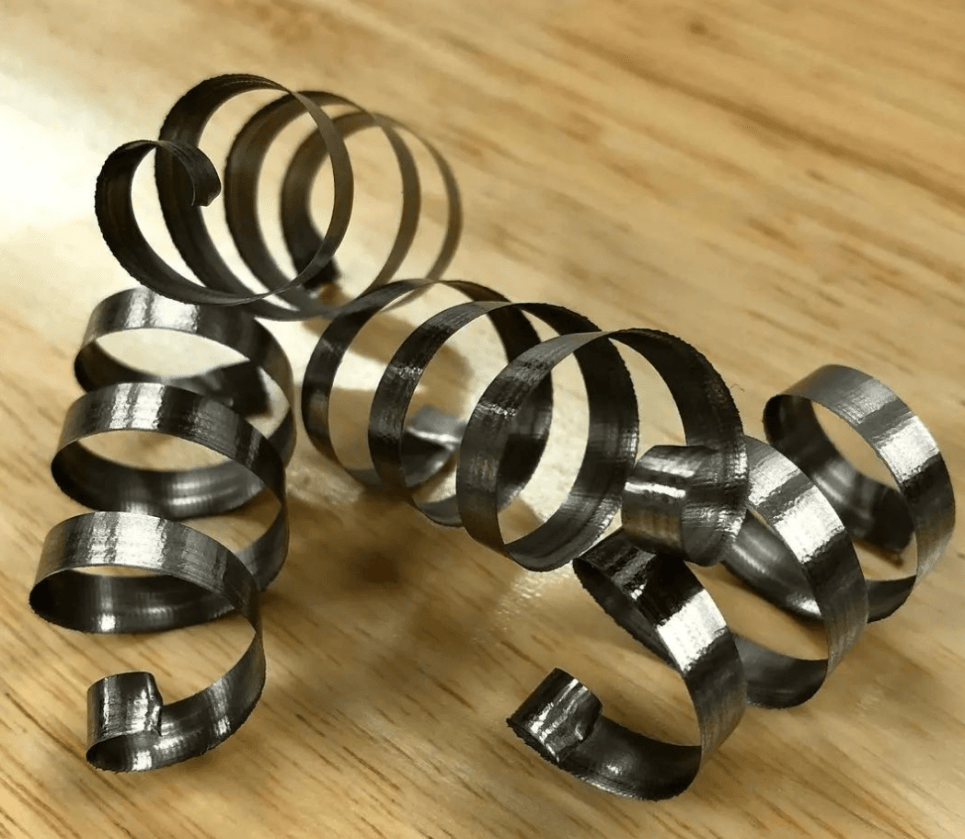

  Look at the chipA short, curled, silver chip means the cutting zone is healthy. A blue or stringy chip means too much heat or too little feed.
• 2

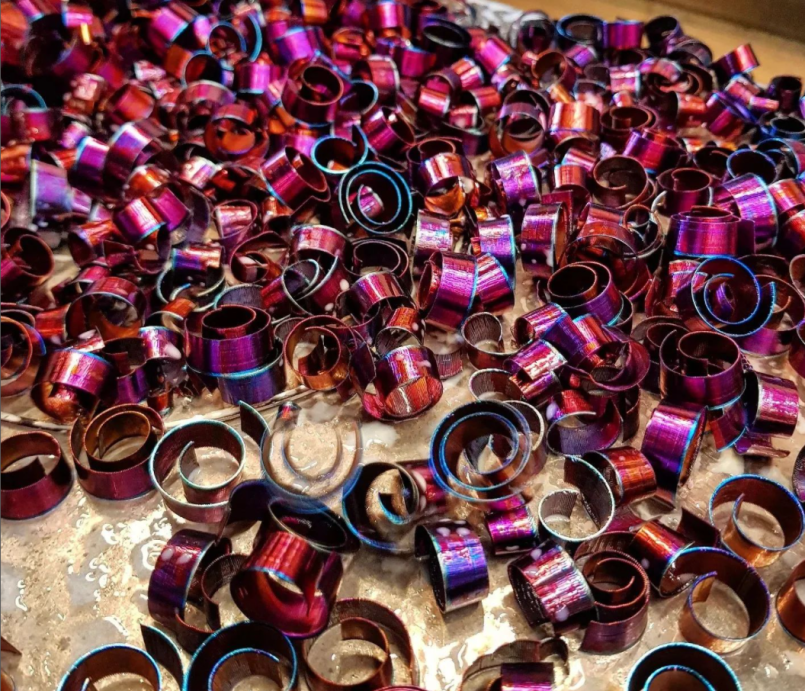

  Look at the colourBright, even grey is normal on steel. Blue or brown patches mean speed is too high for the coolant flow.
• 3
  ListenA steady hiss is good. A cyclic squeal or knock means the setup is moving.

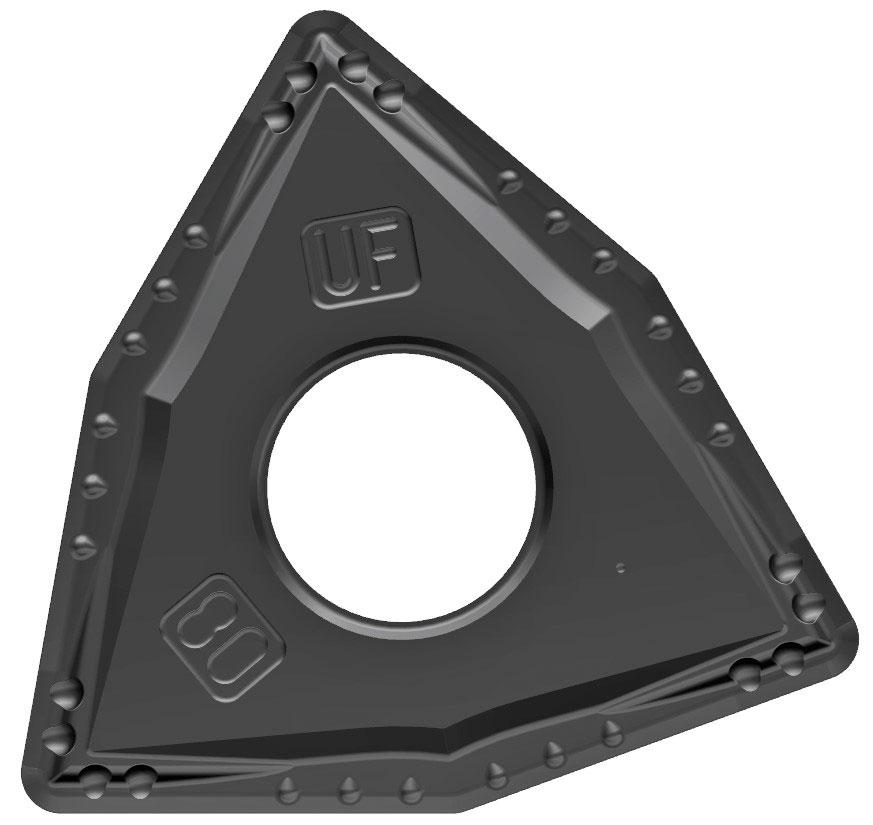

Nose radius sets the theoretical Ra floor. The classic formula is Ra ≈ feed squared divided by 32 times the nose radius. With a 0.8 mm radius and 0.1 mm/rev feed, the theoretical Ra is about 0.4 μm. With a 0.4 mm radius at the same feed, it doubles to about 0.8 μm. Going to a larger radius is the cheapest way to gain finish, as long as the part geometry allows the corner to fit into shoulders and undercuts.

Feed per revolution is the parameter most machinists adjust first, and it works. Dropping from 0.15 to 0.08 mm/rev on a 0.8 mm radius tool moves Ra from roughly 0.9 μm to about 0.25 μm. There is a limit: below about 0.05 mm/rev, many inserts stop cutting and start rubbing, and the finish gets worse. The chipbreaker range on the box tells you where that floor is.

Surface speed matters mostly for built-up edge and tool life. On 6061 aluminium, 200–400 m/min with a polished, uncoated insert gives a bright finish. On 304 stainless, stay in the 120–180 m/min range with a PVD-coated grade and heavy coolant. On 4140 steel, 180–250 m/min with a CVD grade is a solid starting point. On Ti-6Al-4V, keep it low, around 40–70 m/min, or the edge will fail in minutes.

Depth of cut on a finishing pass should be at least 0.3–0.5 mm, and ideally larger than the nose radius. A very light pass, say 0.05 mm, does not engage the edge properly; it rubs the work-hardened skin left by the previous pass and gives a patchy surface. If your finish pass is thinner than 0.2 mm, add a semi-finish pass first.

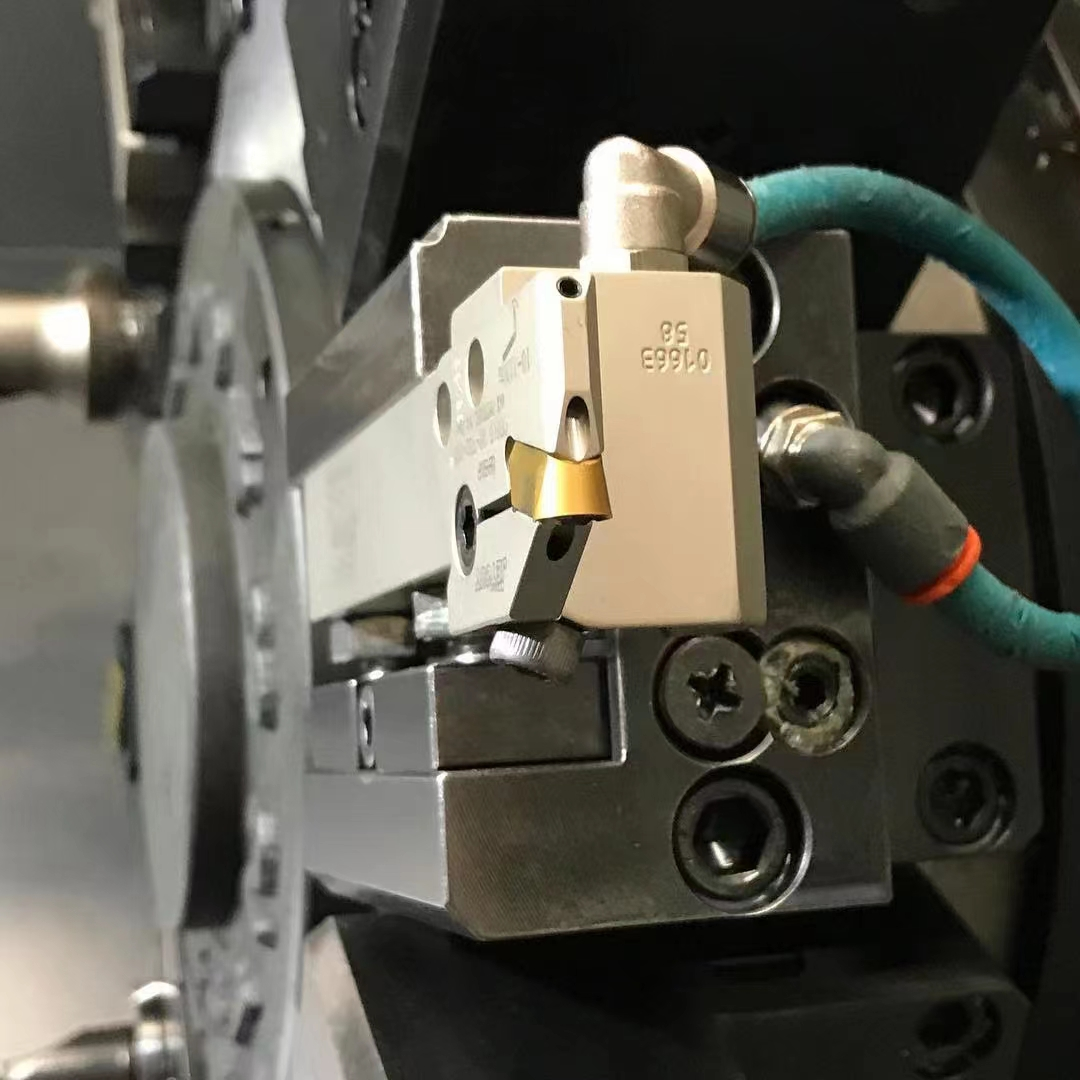

Coolant has two jobs: remove heat and break the chip. Flood coolant aimed at the top of the insert often misses the cutting zone entirely. For finishing, aim a high-pressure jet at the gap between the flank face and the workpiece, or use through-tool coolant if the holder supports it. A 7–10 MPa jet will lift the chip out instead of letting it ride on the surface.

For aluminium, a water-soluble emulsion at 8–10% concentration works well. For titanium and Inconel, use a heavier concentration and higher pressure, because the chip tends to weld. For cast iron, dry cutting with air blast often gives a better finish than wet, since the graphite dust does not turn into a grinding paste.

Toolholding rigidity sets the real finish limit. A 20 mm boring bar at a 4:1 length-to-diameter ratio is stable. At 8:1 you should expect chatter and move to a carbide shank or a tuned boring bar. On the outside diameter, a short, rigid holder in a clean turret seat is worth more than any parameter change.

Workpiece support matters just as much. Long shafts need a tailstock or steady rest. Thin-walled tubes deflect under cutting force, so reduce depth of cut and feed, and consider a soft jaw that wraps more of the diameter. On a mill-turn center with a Ø400 mm rotary table, an unbalanced fixture will show up as a once-per-revolution mark on the finish.
