How to Lift a CNC Machine
This guide is for maintenance techs, riggers and plant engineers moving a mill, lathe or machining center. It covers weight verification, rigging hardware, sling angle math and the lift sequence we use on our own 127 machines. Read it before you rent a crane.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Key takeaways
Confirm weight, center of gravity and lifting points
Every lift starts with numbers, not with a crane. Pull the machine manual and find three things: net weight, shipping weight and the location of the center of gravity. Net weight covers the bare machine. Shipping weight adds pallet, crating, coolant, way lube, and sometimes the transformer or hydraulic power unit that ships loose. For a mid-size vertical machining center with a 40-taper spindle, the difference between the two can run 300–800 kg.
If the manual is gone, contact the builder with the serial number. Do not estimate from a similar model. Machine builders change castings, add counterweights and move the electrical cabinet between revisions, and a 200 kg error is enough to overload a sling. As a rough sanity check, a benchtop mill sits in the few-hundred-kilogram range, while a large five-axis machining center with a 4,000 mm table can pass 20 tonnes.
Center of gravity matters more than total weight. On a vertical mill the CoG sits low and slightly behind the column. On a lathe it is roughly under the spindle, biased toward the headstock and the chuck. On a gantry or bridge mill the CoG is high and centered. Mark the CoG on the machine with tape before rigging so the crane operator and the spotter are working from the same picture.
Find the lifting points the builder intended. Most machines have four threaded lifting eyes, cast-in pockets or a lifting bar that spans the column. Some builders mark them with a hook symbol or an arrow. If the machine has only two points, it was designed for a balanced two-leg lift with a spreader, not for a choker around the base.
- 1Net vs shipping weightAdd coolant, tooling, pallet and any loose power unit.
- 2CoG locationLow and off-center on mills and lathes, high on gantries.
- 3Rated lifting pointsUse only eyes, pockets or bars the builder rated for the full machine weight.
- 4Serial numberGive it to the builder to get the exact weight and rigging drawing.
Choose rigging gear that matches the load and the geometry
Sling capacity is listed for a vertical pull. That number drops as the angle from horizontal closes. At 60° a two-leg sling keeps about 87% of its rated capacity per leg. At 45° it is 71%. At 30° it is 50%. This is why a 5-tonne sling set that looks oversized on paper can be marginal on a wide machine with a short hook height. Measure the angle before you pick the sling, not after.
For machines under about 2 tonnes, a certified four-leg chain or synthetic sling set with a 4:1 safety factor is normal. Above that, use a spreader beam or a lifting frame. The beam does two jobs: it keeps sling legs vertical so the capacity math stays simple, and it keeps the slings off the top of the column, where they can bend way covers, crush cable carriers or crack the sheet-metal enclosure.
Shackles, hooks and master links must be rated and marked. A screw-pin shackle with a working load limit below the leg tension is a single point of failure. Check for cracked or deformed shackle pins, cut sling jackets and missing safety latches. Pull the inspection tag on every piece before it goes on the machine.
A load cell or a dynamometer in the master link is cheap insurance on an unfamiliar machine. It tells you the real load during the initial 50–100 mm test lift and confirms your weight estimate before anyone stands under the machine.
- 1Angle correctionLeg tension rises quickly below 60° from horizontal.
- 2Spreader beamKeeps legs vertical and protects covers and cable runs.
- 3Rated hardwareShackles, hooks and master links marked with a WLL.
- 4Load cellVerifies real weight during the first test lift.
Prepare the machine and the floor before lifting
Disconnect power at the panel and lock it out. Drain the coolant tank and the way-lube reservoir, or at least lower the level. A full 200 L coolant tank adds roughly 200 kg and shifts the center of gravity. Remove the tooling from the spindle and the turret, unbolt the vise and any fixtures, and park the axes near the middle of travel so the mass is balanced.
Lock the axes if the builder provides shipping locks or blocks. On machines without locks, strap the table to the saddle and the saddle to the column with padded webbing. Unlocked axes can slide during a lift and put a sudden side load on the sling or the ball screws.
Protect surfaces that the slings will touch. Foam blankets or split rubber hose on the sling contact points stop paint damage and keep the sling from cutting into sheet-metal. Cover the control pendant, the spindle taper and the glass scales. Tape over any open connector.
Clear the path. Check the floor for cracks, expansion joints and drain covers that a forklift or crane dolly can drop into. Check the door height, the ceiling height and any overhead pipes or bus ducts. A 20-tonne machine is easy to move and hard to stop once it swings.
- 1Power down and lock outTag the disconnect before anyone touches a sling.
- 2Drain coolantRemoves weight and lowers the center of gravity.
- 3Lock or strap the axesStops table or turret movement during the lift.
- 4Clear the pathCheck floor, door and overhead clearances first.
Common mistakes and how to avoid them
The most expensive mistake is lifting from a point the builder never rated. Choking a sling around the base casting or the column looks convenient, but the casting wall may be 10–15 mm thick and not designed for a side load. Cast iron is strong in compression and weak in bending. It cracks, and a cracked column ends the machine.
The second mistake is a two-point lift on a tall machine. Two slings form a line, and the machine can rotate around that line. A vertical machining center with a high column has a narrow tipping margin. Use four points whenever the builder provides them, or a lifting frame that keeps the load vertical.
The third is ignoring sling angle. A rigger who picks a 5-tonne sling set for a 4-tonne machine without measuring the angle can overload a leg at 30°. Do the math or use a spreader so the legs stay near vertical.
The fourth is rushing the set-down. Dropping a machine onto an uneven floor or onto skates that roll away can twist the base and put the geometry out of alignment. Set it down on leveling pads, check the level in both axes, and only then release the rigging.
- 1Unrated lifting pointsSide loads crack castings. Use only rated eyes or pockets.
- 2Two-point liftsThe machine can rotate around the sling line.
- 3Ignoring sling angleCapacity drops fast below 60° from horizontal.
- 4Rushed set-downUneven floors and runaway skates twist the base.
Re-check the machine after it lands
A lift puts the frame under a load path it does not see in normal cutting. After the machine is down and the rigging is off, walk the casting and look for fresh cracks, paint cracks near lifting eyes, deformed sheet metal and pinched cable carriers. Check the leveling pads and the floor for point loads that could crack a slab.
Re-level the machine in both axes. A machine that was level before the move is often 0.02–0.05 mm/m out afterward. If the machine has linear guides or a precision spindle, let it sit for a few hours before the final level check so the casting can settle.
Reconnect power and air, refill the coolant and lube reservoirs, and check the way lube lines for kinks. Home the axes and check backlash and positioning before running a test part. If the machine was moved across a building, a quick ballbar or test cut catches alignment problems before they reach production.
Keep the lift record. Note the date, the measured weight, the rigging gear used and who performed the lift. It helps the next move and it satisfies most internal safety audits.
- 1Inspect the castingLook for cracks near eyes, pads and sheet-metal joints.
- 2Re-level both axesExpect 0.02–0.05 mm/m drift after a move.
- 3Check lube linesKinked way-lube lines starve the guides.
- 4Keep a lift recordDate, weight, gear and rigger, for the next move.
Step by step: how to lift a CNC machine
Follow the sequence. Do not skip the test lift.
- 11. Confirm the weight and CoGGet the shipping weight from the manual or builder. Add coolant, tooling and any loose unit. Mark the CoG on the casting with tape.
- 22. Inspect the rigging gearCheck slings for cuts and abrasion, shackles for cracked or bent pins, hooks for a working latch. Verify every WLL against the calculated leg tension.
- 33. Install the spreader or lifting frameAttach the frame to the rated points with rated shackles. Keep the sling legs as vertical as the geometry allows, and never below 45° from horizontal.
- 44. Pad the contact pointsWrap foam or split hose where slings cross the machine. Route slings away from cables, way covers, glass scales and the control cabinet.
- 55. Take up the slack slowlyRaise the hook until the slings are taut, then stop. Watch the machine for any tilt or shift. Adjust the leg lengths before the machine leaves the floor.
- 66. Test lift 50–100 mmLift slowly, hold for two minutes and check the load cell reading, the sling angles and the machine attitude. Lower it back down and correct anything that moved.
- 77. Complete the liftRaise to the required height, then travel with a tag line on each corner. Keep people out from under the load. Never let the machine swing free.
- 88. Set down and re-checkLower onto leveling pads or skates, release tension slowly, then inspect the casting, covers and cable runs for cracks or pinches before reconnecting power.
Rigging method by machine size
Pick the method that matches the machine weight and the headroom you actually have.
| Machine class | Typical weight | Rigging method | Key precaution |
|---|---|---|---|
| Benchtop mill or lathe | 150–600 kg | Engine hoist or forklift with slings | Protect the table and spindle nose |
| Small VMC or CNC lathe | 1,500–4,000 kg | Four-leg sling set, no spreader | Keep legs above 60° from horizontal |
| Mid-size VMC | 4,000–8,000 kg | Spreader beam plus certified slings | Keep slings clear of way covers |
| Large VMC or lathe | 8,000–15,000 kg | Lifting frame with four rated points | Verify CoG before the first lift |
| Five-axis or gantry | 15,000 kg and up | Engineered lift plan, spreader frame | Two-point lifts are not allowed |
The rule that matters
If you cannot confirm the weight, the center of gravity and the rated lifting points, stop and call the builder. A crane rental costs far less than a cracked column.
Frequently asked questions
Can I lift a CNC machine with a forklift?
Only for lighter machines, and only from below the base with the forks fully under the casting and the load centered. Never lift a machining center by the sheet-metal enclosure or by the table.
For anything above roughly 3,000 kg, use a crane or a lifting frame. Forklifts have a load chart that drops as the load center moves forward, and a long machine pushes the load center out fast.
How much does a CNC machine weigh?
A benchtop mill is often 150–600 kg. A small vertical machining center runs 1,500–4,000 kg, a mid-size VMC 4,000–8,000 kg, and a large five-axis or gantry machine can pass 15,000–20,000 kg.
Use the builder's shipping weight, not a guess. Add coolant, tooling and any loose power unit.
Where are the lifting points on a CNC machine?
Most builders provide four threaded lifting eyes, cast-in pockets or a lifting bar across the column. They are usually marked with a hook symbol or an arrow, and sometimes listed in the manual.
If you cannot find them, call the builder with the serial number. Do not invent a lifting point on the casting.
What sling angle is safe for a CNC machine lift?
Keep the sling legs at 60° or steeper from horizontal. At 45° each leg carries about 71% of its rated capacity; at 30° it is 50%.
A spreader beam lets you keep the legs near vertical, which keeps the capacity math simple and protects the top of the machine.
Do I need to drain coolant before lifting?
Yes, or at least lower the level. A full 200 L tank adds roughly 200 kg and raises the risk of a spill during the lift.
Draining also lowers the center of gravity, which makes the machine more stable in the slings.
How long should the machine sit before re-leveling?
Let it sit a few hours after set-down so the casting can settle, then check level in both axes. A machine that was level before the move often reads 0.02–0.05 mm/m out afterward.
Re-check the level again after the first week of running, especially on a new floor.
Moving a machine into production?

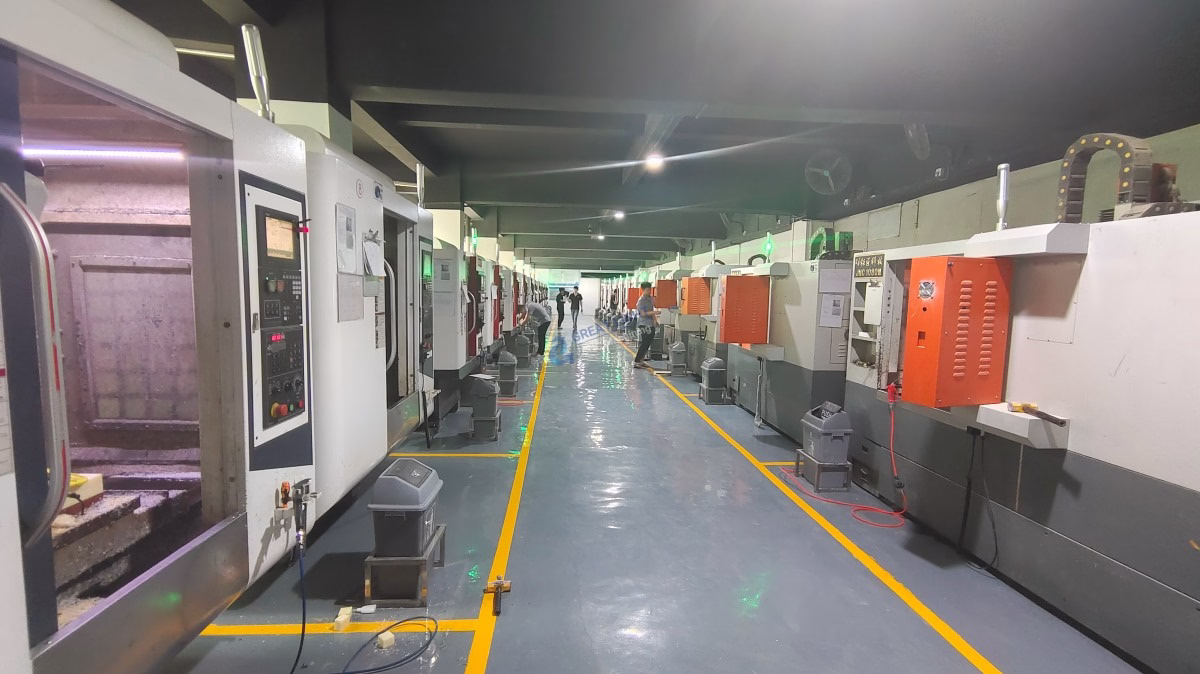

We run 127 CNC machines across three plants and move them in-house. Send us your drawing and we will quote the parts, not just the move.
