The Efficiency of Machining: How High-Speed Cyclone Milling Heads Cut Metal

• 1
  Key takeaways
• 2
  What a cyclone milling head actually does
• 3
  Speed, feed and the limits of the process
• 4
  Where the efficiency of machining improves most
• 5
  When a cyclone head is the wrong choice
• 6
  Cyclone head vs standard end mill

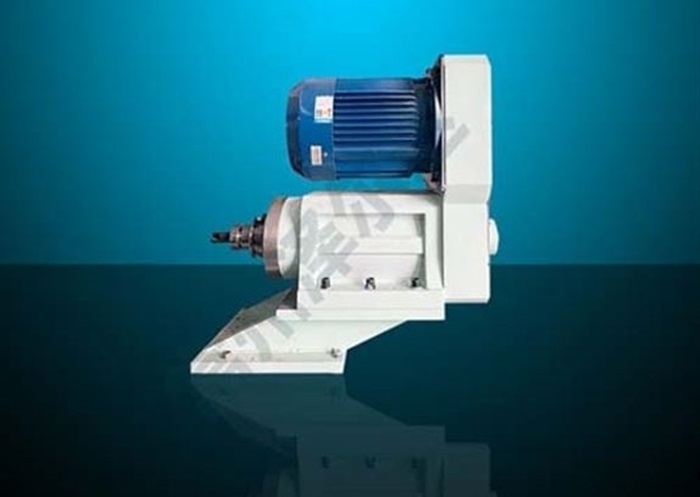

A cyclone milling head is not a single cutter. It is a tool body with a ring of small indexable inserts around its periphery, spun on a high-speed spindle. Each insert takes a very shallow radial bite as the body passes the workpiece. The material leaves as many fine chips per second rather than a few thick ones. That single change is where most of the efficiency of machining comes from on this type of tool.

The name comes from the air and chip flow around the spinning body. The head runs fast enough that chips are thrown clear of the cut zone instead of being recut. On deep walls this matters more than the insert geometry itself. Recutting is a common hidden cost on standard end mills in deep slots, and a cyclone head largely removes it.

Cutting force drops because chip thickness per tooth is small. A 12-insert head at 12,000 rpm produces far more tooth engagements per second than a 4-flute end mill at the same spindle speed, yet each engagement is light. The spindle sees a smoother average load, and the part sees less peak force. For thin-wall parts, that difference decides whether the wall stays straight.

• 1
  Light chip load per toothTypically 0.02–0.08 mm per tooth, depending on insert grade and material.
• 2
  High tooth frequencyMore cuts per second spreads heat and load across the insert ring.
• 3
  Chips exit earlyAirflow and centrifugal throw keep the cut zone cleaner than a flute-based cutter.
• 4
  Lower peak radial forceThe main reason thin walls and long reach tools survive the cut.

Cyclone heads run in a narrow but wide-enough window. Surface speed on aluminum sits around 300–800 m/min; on stainless and titanium it drops to roughly 60–180 m/min because insert wear accelerates fast above that. Feed per tooth stays small, usually 0.02–0.08 mm. Radial depth of cut is often 0.3–1.0 mm, and axial depth can be several times the radial value on rigid setups.

The limiting factor is rarely the tool. It is the spindle. A cyclone head needs high rpm to reach its surface speed window, and many 40-taper machines top out before that. On a 50-taper or HSK spindle the numbers line up. If your machine cannot reach the rpm, the head still works, but you lose the specific efficiency gain and the tool becomes an expensive end mill.

Rigidity is the second limit. The head is a large diameter body, so it needs a stable holder and a short gauge length. Long extensions kill the advantage. On deep cavities, a smaller diameter head with a longer reach cancels out most of the benefit. In those cases we usually go back to a long-reach end mill and accept slower removal.

• 1
  Aluminum: 300–800 m/minHigh rpm needed; watch chip evacuation on deep walls.
• 2
  Stainless and steel: 60–180 m/minInsert grade drives life more than speed here.
• 3
  Titanium and Inconel: lower the top endHeat stays in the cut, so coolant delivery matters.
• 4
  Radial depth 0.3–1.0 mm typicalAxial depth can be larger on rigid setups.

The tool pays off on parts with long continuous walls, thin sections, or interrupted cuts. A 2 mm aluminum wall 80 mm tall is a classic case. A standard end mill will deflect and chatter; a cyclone head with low radial engagement keeps the wall straight and the finish within Ra 0.8–1.6 μm without a second pass. That is a real reduction in cycle time, not a theoretical one.

Interrupted cuts are the second case. Castings and weldments often have hard spots and gaps that break a normal edge. Small inserts handle interrupted engagement better because the impact load per tooth is low. In our shop, cast aluminum housings and welded steel frames are the jobs where the head shows the clearest gain.

The third case is high-volume runs of the same geometry. When the tool path is fixed and the material is consistent, the cyclone head can be programmed once and run for thousands of parts with predictable insert changes. On one-off prototypes, the setup time often eats the gain.

• 1
  Long thin wallsLow radial force keeps the wall from springing.
• 2
  Interrupted cutsSmall inserts survive hard spots that chip a full edge.
• 3
  Repeat productionFixed tool paths make insert wear predictable.

Blind pockets and sharp internal corners are a poor fit. The head is a large diameter body, so it cannot reach into a small corner radius. If the drawing calls for a 3 mm internal radius in a pocket, you need a small end mill regardless of how the rest of the part looks. Mixing tools is normal; forcing one tool to do both usually costs more.

Short runs and one-off parts rarely justify the setup. Insert selection, balancing and trial cuts take time. If the run is 5 parts, a standard end mill with a proven program is faster overall. We reserve cyclone heads for runs where the per-part saving exceeds the setup cost.

Deep cavities with limited access are the third no-go. Long reach cancels the rigidity that makes the tool work. In those jobs, a long-reach end mill with a tuned program and light passes is the safer choice. It is slower per pass but it finishes the part.

• 1
  Small internal radiiTool body diameter sets the minimum corner radius.
• 2
  Very short runsSetup and balancing time outweighs the cycle gain.
• 3
  Deep, narrow cavitiesLong gauge length removes the rigidity advantage.
