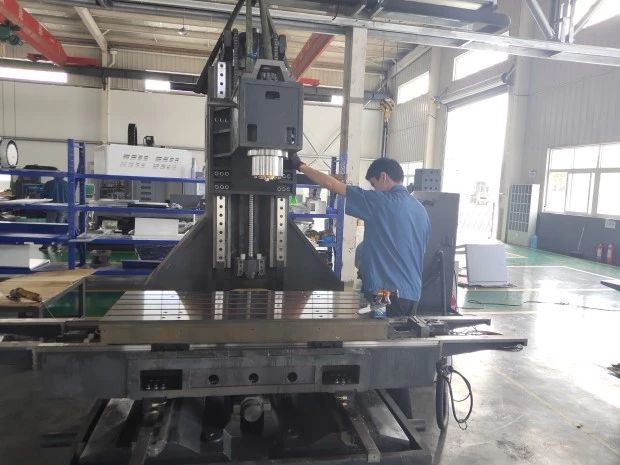

Machine Tool Guide Rails Are Generally Divided Into These Categories

• 1
  What a guide rail actually does
• 2
  Sliding guideways: flat and dovetail
• 3
  Rolling guideways: linear rails and roller types
• 4
  Hydrostatic and hybrid guideways
• 5
  How rail choice reaches the part
• 6
  When each category is the wrong choice
• 7
  Guideway category comparison

A guide rail is a constrained interface. It lets one machine element travel along a defined axis while resisting motion in every other direction. The rail must carry the weight of the moving assembly, absorb cutting forces, and keep the tool tip on the intended path. Those three jobs pull in different directions, which is why no single rail design dominates every machine.

The load path matters more than the rail's outward shape. In a rolling-element system, force travels from the carriage through recirculating balls or rollers into a hardened raceway, then into the mounting surface. In a sliding system, force travels through an oil film across a large contact area. A hydrostatic system replaces that film with pressurised fluid. Each path has a different stiffness curve, a different damping behaviour, and a different failure mode.

Machine tool guide rails are generally divided into these categories by their friction mechanism, not by their mounting geometry. Two rails can look identical from outside and behave completely differently once load is applied. That distinction is what engineers should carry into a specification or a rebuild decision.

• 1
  Constraint firstA rail sets the degrees of freedom the axis is allowed to keep.
• 2
  Stiffness is directionalVertical, lateral, and torsional stiffness rarely match.
• 3
  Damping sets the finishMore damping usually means less chatter at the same feed.

The flat sliding guideway is the oldest category still in wide use. A machined cast iron surface mates with a matching surface, often with a bronze or polymer liner between them. Contact area is large, sometimes several thousand square millimetres per carriage. That large area gives the rail excellent damping because the oil film shears across the full width and converts vibration into heat.

Flat ways are also forgiving. Scraping and hand-fitting let a builder correct geometric errors at assembly rather than in the control. A worn flat way can be rescraped on site. The trade-off is friction. Static friction is higher than kinetic friction, so a slow-moving axis can slip and stick instead of feeding smoothly. At 5 mm/min the effect is visible in the surface finish.

The dovetail guideway is a variation that adds a wedge-shaped profile. It constrains the moving element in all directions on a single pair of surfaces, which suits short-travel axes such as cross slides and tailstocks. Dovetail ways are easy to adjust with a gib strip. They are hard to keep lubricated evenly, and they cannot match a flat way for load capacity per unit of width.

Neither type suits high rapids. If an axis must accelerate to 40 m/min or more, sliding friction becomes a thermal problem before it becomes a kinematic one. Heat grows with speed and with preload, and the rail grows with it.

• 1
  Best for heavy cutsLarge contact area absorbs interrupted cutting forces.
• 2
  Watch stick-slipBelow roughly 10 mm/min, friction reversal shows in finish.
• 3
  Serviceable in placeRescraping restores geometry without replacing the rail.

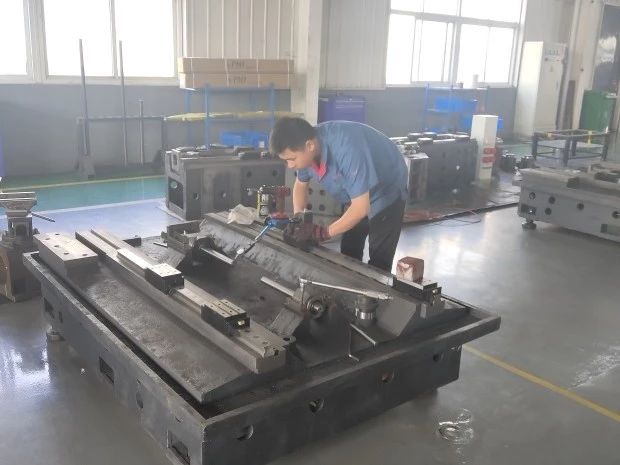

Rolling guideways replace sliding contact with recirculating balls or cylindrical rollers running on hardened, ground raceways. Friction drops by roughly an order of magnitude. The coefficient of friction for a ball-type linear rail typically sits between 0.002 and 0.005, and it stays nearly constant from standstill to full speed. That flat friction curve is why a ball rail can feed at 1 mm/min without stick-slip and rapid at 60 m/min without overheating.

Ball rails handle light to medium loads well and are cheap to mount because the rail is a bolt-on component with a published preload class. Roller rails use cylindrical rollers instead of spheres. The line contact between roller and raceway spreads load over a longer footprint, so a roller rail can carry two to three times the load of a ball rail of the same width and shows higher stiffness under a moment load.

The weakness of both is damping. Rolling contact has very little internal friction, so vibration passes through the carriage almost unchanged. A machine built entirely on roller rails can chatter where a flat-way machine would not. Builders compensate with epoxy granite bases, tuned mass dampers, or by keeping the spindle and tooling stiff enough that the rail never sees the dominant frequency.

Preload matters here. A preloaded carriage removes clearance and raises stiffness, but it also raises drag and heat. Over-preloading a ball rail to chase stiffness usually shortens service life without fixing the vibration problem.

• 1
  Low, flat frictionFeeds from 1 mm/min to full rapid without slip-stick.
• 2
  Roller beats ball on loadLine contact raises capacity and moment stiffness.
• 3
  Low dampingVibration passes through; the base must absorb it.

A hydrostatic guideway pumps oil into a pocket between the moving element and the rail, then lets it escape through a controlled gap. The carriage floats on a film typically 10 to 30 μm thick. Because there is no metal-to-metal contact, friction is close to zero at any speed and wear is effectively eliminated. The oil film also provides strong damping, so a hydrostatic axis can take heavy interrupted cuts and still hold a fine finish.

Stiffness depends on the pressure supply, not on the gap. A well-designed hydrostatic pocket can reach stiffness values that neither sliding nor rolling rails match. It is also the most expensive category to build and to run. A dedicated hydraulic power unit, filtration, temperature control, and a drain system all have to be designed into the machine.

Hydrostatic rails appear on high-value machines: large gantry mills, precision grinders, and some ultra-precision lathes. They rarely appear on general-purpose vertical machining centers, where the cost and maintenance burden cannot be justified.

Hybrid designs clamp a rolling carriage with an oil-damped brake or combine a roller rail for travel with a sliding pad for damping during heavy cuts. These are niche solutions, but they show the core trade-off clearly. You buy damping with friction, and you buy speed by giving damping away.

• 1
  Near-zero wearNo contact means no abrasive loss over the travel life.
• 2
  High cost to runHydraulic unit, filtration, and thermal control are required.
• 3
  Damping and stiffnessBoth come from the pressure supply, not the geometry.

Rail stiffness and damping set the machine's dynamic loop. When a cutter enters a workpiece, the tooth impact excites the structure. A damped sliding way turns that energy into heat and settles within a few cycles. A low-damping roller way rings longer, and if the tooth-passing frequency lands near a structural mode, the amplitude grows until the surface shows chatter marks.

This is why rail choice often shows up in surface finish before it shows up in dimensional accuracy. A machine can hold ±0.005 mm on a slow finish pass and still produce a visibly torn surface at a higher material removal rate. The rail is not the only cause, but it is usually part of the loop.

For prototypes and low-volume work, the rail type of the machine is usually fixed. What an engineer can control is the cutting strategy. On a low-damping machine, lighter radial engagement and a higher tooth feed keep the excitation energy down. On a heavily damped machine, a deeper cut with lower feed per tooth can be more stable.

When a machined part carries mounting features that must stay flat, the rail also affects how flat the machine can make it. Thermal growth in a sliding way shifts the tool position over a long cycle. A rolling way grows less, but it can also transmits more of the surrounding structure's vibration into the cut.

• 1
  Finish before sizeChatter shows in Ra before it shows in a tolerance.
• 2
  Match strategy to dampingLight radial, high feed on low-damping machines.
• 3
  Thermal driftSliding ways warm up and move; account for it on long cycles.

A flat sliding way is the wrong choice when the axis needs rapids above roughly 30 m/min, when the machine runs unattended for hours at low feed, or when lubrication cannot be maintained on a strict schedule. Stick-slip and thermal growth will erode accuracy before the rail wears out.

A ball linear rail is the wrong choice for a machine that takes heavy interrupted cuts in hardened steel, or for an axis where a large overhung load creates a significant moment. The ball raceway can brinell under shock load, and once the raceway is damaged the carriage must be replaced.

A roller linear rail is the wrong choice when the surrounding structure is light and flexible. The rail will do its job, but the machine will ring. Adding a roller rail to a weak frame does not fix a vibration problem. It usually makes the symptom more visible.

A hydrostatic way is the wrong choice for a general-purpose shop machine. The support system costs more than the rail, and a contaminated oil supply will destroy the pockets. Reserve it for machines where the accuracy justifies the infrastructure.

For machined components, the practical question is usually simpler. Send the drawing, state the tolerance and finish, and let the shop match the part to a machine whose rail type can hold it. That conversation is faster than trying to specify the rail itself.

• 1
  Rapids rule out slidingAbove about 30 m/min, heat and slip-stick dominate.
• 2
  Shock rules out ball railsRaceway brinelling ends carriage life early.
• 3
  Light frames rule out rollerStiff rail plus flexible frame equals chatter.
