Compact CNC Explained

MR1 CNC mill: compact precision power

A compact mill is not a scaled-down VMC. The MR1 CNC mill trades envelope for stiffness, and that trade changes what you can hold. This page explains the mechanics, the limits, and the parts where a small frame wins.

Get Instant Quote Talk to an Engineer

±0.005 mm tolerance500 × 500 × 450 mm travelRa 0.8–1.6 μmNo MOQ

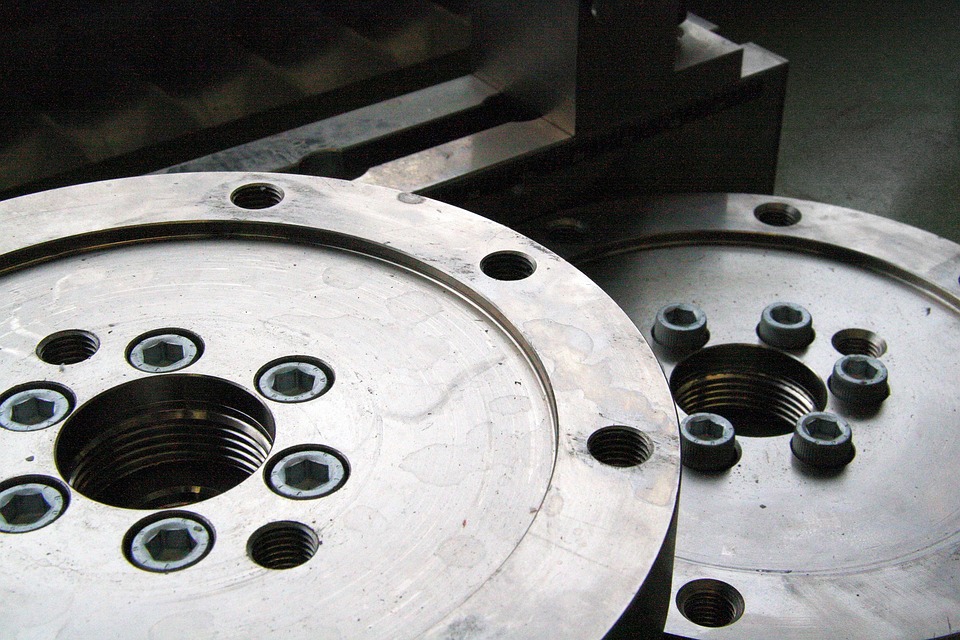

MR1 CNC mill for compact precision power

On this page

1
Why an MR1 CNC mill holds tolerance in a small frame
2
Spindle, frame, and axis layout in a compact mill
3
Chip load, tool runout, and surface finish on small machines
4
Which materials suit a compact mill and which fight it
5
Four checks before you run a compact mill
6
When a compact mill fits and when it does not

The core idea

Why an MR1 CNC mill holds tolerance in a small frame

Stiffness is the whole story. A machine tool deflects under cutting force, and every 0.01 mm of deflection shows up in the finished wall. Compact frames deflect less because the loop from spindle to table is shorter. An MR1 CNC mill puts the spindle nose close to the work, so bending moments stay small even at higher feed rates.

Thermal mass matters too. A small casting reaches thermal equilibrium faster after startup. On a large VMC, the column can grow 20–30 μm over the first two hours of a shift. A compact frame stabilizes in a fraction of that time, which matters when you machine a ±0.005 mm bore at 08:00 and check it at 16:00.

The trade is envelope, not accuracy. You give up table travel, not resolution. A compact mill with a 500 × 500 × 450 mm work envelope still runs ballscrews with the same lead accuracy as a full-size machine. What changes is how you plan setups and how many parts you can nest per cycle.

Mechanics

Spindle, frame, and axis layout in a compact mill

The spindle is where power becomes chips. A compact mill usually runs a high-speed spindle in the 10,000–24,000 rpm range, which favors small-diameter tooling. A Ø6 mm end mill at 18,000 rpm hits the right surface speed for aluminum without chatter. Push a Ø20 mm cutter at that speed and torque drops off, so you feed slower and lose the advantage.

Rigidity comes from the frame before the spindle. Cast iron or polymer-concrete bases damp vibration better than welded steel. On a compact mill, the base is smaller, so damping per unit mass is higher. That is why thin-wall parts often finish cleaner on a small frame than on a large one running the same cutter.

Axis layout decides your setup count. A three-axis compact mill machines three faces per setup. Add a fourth axis, such as a Ø400 mm rotary table, and you reach four faces. A simultaneous five-axis center reaches five faces and undercuts in one setup. Choosing between them is a question of how many times you are willing to re-fixture the part.

Cutting behavior

Chip load, tool runout, and surface finish on small machines

Chip load is the number that keeps a compact mill alive. On aluminum, aim for 0.02–0.05 mm per tooth on a Ø6 mm three-flute cutter. Too low and the tool rubs, work-hardens the surface, and burns the edge. Too high and the small frame deflects. The window is narrower than on a large VMC, so dial in feed per tooth before you touch spindle speed.

Tool runout shows up faster on small cutters. A Ø3 mm end mill with 0.01 mm runout cuts with one flute doing most of the work. Use shrink-fit or hydraulic holders where you can. On a compact spindle, the holder taper is smaller, so runout control at the holder is cheap insurance for a ±0.005 mm feature.

Surface finish follows the same logic. Ra 0.8–1.6 μm is a normal machined finish on aluminum and brass. Ra 0.2–0.8 μm needs a finishing pass with a sharp tool, light radial engagement, and a stable setup. A compact mill can hit it on small parts because vibration is low, but you must keep the tool overhang short.

Materials

Which materials suit a compact mill and which fight it

Aluminum is the natural fit. Grades like 6061-T6, 7075, and 2024 cut fast at high spindle speed and low cutting force, which is exactly what a compact spindle delivers. Brass and copper behave similarly. C36000 machines cleanly at 12,000 rpm with a two-flute cutter and a light air blast.

Stainless steel is workable but slower. Grades 303, 304, and 17-4PH need lower surface speed and steady feed to avoid work hardening. A compact mill handles them on small features, but you will not take heavy radial cuts. Keep the axial depth shallow and let the spindle speed do the work.

Titanium and Inconel are the hard cases. Ti-6Al-4V and Inconel generate high cutting force and heat, and a compact frame cannot absorb that for long. These materials belong on a larger, torque-rich machine. If a part must be titanium and small, expect slow passes, rigid tooling, and a lot of coolant.

Practical setup

Four checks before you run a compact mill

1
Check the work envelopeMeasure the stock plus fixture. If the total exceeds 500 × 500 × 450 mm, the part does not fit. Plan the setup before you clamp anything.
2
Pick the cutter for spindle speedMatch tool diameter to the rpm range. A Ø6 mm cutter at 18,000 rpm suits aluminum. A Ø20 mm cutter needs lower speed and more torque.
3
Set feed per tooth firstStart at 0.02 mm per tooth for aluminum and adjust. Listen for chatter and check the chip color. Thin blue chips mean heat, not speed.
4
Control runout at the holderMeasure runout with a dial indicator. Keep it under 0.01 mm on small cutters. Swap holders if it is not, before you blame the machine.

Judgment guide

When a compact mill fits and when it does not

Match the part to the machine envelope before quoting.

Part condition	Compact mill	Full-size VMC
Max part size	500 × 500 × 450 mm	4,000 × 400 × 150 mm
Tolerance target	±0.005 mm achievable	±0.005 mm achievable
Wall thickness	0.8–3 mm, low chatter	Thin walls need care
Setup count	3–4 axes, more re-fixturing	5 axes, one setup
Batch size	1 to a few hundred	Hundreds to 10,000+
Floor space	Small footprint	Warehouse-scale base
Material removal rate	Lower, spindle-limited	Higher, torque-rich
Best for	Prototypes, small precision parts	Large parts, heavy stock

The verdict on compact precision power

If your part fits a 500 × 500 × 450 mm envelope and you need tight tolerance on small features, a compact mill is the right call. If the part is large, titanium, or needs deep stock removal, move it to a full-size five-axis center. Match the machine to the part, not the other way around.

Get Instant Quote Talk to an Engineer

FAQs

Common questions about compact mills

Can a compact mill hold ±0.005 mm?

Yes, on parts that fit the envelope. Tolerance comes from the ballscrew, thermal stability, and the setup, not from the machine size. A compact frame stabilizes faster, which helps on long runs.

The limit is usually the part, not the machine. Thin walls, long tool overhang, and multiple re-fixturing add error. Control those and ±0.005 mm is repeatable.

What is the largest part a compact mill can cut?

It depends on the travel. A typical compact envelope is 500 × 500 × 450 mm. Some models run 500 × 310 × 200 mm. Add the fixture to the part size before you decide.

If your part exceeds the envelope, split it into setups or move it to a larger machine. Do not force a large part into a small frame.

Is a compact mill good for prototyping?

Yes. High spindle speed suits small cutters and fine features, which is what prototypes need. Setup changes are quick because the table is close to the operator.

The trade is batch size. A compact mill runs one to a few hundred parts well. For thousands of parts, a larger machine with a pallet changer is more efficient.

Why does my compact mill chatter on aluminum?

Chatter usually comes from tool overhang, low feed per tooth, or a loose fixture. Shorten the holder, raise feed per tooth to 0.02–0.05 mm, and re-clamp the part.

If chatter persists, reduce radial engagement and check spindle runout. A worn collet can cause more vibration than a dull cutter.

Can a compact mill machine titanium?

It can, but slowly. Titanium needs low surface speed and steady feed to avoid work hardening. A compact spindle has limited torque, so keep radial cuts shallow.

For any real volume in Ti-6Al-4V or Inconel, use a larger machine. The compact mill will finish the part, but cycle time and tool wear will be high.

How do I get a quote for compact mill work?

Send the 3D file and a drawing with tolerances. We review the geometry against our machine list and return a quote with a DFM analysis within 12 hours.

No minimum order quantity. One prototype or a 10,000-part run both go through the same inspection process.
