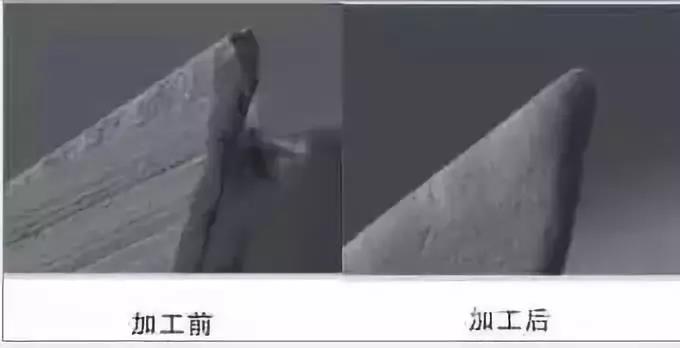

After a diamond wheel or a CBN wheel grinds a flute, the cutting edge is not a line. Under a toolmaker's microscope at 200× to 500×, the edge carries micro-notches, tiny cracks and saw teeth left by the abrasive grit. Those defects sit in the 1–10 μm range.

A notch is a stress riser. During cutting, the tip of each notch heats faster than the surrounding carbide or HSS. Thermal cycling then opens the notch into a chip. Once a chip forms, the tool loses its cutting edge and the next thing you hear is a bad surface finish or a broken tool.

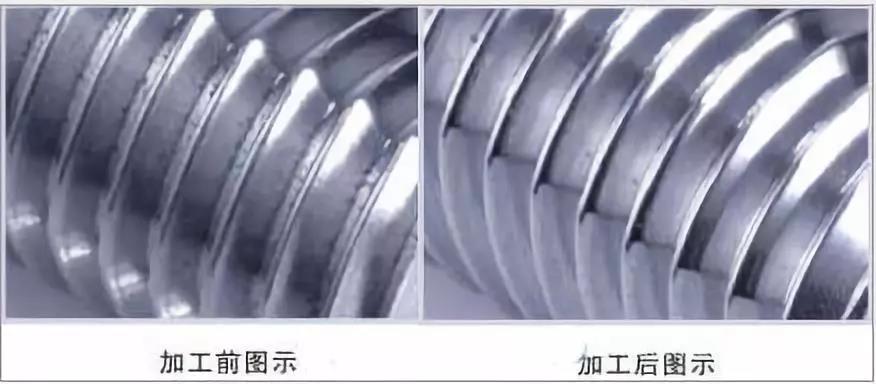

Mechanical treatment passivation of the tool removes those notches by abrasive action, not by chemical etching. The edge is rounded to a controlled radius, usually 2–20 μm. The goal is a smooth, uniform edge without over-rounding the rake face.

• 1
  Micro-notchesGrit marks and saw teeth from the grinding wheel.
• 2
  Loose particlesCarbide or binder fragments clinging to the edge.
• 3
  Residual stressLocal stress peaks that start thermal cracking.

The tool is clamped in a rotating fixture and dipped into a container of abrasive media. Common media are alumina, silicon carbide, zirconia, and walnut shell with abrasive. The media can be dry, in a paste, or suspended in a fluid. Each one cuts differently.

Zirconia media is dense and removes material fast, so it is used for heavy edge prep on roughing tools. Alumina is softer and gives finer control for finishing tools. Walnut shell with fine abrasive is used for light deburring where edge radius must stay under 5 μm.

The fixture rotates the tool at 20–200 rpm and may also oscillate. Contact time runs from 20 seconds to 5 minutes, depending on the target radius. A 5 μm radius on a 6 mm end mill may take 40 seconds; a 15 μm radius on a 20 mm tool may take 3 minutes. Operators check the edge under a microscope every 30 seconds during setup.

Wet processes use a fluid to carry away debris and keep the edge cool. Dry processes are faster but risk heat buildup on HSS tools. For carbide, dry is common because carbide tolerates the temperature. For high-speed steel, wet is safer.

• 1
  Rotation speed20–200 rpm; higher speed cuts faster but less evenly.
• 2
  Contact time20 s to 5 min; set by target radius, not by feel.
• 3
  Media sizeFine media for small tools, coarse media for large edges.

Passivation helps most on tools that will be coated. A PVD coating such as TiAlN or AlCrN needs a clean, smooth surface to bond. If the edge has notches, the coating grows into those notches and creates a rough, weakly bonded layer. The coating then spalls during cutting.

Passivation also helps on tools used for finishing cuts in hard materials. A rounded edge distributes cutting force over a larger area, which reduces chipping. In hardened steel above 45 HRC, a 5–10 μm radius can double the time between regrinds.

But passivation hurts when the tool needs a sharp edge for soft, gummy materials. In aluminum or brass, a sharp edge shears the material cleanly. A rounded edge rubs instead of cuts, which raises cutting force and builds a built-up edge. For those jobs, keep the radius under 3 μm or skip passivation.

It also hurts when the geometry is already at its limit. Micro end mills below 1 mm diameter have very little material at the edge. Over-passivation can round the edge until the tool no longer cuts. In that case, use a short cycle and verify the edge under a microscope before running the batch.

• 1
  Good for coatingSmooth surface improves PVD adhesion.
• 2
  Good for hard materialsRounded edge resists chipping above 45 HRC.
• 3
  Bad for gummy materialsAluminum and brass need a sharp edge.

You cannot judge a passivated edge by eye. The difference between a 3 μm radius and a 10 μm radius is invisible at 1×. Use a toolmaker's microscope at 200× or a scanning electron microscope for critical tools.

Check three things. First, the edge should be uniform along the full flute length. A wavy edge means the fixture was not concentric or the media bed was uneven. Second, the radius should match the drawing. Third, there should be no remaining notches or grinding marks on the rake face.

For production, a simple go/no-go check works better than a full measurement. Set up a reference tool with the correct edge, then compare each batch under the same magnification. If the edge looks smoother than the reference, the cycle was too long. If it looks rougher, the cycle was too short.

Record the media type, rotation speed, contact time, and microscope image for each batch. If a coating later fails, that record tells you whether the edge prep or the coating process is at fault. Without it, you are guessing.

• 1
  Magnification200× minimum; 500× for micro tools.
• 2
  UniformityEdge radius must be consistent along the flute.
• 3
  Reference toolKeep one known-good tool for visual comparison.
