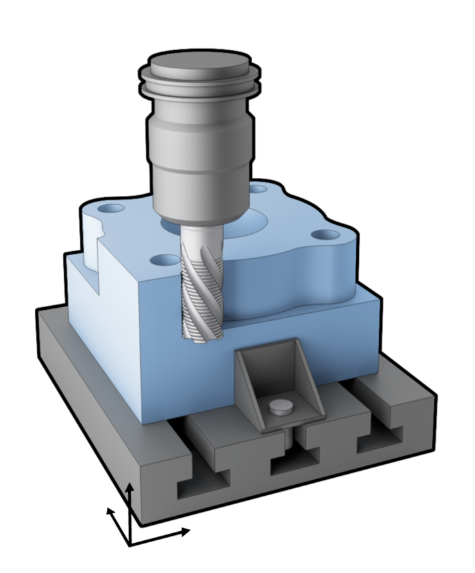

The first group of points during the milling process is about holding the part still. A vise with a worn jaw, a fixture bolted to a T-slot with two clamps instead of four, or a thin plate supported only in the middle will move under cutting load. Check clamping pressure on thin walls: aluminum below 3 mm thick can deform by 0.05 mm or more just from vise force.

Confirm the zero point before you cut. Touch off X, Y and Z, then re-touch the reference edge with a second method. On a 4,000 mm part, a 0.02 mm error at the datum becomes much larger at the far end of the travel. For five-axis work, verify the rotary table center and the tool length twice; a wrong pivot distance throws every angled feature off.

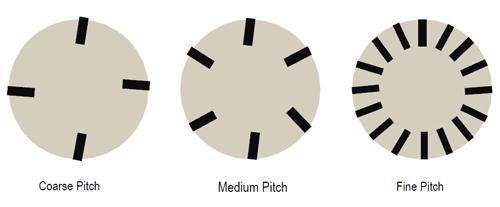

Check that the tool can reach without a collision. Long reach tools vibrate. If the tool overhang is more than four times the diameter, reduce depth of cut by 30–50% and expect to take an extra pass. A stub tool with a shorter gauge length is almost always faster than a long tool run at reduced feed.

Clean the table and the part face before clamping. A single chip under the workpiece tilts it. On a 200 mm plate, a 0.05 mm chip lifts one corner enough to break a ±0.05 mm flatness call. Use an air blast and a stone, not a rag, on the locating surfaces.

• 1
  Clamp countFour points minimum on any part over 150 mm.
• 2
  Overhang ruleKeep tool stick-out under 4× diameter when possible.
• 3
  Datum checkTouch off twice with different methods.

Speeds and feeds are the points during the milling process that scrap the most parts. For 6061 aluminum with a 10 mm carbide end mill, a starting surface speed of 300–500 m/min and 0.05–0.10 mm feed per tooth works well with air blast. For 304 stainless, drop to 80–120 m/min and keep the feed per tooth above 0.03 mm so the tool cuts instead of rubbing.

Use climb milling on finish passes. Conventional milling on a finish pass leaves a rougher surface and pushes the tool into the cut. Climb milling gives Ra 0.8–1.6 μm on most steels and reduces tool flank wear. Only switch to conventional when the machine has significant backlash and no backlash compensation.

Control radial engagement. Full-width cuts in a slot load the tool heavily. Trochoidal or dynamic paths with 10–25% radial engagement and deeper axial cuts remove material faster and keep heat in the chip. This matters most in titanium and Inconel, where heat goes into the tool edge and kills it in minutes.

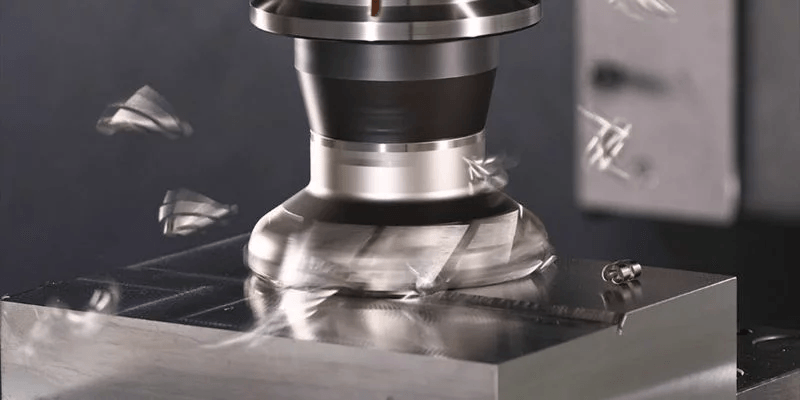

Watch the chip. Thin, silver, curled chips mean the cut is healthy. Blue or black chips mean too much heat or too little feed. A fine powder means the tool is rubbing, which usually comes from a feed rate that is too low for the spindle speed.

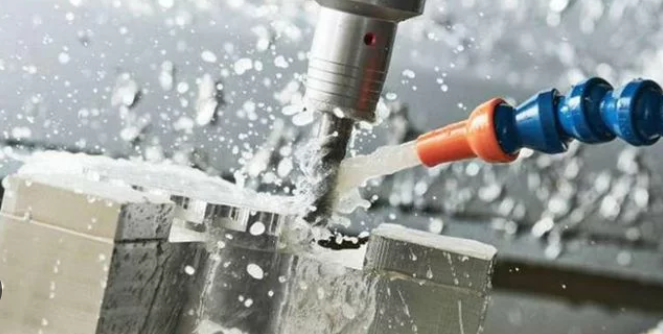

Coolant choice follows material. Aluminum and cast iron run well with air blast or mist. Stainless, titanium and tool steel need flood coolant or high-pressure through-spindle coolant to clear chips from the pocket. Never run titanium dry on a finishing pass.

Leave finishing stock on purpose. Leave 0.2–0.5 mm on walls and floors for the finish pass. This gives the tool a stable load and lets you correct size with cutter compensation instead of reprogramming.

• 1
  Aluminum300–500 m/min, climb mill, air blast.
• 2
  Stainless80–120 m/min, flood coolant, feed above 0.03 mm/tooth.
• 3
  Titanium40–60 m/min, high-pressure coolant, 10–15% radial engagement.

Measure while the part is still clamped. Once you unclamp, residual stress can move a thin wall by 0.02–0.05 mm. If the drawing calls for ±0.005 mm, check the critical dimensions in the fixture. Record the readings against the program values so the next run starts from a known point.

Temperature changes size. A 300 mm aluminum part grows about 0.007 mm per 1 °C. If the shop swings 5 °C between the morning and afternoon, that is 0.035 mm of drift. Let the part and the gauge sit at the same temperature for at least 30 minutes before final inspection on tight work.

Deburr before you measure. A rolled burr on an edge reads as extra material on a caliper. Break edges with a handheld tool or a chamfer pass in the program. For medical and aerospace parts, specify the edge break on the drawing so nobody has to guess.

Check surface finish visually and with a comparator. Ra 1.6–3.2 μm looks fine on most brackets. Sealing faces and bearing bores usually need Ra 0.8–1.6 μm or better. A finish pass with a sharp tool and a light cut gets there faster than a slow spindle speed.

Keep the documentation with the part. Tool lists, offset changes, inspection readings and any deviation from the drawing belong in the traveler. When a second run happens six months later, that record is the difference between a repeatable part and a fresh argument.

Plan the handoff before the last cut. Know whether the part goes to anodizing, plating or heat treatment. Anodizing adds 5–25 μm per surface depending on type, which changes a press fit. Send the finish requirement with the job so the coating thickness is accounted for in the machined size.

• 1
  Measure clampedCheck critical sizes before releasing the vise.
• 2
  Thermal soak30 minutes minimum before tight-tolerance inspection.
• 3
  Finish accountingAnodize and plating change size; machine for the coated dimension.
