OKUMA Horizontal Lathe: Efficient and Precise Metal Processing Equipment

• 1
  What an OKUMA horizontal lathe actually is
• 2
  Where the precision comes from and where it leaks away
• 3
  Turning parameters that hold a tolerance
• 4
  Cycle time, setup and the economics of turning
• 5
  Materials and part shapes that suit a lathe
• 6
  Lathe or mill-turn: which one fits the part

A horizontal lathe spins the workpiece about a horizontal axis and feeds a single-point tool along the Z axis. The spindle sits on a bed, the turret indexes around that bed, and a tailstock supports the far end of long shafts. That layout is the whole story. Everything the machine does well, and everything it struggles with, comes from that arrangement.

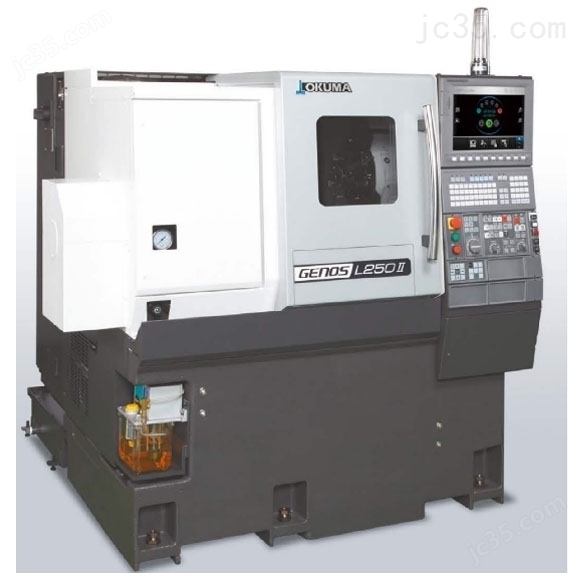

On an OKUMA horizontal lathe the bed is usually a one-piece cast iron or box-way structure with the guideways cut directly into it. Cast iron damps vibration well, so interrupted cuts and boring chatter less than they would on a fabricated steel bed. The spindle runs in preloaded angular contact or roller bearings and is driven either by a belt or by a built-in motor.

The turret carries turning tools, boring bars and often live tooling that spins a drill or end mill at an angle to the part axis. That live tooling is what turns a plain lathe into a lathe with milling capability. It does not make the machine a machining center. The tool still approaches from a limited set of directions, and the part is still held in a chuck or between centers.

So the question is never whether a lathe is better than a mill. The question is whether the part is mostly a surface of revolution with a few cross features, or mostly a prismatic block with a few round holes. The first shape belongs on an OKUMA horizontal lathe. The second does not.

Turning accuracy starts at the spindle. Radial and axial runout at the nose taper set the floor for roundness and face flatness. A spindle with 2 μm runout cannot produce a part with 1 μm roundness no matter how good the control loop is. That is why spindle inspection is the first check after a crash, before anyone touches the turret alignment.

Thermal growth is the second source. A lathe spindle warms up over the first 30 to 90 minutes of running. The headstock grows a few micrometres toward the tailstock, and the ballscrew grows too. On a 500 mm turning length that drift can exceed 10 μm if the machine is cold-started and run hard. Warm-up cycles and in-process gauging exist for exactly this reason.

Tool wear is the third. A carbide insert on 4140 steel loses a few micrometres of edge radius per hundred parts. On a diameter held to ±0.005 mm, that wear shows up as a slow trend across the batch, not as random scatter. Operators catch it with a mid-batch check, not with a tighter program.

Chuck clamping distorts thin-wall parts. A three-jaw scroll chuck pushes the wall in at three points and the bore comes out trilobed. For a 2 mm wall on a Ø120 mm aluminium ring, soft jaws bored to the finished diameter reduce that distortion more than any change to feed or speed. The fix is workholding, not cutting data.

Roughing and finishing belong in separate passes. A typical roughing cut on 1045 steel runs 2 to 4 mm depth of cut at 0.25 to 0.35 mm per revolution. The finishing pass then takes 0.2 to 0.5 mm at 0.08 to 0.15 mm per revolution. Finishing removes the work-hardened skin and the tool deflection pattern left by roughing, so the final diameter is set by a light, stable cut.

Cutting speed depends on the insert grade, not on the machine. Coated carbide on 6061 aluminium runs 300 to 600 m/min. The same insert on 316L stainless drops to 120 to 180 m/min because the material work-hardens and the heat stays at the edge. Run stainless too fast and the insert fails in minutes, not hours.

Coolant matters more on deep bores than on outside diameters. A boring bar with through-tool coolant clears chips that would otherwise pack the hole and rub the insert. On a Ø25 mm bore at 4× diameter depth, high-pressure coolant is the difference between a repeatable bore and one that drifts every part.

Finishing passes set surface finish as much as feed does. At 0.1 mm per revolution with a 0.8 mm corner radius, the theoretical Ra lands near Ra 1.6 μm. To reach Ra 0.8 μm, either drop the feed or use a wiper insert. Below Ra 0.4 μm on a lathe, you are usually better off grinding or burnishing.

Cycle time on a lathe is dominated by metal removal rate, not by rapid moves. On a Ø80 mm 4140 shaft with a 200 mm turned length, the roughing pass removes most of the stock and takes most of the clock. Raising depth of cut from 2 mm to 3 mm cuts cycle time by roughly a third, provided the insert and the workholding can take the load.

Setup time is the hidden cost on short runs. A lathe with quick-change jaws and a preset tool library can go from print to first part in under an hour. A machine that needs soft jaws bored and tools touched off can take three hours. On a run of 10 parts, that difference is larger than the entire cycle time.

Bar feeders change the picture for high volume. A bar-fed lathe runs unattended through the night, which drops the labor cost per part sharply. The trade-off is bar diameter range and remnant length. If the part is short and the annual volume is high, bar feed is usually the right call.

For prototypes, the mill-turn route often wins even when the part is round. If the part needs six cross holes and two milled flats, one setup on a mill-turn beats three setups on a lathe plus a mill. The lathe wins when the part is a surface of revolution and stays that way.

Aluminium turns easily. Alloys 6061 and 7075 cut at high speed with good finish, and 7075 holds a sharper edge on the finished part. Watch for built-up edge on soft 6061 at low speed; raise the speed or use a polished insert.

Stainless 303 turns well because of the sulfur addition. Grades 304 and 316L are gummier and work-harden at the cut, so they need a heavier feed and a sharp edge. Grade 17-4PH in the H900 condition turns more like a tool steel and needs lower speed.

Titanium TC4 (Ti-6Al-4V) turns at 40 to 70 m/min with high-pressure coolant and a rigid setup. Heat goes into the tool and the part, not into the chip. Without enough coolant, the insert fails fast and the surface tears.

Plastics like POM and PEEK turn cleanly with sharp, high-rake tools and air blast instead of flood coolant. Long stringy chips wrap the part, so peck-style feed interruptions or a chip breaker help. On brass C36000, free-cutting grades produce short chips and excellent finish with almost no coolant.
