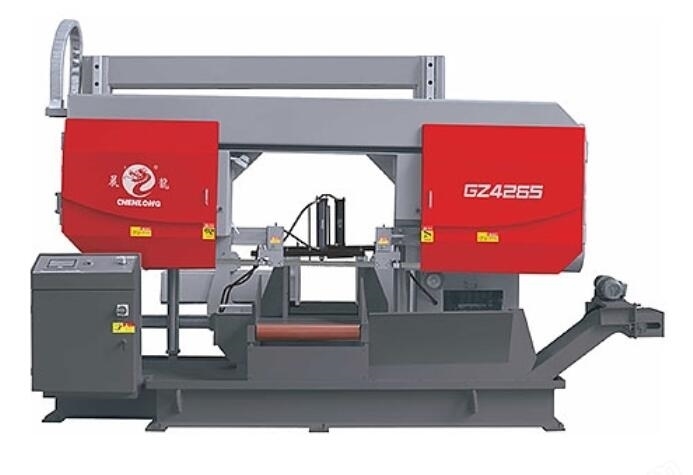

Operating Skills and Maintenance Points of the Saw Machine of the CNC Portees
This guide is for operators, setup techs and maintenance planners who run gantry band saws that feed CNC portee work. It covers the pre-cut checks, blade tension and feed settings, first-article inspection, and the maintenance intervals that keep cut faces square. Read it to decide which checks you run every shift and which ones wait for the weekend.
Key takeaways
Pre-start checks on the CNC portees saw machine
Walk the machine before you touch the control. Look at the blade guide arms, the chip tray and the coolant return. A band saw that ran a night shift can hide a loose guide or a blocked nozzle, and both show up as scrap on the first part of the morning.
Check blade tension with the machine's gauge, then confirm it by hand. On a typical carbon steel blade of 34 mm width, the gauge should read in the 2,000–2,400 N range; a narrow 27 mm blade sits lower, around 1,700–2,000 N. Press the blade sideways between the guides. It should deflect a few millimeters and spring back. If it stays bent, the blade is worn or the tension is low.
Confirm the vise jaws are clean and parallel. A chip under one jaw tilts the work by a few tenths of a degree, and a 300 mm cut then runs 0.5–1 mm out of square. Wipe the jaw faces, close the vise on a scrap block, and check the gap with a feeler gauge before you load a real part.
Set the guide arms as close to the vise as the part allows. On a gantry saw, every extra 100 mm of unsupported blade span adds flex. Keep the span under 400 mm on stock up to 300 mm wide. If the part needs a wider span, drop the feed rate by 20 percent for the first cut and watch the chip.
Last, verify the coolant level and mix. Refractometer readings for a general-purpose soluble oil should sit at 6–10 percent. Below 5 percent you get rust on the machine and poor cooling; above 12 percent you get foam and a sticky chip tray.
- 1Guides closeKeep unsupported blade span under 400 mm where possible.
- 2Vise flatFeeler gauge should show no gap under either jaw.
- 3Coolant mix6–10 percent on a refractometer for soluble oil.
Setting blade speed and feed for the material
Blade speed is a surface-speed decision. For 1018 and 1045 carbon steel, run bimetal blades at 60–90 m/min. Stainless 304 and 316 work-harden, so keep the speed low, around 30–50 m/min, and never let the blade rub without cutting. Aluminum 6061 tolerates 300–900 m/min on a coarse-tooth blade, but the chips are light, so you need a steady feed to avoid rubbing.
Tooth pitch matters as much as speed. Pick a pitch that puts 6–12 teeth in the cut. A 100 mm solid bar wants a 4/6 pitch; a 20 mm tube wants 10/14. Too few teeth and the chip load per tooth spikes and strips the tips. Too many teeth and the gullets pack, which is the usual cause of a blade that stops cutting halfway through a cut.
Feed rate on a band saw is set by the down-feed, not the table. Start conservative: 40–70 mm/min on 1045 at 300 mm diameter, then raise it until the chip turns from silver to light straw. A blue or smoking chip means the feed is too high, or the speed is, or both. Back off 15 percent and re-check after ten seconds.
Titanium and Inconel need the opposite approach from aluminum. Run 20–35 m/min, keep constant feed pressure, and never let the blade dwell. A dwell on Ti-6Al-4V glazes the surface and work-hardens the next pass. If the machine has a cut-force monitor, watch it rather than the clock.
Write the numbers down. A setup card with material, diameter, pitch, speed and down-feed turns the next job into a ten-minute change instead of a thirty-minute experiment.
- 1Aluminum300–900 m/min, coarse pitch, steady feed.
- 2Carbon steel60–90 m/min, 6–12 teeth in cut.
- 3Stainless and titanium20–50 m/min, no dwell, no rubbing.
Inspection and hand-off to the CNC portee cell
Check the first piece before the saw runs a second one. Measure the cut length with a caliper and check squareness with a machinist square or a dial indicator on the cut face. For a 300 mm cut, squareness within 0.3 mm per 100 mm is a reasonable band-saw target; the finishing operation on the CNC portees will bring the face to tolerance.
Look at the cut face itself. A face with fine feed lines and a small burr usually means the blade, speed and feed are matched. A face with a bright polished band means the blade rubbed, which work-hardens stainless and leaves residual stress that shifts on the mill. A rough, torn face means the pitch is too coarse or the blade has missing teeth.
Record blade hours and the reason for the change. A blade that lasted 40 cut hours on 4140 and one that lasted 12 hours tell different stories. If cut hours drop by a third, look at the coolant mix, the guide bearing play and the wire-brush condition before you blame the blade supplier.
Clean the machine before the next job, not after. Chips left in the vise ways and the guide arms cause the next setup to sit crooked. Blow down the guides, brush the vise ways, and clear the chip conveyor. It takes three minutes and it protects the tolerance of the next batch.
If the saw feeds a CNC portee cell, stage the cut blanks so the operator can load without sorting. Mark the heat number on the end of the bar, not the cut face, so the marking does not survive into the finished part.
- 1Squareness0.3 mm per 100 mm is a workable band-saw target.
- 2Blade hoursLog every change; a third drop means investigate.
Step by step: a repeatable saw routine
Run these in order at the start of each shift.
- 1Lock out and inspectIsolate power, then check the blade for missing teeth, cracks at the back edge and coolant nozzles aimed at the cut, not past it.
- 2Set tensionUse the gauge: 2,000–2,400 N for a 34 mm blade, 1,700–2,000 N for 27 mm. Confirm with a hand deflection test.
- 3Check the viseWipe both jaws, close on a scrap block, and slide a 0.05 mm feeler gauge around the contact line. Any gap means re-dress or replace the jaw.
- 4Position the guidesBring the guide arms within 400 mm of each other. Lock them and re-check tension, because moving the arms changes the reading.
- 5Set speed and down-feedPick surface speed by material, then set down-feed 15 percent below your target and raise it while watching the chip color.
- 6Run the first cut on scrapCut a short drop from the same bar. Check length, squareness and face finish before you commit the real part.
- 7Inspect and recordMeasure the first good part, then log blade hours, coolant reading and any parameter change in the shift book.
- 8Clean and parkBlow chips off the guides and vise, retract the head to the home position, and leave the coolant circulating for two minutes.
Saw settings and maintenance intervals by material
Use this as a starting point, then tune with the chip test.
| Material | Surface speed | Tooth pitch | Check interval |
|---|---|---|---|
| Aluminum 6061 | 300–900 m/min | 3/4 or 4/6 | Coolant daily, blade weekly |
| Carbon steel 1018/1045 | 60–90 m/min | 4/6 on solid bar | Guide bearings weekly |
| Stainless 304/316 | 30–50 m/min | 6/10, no dwell | Coolant mix twice weekly |
| 4140 / 4340 alloy | 50–70 m/min | 4/6 with steady feed | Blade hours every shift |
| Ti-6Al-4V | 20–35 m/min | 6/10, constant feed | Chip color every cut |
| Inconel | 15–25 m/min | 6/10, light feed | Guide arms daily |
| Tube and profile | By wall thickness | 10/14 to keep 6–12 teeth | Vise jaws daily |
Where the routine pays off
Most band-saw scrap comes from three things: low tension, a dirty vise jaw and a weak coolant mix. Fix those three and the saw holds squareness long enough for the CNC portees cell to do its job.
Frequently asked questions
How often should I change the coolant on a band saw?
For a machine running one shift a day, a full change every 4–6 months is typical, with top-ups and refractometer checks in between. Two or three shifts a day cuts that to 2–3 months.
Judge by the mix reading, the smell and the chip tray. If the reading drifts below 5 percent no matter how much concentrate you add, or the fluid smells sour, change it. Tramp oil floating on the tank surface is the other signal.
My blade cuts straight for the first 20 parts, then wanders. What changed?
Check the guide bearings first. A few tenths of play on a guide bearing lets the blade tilt, and the tilt shows up as a taper on a tall cut. Second, check tension after the blade has warmed up; a cold reading can hide a loose blade.
Third, look at the vise. If the fixed jaw has worn, the part can shift under feed pressure and the blade follows the gap. Measure the jaw faces for parallelism before you buy another blade.
Can I cut stainless and aluminum on the same blade?
You can, but expect a shorter blade life and more careful cleaning. Aluminum chips embed in the gullets and then drag through a stainless cut, which scores the cut face.
If you switch often, keep one blade for steel and stainless and a coarse-pitch blade for aluminum. The change takes a few minutes and saves both the blade and the finish.
What causes a blade to break at the back edge?
Back-edge cracks usually come from over-tensioning or from running the blade too far back on the wheels. Check the flange setting and the wheel wear.
A second cause is a worn guide that lets the blade ride hard against the back-up bearing. Replace the bearing when it stops turning freely, and re-check tension after the change.
How do I know if the down-feed is too high?
Read the chip. Silver or light straw chips with a slight curl mean the feed is right. Blue, thin, smoking chips mean too much heat, so reduce down-feed or surface speed.
You can also listen. A steady cutting sound is normal. A high-pitched squeal or a knocking sound means the blade is rubbing or a tooth has stripped.
Do I need to re-check tension after moving the guide arms?
Yes. Moving the guide arms changes the unsupported span, and a blade that read correctly at 300 mm span can read low at 700 mm.
Set the arms first, then set tension, then confirm with a hand deflection test. Do this every time you reposition the guides, not just at blade changes.
