A conventional sneaker stacks 40 or more components: rubber outsole, EVA midsole, knit upper, TPU heel counter, adhesives, eyelets, foam tongue. Each material has its own melting point and its own chemistry. When the shoe reaches end of life, the only economic route is shredding and downcycling into playground matting. You cannot separate the layers at a profit.

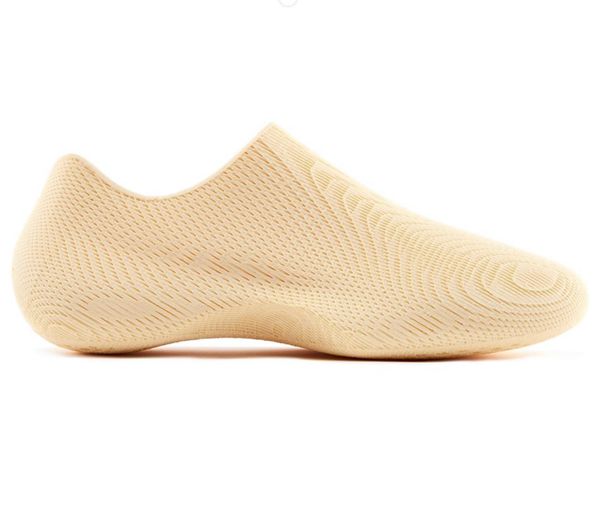

The Absolute approach removes the stack. The upper, midsole, and outsole come out of one print job in one polymer, so there is no adhesive and no bonded interface between dissimilar plastics. A 3D printed sneaker built this way can be ground, re-melted, and reprinted into a new shoe without sorting. That is the whole point of monomaterial design.

The tradeoff is real. One polymer must be stiff enough for the outsole, soft enough for the collar, and tough enough for the heel counter. You get that range from geometry, not from chemistry. Lattice density, wall thickness, and cell shape carry the load where the shoe needs stiffness; open cells collapse where it needs cushioning.

Monomaterial also changes the recycling economics. Mixed-material footwear has near-zero resale value as feedstock because separation costs more than virgin resin. A single-polymer shoe keeps its material value. The recycler needs only to confirm the polymer grade, not disassemble anything.

Absolute is printed with an extrusion process, not a powder bed. A nozzle lays down molten polymer bead by bead, and the bond between adjacent beads forms while both are still hot. That thermal weld is the weak plane. Pull a printed part apart and it usually fails between roads, not through them.

Nozzle temperature and layer time control weld strength. If the previous layer has cooled below the polymer's glass transition temperature, the new bead sits on a solid surface and adhesion drops. Print too fast on a tall thin wall and the same problem appears: each pass lands on cold plastic.

This is why orientation matters more than raw material choice. A shoe printed with its long axis vertical puts every walking load across the bead boundaries. Rotate the part so the primary bending direction runs along the beads, and the same polymer survives far more cycles.

For production tooling that supports printed footwear, we machine the molds, fixtures, and test rigs on 5-axis centers to ±0.005 mm. A flex-test fixture that clamps the shoe at the wrong angle gives you fatigue data for a load case the wearer never produces. Fixture geometry is part of the measurement.

A printed sneaker also carries internal porosity. Small voids form where the nozzle turns a corner or where extrusion pauses. Under repeated compression those voids grow into cracks. Print parameters that reduce corner voids, slower acceleration and a slightly wider bead, buy fatigue life without changing the material.

The midsole is the interesting part. A solid slab of polymer is too heavy and too stiff. A lattice gives the designer two independent knobs: relative density and cell topology. Relative density sets the overall stiffness; cell shape sets how the structure buckles.

Bending-dominated lattices, such as simple cubic or body-centered cubic, deflect smoothly and return energy. Stretch-dominated lattices, such as octet truss, are stiffer per unit mass but buckle suddenly past a threshold. For a heel strike, you want progressive collapse, not a snap. Bending-dominated cells win there.

Graded density is the practical trick. Print denser cells under the heel and the medial arch, open cells under the forefoot. The shoe then has a stiff landing zone and a soft toe-off zone from one continuous print. No glued insert, no second material.

Cell size has a floor set by the nozzle. If the strut is thinner than roughly two bead widths, the printer cannot build it reliably and the cell collapses during printing. Design rules that ignore nozzle diameter produce lattices that look fine in CAD and fail on the machine.

One polymer cannot win everywhere. High-abrasion outsoles want a hard, wear-resistant compound; a soft collar wants low modulus. If the wearer logs serious mileage on abrasive asphalt, a single-material outsole will wear faster than a vulcanized rubber one. That is a materials gap, not a design flaw you can print around.

Thermal limits matter too. Most printable thermoplastics soften well below the temperature of a hot car dashboard in direct sun. A shoe left on a rear parcel shelf can creep out of shape. For everyday urban use this rarely shows up; for storage in hot climates it does.

Recycling a printed sneaker still needs a take-back channel. The polymer is recyclable, but only if it reaches a grinder instead of a general waste bin. Without collection, monomaterial design changes nothing at end of life. The engineering is solved; the logistics are not.

Cost follows machine time, not material volume. A lattice midsole with fine cells can take hours to print. That is why printed footwear sits at a premium price point today, and why the design should only add lattice where it changes how the shoe feels.
