Precision Lathe Machined Parts: How the Cut Actually Works

• 1
  What makes precision lathe machined parts round
• 2
  Turning tools, nose radius and the finish you can expect
• 3
  Chucking, support and how workholding limits tolerance
• 4
  When a turned part should move to mill-turn or 5-axis
• 5
  Material behavior on the lathe, alloy by alloy
• 6
  Measuring turned features without fooling yourself
• 7
  Turning route compared by part feature

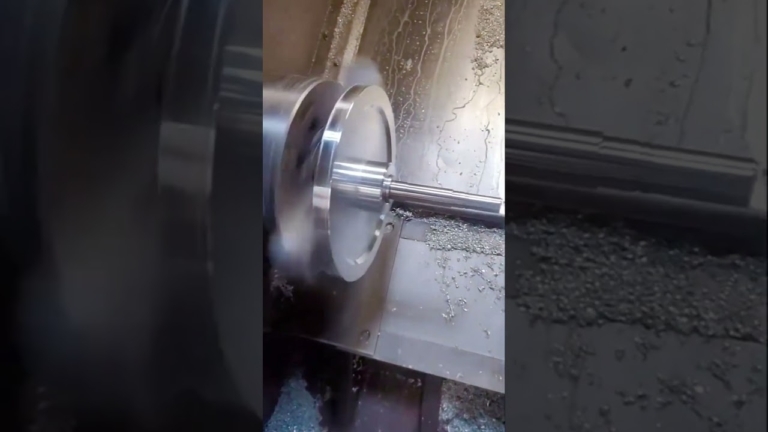

In turning, the workpiece spins and the tool stays put. That single fact explains most of the process. A diameter is generated by the tool tracing a straight path while the part rotates, so the shape of the cut depends on spindle rotation, not on a tool path interpolating an arc. The result is a surface that is round by construction rather than by interpolation.

The other consequence is error mapping. Every spindle error repeats once per revolution, so it shows up as a two-lobe or multi-lobe pattern on the diameter instead of a random drift. A machine with 0.5 μm spindle runout will print that runout onto the part as a repeating profile. Measuring with a micrometer at one angle can miss it entirely.

Axial error is different again. Face runout, shoulder squareness and overall length depend on the Z-axis and the turret or gang slide, not the spindle. When a print calls out both a tight diameter and a tight shoulder-to-shoulder length, two independent error sources are stacked on the same feature.

That is why shop-floor conversations about precision lathe machined parts start with the feature, not the part. A shaft with four critical diameters and one critical face has four radial problems and one axial problem. They get fixed in different ways.

• 1
  Radial errorComes from spindle and bearing runout, repeats every revolution.
• 2
  Axial errorComes from Z-axis and tool positioning, affects faces and lengths.
• 3
  Thermal driftGrows over the first hours of a run, then stabilizes.
• 4
  Tool wearMoves the diameter steadily in one direction across the batch.

The nose radius of an insert sets the theoretical surface finish more than any other variable. Feed per revolution, squared, divided by eight times the nose radius gives the peak-to-valley roughness. Raise feed from 0.1 mm/rev to 0.2 mm/rev with the same 0.8 mm nose radius and the theoretical finish gets roughly four times rougher.

Real surfaces come out worse than the formula predicts. Built-up edge, vibration and material inclusions all add amplitude. In aluminium 6061 with a sharp positive insert, Ra 0.8–1.6 μm is routine. Push feed down and use a wiper insert and Ra 0.2–0.8 μm is reachable on a stable machine, but the cycle time grows and long chips become a handling problem.

Nose radius also changes the cutting force direction. A large radius spreads the load and leaves a stronger surface, but on a slender shaft it pushes the part away from the tool. The deflection shows up as a taper: the diameter closest to the chuck is smaller than the diameter near the tailstock. Spring passes hide it for one part and not for the next.

Insert geometry matters as much as radius. A positive rake insert cuts freely and suits stainless 303 and 316L, where work hardening punishes a rubbing tool. A negative rake insert is stronger and suits steel 4140 and cast irons, at the cost of higher cutting force.

• 1
  Small nose radiusLower radial force, weaker edge, better on slender work.
• 2
  Large nose radiusBetter theoretical finish, higher push-off on long parts.
• 3
  Wiper insertsReach fine finish at moderate feed, not at micro-feed.

A three-jaw chuck repeats to roughly 0.05 mm on a re-chucked diameter. A collet repeats far better, and a bored soft jaw machined in place repeats better still. When a print asks for 0.02 mm concentricity between two diameters, the answer is usually a single setup, not a better chuck.

Between centers changes the picture. A shaft held on a live center is supported at both ends, so deflection drops and the length-to-diameter limit moves out. As a rule of thumb, unsupported turning beyond 4:1 length to diameter invites chatter; a steady rest extends that to roughly 10:1, and between centers further still.

Thin-wall tubes are the hard case. A 1.5 mm wall in 6061 will deflect under jaw pressure alone, and the part comes out oval after the jaws release. Options are a split collet, low-pressure hydraulic chucking, or filling the bore with a low-melt alloy. Each adds a step and each is cheaper than scrapping a run.

For small precision lathe machined parts, bar feeders and guide bushings allow the part to be cut without re-chucking at all. Connector pins, bushings and valve spools often run this way. The trade-off is bar diameter limits and a higher setup cost per part number.

• 1
  Single setupBest route to concentricity between two diameters.
• 2
  Steady restExtends stable turning to roughly 10:1 length to diameter.
• 3
  Soft jawsBored in place, repeat far better than hard jaws.

Cross holes, flats, slots and milled pockets on a turned part force a decision. The traditional route is turn, then re-chuck on a mill. Every re-chuck adds a datum shift and a queue. The alternative is a mill-turn center that turns the diameter and mills the features without letting go of the part.

Mill-turn makes the most sense when the part has tight position between a turned diameter and a milled feature. A hydraulic manifold with a bored bore and eight cross ports is the classic case. Doing it in two machines means the port-to-bore position depends on two fixtures. Doing it in one means it depends on one spindle.

Five-axis adds the ability to reach features at compound angles, such as angled ports or sculpted faces, without special fixturing. A part that needs three setups on a 3-axis mill can often be finished in one on a 5-axis machine with a Ø400 mm rotary table. Fixture count drops, and so do the datum stacks.

Where mill-turn does not help: large parts beyond the machine envelope, features that need long reach, and simple parts with no cross work. Turning a plain bushing on a mill-turn center just costs more per hour. Our 4,000 mm maximum processing size covers long shafts, but those run on dedicated lathes, not on a mill-turn.

• 1
  Choose mill-turnCross features with tight position to a turned bore.
• 2
  Choose 5-axisCompound-angle features that would need three setups.
• 3
  Stay on a lathePlain round parts with no cross work.

Aluminium 6061-T6 turns cleanly with sharp positive inserts at high surface speed. It also moves under clamping, so thin sections need light jaws. Aluminium 7075 is stronger and machines well but is more notch-sensitive; sharp corners on a turned shoulder become crack starters under load.

Stainless 303 is the free-machining grade and behaves well on a lathe. Stainless 304 and 316L work harden, so the tool must stay engaged and cut below the hardened layer. A dwelling tool will raise the surface hardness and destroy the next pass. Coated inserts and constant feed help more than higher spindle speed.

Steel 4140 and 4340 in the pre-hardened state turn predictably and hold tolerance well. Titanium Ti-6Al-4V cuts at low surface speed with high coolant pressure. It also springs back against the tool, so the diameter tends to come out slightly over nominal until the offset is dialed in.

Copper and brass are the easy case. C36000 brass turns fast with an excellent finish. Beryllium copper machines well but requires dust control. Plastics such as POM and PEEK turn with sharp uncoated tools, high rake and generous clearance, otherwise the material melts and smears instead of cutting.

• 1
  Aluminium 6061Fast, clean cuts; watch clamping distortion on thin walls.
• 2
  Stainless 304 / 316LWork hardens; never let the tool rub.
• 3
  Ti-6Al-4VLow speed, high coolant, expect spring-back.

A micrometer gives two-point diameter. It does not tell you whether the part is round. A three-point lobed diameter can read nominal on a micrometer and still fail on a roundness tester or in a bearing bore. If roundness is on the print, measure it with a method that can actually see it.

Concentricity and runout need a datum. The right setup is to spin the part on the datum feature, usually between centers or on a precision arbor, and sweep the measured diameter with a dial or lever indicator. Measuring while the part is still in the chuck measures the machine, not the part.

Temperature matters at the fine end. A 100 mm steel shaft grows about 1.2 μm per 1 °C. Comparing a part that just came off the machine at 35 °C against a drawing checked at 20 °C introduces more error than the tolerance allows. Let parts stabilize before final inspection.

Surface finish should be checked on the actual turned surface, in the direction of cut. A portable skidded roughness tester is fine for Ra 0.8–1.6 μm, but below Ra 0.4 μm the skid itself starts to affect the reading. For critical sealing surfaces, cut a sample and measure it on a bench instrument.

• 1
  RoundnessUse a roundness tester or a three-point check, not a micrometer alone.
• 2
  RunoutSpin on the datum feature, not in the chuck.
• 3
  TemperatureLet parts cool to 20 °C before final inspection.
