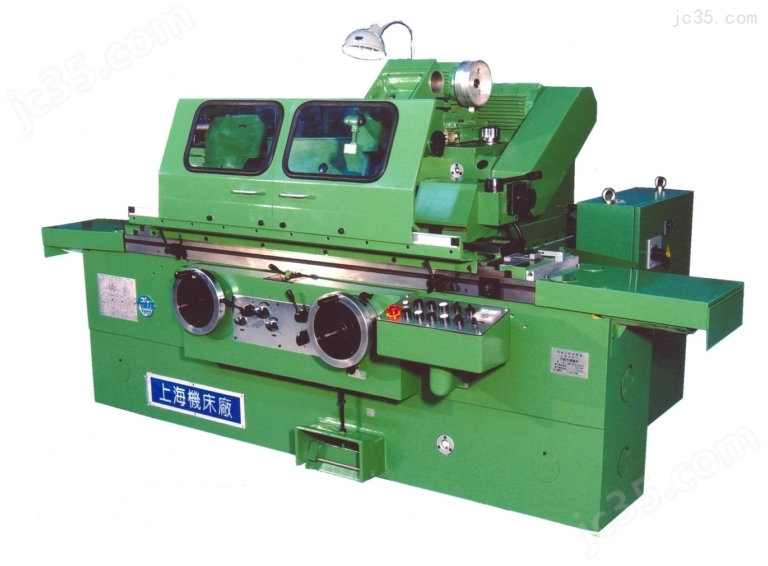

CNC Universal Cylindrical Grinder: How It Works and What It Is Built From

• 1
  How the CNC Universal Cylindrical Grinder Removes Material
• 2
  Bed, Wheelhead and Workhead: The Load Path
• 3
  Servo Drives, Dressing and the CNC Axes
• 4
  When Cylindrical Grinding Fits a Part and When It Does Not
• 5
  Setup, Grinding Cycle and Common Failure Modes
• 6
  Cylindrical Grinding Compared With Turning and Hard Milling

The grinding wheel is a milling cutter made of bonded abrasive grain. Each grain is a tiny, hard edge. When the wheel touches a rotating steel shaft, thousands of those edges shear off chips too small to see. The workpiece turns slowly in the opposite direction, so the two surfaces move against each other at the contact point.

Wheel surface speed normally runs 30–45 m/s. A 400 mm wheel turning at 1,800 rpm sits in that range. Workpiece speed stays much lower, often 20–40 m/min for hardened steel. That gap matters: the wheel does the cutting, and the workpiece speed sets how long each grain stays in the cut.

The CNC controller moves the wheelhead on the X axis (infeed) and the table on the Z axis (traverse). In a plunge cycle, X feeds straight into the part until the target diameter is reached. In a traverse cycle, Z sweeps along the length while X feeds a small depth each pass. Most shops use plunge for short shoulders and traverse for long journals.

A universal machine adds a swiveling workhead and a swiveling wheelhead. Swing the workhead and you can grind a steep taper in one setup. Swing the wheelhead and you can grind a shoulder face square to a journal. That flexibility is the whole point of the universal frame.

• 1
  Wheel speed30–45 m/s is the usual band for vitrified aluminum oxide wheels.
• 2
  Work speed20–40 m/min for hardened steel; slower for thin walls.
• 3
  Plunge vs traversePlunge for short features, traverse for long journals.

The bed is the reference plane for everything else. Most machines use cast iron or a welded steel structure filled with vibration-damping material. Cast iron absorbs vibration better than welded steel, which is why toolroom grinders still use heavy castings. The bed carries the guideways and the table, and any flex or thermal drift in the bed shows up directly in the finished diameter.

Guideways come in two main types. Linear rolling guideways use recirculating balls or rollers. They move freely, need little lubrication, and suit fast positioning. Hydrostatic guideways float the slide on an oil film. They have almost no stick-slip, so they hold sub-micron infeed better, but they need a clean oil supply and more maintenance.

The wheelhead spindle rides in precision bearings, or in some machines on a hydrostatic bearing. Spindle runout of 1–2 μm is typical on a good machine. The spindle motor drives the wheel through a belt or a direct drive. Direct drive removes belt vibration and is common on newer CNC machines.

The workhead holds the part. It has a motorized spindle with a chuck, a faceplate, or a dead-center with a driving dog. On a universal machine the workhead swivels 0–90° or more. The footstock supports the other end with a live or dead center. Between them, the part turns on its own axis.

• 1
  Bed materialCast iron damps vibration better than welded steel.
• 2
  Rolling guidewaysFast positioning, low maintenance, some stick-slip.
• 3
  Hydrostatic guidewaysBest sub-micron infeed, needs clean oil and service.

Servo motors drive the X and Z axes. A typical resolution is 0.1 μm with a glass scale for feedback. The controller interpolates the two axes so the wheel follows a programmed path along a shoulder radius or a taper. Without interpolation, you would need form-dressed wheels for every profile.

Wheel dressing is the step that keeps the process alive. The abrasive grains dull and the wheel loses its shape. A diamond dresser, mounted on the table or on a separate axis, traverses across the wheel face and cuts a fresh layer. CNC machines automate this: the controller calls a dress cycle after a set number of parts, then applies a compensation offset so the wheel diameter stays true.

Coolant does three jobs. It carries heat away from the contact zone, it flushes chips out of the wheel pores, and it lubricates the contact. Straight oil gives the best finish and the least burning, but it needs a fire-safe setup. Water-based coolant is easier to handle but evaporates faster and can rust parts if the concentration is wrong.

In-process gauging closes the loop. A gauge head touches the part during grinding and sends the size back to the controller. The controller switches from rough feed to fine feed, then to spark-out, based on that signal. This is how a machine holds ±0.005 mm on a production run without an operator measuring each part.

• 1
  Axis resolution0.1 μm with glass-scale feedback is typical.
• 2
  Dress cycleAutomated after a set part count, with offset compensation.
• 3
  Coolant choiceOil for finish and burn control; water-based for handling.

Cylindrical grinding earns its cost on hardened parts. A shaft at 58–62 HRC cannot be turned with a carbide insert to a good finish. Grinding cuts it, holds the size, and leaves a surface that resists fatigue. Automotive and aerospace shafts, spindles, and hydraulic rods fall in this group.

The process also fits parts that need a tight size and a fine finish together. Turning can reach ±0.025 mm and Ra 1.6 μm. Grinding reaches ±0.005 mm and Ra 0.2–0.8 μm on the same part. If the drawing calls for both a tight tolerance and a fine finish on a hard material, grinding is usually the only route.

It does not fit soft, gummy materials well. Aluminum and mild steel load the wheel pores and smear instead of cutting cleanly. They can be ground, but the wheel needs an open structure and a different coolant, and the finish is rarely better than a good turn. For those parts, turning or milling is cheaper and faster.

It also does not fit parts with deep internal features or complex 3D shapes. A cylindrical grinder works on surfaces of revolution. Slots, pockets, and freeform surfaces need a machining center. A part that mixes both may need two setups on two machines, and that routing decision belongs in the DFM review, not on the shop floor.

• 1
  Good fitHardened shafts, spindles, hydraulic rods, bearing journals.
• 2
  Marginal fitSoft aluminum and mild steel; turning is usually better.
• 3
  Wrong fitSlots, pockets and freeform surfaces need a mill.

A typical cycle starts with the part mounted between centers. The operator dials in the workhead, sets the wheel speed, and calls up the program. Rough grind removes most of the stock at a higher infeed. Fine grind slows the infeed and sharpens the finish. Spark-out runs with no infeed for a few seconds so the wheel and part catch up with each other. Then the wheel retracts and the part comes off.

Most size problems trace back to three causes. Thermal growth moves the wheelhead or the part as the machine warms up, so the first parts of a shift run oversize. Wheel wear changes the effective diameter between dress cycles. Workpiece deflection bends a long, thin shaft away from the wheel, so the middle grinds smaller than the ends.

Chatter is a vibration problem. It shows up as a regular pattern on the surface. The usual fixes are a stiffer setup, a shorter overhang, a softer wheel, or a change in wheel speed to move off the resonant point. A dull wheel can also cause it, so check the dress cycle before chasing the structure.

Burning is a heat problem. It shows as a blue or black tint and a rehardened layer under the surface. It comes from too much infeed, a loaded wheel, or poor coolant delivery. The part may pass a size check and still fail fatigue testing, so burn inspection matters on safety-critical parts.

• 1
  Size driftThermal growth and wheel wear are the first two suspects.
• 2
  ChatterStiffness, overhang, wheel hardness and wheel speed.
• 3
  BurningInfeed rate, wheel loading and coolant flow.
