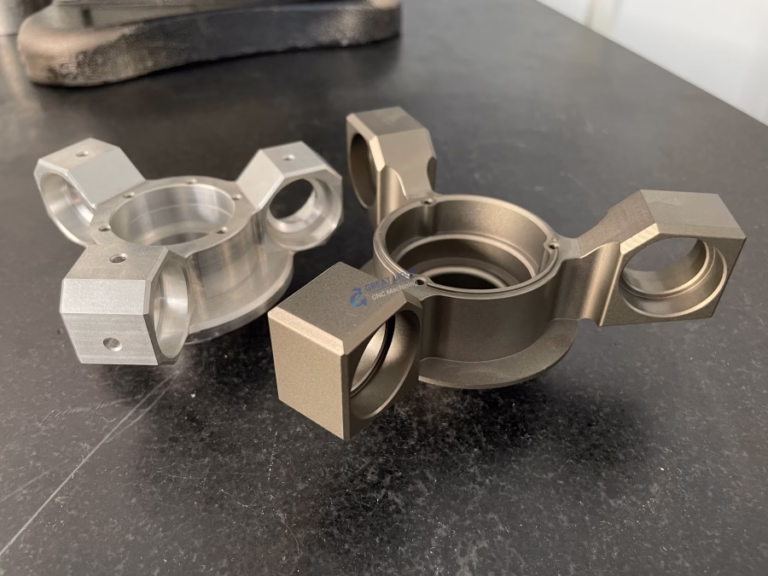

Die casting is a fast, cheap way to make a near-net shape. It is rarely a finished part. Gates leave marks, parting lines sit proud, ejector pins dent the back face, and every hole you need for a fastener comes out undersized or with draft. The casting is the blank. The part is what leaves after CNC work.

This is where most sourcing goes wrong. Buyers compare casting quotes from one vendor against machining quotes from another, then discover nobody owns the interface. The caster blames the machine shop for a shifted datum. The machine shop blames the caster for porous stock. Weeks disappear.

A supplier that runs both operations quotes one tolerance stack. Fixtures are built around the actual castings, not a nominal model. If a bore comes in 0.3 mm off, the machinist can adjust the setup the same day instead of shipping scrap back across town.

The practical test is simple. Ask which machines will touch your part after it leaves the die, and ask to see the setup sheet. A vague answer means your part will be outsourced to a third party you never approved.

As-cast tolerances on aluminium run about ±0.1 mm on small features and loosen as the part grows. That is fine for a bracket. It is not fine for a bearing bore or a sealing face. Mark every critical feature as machined and give it a real tolerance, typically ±0.005 mm for fits that see load or fluid.

Draft is the other quiet killer. A vertical wall with 0.5° draft will release. A vertical wall with 0° draft will gall the die and cost you a weld repair. Most aluminium parts want 1–2° on walls and more on deep ribs. Send the model back for a DFM pass before you cut steel.

Wall thickness drives porosity. Thin walls freeze fast but resist fill; thick sections feed shrinkage. Aluminium parts usually sit between 2 mm and 4 mm, with transitions rather than steps. Where a thick boss meets a thin wall, expect a sink mark or a shrink void unless the caster adds a rib or a core.

Surface finish follows the same logic. As-cast faces land near Ra 1.6–3.2 μm. If your drawing calls for Ra 0.8–1.6 μm, that face gets machined, and the quote should say so.

• 1
  Mark machined featuresAnything with a seal, bearing, or thread belongs on the machined list.
• 2
  Give draft a number1–2° on aluminium walls; more on deep pockets.
• 3
  Keep walls even2–4 mm nominal, with gradual transitions.

Lead time claims are easy to make and hard to verify. Ask what the clock covers. A quote in 12 hours and a production start within 24 hours are useful numbers only if tooling already exists or is simple. For a new mold, add the tool build, first-article inspection, and any DFM loop before that clock starts.

Order quantity deserves the same scrutiny. A supplier that runs one prototype and a 10,000 piece order from the same floor has to solve setup, fixturing, and inspection at both ends. That is a real capability. A supplier who only wants the 10,000 piece job will quote the prototype badly on purpose.

Tooling ownership is the clause buyers skip. If the mold lives at a subcontractor, your exit cost includes moving it, re-qualifying it, and possibly repairing it. Get written terms for who holds the tool, who pays for maintenance, and how many shots it is rated for.

Keep the commercial terms short and specific. No minimum order quantity, parts shipping in 3–5 days on standard work, and a documented escalation path when something slips. Those are the lines worth reading twice.

Die casting hides defects well. Gas porosity sits below the skin, cold shuts blend into the surface, and a filled thread looks fine until it strips. The only defense is inspection that happens before the crate closes, not after it lands.

Ask what gets checked and how often. A workable routine covers incoming material, in-process dimensional checks, and a final pass before shipment. For safety or regulated parts, request dimensional reports and material certificates with the lot. For medical work, ISO 13485:2016 changes what records you must keep.

Data security matters more than most buyers expect, because a casting drawing plus a machining program is your whole product. ISO 27001:2022 and a signed NDA cover the file handling side. Neither replaces a clear clause about who can see the drawings.

Traceability closes the loop. If a lot fails six months later, you need to know which melt, which die insert, and which operator. A supplier who cannot answer that in an afternoon is a risk on any program that runs longer than one shipment.
