How to Vet a Reliable Top CNC Machining Supplier Online
This guide is for engineers and sourcing teams who need to qualify a cnc machining supplier online before releasing a drawing package. It covers the seven checks that actually predict part quality, plus the numbers worth asking for. Read it once and you can sort a shortlist in an afternoon.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Key takeaways
Purchase question to evidence to red flag
Use the left column as your email checklist. The right column is what a vague answer usually hides.
| What you ask | What good evidence looks like | Red flag |
|---|---|---|
| Achievable tolerance | Stated per feature size and material, not one blanket number | "We hold ±0.005 mm on everything" |
| Machine capacity | Machine list with travel and axis count | No travel dimensions published |
| Certifications | Certificate number and issuing body, current scope | Logo image with no number |
| Lead time | Quote in 12 h, ship in 3–5 days for standard work | "Depends" with no figure |
| Minimum order | No MOQ, prototype through 10,000+ parts | Minimum charge hidden until PO |
| DFM feedback | Written review attached to the quote | Price only, no comments |
| Confidentiality | NDA on request, secure uploads | Uploads over plain email only |
| Inspection | 100% before shipment, reports on request | "We check samples" |
Pick the supplier whose process matches your part
There is no single best shop for every drawing. Match the work envelope, the tolerance window and the certification scope to your part, then verify with one physical piece before you commit volume.
Tolerance claims: what a cnc machining supplier online should actually state
Every quote you receive will mention precision. Almost none of them will tell you what it costs. Tolerance is a function of three things: the machine, the fixturing, and how many setups the part needs. A shop holding ±0.005 mm on a small aluminum housing is doing routine work on a 4-axis mill. The same shop holding ±0.005 mm across a 4,000 mm frame is doing something else entirely, and the price will show it.
So ask for tolerance per feature size, not per shop. A useful answer sounds like: ±0.005 mm on features under 100 mm, ±0.02 mm on features over 500 mm, with surface finish quoted separately. If the reply is one number for the whole part, the number is marketing, not a process window.
Surface finish follows the same logic. As-machined aluminum lands around Ra 1.6–3.2 μm. A fine finish at Ra 0.2–0.8 μm usually means extra passes, slower feed, or a secondary operation, so it belongs in the quote line by line. Ask which surfaces need it. Often only two faces on a part carry a sealing function.
One more thing to test early: unit conversion. If you send inch drawings with ±0.0002 in callouts, the supplier should come back in the same units without you correcting them. Mistakes here surface as scrapped parts, not as emails.
- 1Ask per feature, not per shopTolerance scales with part size and setup count.
- 2Separate finish from toleranceRa 0.2–0.8 μm is a cost item, not a default.
- 3Confirm units on the first quoteMixed metric and inch callouts cause scrap.
Machine list and work envelope: the numbers behind the brochure

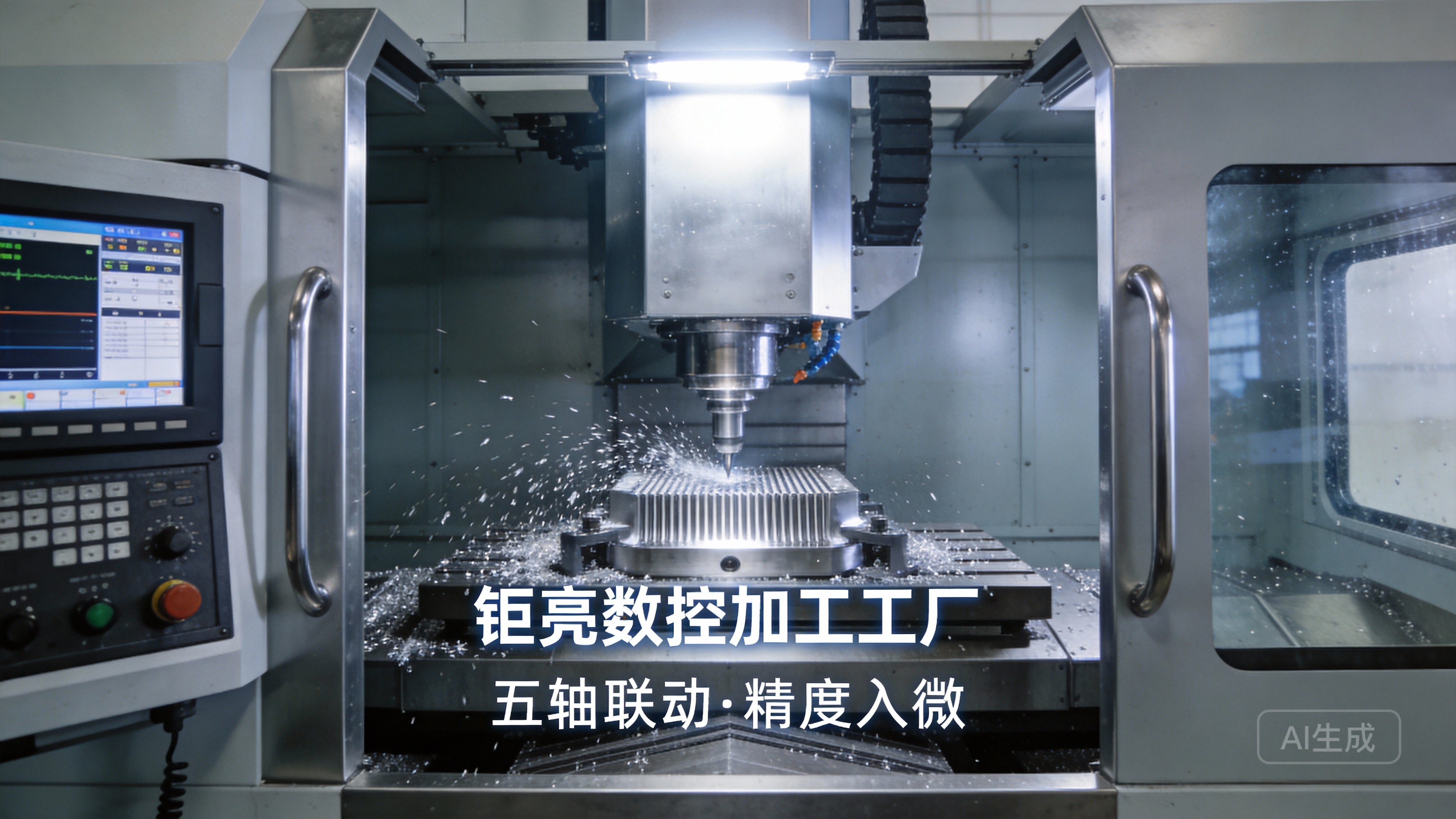

A supplier's machine list tells you what parts they can physically make, and that is the first hard filter. Simultaneous 5-axis centers handle contoured surfaces, deep pockets and features on five faces in one setup. Three-axis machines are still the fastest way to make flat plates with holes, and pricing should reflect that. A shop with both will route your part to the cheaper process. A shop with only one will route everything through it.
Work envelope matters more than people expect. A part that is 900 mm long but only 120 mm tall fits a 750 × 1,150 × 550 mm machine if you orient it right. A 4,000 mm extrusion does not fit anywhere except a long-travel machine with a 4,000 × 400 × 150 mm envelope. Sending that drawing to a general-purpose shop wastes two days on both sides.
Also ask how many spindles are dedicated to production versus sampling. A workshop with 127 machines and a separate sample line can start a prototype in 24 hours without pulling a production machine offline. That is a scheduling advantage, and it is the reason prototype shops and production shops often quote the same part very differently.
Rotary tables are worth a specific question too. A Ø400 mm table lets a shop machine features around a cylindrical part without repositioning it. If your part is a manifold with ports on four sides, that single capability removes three setups and a stack of positional error.
- 15-axis for contour, 3-axis for platesMatch the process to the geometry, not the brand.
- 2Compare the part to the envelopeLong or tall parts fail on travel, not on tolerance.
- 3Ask about the sample linePrototype scheduling is a separate capacity question.
Certifications and traceability in regulated programs
ISO 9001:2015 is the baseline every serious shop carries. It says a quality system exists. It does not say the system was built for your industry. For automotive and EV work, IATF 16949:2016 adds production-part approval, change control and traceability requirements that a general ISO 9001 shop will not have implemented. For medical devices, ISO 13485:2016 is the one that matters, because it governs process validation and device history records.
Data security is the one people skip. If your drawings contain unreleased geometry, ISO 27001:2022 tells you the supplier has formal controls around access, storage and incident handling. It is not a substitute for an NDA, but it means there is a process behind the promise.
Traceability is the practical test. Can the supplier tie a finished part back to a material heat number and a machine log? Ask for a sample inspection report before you order. A report with raw material check, in-process monitoring and final inspection stages shows you the actual data trail. A one-page certificate with a logo does not.
None of this is about paperwork for its own sake. When a lot fails six months later, the difference between a two-day investigation and a two-week one is whether the records exist.
- 1Match certificate to sectorIATF 16949 for automotive, ISO 13485 for medical.
- 2Ask for a sample inspection reportLook for material, in-process and final stages.
- 3Treat ISO 27001 as data evidenceIt supports an NDA, it does not replace one.
Lead time, MOQ and how online quotes are actually priced
Lead time is the easiest claim to verify and the most commonly inflated. A workable standard is: quote and DFM analysis inside 12 hours, production start within 24 hours, parts shipping in 3–5 days. Those are process commitments, not promises about your specific part. Complex geometry, exotic material and finishing add days, and a supplier who says otherwise has not read the drawing.
Ask how late deliveries are tracked. A historical late-delivery rate below 2% is a number you can hold a supplier to over a year of orders. A vague "on-time" claim is not. It also tells you whether they measure the thing at all.
Minimum order quantity decides whether you can iterate. A shop with no MOQ lets you run one prototype, adjust the design, and run five more without a penalty tier. If the same supplier can scale to a 10,000+ part run on the same process and the same fixtures, you avoid a costly re-qualification when the product moves to volume.
Finally, look at what the online quote engine does behind the price. Automated quoting from a 3D model alone is fine for simple brackets. For anything with thin walls, deep pockets or tight position tolerance, a human DFM review before the price is final is worth more than a fast number.
- 1Ask for the tracking statisticA late-delivery rate you can audit beats an adjective.
- 2No MOQ supports iterationDesign changes are cheaper when volume tiers do not punish them.
- 3Human review before final priceAutomated quotes miss thin walls and deep pockets.
Materials and finishing: where hand-offs create risk
Material coverage is a useful filter. A supplier stocking 6061, 7075, 304, 316L, 17-4PH, Ti-6Al-4V and PEEK in house can quote most industrial parts without a sourcing delay. If the quote comes back with a two-week material lead time on standard 6061, the material is being bought after the order, not held before it.
Finishing is where multi-vendor supply chains break. Anodizing, electroless nickel, powder coating and laser marking are all secondary operations, and each hand-off adds a shipping step and a dimensional risk. A part that needs hardcoat anodizing after machining will grow slightly; the supplier should know that before they set the pre-plate dimensions.
Laser marking has a real limit worth knowing: minimum character height is 1.5 mm. If your part number and serial number need to fit a 6 mm boss, plan the layout early. Redesigning a mark after the first article is cheaper than scrapping a finished batch.
Ask whether finishing is done in house or coordinated. Coordinated is fine when the supplier owns the specification and inspects the returned parts. It is a problem when they forward your order and you become the quality gate.
- 1Check stock, not just capabilityStandard alloys should not add weeks to a quote.
- 2Plan finish growth earlyAnodizing changes dimensions after machining.
- 31.5 mm minimum mark heightSmall bosses need a layout decision up front.
Step by step: auditing a supplier before the first PO
Run these in order. Each step should take a day or less, and step 5 is the one most teams skip.
- 1Send a real part, not a simple onePick a part with at least one tight tolerance, one contoured surface and one finish callout. A cube will not separate a good shop from an average one.
- 2Request the quote plus written DFM notesYou want a price line by line and at least two engineer comments. If thin walls at 0.8 mm draw no comment, the review did not happen.
- 3Ask for tolerance per feature sizeExpect a range, for example ±0.005 mm under 100 mm and ±0.02 mm over 500 mm. A single blanket number is a warning.
- 4Confirm machine and envelope fitState your part's longest dimension and ask which machine it routes to. Compare against the published travel figures.
- 5Order one piece and inspect it hardMeasure the tight features yourself and check surface finish against the drawing. One part costs little and tells you a lot.
- 6Request the inspection report and material certLook for raw material check, in-process monitoring and final inspection. The material heat number should match the report.
- 7Test a design changeSend a revision after the first part and see how the price and lead time move. This reveals how much of the process is fixed versus re-quoted.
- 8Agree on confidentiality and recordsSign the NDA before releasing full geometry, and confirm how long production records are retained.
Questions engineers ask before switching suppliers
How do I compare two quotes when the line items do not match?
Ask both suppliers to break the price into machining, material, finishing and inspection. A single lump sum hides which process is driving cost.
Once the structure matches, compare same-to-same. A cheaper quote with finishing subcontracted is not cheaper if you have to inspect the returned parts yourself.
Is a lower tolerance number always better?
No. Tightening a tolerance you do not need adds cost and inspection time with no functional gain. Machine to the drawing, not to the tightest number the shop can print.
Reserve ±0.005 mm for features that mate, seal or locate. Cosmetic and clearance features can sit at ±0.1 mm or looser.
What should I do if the supplier cannot show a certificate number?
Treat the certification as unverified and ask for the scope document from the issuing body. Logos and PDF copies are easy to produce; a current scope with your process in it is not.
If the certificate is in progress rather than issued, that is a legitimate answer for a new program. Just plan your own incoming inspection around it.
Can one supplier handle both prototype and production?
Sometimes, and it is worth checking because it avoids a second qualification cycle. Ask whether the prototype and production parts run on the same process and fixtures.
If the production route uses different machines or a different finishing line, expect to re-validate first articles at the volume stage regardless of who makes them.
How much does surface finish really add?
It depends on the target. Moving from as-machined at Ra 1.6–3.2 μm to a fine Ra 0.2–0.8 μm generally means extra passes or a secondary operation, so it is a visible line in the quote.
Specify finish per surface. A part with two sealing faces and eight cosmetic ones should not carry a fine finish everywhere.
What is a reasonable first-order size?
Start with one to three pieces so you can measure the result without a large commitment. With no MOQ, there is no cost reason to order more before the design is settled.
Once the first article passes, scale in steps and re-check the same critical features at each step.
