Precision Forging of Connecting Rods: How Near-Net Forging Works
Connecting rods carry combustion load, so mass distribution and bore geometry matter more than surface finish. This page covers the mechanics of precision forging of connecting rods, the process windows that hold tolerance, and where the method stops being economical. Written for design and process engineers comparing near-net forging against machining from bar.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
What precision forging of connecting rods actually changes
A connecting rod is a beam with two bores at different heights, loaded in tension on the intake stroke and compression on the power stroke. The big end sees the highest stress and the small end sees the highest wear. Precision forging of connecting rods targets one goal: produce the beam and both bores close enough to final size that only grinding and honing remain.
Conventional forging leaves 2–4 mm of machining allowance per surface. Precision forging, sometimes called flashless or near-net forging, pushes that down to 0.3–0.8 mm on the beam sides and 0.5–1.5 mm in the bores, depending on press tonnage and die wear. The savings come from cutting time, not from the press cycle.
The gain is not free. Tighter forging tolerance means tighter billet control, better die temperature management, and a trimming step that no longer masks flash variation. A shop that runs loose forging and heavy machining will lose money switching to near-net unless the whole chain moves together.
- 1AllowanceBeam sides 0.3–0.8 mm, bores 0.5–1.5 mm per surface.
- 2Mass controlRod-to-rod weight spread drives balance and NVH.
- 3MetallurgyForging flow lines should follow the beam, not cross it.
Billet, temperature, and die design decide the result
Billet weight tolerance is the single largest driver of thickness variation. On a 700 g rod, a ±5 g billet spread moves beam thickness by roughly 0.15 mm. That is why near-net forging lines weigh every billet or buy cut-to-weight stock, not bar stock sawn on a band saw with a loose stop.
For steel rods, forging temperature usually sits between 1,150 °C and 1,250 °C. Too cold and the material will not fill the rib and I-beam pockets. Too hot and grain grows, scale thickens, and die life drops. Induction heating with closed-loop pyrometer control holds the billet face within ±15 °C.

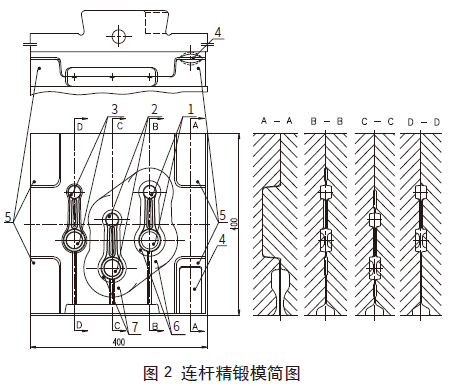

Die design carries the geometry. Ribs and I-beam webs need draft of 3–7° and corner radii of at least 2 mm, otherwise metal tears as it flows. Parting line placement decides whether the flash sits in a low-stress zone. Split the rod and cap at the big end and the break line becomes a fatigue feature, not just a manufacturing one.

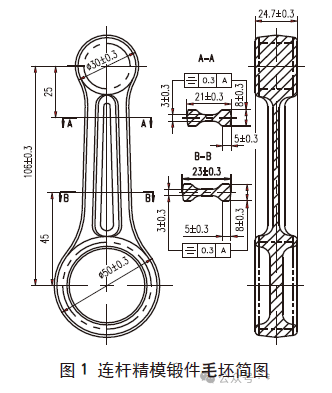

Which dimensions precision forging can hold and which it cannot
Forging holds mass and beam geometry well. It holds bore diameter and center distance poorly compared with machining. A near-net rod might arrive with the big end bore at ±0.3 mm, which is fine because that bore gets ground or honed to final size anyway.
The dimensions that must be right off the die are the ones that are expensive to cut later: the I-beam web thickness, the rib transitions, and the cap mating face. If those are wrong, you are removing stock from a surface that was designed to keep its forged skin.
Center distance between the big and small end bores is the classic trouble spot. It depends on die wear and thermal shrinkage, and it drifts across a production run. Expect to hold it to roughly ±0.1 mm from the die, then finish to ±0.005 mm on a machining center with a fixture that references the forged beam.
Failure modes engineers should watch for
Laps and folds are the most common forging defect. They form when metal folds back on itself during flow, usually at a rib root or a sharp corner. A lap is a crack waiting to open under fatigue. Radiusing corners to at least 2 mm and keeping draft above 3° removes most of them.
Decarburization is the second. If the billet sits in the furnace too long, the surface layer loses carbon and the forged skin becomes softer than the core. That surface is exactly where bending stress peaks. Control furnace residence time and check case depth on a sample per shift.
Die wear is gradual and sneaky. As the die erodes, beam thickness creeps up, mass creeps up, and the rod gets heavier across a run. Track part weight as a process control variable, not just as a shipping check.
From billet to finished rod
- 1Cut and weigh the billetSaw to length, then check weight to ±5 g on a 700 g rod. Reject out-of-band pieces before they reach the furnace.
- 2Heat under closed-loop controlInduction to 1,150–1,250 °C for steel, held within ±15 °C across the billet face.
- 3Forge in one or two blowsBlock the shape first, then finish. Two blows reduce die stress and improve rib fill.
- 4Trim while hotRemove flash immediately. Cold trimming cracks the parting line on high-carbon steel.
- 5Control coolSlow cool or normalize to avoid hard spots that will chatter during grinding.
- 6Machine the functional featuresGrind or hone bores, face the cap, and hold center distance to ±0.005 mm on a CNC center.
Near-net forging versus machining the rod from bar
Choose by volume, geometry, and load path, not by unit price alone.
| Criterion | Precision forging | CNC from bar |
|---|---|---|
| Typical volume | 5,000+ parts per year | 1 to 1,000 parts per year |
| Beam allowance | 0.3–0.8 mm per side | No allowance, cut from stock |
| Grain flow | Follows the beam contour | Cut through, no flow line |
| Tooling cost | Die set, amortized over run | Fixtures only |
| Best geometry | I-beam, ribbed, tapered | Plate, simple or hollow |
| Prototype speed | Weeks for first die | Days from 3D model |
| Post-processing | Grind, hone, balance | Machine bores and faces |
| Fatigue margin | Higher in the beam | Depends on stock size |
Where the method wins and where it does not
Pick precision forging for ribbed or I-beam rods above roughly 5,000 pieces a year, where grain flow and fatigue life justify the die cost. For prototypes, low volume, or simple plate-style links, machine from bar and skip the tooling.
Common questions
Can precision forging hold the big end bore to final size?
No. Forging typically lands the bore within ±0.3 mm, which is well outside a bearing fit.
The bore is ground or honed afterward. A CNC machining center holds ±0.005 mm on the finished bore with a fixture that references the forged beam.
What billet weight tolerance do we need?
On a 700 g connecting rod, hold ±5 g. That keeps beam thickness variation near 0.15 mm.
Looser than ±10 g and you will chase thickness on every part, which defeats the purpose of near-net forging.
Does forging improve fatigue life compared with a machined rod?
Yes, when the grain flow follows the beam. A forged I-beam rod has continuous flow lines along the load path.
A rod cut from plate has flow lines running across the section, so the beam has no directional reinforcement. The gap is largest in the web and rib roots.
At what volume does the die cost pay back?
Roughly 5,000 pieces a year for a ribbed or I-beam rod. Below that, machining from bar usually wins.
The crossover depends on how much stock the forging removes and how much fixturing the machined version needs.
Can a forged rod be machined without stress relief?
It should be normalized or controlled-cooled first. Otherwise residual stress from forging and trimming will move the part after you cut it.
For tight center distance, stress relief before the finishing passes is cheaper than scrapping finished rods.
What materials are common for forged connecting rods?
Medium-carbon and alloy steels such as 1045, 4140, and 4340 cover most automotive and industrial rods.
Higher-strength applications may use microalloyed steel that air-hardens after forging, which removes a heat-treat step.
