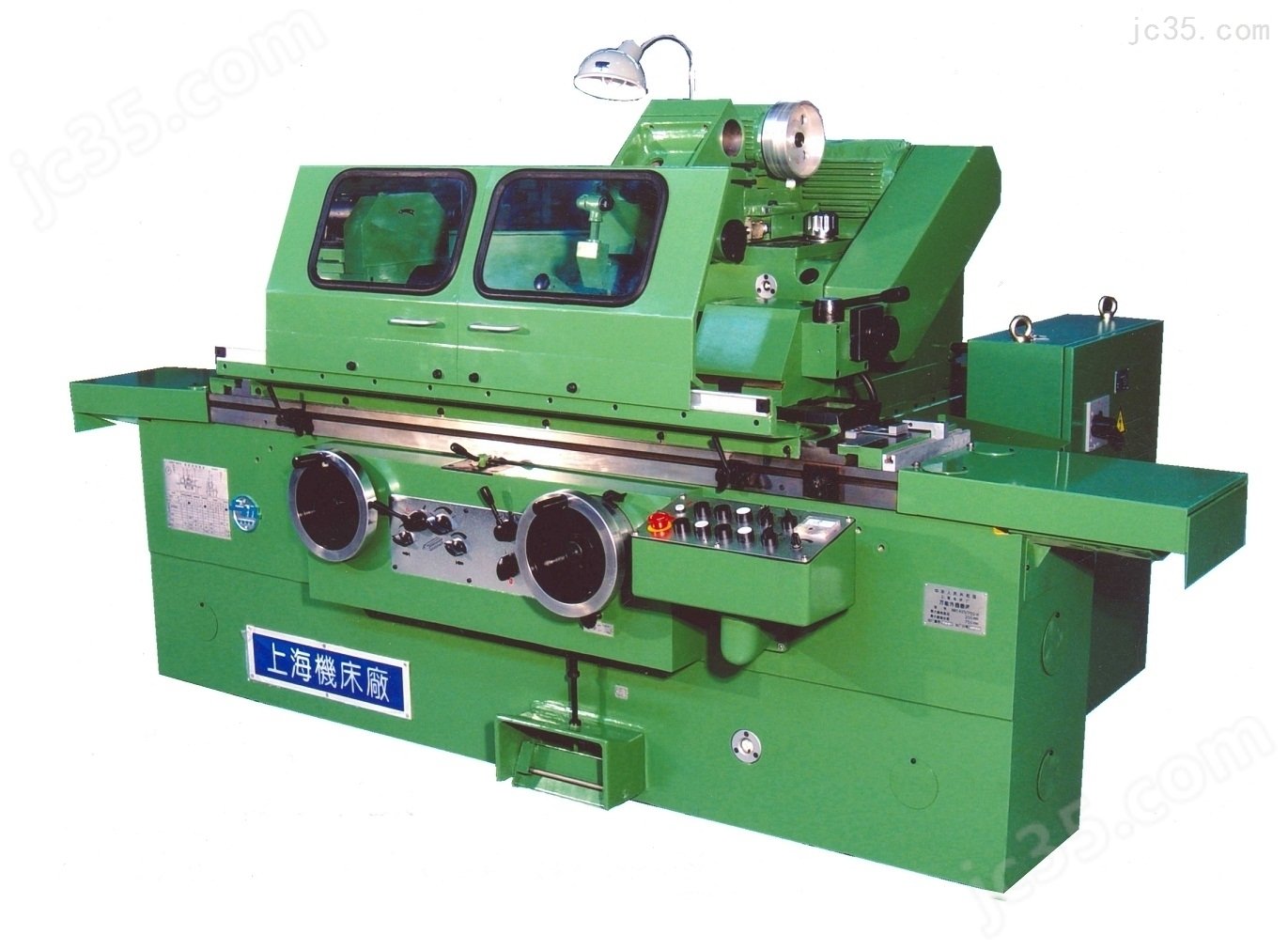

Semi-Automatic Cylindrical Grinder: How It Delivers High Machining Precision

• 1
  What matters on this page
• 2
  How a semi-automatic cylindrical grinder removes material
• 3
  What precision a semi-automatic cylindrical grinder holds
• 4
  When a semi-automatic cylindrical grinder is the wrong choice
• 5
  Setup variables that decide the final tolerance
• 6
  How GreatLight applies cylindrical grinding in a CNC shop
• 7
  Semi-automatic vs manual vs CNC cylindrical grinding

The workpiece rotates between centers or in a chuck while a bonded abrasive wheel spins at 30–45 m/s. The grinding wheel and the work rotate in the same direction at the contact point, but the wheel surface speed is 30 to 60 times higher. That speed difference is what cuts hardened steel instead of rubbing it. The operator sets the depth of cut, presses the cycle start, and the machine feeds the wheelhead in to a preset stop.

Material removal happens through thousands of tiny abrasive grains. Each grain acts like a small cutting tool with a negative rake angle, shearing chips that are a few micrometres thick. Because the chips are so thin, the specific cutting energy is high and most of the input power turns into heat at the contact zone. Coolant is not optional here — it controls both the workpiece temperature and the wheel loading.

The semi-automatic part is the feed axis. On a fully manual grinder, the operator turns a handwheel for every pass. On a semi-automatic machine, the wheelhead infeed and the table traverse are motor-driven to preset positions. The operator still loads the part, sets the dressing cycle, and checks the first piece. This middle ground suits shops that run mixed batches where full CNC programming is not economic.

Spark-out is the final pass with no additional infeed. The wheel keeps rotating for a few seconds so elastic deflection in the wheel, workpiece, and centers relaxes. Skipping spark-out is one of the most common reasons a part measures oversize on a semi-automatic cylindrical grinder even when the infeed stop was set correctly.

• 1
  Wheel speed30–45 m/s for aluminium oxide; 20–35 m/s for cubic boron nitride on hardened steel.
• 2
  Work speed15–30 m/min for steel; higher speeds risk burning on hardened surfaces.
• 3
  Typical depth of cut0.005–0.02 mm per pass for finishing; 0.03–0.05 mm for roughing.

On a machine in good condition, expect roundness of 1–3 μm and cylindricity of 2–5 μm over a 300 mm length. Surface finish lands between Ra 0.2 and 0.8 μm with a freshly dressed fine-grit wheel. These numbers assume the part is supported properly, the centers are clean, and the wheel has been dressed within the last few parts.

Diameter tolerance depends on how the machine compensates for wheel wear. A semi-automatic grinder does not measure the part in-process. The wheel gets smaller with every dress and every part. The operator either dials in a manual offset or the control applies a fixed compensation per dress. Over a 50-part run, that open-loop behaviour is the main source of drift.

Thermal growth matters more than most people expect. A grinding spindle can grow 10–20 μm as it warms up over the first hour. If the first part is ground cold and the twentieth part is ground hot, the second one will be smaller. Shops that hold ±0.005 mm on a semi-automatic cylindrical grinder usually let the machine idle for 20–30 minutes before the first cut.

The measuring system is external. A micrometer or an air gauge tells the operator where the part sits relative to the target. That feedback loop is human and it takes time. When the tolerance band is narrower than 5 μm, the inspection frequency has to rise, which is exactly where a CNC grinder with in-process gauging wins.

• 1
  Roundness1–3 μm on a rigid setup with a balanced wheel.
• 2
  Cylindricity2–5 μm over 300 mm; table alignment is the limiting factor.
• 3
  FinishRa 0.2–0.8 μm fine; Ra 0.8–1.6 μm for a standard finish pass.
• 4
  Size control±0.005 mm achievable, but requires frequent gauging on long runs.

If the part has a profile that changes along the axis — a radius, a shoulder blend, a tapered form — a semi-automatic machine cannot follow it without a formed wheel or a template. A formed wheel is expensive to make and it wears unevenly. A CNC grinder with interpolation handles that geometry in one setup and repeats it without operator input.

Long, slender shafts are another limit. The workpiece deflects under the grinding force, and on a semi-automatic machine there is no steady rest compensation tied to the control. A shaft with a length-to-diameter ratio above 10 usually needs a steady rest and multiple setups. Below that ratio, the semi-automatic process is stable and repeatable.

If the annual volume is high and the geometry is fixed, the setup time per part dominates. A CNC grinder amortises programming over thousands of parts and runs unattended. A semi-automatic machine needs an operator at the cycle start for every piece. For runs above roughly 5,000 identical parts per year, the CNC route usually pays back.

Some materials do not grind well at all. Soft aluminium and copper load the wheel and smear instead of cutting. Ductile plastics melt. A semi-automatic cylindrical grinder works best on hardened steel, tool steel, stainless above 40 HRC, and ceramics that are already in a hard state.

• 1
  Profile workUse CNC grinding or a formed wheel with a dressing template.
• 2
  L/D above 10Add a steady rest or split the grind into multiple setups.
• 3
  Soft, gummy metalsAluminium and copper load the wheel; consider hard turning instead.
• 4
  Very high volumeFixed geometry above ~5,000 parts per year favors CNC.

Wheel selection sets the ceiling. A 60-grit aluminium oxide wheel in a vitrified bond removes stock quickly but leaves a coarser finish. A 120-grit wheel with a softer grade holds the finish but glazes faster on hard steel. The dressing method matters too: a single-point diamond dressed at 0.02 mm per pass produces a sharper wheel than a star dresser, and it cuts cooler.

Workhead alignment has to be checked with a dial indicator against a known test bar. If the workhead centerline is off by 0.01 mm relative to the table travel, the part will come out tapered. On a semi-automatic cylindrical grinder, the table swivel is set by hand and locked. It is the first thing to verify after any crash or wheel change.

Balance the wheel before every mount. An unbalanced wheel at 35 m/s produces a vibration that shows up as chatter marks on the workpiece. These marks are visible under a 10× loupe and they will fail a surface-finish inspection even when the diameter is in tolerance. Static balancing on a stand takes five minutes and prevents an hour of rework.

Coolant delivery should be aimed at the contact zone, not at the top of the wheel. Nozzle pressure of 0.3–0.5 MPa with a flow rate around 20–40 L/min keeps the zone flooded. A weak or misdirected stream causes burn, which is a subsurface tempering defect that only shows up after etching or in service.

• 1
  Dressing depth0.01–0.03 mm per pass with a sharp single-point diamond.
• 2
  Coolant pressure0.3–0.5 MPa aimed at the contact zone, 20–40 L/min.
• 3
  Warm-upLet the spindle idle 20–30 minutes before the first precision cut.

Most parts that reach us arrive as a turning or milling job. When a drawing calls for roundness under 3 μm or a finish below Ra 0.8 μm on a hardened feature, we move that feature to grinding rather than trying to hit it on a lathe. The semi-automatic cylindrical grinder handles the straight cylindrical sections; a 5-axis machining center handles the features that need interpolation.

We keep grinding on hardened steel, tool steel, and stainless above 40 HRC. Materials like 17-4PH (SUS630) in the H900 condition grind cleanly and hold size well. For aluminium 6061 or 7075, we stay on the mill or lathe — grinding those alloys loads the wheel and the finish gets worse, not better.

Our grinding cells sit next to the turning department so a ground shaft can go straight to inspection. Every ground batch gets roundness and diameter checks on the first piece, then a sample check through the run. Final inspection is 100% before shipment, with reports available on request.

For a part that mixes a ground journal with milled flats or drilled holes, we plan the sequence so grinding is last. Grinding after milling avoids the burrs and edge break that a milling cutter would leave on a finished journal. It also keeps the reference surfaces clean for the grinding setup.

• 1
  Grinding after turningLeaves 0.2–0.4 mm stock for the grinding pass on hardened features.
• 2
  Materials we grind4140, 4340, 440C, 17-4PH, tool steel, and stainless above 40 HRC.
• 3
  Inspection100% before shipment; roundness and diameter reports on request.
