6 Basic Steps for the Use of the CNC Tool Round
This guide walks through the basic steps for the use of the CNC tool round, from holder assembly to the signed-off first article. It is written for machinists, setup techs and process engineers who need parts to come off the machine right the first time. Read it and you will know which steps are non-negotiable, where the tolerances sit, and when a job should never go on a lathe.
Key takeaways
What the CNC tool round actually does

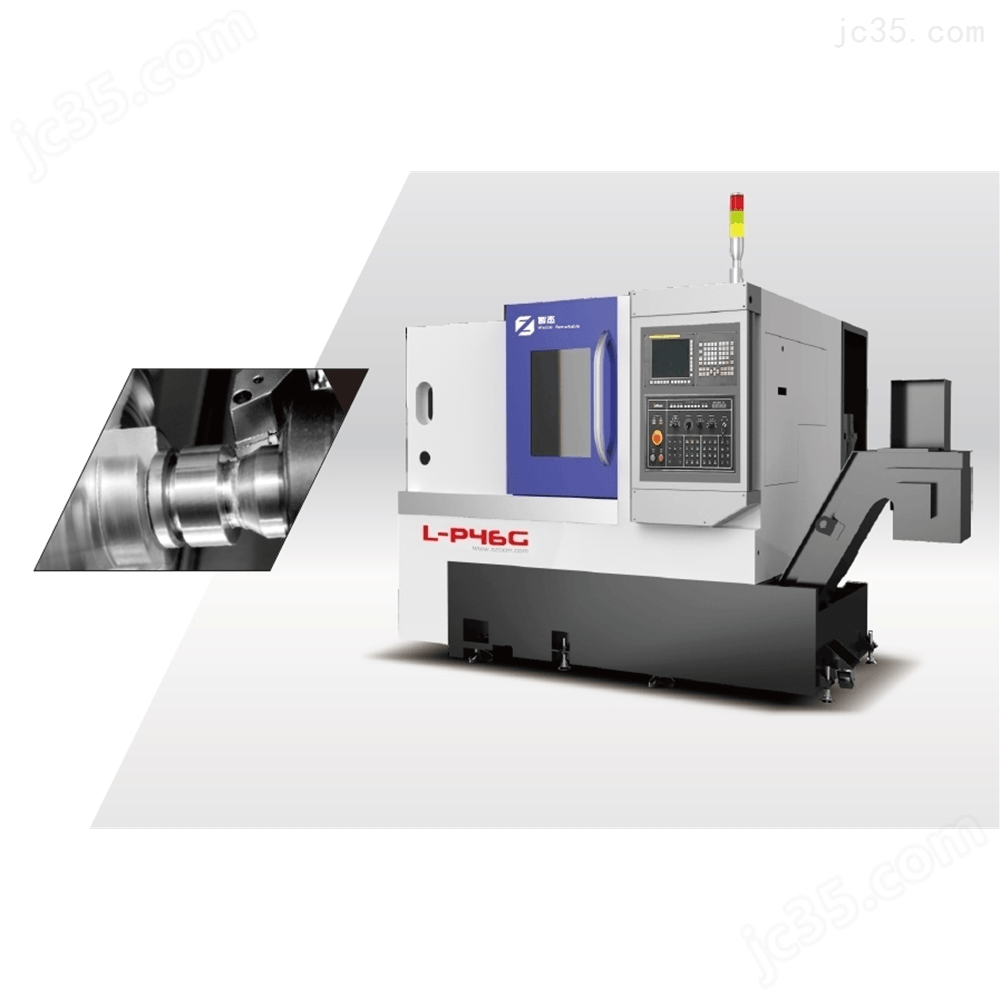

A round tool is any cutter whose cutting action comes from a rotating cylindrical body: end mills, drills, reamers, boring bars in a round shank, and lathe turning tools held in round holders. On a mill, the tool spins and the part moves. On a lathe, the part spins and the round tool feeds into it. The same tool geometry can behave very differently depending on which side turns, and that is the first thing to settle before setup.
The basic steps for the use of the CNC tool round never change with the machine. Assemble the holder cleanly, measure the tool, enter its length and diameter into the offset table, prove the path dry, cut a first article, then inspect and adjust. Skipping the measuring step or the dry run is how most scrap is made. It is rarely the CAM program that is wrong.
Round tools have a limited sweet spot. An end mill with a 3:1 length-to-diameter ratio cuts cleanly; at 8:1 it deflects and chatters. A drill wanders if the spot is off-center or the feed is too light. If a feature needs a long reach, a small corner radius, or a true square internal corner, a round tool alone will not hold it and you need a different process.
Match the CNC tool round to the material
Aluminum 6061 and 7075 cut fast with 2-flute or 3-flute carbide at 300–500 m/min surface speed. Use polished flutes and plenty of coolant or air blast to clear chips. Aluminum is where a round tool looks best, and it is also where people over-trust it: deep pockets still need a reduced radial engagement so the chip can leave the flute.
Stainless 304 and 316 work-harden. Keep the tool moving, never dwell, and stay above 0.05 mm per tooth so the edge cuts under the hardened skin instead of rubbing on it. Titanium TC4 (Ti-6Al-4V) and Inconel sit at the other end: 30–60 m/min for titanium and 20–40 m/min for Inconel, with high-pressure coolant and rigid, short tools.
Plastics such as POM and PEEK need sharp, uncoated tools and a fast feed to avoid melting. Copper and brass cut freely but grab if the rake is too positive. The table further down gives a quick starting point per material group. Treat every number as a starting point and dial it in on the first part, not on the tenth.
Holder, runout and offset errors that cost parts
Runout is the silent killer of round tool work. A tool with 0.030 mm total indicated runout will cut oversize on one flute and wear unevenly on the other, and hole diameters will drift across the batch. Indicate the cutting edge, not the shank. On a collet chuck, wipe the taper and the collet seat, then torque the nut to the holder maker's spec, usually 80–120 N·m for an ER32.
Tool length offsets should be measured offline on a presetter if you have one, or touched off in the machine on a clean reference face. Never touch off on a surface with a burr or a coolant film. The offset error carries straight into the part, and it will show up as a wrong depth on the first pocket.
Work offsets deserve the same care. On a 5-axis machine with a Ø400 mm rotary table, the part must be probed or indicated relative to the rotary center, not to the table edge. A 0.02 mm error at the center becomes a much larger error at a 200 mm radius once the table rotates.
When a round tool is the wrong choice
Square internal corners cannot be cut by a round tool. The corner radius is always at least the tool radius. If the drawing calls for a sharp internal corner, the design needs a relief or the part needs EDM. Pushing a smaller tool into the corner to fake it just leaves a weak, chatter-prone edge and a slow cycle.
Deep, narrow slots are another limit. Once the length-to-diameter ratio passes about 6:1 in steel, deflection dominates and the finish fails before the size does. Options are a shorter reach from the other side, a larger tool with a relieved shank, or a change in part design so the slot becomes open.
Thin-wall parts also fight round tools. Radial cutting force pushes the wall away from the cutter, so the wall springs back after the pass and the measured size is wrong. Take lighter radial cuts, use a climb cut, and leave a finishing pass of 0.2–0.3 mm on the wall before the final dimension.
Step by step: using a CNC tool round
- 11. Inspect and clean the holderWipe the spindle taper, collet and nut with a lint-free cloth. Check for nicks or fretting with a light. Any debris here becomes runout. Torque an ER32 nut to 80–120 N·m and an ER16 nut to 40–60 N·m.
- 22. Assemble and measure the toolSeat the tool shank at least 3× diameter into the collet. Measure stick-out with a caliper and record the tool length on a presetter or in the machine. Keep stick-out as short as the part allows; every extra 10 mm adds deflection.
- 33. Check runout with a dial indicatorIndicate the cutting edge at the tip. Target TIR under 0.010 mm for finishing and under 0.025 mm for roughing. If it is worse, rotate the tool 180° in the collet and re-check before you blame the holder.
- 44. Enter length and diameter offsetsLoad the tool number, length offset and radius (or diameter) into the offset table. For a 10 mm end mill, the radius offset is 5.0 mm. Double-check the sign. A flipped radius sign turns a finishing pass into a gouge.
- 55. Set the work offset on a clean faceTouch off on a deburred surface, or probe it. Confirm the Z offset by moving the tool to a known height and reading the machine position against the drawing. On a rotary table, set the offset from the rotary center.
- 66. Dry-run the pathRun with the tool 20 mm above the stock at 120% rapid override and watch the distance-to-go screen. Confirm every approach, retract and tool change. This catches a wrong work offset in seconds instead of in a broken tool.
- 77. Cut the first article and inspectCut one part at reduced feed, then measure every critical feature. Adjust offsets rather than reprogramming. Change the radius offset by half the measured deviation if the feature is a contour.
- 88. Lock in and log the numbersRecord the final offsets, speeds, feeds and measured results on the setup sheet. Keep the tool and holder as a matched set. The second run then starts from a known state, not from scratch.
Round tool starting parameters by material
Values are starting points for carbide round tools with coolant. Dial them in on the first article.
| Material | Surface speed | Feed per tooth | Watch for |
|---|---|---|---|
| Aluminum 6061 / 7075 | 300–500 m/min | 0.10–0.25 mm | Chip welding in deep pockets |
| Stainless 304 / 316 | 80–150 m/min | 0.05–0.12 mm | Work hardening if feed is too light |
| Steel 4140 / 4340 | 100–180 m/min | 0.08–0.15 mm | Tool wear, poor chip evacuation |
| Titanium TC4 | 30–60 m/min | 0.05–0.10 mm | Heat at the cutting edge |
| Inconel | 20–40 m/min | 0.03–0.08 mm | Notching and rapid edge wear |
| Brass C36000 | 200–400 m/min | 0.10–0.20 mm | Grabby positive rake tools |
| POM / PEEK | 150–400 m/min | 0.10–0.30 mm | Melting, stringy chips |
The steps are simple; the discipline is not
Clean the taper, measure runout, set offsets on a clean face, dry-run the path, then cut one part and inspect it. Do those five things in order and most round tool problems disappear before the first chip.
Questions we get about round tool setup
How often should the tool length offset be re-checked?
Re-check after every tool change, every holder swap, and any time a part is scraped for depth. A pull-out of only 0.05 mm is enough to fail a ±0.005 mm tolerance.
On long runs, verify the offset at the start of each shift. Thermal growth in the spindle and holder can move the effective length over a few hours.
What runout is acceptable for a finishing round tool?
Keep total indicated runout under 0.010 mm at the cutting edge for finishing work, and under 0.025 mm for roughing. Above that, one flute does the cutting and the rest rub.
If you cannot get under 0.010 mm, check the collet for wear, rotate the tool in the collet, and confirm the taper is clean before replacing anything.
Should I use a presetter or touch off in the machine?
A presetter is faster and keeps the spindle free, and it removes operator-to-operator variation. Touch-off in the machine works when you have no presetter, but the reference face must be clean and flat.
Either way, the number that matters is the one in the offset table. Write it down and keep it with the tool so the next setup repeats.
Why does my round tool chatter on a deep pocket?
Chatter comes from low stiffness, not from the program. Reduce stick-out, increase the tool diameter if the geometry allows, or lower the radial engagement to 5–10% of the tool diameter.
Also check the feed per tooth. Running a light feed on a work-hardening material makes the edge rub, and rubbing turns into chatter quickly.
When should I stop using a round tool and change process?
Change process when the feature needs a sharp internal corner, when the reach exceeds about 6:1 in steel, or when the wall is too thin to resist the radial force.
In those cases, look at EDM, a redesign with a relief, or an open slot that lets a shorter, stiffer tool reach the feature.
Does coolant choice matter for round tools?
Yes. Aluminum and brass clear well with flood coolant or a strong air blast. Titanium and Inconel need high-pressure coolant aimed at the cutting edge to break the heat.
In deep holes and pockets, chip evacuation fails before the tool wears out. If chips are recut, the finish will show it.
