Wire Cutting, Laser Cutting and Plasma Cutting: How to Pick One

• 1
  Wire Cutting Laser Cutting Plasma Cutting at a Glance
• 2
  How Each Process Removes Metal
• 3
  Tolerance, Kerf and What the Drawing Can Demand
• 4
  Thickness Range and Material Fit
• 5
  Edge Quality and Post-Processing
• 6
  Cost, Speed and When Each One Wins
• 7
  Design Rules That Avoid Rework

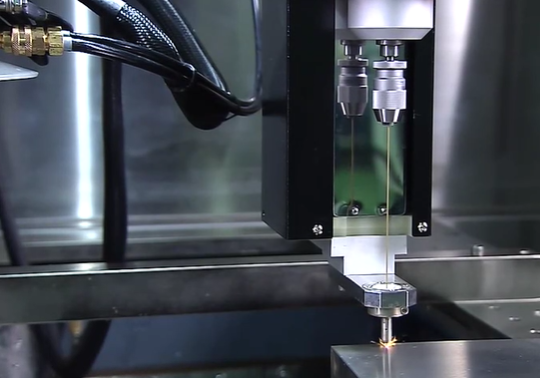

Wire EDM never touches the part with a tool. A brass or coated wire, usually 0.1–0.3 mm in diameter, runs through deionized water and discharges thousands of sparks per second. Each spark vaporizes a tiny volume of metal. Because the wire is thin and the gap is small, the cut can follow a sharp corner without a lead-in radius.

Fiber laser cutting melts and blows material away with a focused beam. Oxygen or nitrogen assist gas does most of the ejection work. The kerf stays narrow, so nesting is efficient and thin sheet runs fast. The edge is clean on stainless and aluminum with nitrogen, slightly oxidized on mild steel with oxygen.

Plasma cutting uses a constricted arc and a fast gas jet. It is the oldest of the three in heavy plate work and still the cheapest way to cut 20 mm mild steel. The arc spreads more than a laser beam, so the kerf is wide and the heat-affected zone is deep.

None of the three is a finishing operation. Whatever the process, the cut face carries its own signature, and the drawing should say whether that signature is acceptable.

• 1
  Wire EDMNo cutting force, no burr on the top edge
• 2
  LaserFast on thin sheet, narrow kerf, small HAZ
• 3
  PlasmaCheap per meter on thick plate, rough edge

Wire EDM holds ±0.005 mm on a well-maintained machine with a good flush. That number is the reason it dominates punch dies, extrusion dies and hardened inserts. If your drawing calls for a press-fit bore in 60 HRC tool steel, nothing else in this comparison will hit it.

Laser cutting sits around ±0.05 mm on thin sheet and drifts toward ±0.13 mm as thickness climbs. Kerf taper becomes visible above roughly 6 mm. For brackets, covers, busbars and welded assemblies, this is fine. For a dowel hole that must take a hardened pin, it is not.

Plasma cutting is a plate process. Tolerances of ±0.5–1.0 mm are normal, and the cut face carries a bevel that grows with thickness. Designers who need a plasma-cut edge to register against another part should plan for a secondary machining pass.

Kerf width matters beyond tolerance. A 0.03 mm wire kerf lets you nest parts tightly, which saves material on expensive alloys. A 3 mm plasma kerf wastes more stock, but the stock is usually mild steel plate, so the loss is small in money terms.

• 1
  Wire EDM±0.005 mm, taper control available
• 2
  Laser±0.05–0.13 mm, taper above 6 mm
• 3
  Plasma±0.5–1.0 mm, bevel on thick plate

A wire EDM will cut from 0.5 mm foil up to 200 mm thick, provided the machine has enough Z travel and the flush can reach the cut zone. Very thick work needs a slower feed and more attention to wire breakage. Hardened steel, carbide, Inconel and titanium all cut the same way, because the process does not care about hardness.

Laser cutting is strongest between 0.5 mm and 12 mm. Above 25 mm on mild steel, fiber lasers slow down sharply and the edge quality drops. Copper and brass reflect the beam at some wavelengths, so a fiber laser is the practical choice for those alloys, not a CO₂ machine.

Plasma handles 3 mm to 50 mm comfortably and can go thicker with a heavy-duty torch. It cuts any conductive metal, including heavily rusted plate that a laser would struggle with. The trade-off is that thin sheet distorts under the heat.

Material choice often settles the argument before tolerance does. Non-conductive parts cannot be wire cut or plasma cut at all. Hardened parts cannot be laser cut without losing their temper along the edge.

• 1
  Wire EDM0.5–200 mm, any hardness, conductive only
• 2
  Laser0.5–25 mm, best below 12 mm
• 3
  Plasma3–50 mm, tolerates dirty plate

A wire-cut face is matte and uniform, typically Ra 0.4–1.6 μm depending on the number of skim passes. One rough pass leaves recast and a rougher finish. Two or three skims bring the surface down and remove most of the recast layer. Many die shops run a skim pass purely to control the white layer.

Laser-cut edges show a fine vertical striation. On stainless cut with nitrogen, the edge is bright and weldable with little cleanup. On mild steel cut with oxygen, the edge is grey and carries dross on the underside, which usually needs a deburr or a tumbling pass.

Plasma leaves a pronounced bevel, dross and a heat-affected zone that can run 1–2 mm deep. If the part will be welded, the HAZ is normally machined off or included in the weld prep. If the part is a gusset or a base plate, nobody looks at the edge.

Finishing options follow the same split. Wire-cut dies often go straight to assembly. Laser parts commonly go through deburring, bead blasting or powder coating. Plasma parts usually get a machining pass on any face that matters.

• 1
  Wire EDMRa 0.4–1.6 μm, low recast after skims
• 2
  LaserRa 1.6–6.3 μm, dross with oxygen assist
• 3
  PlasmaRa 6.3–25 μm, 1–2 mm HAZ

Plasma wins on cost per meter for thick plate. The consumables are cheap, the machine is simple, and a 20 mm mild steel plate profile comes off fast. If the drawing allows ±0.5 mm and the edge will be welded or painted, plasma is the economical answer.

Laser wins on thin sheet volume. Fiber machines cut 1–3 mm steel at high feed rates, nest parts tightly and need almost no cleanup on stainless. A shop running thousands of brackets a week will not consider the other two.

Wire EDM wins when tolerance and hardness decide the job. It is slow and the hourly rate is the highest of the three, but it cuts hardened tool steel after heat treatment, which avoids distortion from a second hardening cycle. For a single punch die, that alone justifies the cost.

The mistake we see most often is a designer specifying wire EDM for a part that just needs a clean edge. If the tolerance is ±0.2 mm and the material is 3 mm aluminum, laser cutting will deliver the part faster and cheaper.

• 1
  Choose plasmaThick plate, loose tolerance, welded or painted
• 2
  Choose laserThin sheet, high volume, clean stainless edge
• 3
  Choose wire EDMHardened steel, tight tolerance, no distortion

For wire EDM, keep inside corners sharp and avoid blind pockets that trap flush. Leave a start hole Ø0.5–1.0 mm larger than the wire if you can, and say on the drawing whether the start hole may remain. If the part is heat treated, specify the hardness after treatment, not before.

For laser cutting, add a small radius at inside corners to reduce heat buildup, and keep hole diameter above roughly 1.2 times the material thickness. Smaller holes tend to taper. If the edge will be visible, specify nitrogen assist for stainless and aluminum.

For plasma cutting, allow a 1–2 mm machining stock on any face that will mate with another part. Keep the profile simple, because sharp inside corners on thick plate tend to round off. Note the bevel direction if the part has a left and right version.

Across all three, put the critical dimensions on the drawing with a clear tolerance and leave the rest general. A drawing that tolerances everything at ±0.05 mm forces the shop into the most expensive process for no reason.

• 1
  Wire EDMState start hole policy and post-hardness
• 2
  LaserRadius corners, keep holes above 1.2× thickness
• 3
  PlasmaAdd 1–2 mm stock on mating faces
