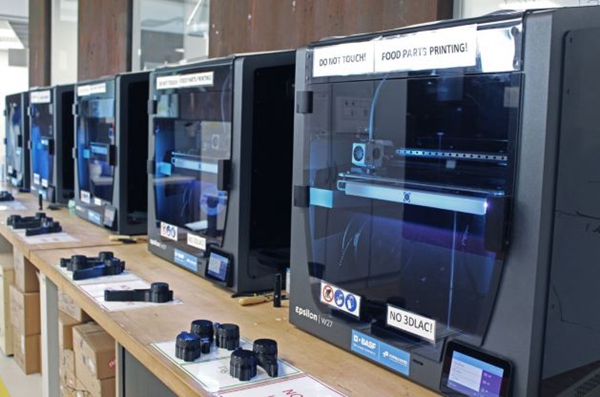

The future of 3D printing: six major development trends

• 1
  Bigger, faster, cheaper: the size and speed curve
• 2
  Metal AM moving from prototype to production hardware
• 3
  Multi-material and multi-nozzle deposition
• 4
  Qualification, traceability, and process control
• 5
  Hybrid cells: printing and machining in one setup
• 6
  Where printing stops and CNC starts
• 7
  Process selection by part requirement

The first visible shift is envelope size. Machine builders keep pushing gantry systems past the 1 m mark, and pellet-fed extruders now move material at rates that screw-driven filament heads cannot match. A pellet extruder melts resin directly, so the feed rate is limited by melt capacity rather than by filament buckling. That is why large-format printers can lay down 10–30 kg of material in a shift.

Speed gains come from three places: more nozzles, bigger nozzle diameters, and higher melt throughput. A 0.8–1.2 mm nozzle with a 0.4–0.6 mm layer height cuts print time roughly in half compared with a 0.4 mm nozzle at 0.2 mm layers. Surface finish drops to Ra 12–25 μm as-printed, so most functional parts still need machining on mating faces.

Cost follows the same logic. Pellet feedstock runs a fraction of the price of filament per kilogram, and a large nozzle means less machine time per part. On a 300 × 300 × 300 mm bracket, moving from filament to pellet can cut material cost by half and machine time by 40%. Those numbers only hold for parts with generous tolerances.

The boundary: large-format printing wins on panels, housings, jigs, and ducting where a ±0.5 mm tolerance is acceptable. It loses on anything with a bearing bore, a sealing face, or a thread that must hold torque.

• 1
  Good fitBrackets, enclosures, ducts, fixtures over 300 mm
• 2
  Poor fitSealing faces, bearing bores, fine threads

Laser powder bed fusion has moved past demonstration parts. The mechanism is straightforward: a 200–400 W fiber laser scans a 30–60 μm powder layer, melting it into the previous layer. Layer thickness of 30 μm gives a typical as-built Ra of 8–15 μm on vertical walls and 15–25 μm on downward-facing surfaces.

The engineering consequence is that metal AM produces near-net shapes, not finished parts. Internal channels, lattice cores, and conformal cooling passages are the real reason to choose it. A heat sink with internal fins or an injection mold insert with conformal cooling cannot be cut with a ball nose end mill at any price.

Post-processing decides whether the part is usable. Stress relief comes first, then support removal, then CNC finishing on every critical interface. On a Ti-6Al-4V bracket, expect 0.5–1.0 mm of stock on machined faces and a heat treat cycle before the final cut, otherwise the part moves during finishing.

Where metal AM loses: simple geometry at volume. If the part is a plate with holes, a mill-turn cell running 6061 or 17-4PH will beat it on cost, surface finish, and repeatability. Powder cost and machine hour rates still dominate at that end.

• 1
  Choose AMInternal channels, lattices, consolidated assemblies
• 2
  Choose CNCPrismatic parts, tight bores, high volumes

Multi-material printing solves a specific problem: a part needs a rigid body and a soft grip, or a conductive trace inside an insulating shell. Tool-changing heads and independent dual extruders let one build cycle deposit ABS, TPU, and a filled polymer without a bonding step.

The mechanical limit is the interface. Bond strength between two polymers depends on compatibility and on whether the second material is deposited while the first is still above its glass transition temperature. Print a TPU layer onto cold ABS and the joint peels at low load. Keep the interface hot and the same pair holds.

For engineers, the practical use is overmolds and gaskets that would otherwise need two tools and an assembly step. A 40-durometer TPU seal printed directly onto a POM body eliminates a press fit and the leak path that comes with it.

Do not expect this to replace two-shot injection molding. Cycle time per part is still minutes, not seconds, and dimensional repeatability across a 500-part run is weaker than a steel mold. It fits bridge quantities, custom fixtures, and validation builds.

• 1
  Works wellOvermolds, grips, gaskets, embedded traces
• 2
  Weak pointInterface strength if the bond zone cools too fast

The trend that matters most to regulated buyers is not a machine feature. It is the paperwork and the sensing around the machine. Aerospace, medical, and automotive programs need a documented powder lot, a build file hash, and in-process melt pool monitoring before a printed part enters a flight or implant program.

Melt pool monitoring works by sampling the emission from the melt zone at kilohertz rates and comparing it against a reference signature. A deviation flags a potential lack of fusion or a keyhole defect. It does not repair the defect; it tells you which part to inspect or scrap.

That changes the economics. A build that used to be judged only by final CT scan now carries a per-layer record. Buyers can trace a porosity indication back to a specific layer, a specific scan strategy, and a specific powder batch. Without that chain, a printed structural part stays a prototype.

For most industrial work, the practical requirement is simpler: material certificates, a documented heat treat, and dimensional reports on the machined interfaces. ISO 9001:2015 and IATF 16949:2016 process discipline covers that ground for machined and printed hardware alike.

• 1
  What buyers ask forPowder lot, build record, heat treat cert, dimensional report
• 2
  What it does not fixPorosity already inside the part

A hybrid cell mounts a deposition head and a spindle on the same frame, or moves the part between an AM station and a 5-axis station without losing the datum. The point is not novelty. It is the datum.

When a printed near-net blank is re-clamped for finishing, every repositioning adds error. On a 400 mm part, a 0.05 mm locating error on the second setup can double the total tolerance stack. A hybrid cell keeps one coordinate system from first layer to final bore, so the machined face and the printed feature stay related.

The trade-off is machine availability. A hybrid platform costs more per hour than a dedicated 3-axis mill, and its spindle is usually lighter than a full 5-axis machining center. For parts that need heavy stock removal plus deep pockets, two separate machines still make sense.

Our own shop runs 16 simultaneous 5-axis machining centers, 16 mill-turn centers, and 27 three-axis machines across three plants in Dongguan and Singapore. Printed blanks come in, get fixtured once, and leave with machined interfaces held to ±0.005 mm where the drawing calls for it.

• 1
  Best useNear-net blanks with critical machined interfaces
• 2
  Watch outLighter spindles limit heavy roughing

The sixth trend is not a technology. It is a division of labor that has become clear over the last few years. Printing handles complexity that tooling cannot reach. CNC handles accuracy, surface finish, and material properties that printing cannot reach.

A printed lattice heat sink and a machined manifold are not competing parts. They are two operations on the same assembly. The design question is which features need which process, and the answer usually comes from three numbers: tolerance, surface finish, and annual volume.

Tolerance below ±0.05 mm, surface finish below Ra 1.6 μm, or a thread that carries load all point to machining. Internal channels smaller than 8 mm, organic lattice, or a consolidated assembly of six parts point to printing. Everything else is a cost comparison.

Volume settles the rest. Above a few thousand parts per year, a printed polymer part usually loses to injection molding, and a printed metal part usually loses to die casting plus machining. Below that, printing keeps the tooling cost at zero, which is often the deciding factor.

• 1
  Printing winsInternal channels, lattices, one-off complexity
• 2
  CNC winsTight bores, fine finish, loaded threads, volume
