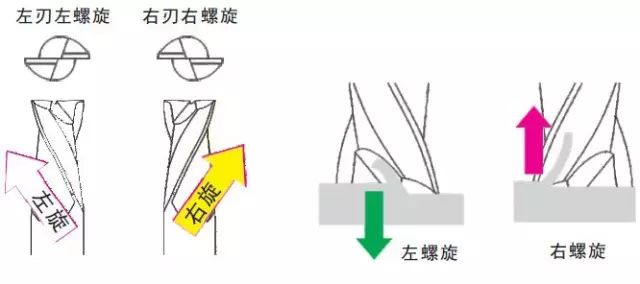

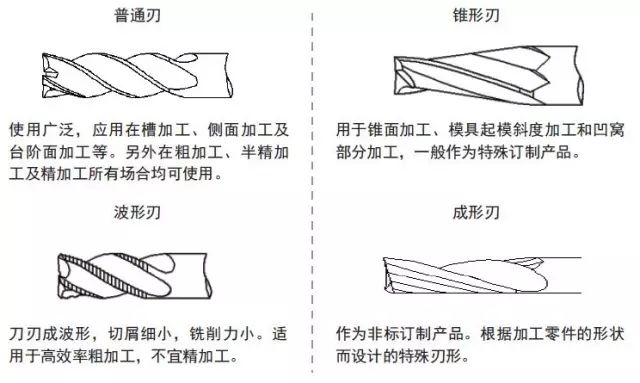

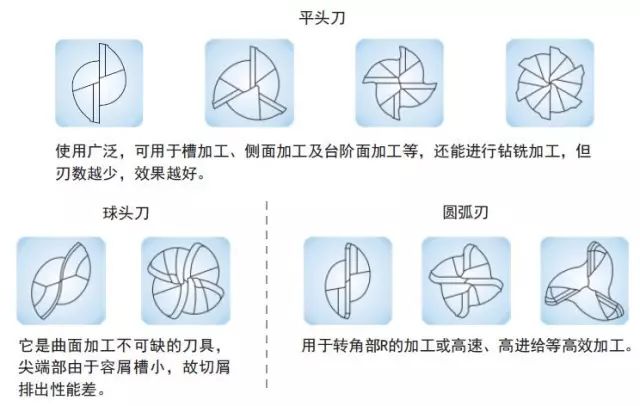

A vertical milling cutter is a cylindrical body with helical or straight teeth around its outside. Those outer teeth are the main cutting edges. The teeth on the end face are side cutting edges, ground to clear the bottom of the cut rather than to remove material. That is the difference most people miss.

Because the load sits on the side teeth, the tool cuts best when the feed is lateral. It moves across the workpiece in X or Y and shaves material from the wall. The bottom of the tool follows the floor it just created, which is why the floor finish is usually worse than the wall finish.

A vertical milling cutter that is fed straight down in Z behaves very differently. The center of the end face has near-zero surface speed, so the teeth there rub instead of shear. On a two-flute tool this shows up as chatter, a bright polished spot at the bottom, or a broken corner.

So the working envelope is clear: lateral treatment, slit treatment, curved treatment, and pocket edges. Straight axial plunging belongs to a slot drill or a tool with center-cutting geometry.

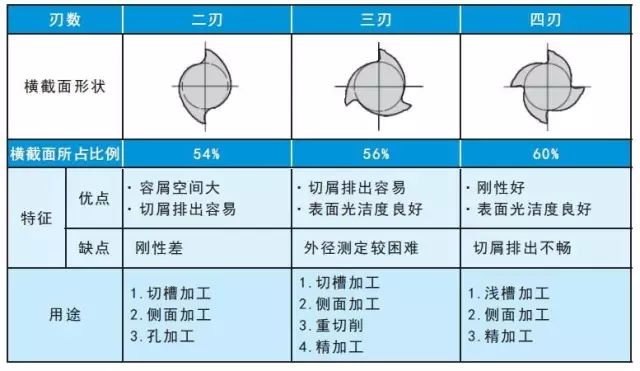

Use it when the feature is a wall. Side walls, shoulders, open slots, curved profiles, and the roughing of a pocket boundary are all lateral work. On a 3-axis machine with a 500 × 500 × 450 mm travel envelope, a Ø10 mm four-flute carbide cutter at 8,000 rpm in 6061 aluminium will take 2–3 mm radial and 10–15 mm axial per pass without complaining.

Use it for slit treatment too. A cutter narrower than the finished slot lets you take the slot in two passes and control width with the offset, which is often faster than holding a slot drill to the exact size. Slot widths from Ø3 mm upward are practical on our 27 three-axis machines.

Curved treatment is where the tool earns its keep. Contoured walls on a mould insert, a radius blending into a boss, a swept profile on an automotive bracket: the side teeth leave a consistent scallop height when the stepover stays under 0.5 mm.

One more case. When a part is thin and the fixture is weak, a vertical milling cutter with a small radial engagement puts less side load into the setup than a large face mill hogging the same wall.

Do not use it to open a pocket from solid by plunging. Without center-cutting geometry, the tool has nowhere to shear. If you must enter, ramp at 2–3° for steel and up to 5° for aluminium, or helix down with a radius larger than half the cutter diameter.

Do not expect it to true a large flat face. A Ø16 mm cutter taking 0.3 mm axial over a 300 mm face is slow work and the finish will show the stepover. A face mill with a Ø100 mm body does the same job in a fraction of the time.

Do not run it at long overhang. A vertical milling cutter at 4× diameter overhang will deflect. In 4140 steel that deflection shows as a tapered wall, and no amount of finishing passes will fix a wall that was roughed crooked.

Do not use a long, thin cutter for deep slotting where chip evacuation is poor. Recutting chips in a narrow slot raises temperature fast. If the slot is deeper than 2× diameter, plan air blast or through-coolant, and reduce feed per tooth until the chips come out clean.

Climb milling is the default for a vertical milling cutter on a machine with ball screws and low backlash. The tooth enters at maximum chip thickness and exits at zero, so the cutting force pushes the workpiece away from the wall instead of pulling the tool into it. The result is a straighter wall and longer edge life.

Radial engagement drives tool life more than speed does. At 10% of diameter the heat leaves with the chip and the tool runs cool. Push past 50% and the same cutter in the same material will fail early, because the chip thickens and the flute cannot clear it.

Keep stepover under 0.5 mm for finishing passes if you need a wall that holds ±0.005 mm. Above that, the scallop left by the corner radius of the tool becomes part of your tolerance stack.

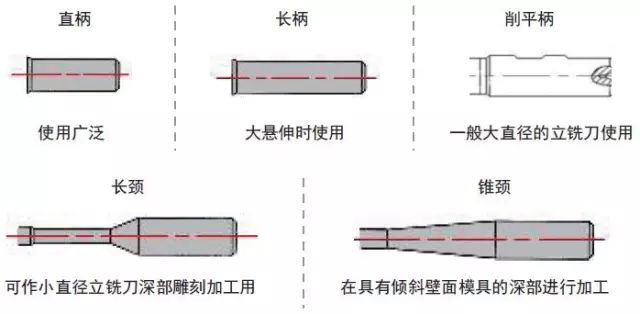

For deep walls, use a shorter cutter and multiple axial steps rather than one long tool. A Ø10 mm cutter at 30 mm overhang is a different tool from the same cutter at 60 mm overhang, even though the part number is identical.

A vertical milling cutter can hold ±0.005 mm (±0.0002 in), but not by itself. The tool, the holder, the machine, and the thermal state of the part all contribute. A cutter with 0.02 mm runout will not hold a 0.005 mm wall no matter how good the program is.

Finish matters as much as size. A wall cut with a sharp four-flute tool at a light stepover lands in the Ra 0.8–1.6 μm range. If the print calls for Ra 0.2–0.8 μm, plan a separate finishing pass with a fresh edge and a stepover under 0.2 mm.

Measure in the machine when the part matters. Aluminium moves as it cools, and a wall that reads 0.004 mm over right after cutting may read dead on ten minutes later. All parts ship after 100% inspection, with reports on request.

If the geometry has more than three faces, a vertical milling cutter on a 3-axis machine means refixturing, and each refixture adds error. Our 16 simultaneous 5-axis centers cut five faces in one setup, which removes that error stack entirely.
