Dust and iron filings are not a housekeeping problem. They are a wear mechanism with a schedule. Every cutting pass on steel produces chips, fine dust and a small amount of abrasive grit. Some of it lands in the extraction hood. The rest settles on surfaces you cannot see from the operator door: linear guide rails, ball screw covers, the underside of the work table, and the gap between the shield and the slide.

The damage starts as an abrasion problem. Steel chips are harder than the wiper seals that protect a linear guide. Once a chip is trapped under the seal lip, every stroke of the axis drags it along the rail. The rail does not fail the next day. It loses preload slowly, and the first symptom is usually a finish change rather than a crash.

Fine dust behaves differently. Particles below roughly 20 μm stay airborne long enough to reach the electrical cabinet, the encoder strip and the lens or nozzle assembly. There they do not abrade; they insulate, block or scatter. That is why steel cutting equipment should be cleaned on two levels: the mechanical envelope and the optical or sensing path.

This is also why cleaning frequency should follow cutting volume, not the calendar. A shop running 4130 and 4140 plate in three shifts generates more debris in one week than a prototype cell generates in a month. Set the interval from hours of arc-on or beam-on time, and from the material being cut.

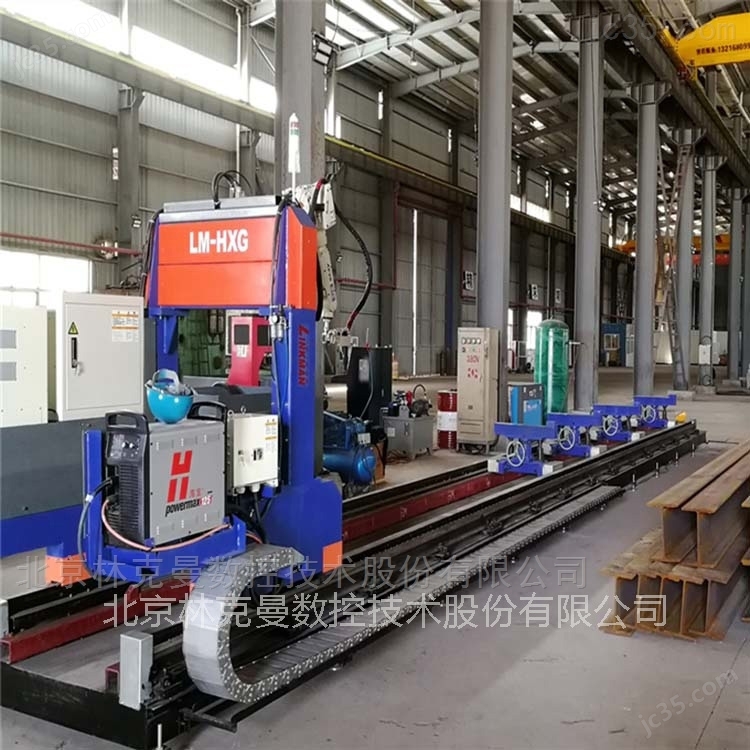

Guide rails and ball screws are the first place to look. A 4,000 mm travel axis on a gantry machine has a long rail with several carriages. Contamination on one carriage changes the load distribution across the others. You will see it as a taper in a long part, or as a step where the axis reverses. Replacing a rail is a multi-day job; wiping it takes minutes.

Encoders and limit switches are the second. Iron dust is conductive. When it bridges the gap on a linear encoder scale or packs around a proximity switch, you get intermittent faults that are hard to reproduce. The machine may alarm only at high feed rates, or only after a warm-up cycle. Cleaning the scale with the correct solvent restores the signal; ignoring it usually ends in a scrapped batch.

Coolant and chip conveyors are the third. Steel fines pass through many conveyor screens and settle in the tank as sludge. That sludge changes coolant chemistry, raises conductivity and reduces lubrication at the cutting zone. Poor coolant condition then feeds back into surface finish and tool life, so a dirty tank looks like a tooling problem.

The fourth is the cutting head itself. On laser and plasma systems, spatter on the nozzle or shield changes the gas flow and the kerf width. A nozzle that was cutting clean at 1.5 mm kerf will start producing dross and a wider heat-affected zone. Nozzle inspection and cleaning belongs in the daily routine, not the monthly one.

Dry debris first, liquid second. Use a vacuum rated for metal dust rather than shop air. Blowing with compressed air moves fines into bearings, cabinets and lungs. If air is the only option, lower the pressure and direct the stream away from seals and openings. For steel dust, a magnetic sweeper and a HEPA vacuum do more than a rag.

Never use water or water-based cleaner on guide rails, ball screws or encoder scales. Steel fines plus moisture equal rust, and rust on a rail is abrasive in its own right. Use the lubricant the machine builder specifies for the rail, and wipe with lint-free cloth. Apply a thin film after cleaning, not a heavy coat that traps the next batch of chips.

Protect the sensing path. Encoder scales and optical receivers should be cleaned with the solvent named in the maintenance manual, applied to the cloth rather than the scale. Do not spray into a cabinet. Check door gaskets and cable entries at the same time; most dust that reaches electronics came through a gap, not through a filter.

Record what you find. A log of chip color, sludge volume and seal condition tells you when a wiper is failing or when coolant chemistry is drifting. That record is also what turns a cleaning routine into a predictive one. On our own 127 CNC machines, the same logic applies: clean rails and clean coolant keep the ±0.005 mm tolerance and the Ra 0.8–1.6 μm finish repeatable across a run.

Safety is part of the procedure. Steel dust is a respiratory hazard, and fine metal powder can be flammable. Wear eye protection, gloves and a respirator rated for metal dust. Isolate the machine and lock out before reaching into the cutting envelope. A cleaning routine that causes an injury is not a maintenance win.

Cleaning cannot fix a design problem. If the same chip pocket fills every week, the machine or the fixture is trapping debris where it should be shedding it. Adding brushes, shields or a stronger extraction hood at the source costs less over a year than doubling the wipe-down frequency.

Some debris is a signal, not a nuisance. Heavy black sludge in the coolant tank often means the filtration is undersized for the material mix. Rust-colored fines on a rail point to moisture ingress. Treat the debris as data before you treat it as dirt.

There is also a cost to over-cleaning. Repeated wet wiping of seals and way covers accelerates their wear. Aggressive solvents attack paint, cable jackets and polycarbonate guards. Stick to the intervals in the table, use the specified consumables, and let the log tell you when to shorten them.

Finally, match the routine to the machine class. A fiber laser cutting 1 mm stainless needs different attention than a band saw cutting 1045 bar. The physics of the debris is the same; the access, the shielding and the sensitivity to contamination are not. Write the checklist around your actual equipment list.
