The central machining tool support is the interface body that sits between the machine spindle and the cutting tool. In everyday shop language it is a tool holder, but the functional name is more useful: it centers the tool, transfers torque, and holds the tool against cutting force. Everything downstream of it, from hole position to surface finish, depends on how well it does those three jobs at the same time.

Two surfaces carry the load. The taper contact seats the holder in the spindle and controls radial position. The face or flange contact controls axial position and adds stiffness. When both make full contact, runout at the tool tip can stay inside a few micrometres. When only one makes contact, the holder shifts under load and the error shows up as taper, chatter, or a hole that measures oversize on one side.

That is why a holder is not a consumable you swap for whatever is on the shelf. A 20 mm carbide end mill in a light holder at 12,000 rpm behaves nothing like the same tool in a heavy holder at 6,000 rpm. The cutting data has to match the interface, or the interface becomes the weakest link in the setup.

• 1
  CenterRadial position of the cutting edge relative to the spindle axis
• 2
  ClampAxial grip that stops the tool pulling out under cut
• 3
  DriveTorque path from spindle keys or the taper into the tool

BT, NT and HSK are the three families a job shop meets most often. BT and NT share the same 7:24 taper ratio and differ mainly in flange and pull-stud design. BT is the Japanese standard common on vertical machining centers; NT is the older steep-taper form still found on manual and older CNC spindles. Because the ratio is 7:24, the cone is shallow and the holder is drawn into the spindle by a retention knob from the rear.

HSK is a hollow shank taper with a 1:10 ratio and a hollow body. The shallow angle and thin wall let the holder expand elastically under drawbar force, so the flange face seats against the spindle nose. That dual contact, taper plus face, is what gives HSK its edge: the tool is located at the face, not only by the cone.

Both systems work. The question is what the spindle can hold and what the part demands. You cannot run HSK in a BT spindle, and you cannot get HSK stiffness from a 7:24 holder that only contacts on the taper.

• 1
  BT7:24 taper, retention knob, common on 40- and 50-taper VMCs
• 2
  NT7:24 taper, older steep-taper spindles, limited high-speed use
• 3
  HSK1:10 hollow shank, face and taper contact, high-speed spindles

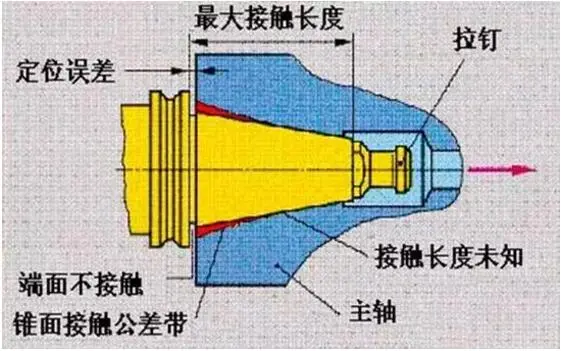

A 7:24 taper is self-releasing. The shallow cone will not lock by friction alone, so a pull stud holds it in. As spindle speed rises, centrifugal force and thermal growth both act on the interface. The spindle nose grows outward and the holder shank grows with it at a different rate. At some speed the taper contact creeps forward and the holder is pulled deeper into the spindle. Axial position shifts, and Z-axis depth changes with it.

A 1:10 taper is closer to self-locking and is combined with face contact. The hollow shank flexes, so the flange stays pressed against the spindle face across the speed range. Axial position is set by the face rather than by how far the cone has been drawn in. That is why HSK holds Z-depth better through a speed sweep.

At the tool tip, this shows up as runout and length change. A 7:24 holder that reads 5 μm runout cold can drift past 15 μm when the spindle reaches 15,000 rpm. The same tool in an HSK holder with face contact may move 3–5 μm across the same range. For a ±0.005 mm tolerance, that difference decides whether the feature is in or out.

• 1
  7:24Taper-only contact, self-releasing, faster axial drift at high rpm
• 2
  1:10Taper plus face contact, better axial stability at speed
• 3
  Rule of thumbAbove roughly 12,000 rpm, face contact matters more than taper ratio

Start with the spindle interface. If the machine is a 40-taper BT spindle, the choice is settled before the part is even loaded. Within that family, pick the smallest holder that will take the cutter. A short, rigid holder beats a long, slim one every time on a deep pocket, because deflection grows with the cube of overhang.

Then look at the feature. A deep cavity with a 6 mm cutter needs reach; a face mill on a flat plate needs stiffness and torque. These pull in opposite directions. For a deep rib in aluminium, a shrink-fit or hydraulic holder at 3× diameter gauge length is often enough. For a roughing pass in 4140 at 2 mm depth of cut, a solid side-lock or shell mill holder will hold up better than a slim hydraulic unit.

Finally, check the cutting data against the holder rating. Every holder has a maximum speed and a maximum torque. Running a 16,000 rpm holder at 20,000 rpm is not a tuning problem, it is a balance and safety problem. If the process needs more speed than the holder allows, the holder is wrong, not the feed rate.

• 1
  Short overhang firstKeep gauge length under 4× cutter diameter when possible
• 2
  Match torqueHeavy roughing needs a positive drive, not friction alone
• 3
  Respect the ratingNever exceed the holder's stated max speed or balance grade

A holder cannot correct a spindle that is already out of alignment. If the spindle taper is worn or has been crashed, even a new HSK holder will show runout. Check the spindle first with a test bar before blaming the tool interface. Similarly, a holder cannot add rigidity that the machine structure does not have.

Thermal growth is another limit. On a long roughing cycle, the spindle and holder both warm up. A holder with face contact reduces axial drift, but it does not eliminate it. On tight Z-depth work, warm up the spindle for 15–20 minutes and re-reference before the finishing pass.

Chip evacuation is the third one. A holder with a small internal bore can pack chips and lose grip. If the process makes stringy chips in aluminium or gummy chips in 316L, a holder with a larger through-coolant bore and internal channels will clear them. No taper ratio fixes a packed holder.

• 1
  Worn spindleCheck taper contact with bluing before buying new holders
• 2
  Thermal driftWarm up and re-reference; face contact reduces but does not remove it
• 3
  Poor chip flowChoose a holder with through-coolant and open internal geometry
