Match the Transfer Mode to Plate Thickness
Most welding defects on the shop floor start with one wrong decision: the transfer mode does not match the plate. Gas metal arc welding with a solid wire runs fine in short-circuit transfer on thin sheet, but above roughly 6 mm the same setting gives cold lap, poor penetration and a bead that looks acceptable until it is bent. Move to spray or pulsed spray transfer once the section is thick enough to take the extra heat.
The upper limit is set by the machine, not the operator. When the plate is thicker than the maximum welding current the power source can hold in spray transfer, the usual answer is not to turn the dial further. Bevel the joint, preheat where the material allows it, or switch to flux-cored wire, which carries more current at the same wire feed speed and tolerates a slightly wider gap.
Thin plate fails in the opposite direction. Below about 3 mm, spray transfer burns through before the operator can react. Pulsed transfer, a smaller wire diameter and a faster travel speed keep the pool small. Short beads with cooling time between them beat one long run every time on 1.5 mm sheet.
One rule covers both ends: set current from measured thickness, not from what worked on the last job. A 2 mm change in plate thickness is enough to move the working window out of range.
Clean the Joint Before the Arc Starts
Galvanized, chrome-plated and painted steel will weld, but not well. The coating enters the pool, produces porosity, and releases metal fume that the operator should not breathe. Grind or machine the coating back to bare metal for at least 25 mm on each side of the joint, and do it before the part is clamped, not after.
Oil, coolant and cutting fluid cause the same class of defect in a quieter way. They burn off at the start of the pass, so the first 20 mm of the bead is porous and the rest is sound. Wipe with a solvent and let it flash off. Do not rely on the arc to burn the contamination away.
Filler and base metal need to be compatible. Copper and bronze parts are usually better repaired with brazing filler than with a surfacing pass, because the brazing temperature is lower and the residual stress left in the part is smaller. For aluminium, remove the oxide layer with a stainless brush used only for aluminium, and weld within a few hours of brushing.
If the part will be machined after welding, clean the weld zone again before it goes to the mill. Weld spatter that lands on a machined face will chip a cutter or leave a mark that no finish pass will remove.
Control Distortion With Heat, Not Force

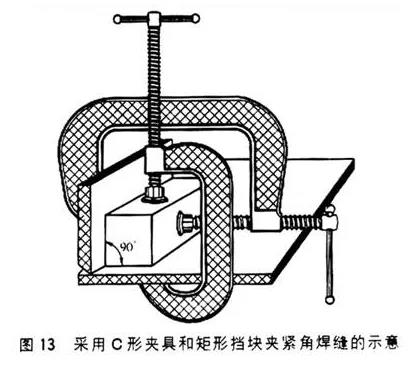

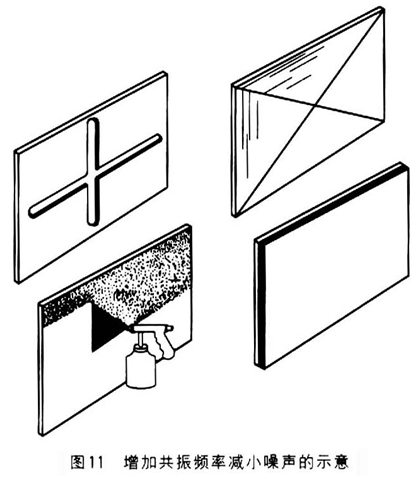

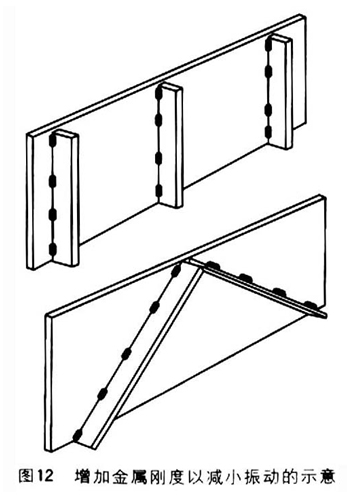

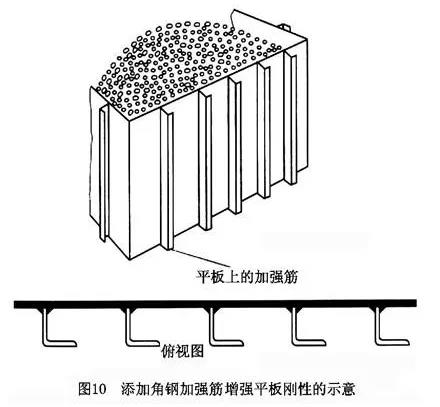

Distortion is a heat budget problem. The weld shrinks as it cools, and the surrounding cold metal resists that shrinkage. The result is angular movement, bowing or a hole that no longer lines up. Adding clamps helps, but clamps only hold the part while the weld is hot. The movement happens after the clamps come off.

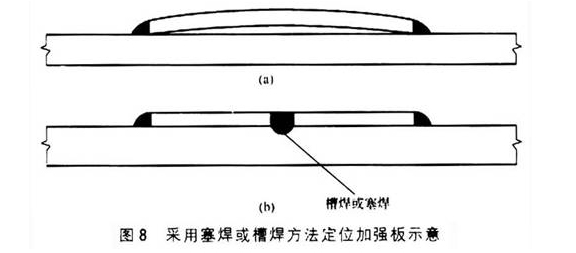

Three methods work in practice. Backstep welding, where each short bead is laid against the direction of travel, spreads the heat and reduces the cumulative pull. Balanced passes, alternating sides of a symmetrical joint, keep the shrinkage forces opposite each other. A copper or aluminium backing bar pulls heat out of the root and holds the geometry while the weld sets.
The heat input itself can be reduced. Lower current with a faster travel speed puts less energy into the part than a slow, hot pass with the same bead size. Interpass temperature matters too: on thin sections, let the part return to near room temperature before the next pass instead of stacking heat into a part that is already moving.
For a welded blank that will be finish-machined, leave 1-2 mm of stock on the surfaces that will be cut and do the welding before the finishing operations, not after. Welding a finished part is the most reliable way to lose a dimension.
Rebuild Worn Features Instead of Scrapping Them

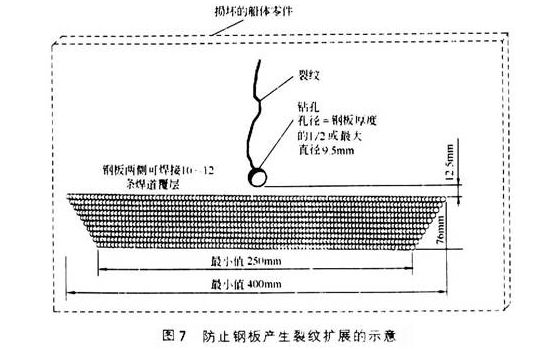

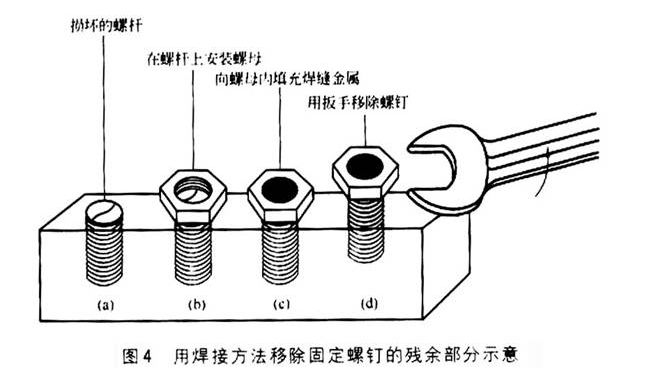

A worn shaft, a bearing seat or a scored bore can often be brought back with a controlled build-up pass and a re-machining operation. The sequence matters. Measure the wear first, machine or grind the damaged surface back to sound metal, then build up in layers with a filler chosen for the base material and the final hardness you need.

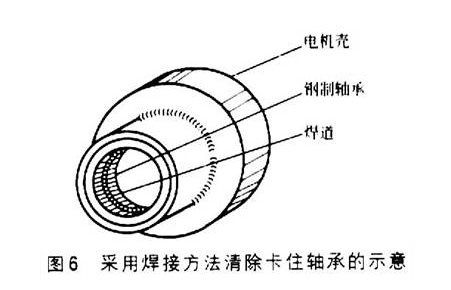

Bearing seats respond well to this approach. Weld beads laid on the inner surface of a bore shrink as they cool, and that shrinkage pulls the bore diameter down. A bore around 100 mm across can close by a little over 1 mm after a full ring of beads, which is useful when you are restoring a press fit, but it also means the finish dimension has to be planned, not measured after the fact.

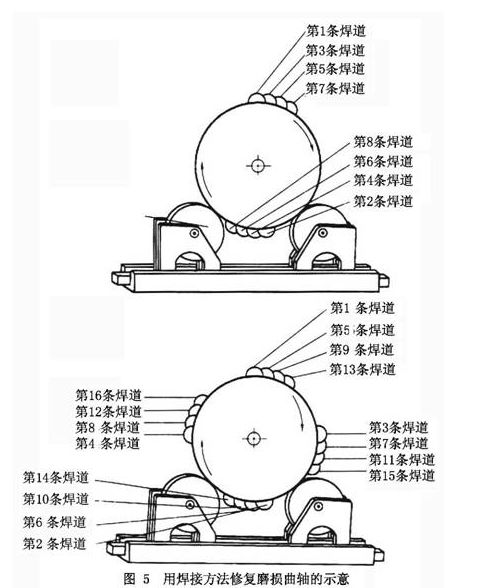

Crankshafts and similar rotating parts need more care. A 90° offset between build-up positions spreads the heat and limits bending. For bronze and copper parts, brazing filler is usually the better choice than a surfacing weld, because lower temperature means less stress and less movement.

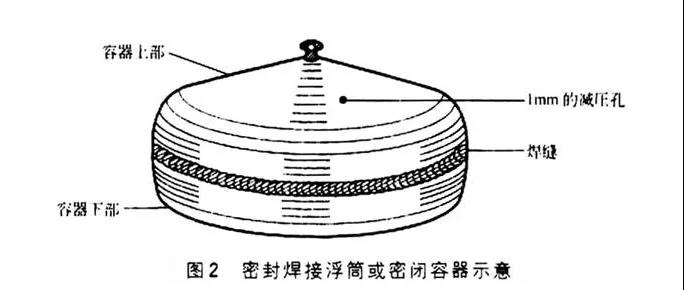

Never weld inside a closed vessel without a pressure-relief path. Trapped gas and heat in a sealed container is a serious hazard, and no repair schedule justifies it.
What the Machining Side Needs From You
A welded part that goes to a CNC shop needs information attached to it. Tell the machinist which surfaces are weld, which are base metal, and what filler was used. Hardness varies across a heat-affected zone, and a cutter that was running fine on the parent material can fail at the weld boundary.
Stock allowance is the second item. Welding moves material, so any surface that will be milled or turned needs extra stock. As a working number, leave 1-2 mm on faces that will be finished, and check the part after welding rather than assuming the drawing dimension still holds.
Filler choice affects machinability. Low-carbon steel fillers machine close to the base metal. Stainless and nickel-based fillers work-harden quickly and need slower feeds with a deeper cut to stay under the hardened layer rather than rubbing on it.
At GreatLight, welded blanks and weld-repaired parts are inspected with the rest of the job: raw material check, in-process monitoring and a final inspection before shipment, with reports on request. If a welded feature will be machined to ±0.005 mm, the weld procedure and the machining allowance should be agreed before either operation starts.
Step by Step: From Joint Prep to Final Check
Follow the order. Skipping a step here is what usually shows up as a defect later.
- 11. Measure and record thicknessCheck the actual plate or wall thickness at the joint, not the nominal drawing value. A 5.8 mm measurement on a 6 mm plate changes the current window.
- 22. Pick the transfer modeBelow about 3 mm, use pulsed or short-circuit transfer with a small wire. From 3-6 mm, pulsed spray is a safe default. Above 6 mm, spray transfer or flux-cored wire.
- 33. Clean 25 mm each sideGrind coatings, rust, oil and paint back to bare metal. Use a dedicated stainless brush for aluminium and weld within a few hours of brushing.
- 44. Set a root gap and bevelFor plate over 6 mm, open a 60° included bevel with a 2-3 mm root face. A tight square butt on thick plate is a cold lap waiting to happen.
- 55. Tack with the same settingsTack welds made with different current than the main pass will crack or pull. Space tacks roughly 10× the plate thickness apart on long joints.
- 66. Weld with backstep or balanced passesLay 50-80 mm beads against the direction of travel, alternating sides on symmetrical joints. Keep interpass temperature low on thin sections.
- 77. Cool under restraintLeave clamps and backing bars in place until the part is close to room temperature. Removing them hot is the fastest way to watch the part move.
- 88. Inspect and allow stockCheck straightness, hole positions and weld size before machining. Leave 1-2 mm of stock on any surface to be finished, and note the filler used on the job packet.
Process Choice by Thickness and Situation
Use the row that matches the section and the access you actually have.

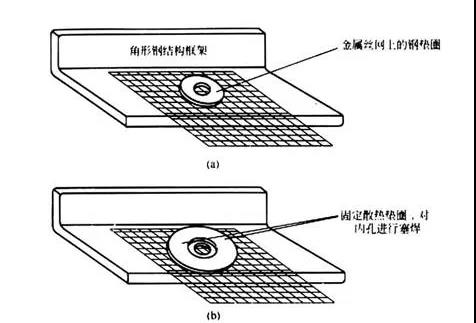

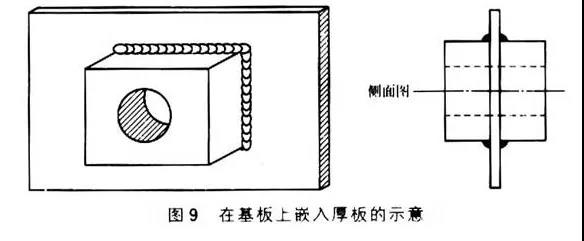

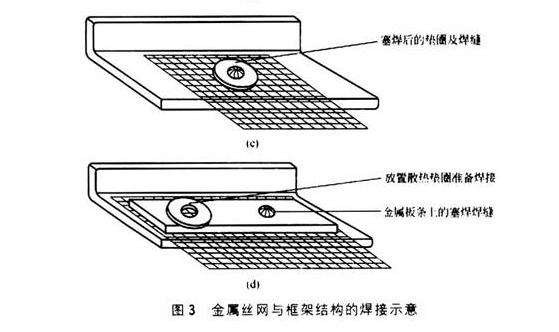

| Thickness / situation | Typical process | Watch for |
|---|---|---|
| Under 3 mm sheet | Pulsed GMAW, small wire | Burn-through, long beads |
| 3-6 mm plate | Pulsed spray transfer | Cold lap at the root |
| Over 6 mm plate | Spray transfer or FCAW | Machine current ceiling |
| Galvanized or chrome plate | GMAW after grinding | Porosity, toxic fume |
| Copper or bronze part | Brazing filler, not surfacing | Residual stress, movement |
| Worn bearing seat | Layered build-up, then bore | Shrinkage closes the bore |
| Crankshaft or rotating shaft | Offset build-up at 90° | Bending, runout |
| Welded blank for CNC | Weld first, machine second | Shrinkage, hardened zone |
| Closed container repair | Pressure relief hole first | Trapped gas hazard |
| Thin boss on cast frame | Heat-sink or backing bar | Melt-through at the edge |
The short version
Set current from measured thickness, clean the joint, and treat heat as a budget you spend on purpose. Weld first, machine second, and the weld will stop being the risky part of the job.
Common questions
How do I weld a 1.5 mm sheet to a 6 mm plate without burning the thin side?
Bias the heat into the thick part. Angle the torch toward the 6 mm plate and let the pool wash onto the sheet, rather than pointing at the joint centerline.

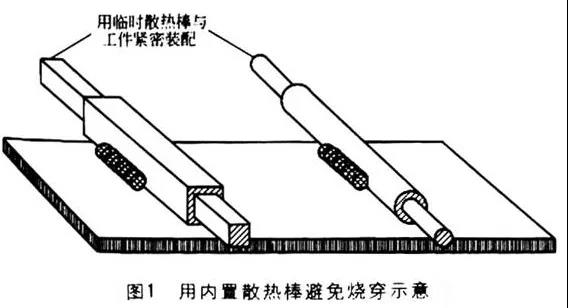

Use pulsed transfer with a small wire, keep the bead short, and let the part cool between passes. A copper backing bar under the thin side helps pull heat away.
Why does the first 20 mm of my bead always show porosity?
That is almost always contamination burning off at the start of the pass. Oil, coolant or coating vaporizes in the arc and gets trapped in the pool.
Clean the start area again, let the solvent flash off completely, and add a short lead-in run-off tab so the porous start lands outside the finished part.
Can a welded part still be machined to ±0.005 mm?
Yes, if the welding is done first and enough stock is left. Plan 1-2 mm on surfaces that will be finished, and check the part after welding instead of trusting the drawing dimension.
Hardness varies across the heat-affected zone. Tell the machinist which areas are weld so feeds and depths can be adjusted instead of rubbing on a hard band.
Does a backing bar really reduce distortion?
It helps in two ways. It conducts heat out of the root, and it holds the joint geometry while the weld cools and shrinks.
It is most useful on thin sheet and on any joint where the two sides must stay flat. On heavy plate, backstep sequence and balanced passes do more of the work.
When should I braze instead of weld a copper or bronze part?
When the part is thin, when it carries a bearing or sealing surface, or when it has already been machined. Brazing runs cooler, so there is less residual stress and less movement.
Surfacing is the better option when you need wear resistance or a thick build-up on a heavy section that will be re-machined anyway.
Is it safe to weld a closed tank or container?
No. Heat and trapped gas in a sealed volume is a serious hazard, and the risk rises with every pass.
Drill a pressure-relief hole before any welding, and confirm the vessel is empty, vented and free of flammable residue. If that cannot be confirmed, do not weld it.
