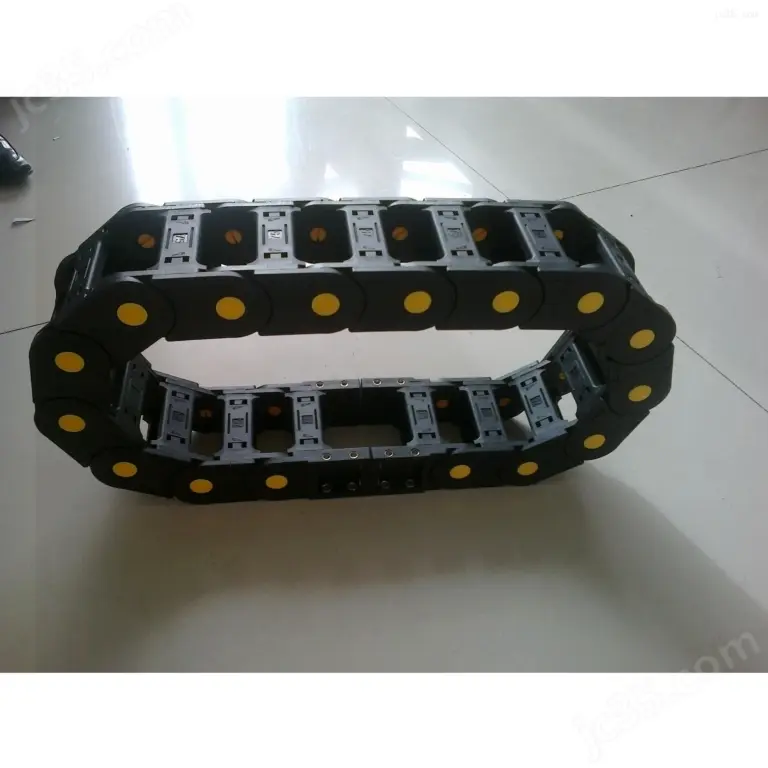

Tips for Using Plastic and Nylon Energy Chains in Complex Working Conditions

• 1
  Key takeaways
• 2
  Choosing plastic and nylon energy chains for the real environment
• 3
  Installation details that decide chain life
• 4
  Running conditions that wear plastic and nylon energy chains
• 5
  When plastic and nylon energy chains are the wrong choice
• 6
  Step by step: commissioning and checking a chain
• 7
  Chain and environment match table

Most chain failures we see start at specification, not at the machine. A chain rated for a clean assembly cell gets moved onto a lathe with flood coolant and cast iron dust, and it dies in a few months. Before you compare catalogs, write down four numbers: ambient temperature at the chain, chip and coolant exposure, maximum speed and acceleration, and the total travel of the axis. Those four numbers remove most of the catalog for you.

Material choice follows from those numbers. Standard PA (nylon) grades work well in dry rooms at moderate temperature and carry heavy loads for their size. They absorb moisture, though. In wet or humid cells the links swell slightly and pin friction rises, so a glass-filled or reinforced PA grade, or a PP/PC blend, often lasts longer. For hot zones near a spindle or a welding cell, check the continuous service temperature rather than the short-term peak. A chain that survives a 120 °C spike for ten minutes is not a chain rated for 120 °C.

Load is the last check, not the first. Add the weight of all cables and hoses, then apply the chain maker's fill weight limit. A common mistake is to fill every chamber to the maximum width and leave no clearance for movement. Leave 10–15% of the inner height free so cables can slide instead of being crushed. If the fill is tight, cables rub against each other and the jacket wears through at the contact points.

Complex conditions usually mean a combination, not a single factor. A robot on a casting line sees heat, abrasive dust and high cycle count at the same time. In that case, prioritize the factor that causes the fastest damage and accept a shorter life on the others. Document the choice so the next maintenance engineer knows why that grade was picked.

• 1
  Write the four numbers downTemperature, contamination, speed and travel.
• 2
  Check continuous, not peak, temperatureShort spikes mislead material selection.
• 3
  Leave 10–15% free inner heightCables must slide, not jam.

Mounting height and alignment matter more than most people expect. The fixed end and the moving end must sit in the same plane, or the chain will twist slightly on every stroke. Measure the offset with a dial indicator or a straight edge before you tighten the last bolts. A 1–2 mm misalignment looks harmless in a drawing and shows up as uneven pin wear after a few thousand cycles.

Support the chain along its unsupported length. Every plastic chain has a maximum unsupported span at a given speed and fill weight. Above that span the chain sags, the links separate on the return stroke, and the cable gets pinched between them. If your travel is longer than the unsupported limit, add a glide bar or a support tray. Keep the tray clean; a layer of chips under the chain acts like sandpaper on the outer links.

Give cables their own path. Use dividers between power and signal cables, and keep a separate chamber for fiber or encoder lines. Minimum bend radius for a cable usually beats the chain radius, so the chain radius must be at least as large as the stiffest cable inside it. A servo cable bent below its rated radius will show shield damage long before the chain shows wear.

Clamp the cables at both ends, with the clamp close to the chain entry. The moving end clamp takes the pull; the fixed end stops the cable from walking through the chain. Never let a cable hang from a connector. On vertical axes this is the number one cause of intermittent faults, because the cable stretches and the shield breaks inside the jacket where you cannot see it.

• 1
  Align both mounting planesCheck with a straight edge before final torque.
• 2
  Add a glide bar past the unsupported limitSag separates links and pinches cable.
• 3
  Clamp at both endsNo load on connectors or terminals.

Speed and acceleration set the load on pins and stops. A chain rated for 3 m/s in a clean room may only be good for 1.5 m/s in a dusty cell, because abrasive particles turn sliding contact into cutting contact. If your cycle calls for high acceleration, shorten the stroke where you can, or move the chain to a lower-speed axis. Reducing peak acceleration by 20% often adds a full year of life.

Chip and coolant exposure is the classic complex-condition problem. Fine cast iron dust and aluminum chips pack into the gaps between links and stop the chain from articulating freely. Coolant washes the grease out of the pins and leaves a sticky film that holds the chips in place. A covered or enclosed chain solves most of this. If you cannot cover it, add a wiper or a shield plate at the chain entry and clean the tray on a fixed schedule.

Temperature changes the clearance inside the chain. PA links expand with heat and moisture; in a cold room the same chain gets tighter. If an axis runs a warm-up cycle and then holds a cold position, the chain may bind at one end of the travel and rattle at the other. Check the chain at both temperature extremes, not just at the normal running temperature.

Cable routing inside the chain affects wear too. Cables of very different diameters should not share a chamber, because the thin one bends more and the thick one holds the radius. Twist in the cable before clamping is another silent killer. Lay the cable straight, mark it, then clamp without rotating it.

• 1
  Cut peak acceleration where possible20% less can add a year of service.
• 2
  Shield the chain entry from chipsA wiper plate is cheaper than a chain.
• 3
  Check the chain hot and coldClearance changes with temperature.

Plastic and nylon chains are not universal. Above roughly 5 m/s in continuous operation, or in travel beyond about 10 m, a steel chain or a different carrier concept is usually the better answer. High-speed plastic chains generate more noise and heat at the pins, and the wear rate climbs faster than the load curve suggests. If your cycle time keeps dropping, revisit the carrier before you blame the machine.

Very hot zones near a furnace, a welding torch or an induction coil push PA and most blends past their continuous rating. In those spots, a steel chain with a high-temperature cable jacket lasts longer, even if it costs more and needs lubrication. The same applies to heavy sparks or molten splash, which pit plastic links quickly.

Washdown and food-grade areas need a different evaluation. Some nylon grades absorb water and change dimension; if the cell is hosed down daily, a stainless or a washdown-rated polymer chain is the safer pick. Confirm with the chain maker which grade is approved for the cleaning chemicals in use.

Finally, consider the maintenance model. A plastic chain is usually replaced as a unit, while a steel chain can be re-pinned and re-lubricated. If your site has no planned maintenance window, a plastic chain with a known wear indicator is easier to manage. If you have a maintenance team on site, a steel chain may give a lower cost per year.

• 1
  Speed above 5 m/sMove to steel or a different carrier.
• 2
  Travel beyond about 10 mSupport and sag become the limit.
• 3
  Daily washdownCheck water absorption of the grade.
