Machine Tool Technology: What Henry Maudslay Actually Invented
Henry Maudslay was born in 1771 and built the first practical screw-cutting lathe. This page explains what his machine actually solved, which of his ideas still govern modern CNC work, and where the analogy stops being useful. Written for engineers and buyers who want the mechanism, not the birthday.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
What Maudslay's Machine Tool Technology Actually Solved
Before Maudslay, a screw was cut by hand. The smith marked a helix with dividers, filed along the mark, and hoped. Two screws made the same day by the same person would not match. A bolt from one shop would not enter a nut from another. Threads were a craft item, not an interchangeable one.

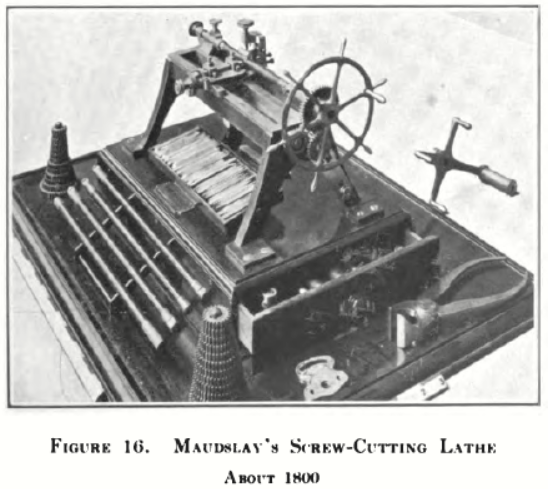

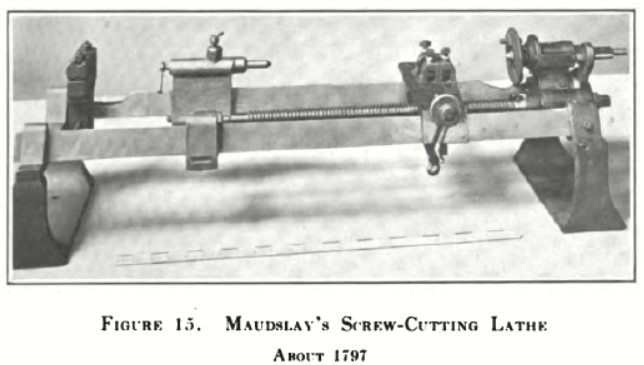

Maudslay's screw-cutting lathe, built around 1800, broke that dependency. It carried a master leadscrew that drove the tool carriage through a geared train. The pitch of the thread came from the leadscrew, not from the operator's eye. Once you could cut a leadscrew accurately, you could cut every screw that followed from it. Accuracy became reproducible.
That is the real invention. Not a single machine, but a loop: a machine accurate enough to build a more accurate machine. Modern machine tool technology runs on the same loop. A 5-axis machining center today holds ±0.005 mm because its own ballscrews, guideways and spindle bearings were made to a finer grade than the parts it cuts. Each generation of machine tools builds the next one.
- 1Leadscrew sets pitchThread accuracy comes from one master screw, not from operator skill.
- 2Carriage follows the screwThe tool path is mechanically constrained, so it repeats.
- 3Repeatability beats one-off precisionA screw that repeats is worth more than a screw that is merely fine.
How the Screw-Cutting Lathe Works, Step by Step
The bed is a rigid iron casting. It carries the headstock, the tailstock and a sliding carriage. The workpiece turns between centers. The carriage moves along the bed, and it is not pushed by hand. It is pulled by the leadscrew through change gears.
Change gears set the ratio between spindle rotation and carriage travel. One turn of the spindle equals one turn of the leadscrew, but the gear pair decides how far the carriage advances per revolution. Swap the gears and you cut a different pitch. This is the ancestor of the feedrate command in a modern control.
The tool sits in a slide rest that Maudslay also developed. Instead of holding the cutting tool in his hands, the operator cranks two screws that move the tool in X and Z. Hand pressure no longer bends the tool. Depth of cut becomes a number you can repeat.
The chain matters more than any single part. Spindle, gears, leadscrew, carriage and slide rest form a closed kinematic loop. Error in the leadscrew shows up directly in the thread. That is why Maudslay spent years on a screw-cutting machine to make the leadscrews for his own lathes.
- 1Bed and waysRigid cast iron gives the carriage a straight, repeatable path.
- 2Change gearsRatio between spindle and leadscrew sets the thread pitch.
- 3Slide restTool position becomes a setting, not a hand feel.
- 4Master leadscrewIts own accuracy caps the accuracy of every thread cut on the machine.
Where the Maudslay Analogy Breaks Down
It is tempting to say a CNC machine is just Maudslay's lathe with motors. That gets you into trouble. A leadscrew lathe is a rigid mechanical chain from spindle to tool. A CNC machine is a control loop. The encoder reports position, the control compares it to the commanded value, and the drive corrects. The error is measured, not fixed by geometry alone.
The consequence is that a CNC machine can compensate for its own errors. Pitch error compensation tables correct leadscrew inaccuracy. Thermal compensation shifts the axis as the spindle warms. Tool radius compensation offsets the path for a worn cutter. Maudslay could only make the mechanism better. We can also make the software correct for a mechanism that is less than perfect.
The second break is speed. Maudslay's lathe cut threads slowly, with carbon steel tools and no coolant. A modern carbide tool runs at cutting speeds he had no way to reach. That changes which materials are practical. Titanium and Inconel are routine in our shop. In 1800 they were laboratory curiosities.
- 1Closed loop vs. fixed geometryCNC measures and corrects; the old lathe could only be built more accurately.
- 2Compensation existsPitch, thermal and tool-radius offsets absorb errors the mechanism cannot avoid.
- 3Cutting speed changed the material listCarbide and coolant made titanium and Inconel production materials.
Why This History Still Sets Your Tolerances
Every tolerance you put on a drawing is a claim about the machine that will cut it. If you ask for ±0.005 mm on a 300 mm aluminum bracket, you are asking for a machine whose own axes are better than that, and a shop that controls temperature and tool wear. The number is not free.
Maudslay's loop explains why. Accuracy comes from a chain of references. The part is measured against a gauge. The gauge is calibrated against a master. The master was cut on a machine built to a finer grade. Break the chain anywhere and the tolerance on the drawing becomes a wish.
In practice this is why we inspect 100% of parts before shipment and can supply reports on request. It is also why raw material is checked on arrival. A batch of 7075 that is out of spec will move under the cutter no matter how good the machine is. The gauge chain starts at the material certificate.
For a buyer, the useful question is not whether a shop has 5-axis machines. It is whether the shop can show the chain. Which instrument measured the feature. What the calibration status was. Whether the setup repeated across the run. That is Maudslay's question, asked in a modern way.
- 1Tolerance is a chainPart, gauge, master, machine. Every link has to be tighter than the result.
- 2Material is a link tooOut-of-spec stock moves under the cutter regardless of machine quality.
- 3Ask for the evidenceInspection reports and calibration status answer more than a machine list.
Applying the Principle to a Real CNC Job
Take a 6061-T6 housing with a bearing bore, a sealing face and four mounting holes. The bore needs ±0.005 mm. The sealing face needs Ra 0.8–1.6 μm. The holes are clearance, ±0.1 mm is plenty. Three features, three different levels of care.
The bore is the tight one. It wants a machine with a rigid spindle and a control that holds position, plus a boring cycle rather than an interpolated circle. It also wants the part to reach thermal equilibrium first. Cut it 20 minutes after the spindle starts and the number will drift.
The sealing face is a finish problem, not a position problem. A finer stepover and a sharp tool get to Ra 0.8–1.6 μm. Push for Ra 0.2–0.8 μm and you are into a different process, with a different cost. Ask whether the seal actually needs it.
The mounting holes are where you save money. Drill them on the same setup, hold ±0.1 mm, and skip the reaming. Engineers who mark every feature as critical get a slow, expensive part. Engineers who grade the features get a fast one that still works.
- 1Grade your featuresOne bore at ±0.005 mm, holes at ±0.1 mm, and the job gets cheaper.
- 2Let the machine warm upThermal equilibrium matters more than spindle RPM for tight bores.
- 3Finish is a separate decisionRa 0.2–0.8 μm costs more than Ra 0.8–1.6 μm. Check the seal spec.
Maudslay's Lathe vs. a Modern CNC Machining Center
Same principle, different scale. Each row maps one function of the 1800 lathe onto the machine that replaced it.
| Function | Maudslay lathe, c. 1800 | Modern CNC center |
|---|---|---|
| Pitch or feed source | Master leadscrew and change gears | Ballscrew plus servo and encoder |
| Tool positioning | Hand-cranked slide rest | Programmed axes, closed-loop feedback |
| Accuracy limit | Accuracy of the leadscrew itself | Thermal drift and tool wear |
| Setup change | Swap gears, re-clock the work | Load next program, re-probe |
| Best for | Threads, shafts, one-off repair | Complex 3D geometry, batch runs |
| Skill required | Years of lathe hand | CAM programmer plus setup tech |
What to Check Before You Send a Drawing
Use these five checks on any supplier. They map directly onto Maudslay's accuracy chain.
| Check | What good looks like | Why it matters |
|---|---|---|
| Machine grade vs. tolerance | Axis accuracy finer than the part tolerance | A machine cannot cut better than its own references |
| Inspection method | Named instrument and calibration date | An uncalibrated gauge proves nothing |
| Material traceability | Mill cert checked on arrival | Stock variation shifts dimensions mid-run |
| Setup repeatability | Same fixture, documented offsets | Re-clamping is where most drift enters |
| Thermal control | Shop temperature held, spindles warmed | A 5 °C swing moves a 300 mm steel part |
The Takeaway
Maudslay's real gift was a loop, not a lathe: a machine accurate enough to build a more accurate machine. If your part has one or two tight features, pick a shop that can show the measurement chain and hold ±0.005 mm. If every feature is marked critical, expect a slow quote and a costly part. Grade the drawing first, then choose the process.
Questions Engineers Ask About Machine Tool History
Was Maudslay the first to build a screw-cutting lathe?
No. Screw-cutting lathes existed before him, and others worked on the problem in the same period. His machine was the first that cut threads accurately enough and repeatably enough to be useful as a production reference.
The distinction matters. A lathe that cuts a thread once is a demonstration. A lathe whose leadscrew can be used to make more leadscrews is an industrial tool. That is the step he took.
Does a modern CNC machine still use a leadscrew?
Yes, but its role changed. On a CNC machine the ballscrew converts servo rotation into linear motion, and the encoder closes the loop. The screw no longer defines the accuracy by itself; the control compensates for pitch error and backlash.
That is the key difference from 1800. The mechanism sets a baseline, and the control corrects the rest.
Why does thermal drift matter more than leadscrew error today?
Because modern screws are already very good, and the control compensates for what remains. Temperature is harder to compensate because it changes during the cut. A spindle warming by a few degrees moves the tool relative to the work.
For a 300 mm steel part, a 5 °C swing can move a feature by more than the tolerance you specified. Warm-up cycles and shop temperature control do more for accuracy than a better screw.
How do I know which features actually need tight tolerance?
Ask what each feature does. A bore that locates a bearing needs a tight fit. A clearance hole does not. A sealing face needs a finish spec, not a position spec.
Then check the stack. If a tight feature sits in a chain with loose ones, tightening it alone may not fix the assembly. Tolerance is a system, not a per-feature decision.
What tolerance can GreatLight hold, and on what size parts?
We hold ±0.005 mm (±0.0002 in) and finish to Ra 0.2–0.8 μm where the process supports it. Our 127 CNC machines include 16 simultaneous 5-axis centers, and maximum processing size is 4,000 mm.
Tolerance and size interact. A tight tolerance on a very long part is harder than the same tolerance on a small one, because thermal and deflection effects grow with length.
Do you inspect every part or sample the batch?
We inspect 100% of parts before shipment, with raw material checks on arrival, in-process monitoring and a final inspection. Reports are available on request.
That is the practical version of Maudslay's chain. A measurement is only useful if you can trace what instrument produced it and whether that instrument was in calibration.
