Tormach CNC Mill Setup Guide
This Tormach CNC mill setup guide walks through the checks that decide whether your first cut lands on size: floor and leveling, column tram, vise and TTS workholding, tool offsets, and a test cut you can measure. It is written for machinists and process engineers running a Tormach on prototype and short-run work, not for a full production floor.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Key takeaways
What a tormach cnc mill setup guide should cover first
A Tormach is a benchtop-class mill that behaves like a small VMC when it is set up properly. Most size problems blamed on the controller trace back to the bench, the column, or a dirty holder taper. Work through the mechanical checks in order and the electrical side gets much easier.
Budget two to four hours for a first setup, plus a warm-up cycle. That is realistic for a single machine with a vise and a handful of TTS holders. Rushing the leveling step costs more time later than it saves now.
The order matters: floor and level, then column tram, then workholding, then offsets. If you tram before leveling, the tram drifts as soon as the base settles. If you set offsets before the vise is indicated in, every part inherits the vise error.
Which parts suit a Tormach and which do not
A Tormach earns its keep on one-off fixtures, brackets, prototype housings, and short runs where the part fits inside the travel of the machine. Think aluminum plate up to roughly 300 mm long, small steel shafts, and plastic parts that need a real cutter rather than a print.
It is the wrong tool when you need many faces held to tight positional tolerance, deep cavities in hardened steel, or thousands of identical parts per month. Those jobs need simultaneous 5-axis capability, higher spindle power, and coolant-through tooling. On our floor, parts that outgrow a benchtop mill run on 16 simultaneous 5-axis machining centers with travels up to 4,000 × 400 × 150 mm.
A useful split test: if the part needs more than two setups, or a true position callout under 0.05 mm across three faces, plan for a production machine. If it is a fit check, a jig, or the first article, a well-set-up Tormach is faster to program and cheaper to run.
Material choice drives the decision too. 6061 aluminum, ABS, POM, and 303 stainless cut cleanly on a small mill. Inconel, Ti-6Al-4V, and 17-4PH in the hardened condition will stall a low-power spindle and burn cutters.
- 1Good fitPrototype brackets, jigs, plates, small shafts, plastic and aluminum parts.
- 2Poor fitTight multi-face position, deep hardened-steel cavities, high-volume runs.
- 3Check travelConfirm the part plus fixture fits inside the machine envelope with room to clear.
Leveling, tram, and spindle warm-up
Start with the bench or stand. A Tormach on a flexing bench will move under a heavy cut. Bolt the stand down if the floor allows it, and keep the machine feet on solid pads rather than directly on a cracked slab.
Level the base with a machinist level, adjusting the feet in small steps and re-checking along both X and Y. Twist in the base is the usual cause of a column that will not hold square. Re-check the level after the first week of running and again after any move.
Tram the head with a dial test indicator on a spindle-mounted arm, sweeping a 100 to 150 mm circle on the table. Adjust the column until the reading is within 0.02 mm across the sweep on both axes. On a new machine this is often already close; after a move or a crash, recheck it before cutting anything.
Warm the spindle for 10 to 15 minutes at low to mid speed before you set offsets or run a finish pass. A cold spindle grows in Z as it heats, and that drift shows up as a size change between the first and tenth part of a run.

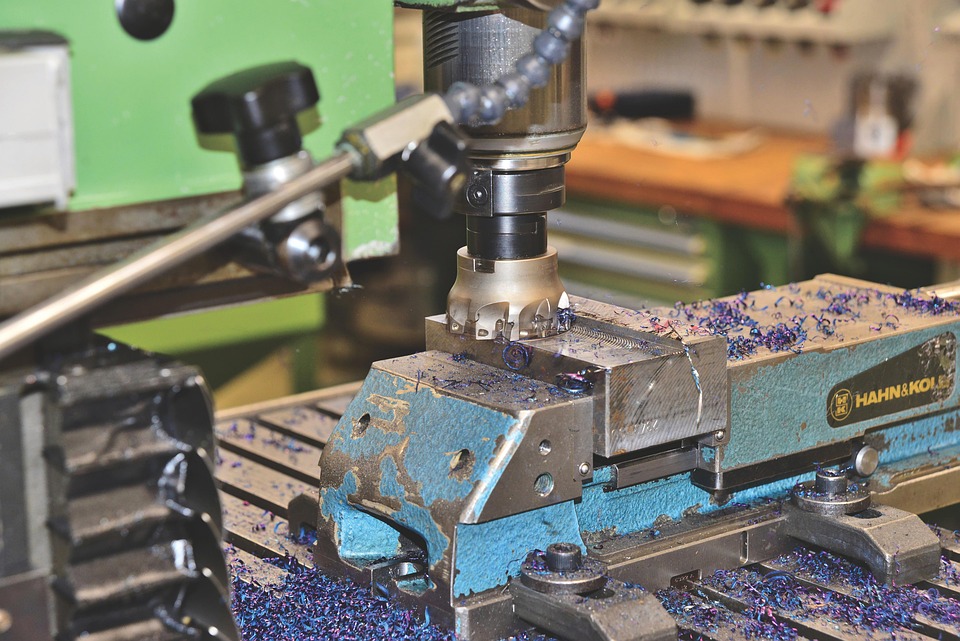

Vise, TTS holders, and work offsets
Indicate the vise in before you trust its jaws. Sweep the fixed jaw, not the movable jaw, and tap the vise into alignment until the reading is within 0.01 mm along its length. A vise that is off by 0.05 mm turns into a taper on every part you cut in it.
Keep TTS tapers and pull studs clean. Wipe the taper and the spindle socket with a lint-free cloth before every tool change. A chip or a film of dried coolant in the taper seats the holder crooked, which shows up as runout at the cutter and as a tool that pulls out during a heavy cut.
Set tool length offsets with a height gauge or the machine's tool setter, and record them. Re-measure after any holder change. When a tool is reground or replaced, the old offset is worse than no offset at all.
Set the work offset from a known corner or the vise jaw, then verify with a test indicator or an edge finder before you press cycle start. On a small mill, a 0.1 mm error in the work offset is a scrapped part, not a rework.
- 1Fixed jaw firstSweep the fixed jaw and tap the vise in to within 0.01 mm.
- 2Clean every taperWipe the TTS taper and spindle socket before each tool change.
- 3Log offsetsRe-measure tool length after any holder change or regrind.
Symptom, cause, and what to change
Parts come out tapered along one axis: the vise is not square to the spindle, or the head tram drifted after a move. Re-sweep the fixed jaw and re-tram the head. Check the table for a burr under the vise before you chase the machine.
Size drifts over a run: the spindle was cold when offsets were set, or the tool is wearing faster than expected. Warm up, re-measure the tool length, and check the cutter for edge wear. A dull end mill pushes the part instead of cutting it.
Poor surface finish on a finish pass: too high a feed per tooth for the cutter, or a holder with runout. Check runout at the shank, then reduce feed per tooth and confirm the cutter is rated for the material.
Tool pulls out during a heavy cut: a worn pull stud, a dirty taper, or a holder that does not seat. Replace the pull stud, clean the taper, and reduce the depth of cut until the holder seats reliably. On a small mill, a pull-out is a crash waiting to happen.
When to move the job to a production machine
A well-set-up Tormach holds normal prototype tolerances on parts that fit its envelope. It does not hold ±0.005 mm across multiple faces, and it will not run thousands of parts without constant attention. Knowing that line saves scrapped work.
Move the job when the part needs three or more setups, when true position across faces is under 0.05 mm, or when volume passes a few hundred pieces per month. Those jobs go to a machine with the rigidity and the axis count to hold them.
Our shop runs 127 high-precision CNC machines, including 16 simultaneous 5-axis centers, with tolerances to ±0.005 mm and finishes from Ra 0.2 to 0.8 μm when a drawing calls for it. We quote and return a free DFM analysis within 12 hours, and production can start within 24 hours. If your Tormach part has outgrown the benchtop, that is the point to send the drawing over.
Step-by-step Tormach setup sequence
Follow this order so a later step does not undo an earlier one.
- 11. Set the machine on a rigid benchBolt the stand down where possible. Put the feet on solid pads, not directly on a rough slab. Rock the machine by hand and fix any movement before you level it.
- 22. Level the baseUse a machinist level on the table, working one foot at a time. Get both X and Y within 0.02 mm per 300 mm, then re-check after 24 hours of settling.
- 33. Tram the headSweep a 100 to 150 mm circle with a dial test indicator. Aim for 0.02 mm or better across the sweep. Recheck after any move or crash.
- 44. Warm the spindleRun 10 to 15 minutes at low to mid speed. Do this before you set tool offsets or cut a finish pass, so thermal growth is already in the machine.
- 55. Indicate the viseSweep the fixed jaw and tap the vise until it reads within 0.01 mm along its length. Check that the jaws sit parallel to the table.
- 66. Load and clean toolsWipe each TTS taper and pull stud, seat the holder, and check runout at the cutter shank. Replace any holder that will not seat cleanly.
- 77. Set tool and work offsetsMeasure tool lengths with a gauge or tool setter. Set the work offset from a known corner and verify with an edge finder before running the program.
- 88. Cut a test part and measure itFace a plate and cut a 100 mm square. Measure width, squareness, and top flatness. Adjust offsets or tram only if the measured error is outside your tolerance.
Setup checks and what each one catches
Use this to decide which check to repeat when a part comes out wrong.
| Check | Target | What it catches |
|---|---|---|
| Base level | 0.02 mm per 300 mm | Twist that pulls the column out of square |
| Head tram | 0.02 mm over 150 mm sweep | Face steps and out-of-square pockets |
| Spindle warm-up | 10 to 15 minutes | Size drift between the first and last part |
| Vise alignment | 0.01 mm along the fixed jaw | Taper and parallel errors across the part |
| TTS taper cleanliness | Clean and dry before each change | Runout at the cutter and tool pull-out |
| Tool length offset | Re-measured after every change | Wrong Z depth and broken end mills |
| Work offset check | Verified with an edge finder | Shifted features and scrapped parts |
| Test cut | 100 mm square, faced top | Combined error before a real job runs |
Set up the benchtop mill, then know its ceiling
A disciplined setup gets a Tormach cutting accurate prototype parts. When the drawing needs tight multi-face tolerance or real volume, move it to a 5-axis production machine.
Tormach setup questions engineers ask
How often should I re-check level and tram?
Re-check the level after the first week of running, and again after any move or nearby floor work. After that, check every few months, or whenever accuracy problems appear.
Tram should be re-checked after any crash, after moving the machine, and before a job that needs tight squareness. It is a five-minute check that saves a scrapped part.
Why does my tool pull out of the TTS holder?
The usual cause is a dirty or worn taper, or a worn pull stud. Clean the taper and the spindle socket with a lint-free cloth and inspect the pull stud for wear.
Also check that the holder seats fully and that the collet nut is tight. If it still pulls out, reduce the depth of cut and the feed per tooth until the holder holds reliably.
Should I leave the controller running all day?
No. A daily power cycle is fine and normal. Leaving a controller powered continuously does not improve accuracy and shortens the life of some components.
Follow the manufacturer's recommendation for your specific controller. What matters more for accuracy is the spindle warm-up before cutting.
What causes poor finish on aluminum?
Runout at the cutter, a feed per tooth that is too high, or a cutter that is dull. Check runout at the shank first; if it is over a few hundredths of a millimeter, reseat or replace the holder.
Then reduce feed per tooth and confirm the cutter geometry suits aluminum. A two-flute cutter with good chip clearance usually finishes better than a four-flute in soft aluminum.
Can a Tormach hold ±0.005 mm?
Not across multiple setups and faces. A Tormach can hold normal prototype tolerances on parts within its envelope, but ±0.005 mm positional work belongs on a production machine.
If a drawing calls for that tolerance, plan for a machine with the rigidity and axis count to hold it. We hold ±0.005 mm on 5-axis centers for parts that need it.
What should I check before running a first article?
Confirm level and tram, indicate the vise, clean every TTS taper, and re-measure tool length offsets. Set the work offset from a known corner and verify it with an edge finder.
Then cut a test part and measure width, squareness, and top flatness. Only adjust the machine if the measured error is outside the part tolerance.
