A five axis machining center adds two rotary axes to the usual three linear ones. The machine can tilt the part or the spindle, so the tool approaches a feature from an angle instead of straight down the Z axis. That single change removes several re-fixturing steps, and it also opens up surfaces that a three axis machine simply cannot reach without a custom angle plate.

In practice the term treatment method describes how those rotary axes are used during the cut. Some shops call it positioning versus linked machining. Others use 3+2 and simultaneous. The names differ, but the engineering question is the same: do the rotary axes lock while the tool cuts, or do they move together with X, Y, and Z?

That question decides your fixture, your CAM strategy, your cycle time, and your risk. A method that is wrong for the part shows up as chatter, gouges, or a scrapped lot. A method that is right makes hard parts routine.

• 1
  Positioning (3+2)Rotary axes index to an angle, then lock. Cuts behave like a three axis operation on a tilted face.
• 2
  Simultaneous (linked)All five axes move at once, so the tool tip follows a continuous contour.
• 3
  HybridPosition for bulk removal, switch to linked motion for the final contour and blend radii.

In 3+2 mode the two rotary axes move to a fixed angle and then clamp. The controller treats the tilted plane as a new work plane, so the tool path is generated as if the part were flat. This is the most common treatment method for prismatic parts, housings, and brackets with features on several faces.

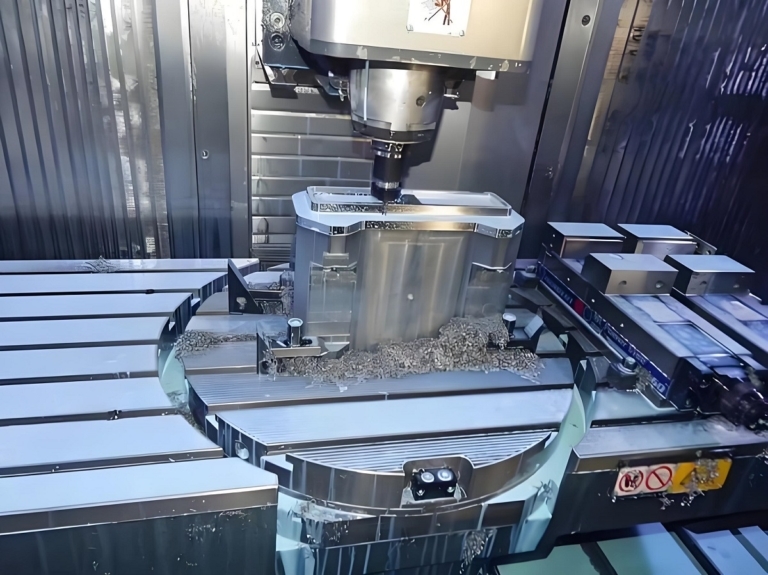

The advantages are practical. Rigidity stays high because the rotary axes are locked. Feeds and speeds stay close to a three axis cut. CAM programming is simpler, and most operators can read the setup without special training. On a five axis machining center with a Ø400 mm rotary table, a part can be reached on five faces in one setup instead of five.

The trade-off is blending. Where two tilted faces meet, a 3+2 cut leaves a small witness line unless you add a finishing pass across the joint. For cosmetic parts or sealing surfaces, plan a linked finishing pass or a hand polish step. For most structural parts, the line is acceptable and the cycle time saving is large.

Choose 3+2 when the part has flat faces, drilled holes, and pockets at angles. Do not choose it when the part carries a continuous swept surface, such as an impeller blade or a turbine vane.

• 1
  Best forBrackets, housings, manifolds, and parts with angled holes or faces.
• 2
  FixtureOne vise or chuck on the rotary table is usually enough.
• 3
  Watch forWitness lines at face joints; add a linked finish pass.

Simultaneous mode keeps all five axes in motion while the tool cuts. The tool tip follows a surface contour instead of stepping between fixed planes. This is the method that makes a five axis machining center worth its price for aerospace, medical, and energy parts with curved geometry.

The gain is geometric. A ball nose tool can be held normal to the surface, so the effective cutting radius stays constant. Scallop height becomes predictable, and you can hit Ra 0.8–1.6 μm on a contoured surface without hand polishing in many cases. Tool overhang can also be shortened, because the machine tilts the part toward the tool rather than reaching into a deep cavity.

The cost is programming time and risk. Collision between the holder, the table, and the part is a real hazard, so simulation must check the full stock model, not just the finished part. Post-processor accuracy matters too: a small rotary alignment error shows up as a wave on the surface.

Choose simultaneous mode for impellers, blisks, medical bone plates, and any part where the surface itself is the function. Do not choose it for a simple block with a few angled holes. The programming hours will not pay back.

• 1
  Best forContoured surfaces, thin ribs, deep cavities with limited tool access.
• 2
  Check firstFull-stock collision simulation and post-processor accuracy.
• 3
  Finish rangeRa 0.8–1.6 μm on a stable setup; Ra 0.2–0.8 μm with a fine step-over.

Most production parts do not use one method end to end. A hybrid workflow positions the part at a roughing angle, removes the bulk of the stock with a rigid locked setup, then switches to linked motion for the final contour. This keeps roughing fast and finishing accurate.

A typical sequence: rough at 3+2 with a Ø16 mm or Ø20 mm end mill, leave 0.3–0.5 mm on the walls and 0.2 mm on the floor. Then re-position and run a linked finishing pass with a Ø6 mm or Ø8 mm ball nose tool at a 0.1–0.3 mm step-over. The rotary axes only move together during the last pass, so the risk window is short.

This split also helps tool life. Roughing with locked axes removes the dynamic load that wears a ball nose tool on a curved path. The finishing tool then cuts a light, even load and holds its edge longer.

The mistake to avoid is switching methods mid-feature. If you rough one wall in 3+2 and finish it in linked mode with a different datum, the blend will not match. Keep the same datum and the same work offset through the whole feature.

• 1
  Rough3+2, locked axes, stock left 0.3–0.5 mm on walls.
• 2
  FinishLinked pass, ball nose, step-over 0.1–0.3 mm.
• 3
  Keep constantDatum and work offset across roughing and finishing.

Rotary axis alignment is the first detail. If the table center and the machine coordinate do not agree, every tilted cut is offset by that error. Check the center with a dial indicator and a test bar before a tight-tolerance job. On a five axis machining center holding ±0.005 mm, a 0.01 mm center error is already twice the tolerance budget.

Workholding comes next. A self-centering vise on the rotary table, or a custom fixture with a pull-stud interface, keeps the part repeatable. For thin walls, support the back side or use a low-melt wax fill. Chatter on a five axis cut usually traces back to the fixture, not the spindle.

Tool selection follows the geometry. A ball nose tool for contoured surfaces, a bull nose for floor and wall blends, a long-reach end mill only where the pocket demands it. Keep overhang as short as the feature allows. Every extra 10 mm of overhang costs rigidity.

Finally, thermal drift. A five axis machining center with rotary axes running for hours will grow. For a long finishing job, warm up the machine, then re-check the datum after the first hour. On a ±0.005 mm part, that step is not optional.

• 1
  Rotary centerVerify with a dial indicator and test bar before tight-tolerance work.
• 2
  WorkholdingSelf-centering vise or pull-stud fixture; support thin walls.
• 3
  OverhangKeep it short; every extra 10 mm reduces rigidity.
• 4
  Thermal driftWarm up, then re-check datum after the first hour.
