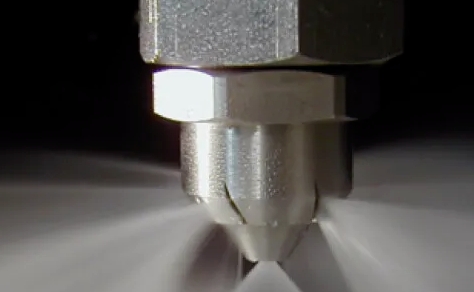

A nozzle converts pressure into velocity. For a round orifice in turbulent flow, discharge scales roughly with the square of the diameter. That is the whole difficulty in one line. A 10 μm error on a Ø0.5 mm hole is a 4% area change, and on some designs that is already outside the flow band the customer tested.

Small orifices also have a large surface-to-volume ratio. Wall finish and edge condition matter nearly as much as diameter. A burr of 5 μm on the inlet edge changes the vena contracta, so the same hole can meter differently after deburring. Surface finish in the bore drives pressure loss: Ra 0.2–0.8 μm keeps the flow coefficient stable, while an as-machined Ra 1.6–3.2 μm bore reads lower and less repeatably.

Entry and exit geometry decide spray shape. A sharp inlet gives a narrow, high-velocity jet. A radiused or chamfered inlet widens the cone and lowers the coefficient. If the drawing only gives a diameter and no inlet condition, two shops will deliver two different sprays from the same number.

Material choice sets the ceiling. Aluminium 6061 machines fast and holds a clean edge but wears quickly in abrasive duty. Stainless 316L and 17-4PH hold an edge far longer. Titanium TC4 (Ti-6Al-4V) and Inconel resist heat and corrosion but push tool wear, so they usually need EDM for the orifice itself.

First difficulty: the orifice is smaller than the tool. Below roughly Ø1 mm, a rotating cutter has almost no stiffness left. A Ø0.5 mm drill or end mill deflects under cutting force, so the hole walks, bell-mouths at entry and tapers along its length. Deep small holes are worse. Once depth passes about 3× diameter, chip evacuation fails, heat builds, and the tool snaps or rubs instead of cutting.

The second difficulty is the angle between the orifice axis and the seating or mounting face. Nozzles are rarely drilled normal to a flat face. They sit on a cone, a spherical seat, or a compound angle that aims the spray. When the orifice axis is tilted relative to the part datum, the tool approaches at an angle, the effective cutting speed varies around the hole, and entry burrs form unevenly. Repositioning for each hole multiplies setup error.

Those two points interact. A tilted Ø0.4 mm hole in 316L combines low tool stiffness with an interrupted, uneven entry. This is exactly where a 3-axis drill-and-tap plan breaks down and where the process choice has to change.

It also explains why quoting from a 2D drawing is risky. A section view hides whether the orifice is perpendicular to the local surface. Ask for the 3D model, or mark the orifice axis explicitly.

Electrical discharge machining is the default for orifices under about Ø1 mm. There is no contact, so no tool deflection. The electrode erodes a hole that is round within a micrometre or two, and the same electrode repeats the size across a batch. A tilted electrode lets the machine reach an angled axis without re-chucking the part, which removes one setup error from the stack.

For nozzles that also carry a bore, thread or seat, one setup beats three. A mill-turn center turns the seat and the outer profile, then the orifice is finished by EDM or by a small drill in the same datum. Every extra setup adds its own concentricity error, and concentricity between orifice and seat is what sets spray aim.

Reaming and drilling still work above roughly Ø1 mm, where the tool is stiff enough. Use a stub or carbide drill with a pilot, keep peck depth short, and control coolant through the tool. On stainless 316L and 17-4PH, low surface speed and steady feed avoid work hardening at the cutting edge.

Deburring is not cosmetic here. A controlled edge break of 0.02–0.05 mm on the inlet repeats the flow coefficient and removes the burr that would otherwise flake off into the fluid path. Do it consistently, or the first and thousandth nozzle will not match.

You cannot measure a Ø0.3 mm bore reliably with a touch probe. Optical measurement, video measurement or a pin gauge set is the practical route, and the choice depends on whether the bore is through or blind. For blind orifices, an optical comparator with a suitable lens or a CT scan gives geometry the pin cannot reach.

Flow testing is the real acceptance test. Air or water at a fixed pressure, measuring flow rate and spray angle, catches every error the dimensional report misses: burr, taper, roughness, edge condition. If the application is critical, agree on a flow band in the purchase order and test a sample before the run.

A full dimensional report, material certificate and finish check come on request. For medical and automotive work we work to ISO 13485:2016 and IATF 16949:2016 documentation, and we inspect before shipment rather than after a complaint.

Repeatability across a batch matters more than one perfect part. A single nozzle that flows correctly is an experiment. A thousand that flow within the same band is a process.

Very small and very deep is the wall. Orifice depth beyond about 5× the diameter is hard to drill, hard to EDM cleanly, and hard to inspect. If the design needs it, consider a stepped bore, a separate orifice insert, or a plate with a laser-cut hole bonded into a machined body.

Abrasive or high-temperature service often argues against a plain machined orifice. In sand, slurry or high-cycle combustion duty, the orifice erodes and the flow drifts. A carbide insert, a coated surface or a replaceable orifice disc usually costs less over the life of the part than remachining the body.

Tight tolerance on the wrong dimension is wasted cost. If the spray angle is set by the inlet chamfer, spending the tolerance budget on the outer diameter buys nothing. Agree on which two or three dimensions actually control performance, and relax the rest.

Material can force the choice too. Inconel and TC4 machine slowly and wear tools, so an orifice that is trivial in 6061 becomes a cost problem. Sometimes the right answer is a machined body in stainless with a hardened insert.
