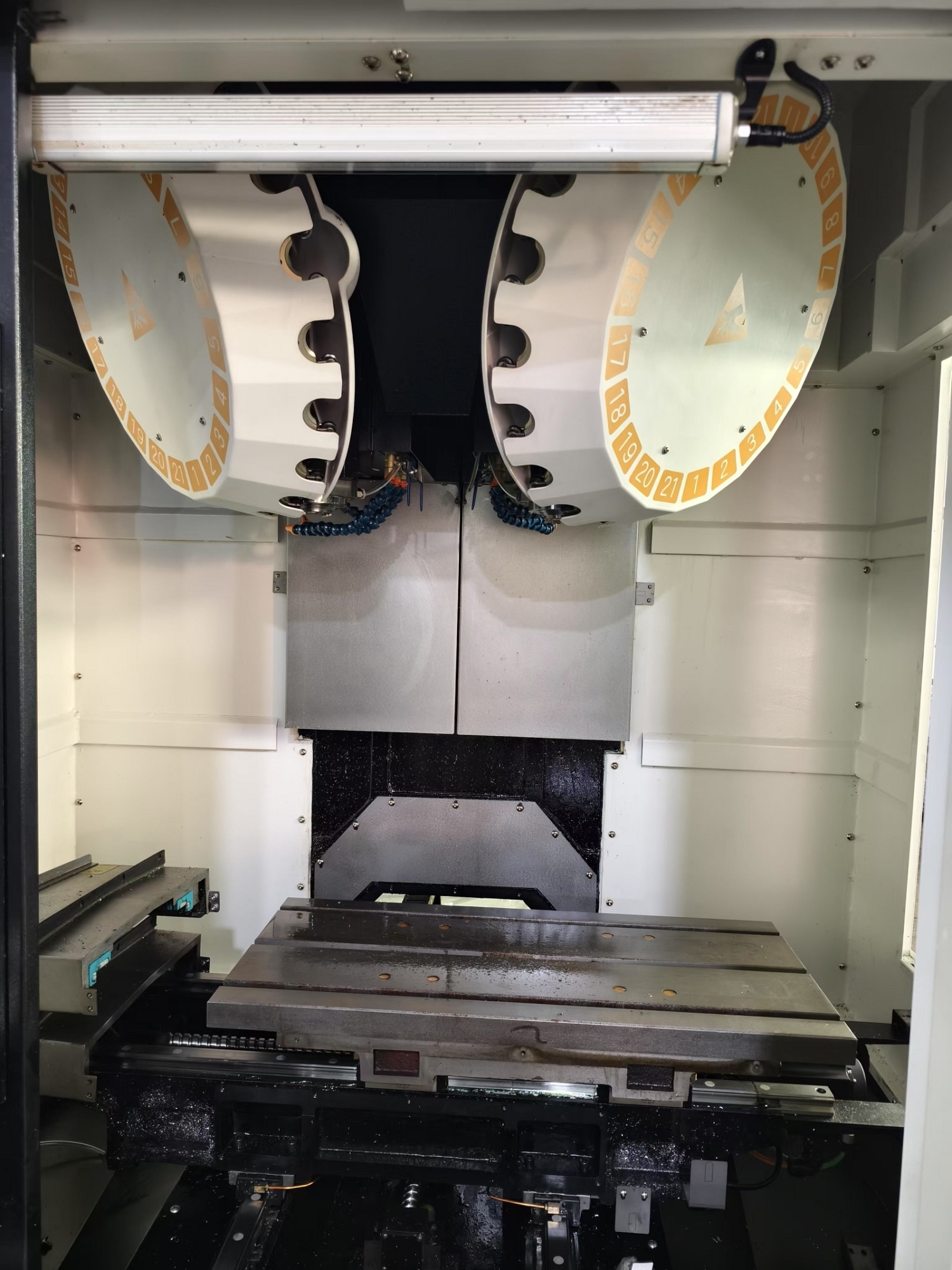

What Are the Measures to Avoid Breakdowns in a Twin-spindle Machining Center?
A twin-spindle center runs two toolsets on one bed, so a fault on one side often stops the other. This page is for process engineers and maintenance planners who need to keep both spindles cutting. It covers the checks, recorded values, and alarm responses that stop small drift turning into a crash.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
Breakdowns in a twin-spindle machining center: symptom, cause, action
Match the symptom you see to the likely cause before you open the electrical cabinet.
| Symptom | Likely cause | First action |
|---|---|---|
| Spindle 2 dimension drifts 0.02–0.05 mm over a shift | Thermal growth in spindle 2 or ballscrew | Log spindle and coolant temperature every 30 minutes |
| Alarm on spindle 1 stops both spindles | Shared safety or hydraulic circuit fault | Check shared hydraulic pressure and interlocks |
| Chipped insert on one turret only | Tool offset or clamping error on that side | Re-measure tool length and check holder runout |
| Surface finish turns rough on side B | Spindle bearing wear or coolant starvation | Check vibration signature and coolant flow rate |
| Both spindles lose position after a long run | Ballscrew thermal expansion on the shared bed | Re-reference at shift start and record drift |
| Hydraulic pressure drops during tool change | Pump wear or leaking seals in the shared line | Check pump output and inspect seals for weeping |
The short version
Log the same values every shift and act on the trend, not the alarm. Most twin-spindle breakdowns give you weeks of warning if anyone is writing the numbers down.
Preventive checks that keep a twin-spindle machine running
Most breakdowns in a twin-spindle machining center start as small deviations that nobody records. One spindle runs slightly hotter, one turret clamps a little softer, and three weeks later a bearing seizes mid-cycle. The fix is boring: write down the same values every day so the trend is visible before the alarm fires.
At the start of each shift, check lubrication oil level and pressure, coolant concentration and flow at both nozzles, and hydraulic pressure at the gauge. Record spindle temperature on both sides after a 20-minute warm-up. A difference above 5 °C between spindle 1 and spindle 2 is worth investigating that same day, not next month.
Each week, measure tool holder runout on both spindles. A TIR above 0.010 mm on a finishing holder will show up as chatter on side B long before it trips an alarm. Check ATC arm alignment and gripper spring tension, because a worn gripper drops tools on one side and the crash damage lands on both.
Every 500 hours, pull a spindle vibration reading and compare it against the commissioning baseline. Rising amplitude in the 1× or 2× running speed band points to bearing wear. Catch it at 500 hours and it is a planned spindle swap. Catch it at 2,000 hours and it is a wrecked housing and a week of downtime.
Thermal drift and geometric stability on a shared bed
A twin-spindle center has two heat sources feeding one structure. Spindle 1 warms the left side of the bed, spindle 2 warms the right, and the ballscrews add their own heat along the axis. If you run only one spindle for a whole shift, the bed twists slightly and the idle spindle loses its reference position.
Measure the distance between the two spindle noses with a bar and indicator after warm-up, then again at the end of the shift. On a machine in good condition the change stays under 0.010 mm. If it moves more, the coolant temperature or the spindle chiller is the first thing to check, not the ballscrew.
Run both spindles through a warm-up cycle before you trust the first part. A 15 to 20 minute cycle at 50 to 70 percent of maximum speed brings the structure close to steady state. Skipping it means the first ten parts get scrapped and the operator blames the offsets.
Coolant temperature matters more than most people expect. Keep the chiller setpoint within ±1 °C and check it against spindle temperature at the same time each day. When the chiller drifts, both spindles drift together, which makes the fault look like a programming problem.
Tool data and offset errors that look like machine failures
Half the alarms blamed on the machine come from tool data. A tool measured on the presetter but entered with the wrong sign, or a holder that seats differently after a chip is trapped in the taper, produces the same dimensional error as a worn ballscrew. Check the simple things first.
Store tool length and diameter in the controller, not on paper. When the same tool runs on both spindles, verify that the offset is applied to the correct side. Twin-spindle machines with independent offset tables are easy to misconfigure, and the error only shows when that tool reaches the part.
Re-measure a finishing tool after every 30 to 50 parts, or after any insert change. A 0.02 mm shift in tool length on a Ø10 mm end mill is enough to scrap a tight-tolerance bore. Keep a simple log per tool so you can see wear rate rather than guessing.
Watch for holder contamination. Clean the taper and the spindle nose with a lint-free wipe at each tool change. A single chip under the flange tilts the holder, and the resulting runout will be blamed on the spindle bearing.
Reading alarms without making the downtime worse
When an alarm stops a twin-spindle machine, the first instinct is to clear it and restart. That is how a small fault becomes a broken tool and a damaged fixture. Read the alarm history first. The controller keeps the last several codes, and the first one is usually the real cause.
Separate faults that belong to one spindle from faults on shared systems. Hydraulics, pneumatics, safety interlocks, and the main power supply are common to both sides. If spindle 1 alarms and spindle 2 also stops, the problem is almost certainly on a shared circuit.
Before restarting after any crash or tool break, re-reference both spindles and check the work offset on the side that failed. A broken tool can push the part slightly in the fixture, so the next cycle cuts air on one side and scrapes on the other.
Keep a written log of every alarm with time, code, and what was running. After two or three months the pattern is obvious: one spindle alarms at the same point in the cycle, or both alarm when the shop gets warm in the afternoon. That log is what turns reactive repair into planned maintenance.
Step by step: the checks that prevent most twin-spindle breakdowns
- 1Warm up both spindles before the first partRun a 15 to 20 minute cycle at 50 to 70 percent of maximum speed. Do not skip it on Monday morning, when the bed is coldest.
- 2Record spindle and coolant temperatureLog both spindle temperatures and the chiller setpoint after warm-up. A split above 5 °C between sides needs attention that shift.
- 3Check lubrication and hydraulic pressureConfirm oil level, way lube pressure, and hydraulic gauge reading at the specified value. Note any slow drop over the shift.
- 4Verify tool offsets on both sidesConfirm the offset table matches the tool actually loaded. Re-measure any finishing tool that has run 30 to 50 parts.
- 5Inspect coolant flow at every nozzleCheck flow and concentration. Starved nozzles overheat tools and cause finish problems that look like spindle faults.
- 6Measure holder runout on finishing toolsKeep TIR under 0.010 mm. Clean the taper at each change to avoid chips under the flange.
- 7Re-reference and log drift at shift endRe-reference both spindles and record any position drift. Compare against the morning values before you shut down.
Questions engineers ask about twin-spindle reliability
How often should we check spindle vibration?
Every 500 running hours is a practical interval for most shops. Compare the reading against the commissioning baseline rather than an absolute limit, because bearing signatures differ between machine models.
If amplitude in the 1× running speed band rises steadily across two checks, plan a spindle inspection. Waiting for the alarm usually means housing damage.
Can we run one spindle only for a whole shift?
Yes, but expect some thermal distortion on the idle side. Measure the distance between spindle noses at warm-up and at shift end to see how much your machine moves.
If the drift exceeds roughly 0.010 mm, either run a light warm-up cycle on the idle spindle or accept that offsets may need a mid-shift check.
What is the most common cause of false breakdown alarms?
Tool data errors. A wrong offset sign, a tool measured on the presetter but loaded into the other side, or a chip trapped under the holder flange will all mimic a machine fault.
Check tool length, diameter, and offset assignment on the correct spindle before you call maintenance.
How do we know if an alarm is a shared-system fault?
If both spindles stop at the same time, look at shared circuits: hydraulics, pneumatics, safety interlocks, and main power. A fault that affects only one spindle is usually local to that side.
Read the alarm history in order. The first code is normally the root cause and the later ones are consequences.
What should be in a daily log?
Spindle temperature on both sides, coolant temperature and concentration, hydraulic pressure, lubrication status, and any alarm with time and code.
Add holder runout readings on finishing tools once a week. After two or three months you will see the trend that predicts a failure.
When should a spindle be sent out for rebuild?
When vibration rises across two consecutive 500-hour checks, when runout at the taper exceeds the machine specification, or when spindle temperature climbs without a change in load.
Rebuilding on a planned stop is far cheaper than replacing a seized spindle and the housing behind it.
