Double Tooling: When Two Tools Hold Accuracy Better Than One

Double tooling is not one fixed machine feature. In practice it covers two setups. The first is a twin cutter block: two inserts or two end mills mounted so both edges reach the workpiece at the same time, usually for roughing a wide face or a deep slot. Each tool takes half the radial engagement, so the cutting force per edge drops and the tool deflects less.

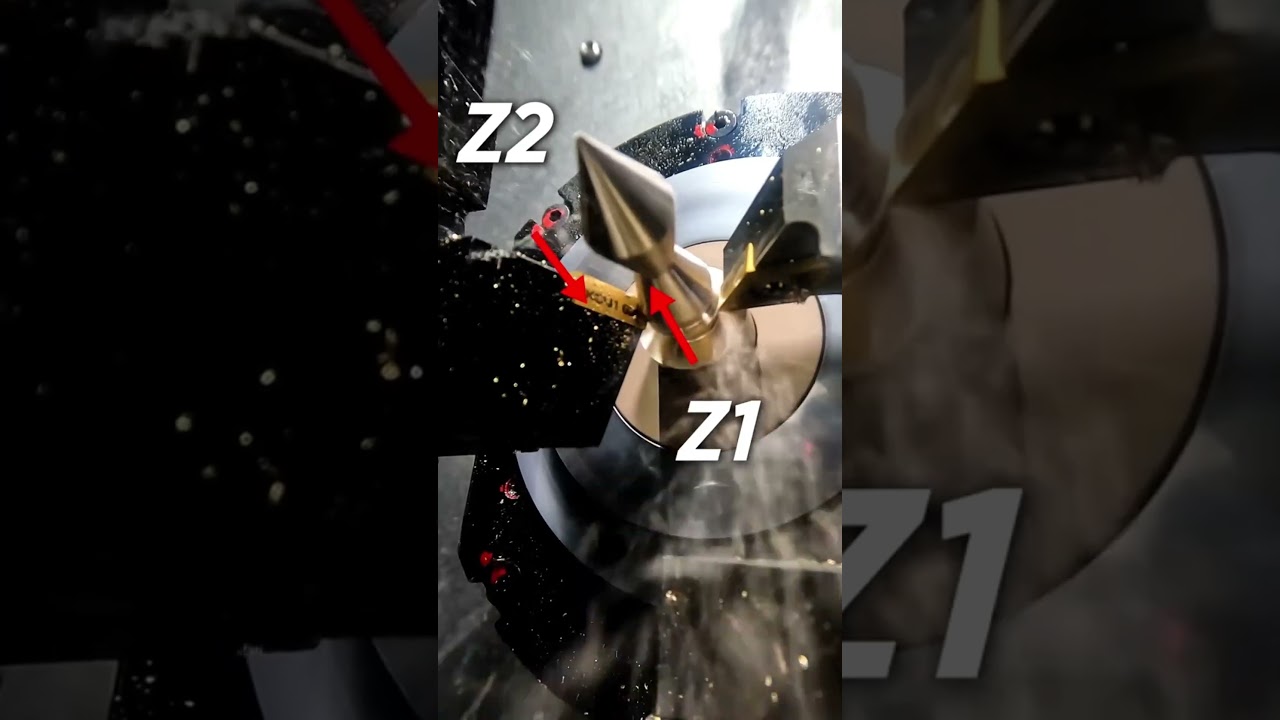

The second setup is a pair of parts clamped symmetrically and machined by two spindles or two turrets in one cycle. Here the gain is not force balance but shared reference. Both parts come off the same zero point, so the relationship between them is held by the machine, not by two separate fixtures.

Both versions answer the same question. How much of the tolerance budget is going into re-clamping the part? Remove half the clamping events and half of that error disappears with them.

• 1
  Force splitTwo edges share radial depth of cut, so each edge bends less.
• 2
  Shared zeroMirrored parts keep their relative position without a second setup.
• 3
  Chip loadFeed per tooth drops unless you raise the feed rate to match.
• 4
  Rigidity limitThin walls still move. Balance does not fix a weak part.

The accuracy in double tooling does not come from the cutter. It comes from removing error sources around the cutter. A single-tool job on a complex part usually needs three to six setups. Each clamp and unclamp cycle adds a small position error, and those errors stack. Two tools in one cut can cut that count roughly in half for symmetric geometry.

Thermal drift matters too. The first hour of a run, spindle and ballscrew growth is still settling. If both features are cut in the same time window, they see nearly the same thermal state. Cut them two hours apart and the second feature inherits a different machine length. On a part with a 300 mm span, a few degrees of growth is visible at ±0.005 mm.

Tool wear behaves the same way. Two tools cutting the same material for the same duration wear at a similar rate. A single tool run against a fresh tool two setups later does not. When the drawing calls for a matched pair, that timing matters more than the tool grade.

The fixture decides whether this works. Two tools need a rigid base with a repeatable zero, and the clamping force has to be symmetric. Clamp one side harder and the part springs; the second feature is then cut in a strained state. We check clamp layout in the DFM stage, before anything is cut.

Programming is the other half. Two tools in a cut means two sets of offsets, and both must be set against the same datum. If one tool is 0.01 mm long, the feature it cuts is 0.01 mm off in Z. Probing on the machine catches this. Presetting offline does not, because the holder and spindle taper add their own error.

Toolpath order also matters. Rough both features first, then finish both. If you rough feature A, finish feature A, then move to B, the part has already seen one full thermal cycle before B starts. Alternate the passes and the two features stay closer in temperature.

Aluminium is the easy case. 6061 and 7075 cut fast, so two tools share the load without pushing spindle torque. The lower cutting force also reduces the chance of marking a soft surface. On thin aluminium housings the balance is the main reason to use it.

Stainless and titanium are harder to justify. 316L and Ti-6Al-4V work-harden at the cut. Two tools can double the heat going into a small zone if coolant does not reach both edges. We normally keep double tooling for the roughing pass in these materials and finish with a single tool at lower feed.

Plastics such as POM, PEEK and HDPE bring a different problem. They move with heat. Two tools cutting a long feature generate more heat in the same window, so the part grows while it is being cut. Light passes and air blast usually beat force balancing here.

For a matched pair, the reference is the pair itself. That applies to hinge halves, brackets, and any set that must assemble without a shim.

Two tools cost more to set up than one. Extra holders, extra offsets, and a fixture that holds both positions. From one prototype to 10,000+ part runs, that setup has to be paid back by the cycle time and the scrap rate. On a one-off part it usually is not. On a 500-piece run with a matched pair, it often is.

Chip evacuation is the most common failure. Two edges in a deep pocket make chips faster than a single edge, and if the flutes load, the tool breaks. Deep slots and blind pockets are the worst case. We would rather run one tool with a high-pressure coolant through the spindle in those features.

Cutter compensation gets harder as well. Two tools on the same nominal path mean two wear offsets that drift apart. The operator has to track both. On a long run that is manageable. On a short run it is a source of size drift that shows up at final inspection.

The honest answer: this is a tool for symmetric geometry and repeat runs. It is not a general accuracy upgrade. If the part is asymmetric, thin, or a single unit, a rigid single-tool setup with good workholding will hold ±0.005 mm more reliably.
