7 CNC Machine Operating Tips to Master Efficiency and Avoid Costly Errors
This guide is for machinists, setup techs and process engineers who run 3-axis, 4-axis and 5-axis CNC machines. Each tip below explains what to check, when the rule applies and when it does not, so you can judge which changes will actually cut scrap and downtime on your floor.

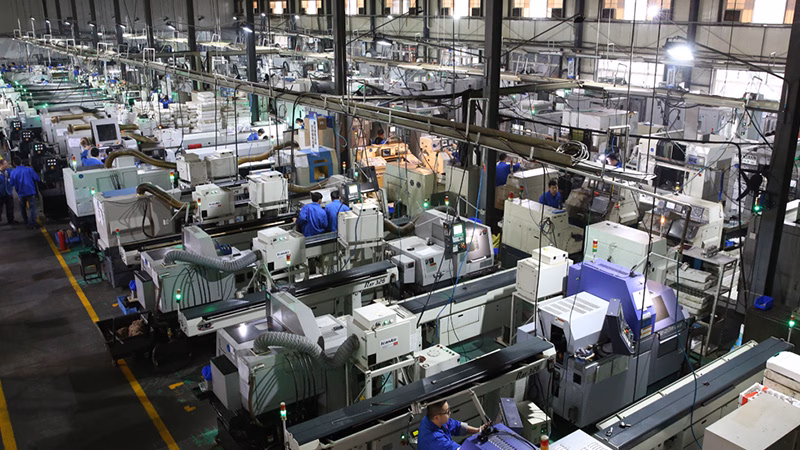

Seven habits that separate a clean run from a rework ticket
Every tip here is a habit, not a setting. Habits survive shift changes and operator turnover.
Pre-run checks and cutting parameters that match the material
A machine will happily cut metal with a wrong offset. It will not tell you until the part is finished. The pre-run check is cheap insurance: confirm workholding torque, verify tool numbers against the setup sheet, check that offsets match the actual tool length, and confirm the coolant nozzles point where the chips actually leave the cut. On 5-axis work, add one more step: rotate the table through the full toolpath in dry run or simulation, because a holder that clears the stock at B0 can bury itself at B45.
Write the checklist down and sign it. A documented pre-run check gives the next shift a starting point and gives you something to compare against when a part fails inspection. Incoming material should be verified too: grade, temper and heat lot. A 6061-T6 bar swapped for 6061-O cuts differently, galls differently, and will not hold the same finish.
- 1Offsets before spindleVerify every tool offset and work offset against the setup sheet before the first rapid move.
- 2Dry run on multi-axisSimulate or air-cut the full path. Check holder clearance at the extreme rotary angles.
- 3Material identityConfirm grade, temper and heat lot. Wrong temper changes chip formation and finish.
- 4Coolant aimPoint nozzles at the exit of the cut, not the entry. Chips evacuate at the exit.
Chip load and probing: the two numbers that protect the tool and the part
Tool breakage is rarely random. It usually comes from chip load drifting out of range. Chip load is feed per tooth: feed rate divided by spindle speed and the number of teeth. If the chip is too thin, the edge rubs instead of cutting, work-hardens the surface and wears quickly. If the chip is too thick, the flute loads up and snaps. Most CAM defaults are a starting point, not a target. Measure the chip. A good chip has a consistent thickness and a color that matches the material; a powdery chip means you are rubbing.
Probing removes the largest single source of setup error: the human reading of a dial or an edge finder. A spindle probe can locate a datum, set work offsets and check a bore in the same cycle. For a part with a tolerance of ±0.005 mm, probing a datum on the actual fixture is more reliable than trusting a vise stop. Probe the feature that the drawing dimensions are called from, not a convenient edge. On castings and forgings, probe the raw surface first so the program can shift the whole toolpath to fit the actual stock.
- 1Chip load, not just feedFeed per tooth drives edge life. Recalculate it when you change speed or tooth count.
- 2Probe the datum, not an edgeLocate the feature the drawing calls from. A convenient edge may not be the datum.
- 3Probe raw stock firstOn castings and forgings, shift the toolpath to fit the actual surface before cutting.
Cutting parameter starting points by material
Adjust for tool diameter, radial engagement and machine rigidity. These are entry values for HSS and carbide tooling, not limits.

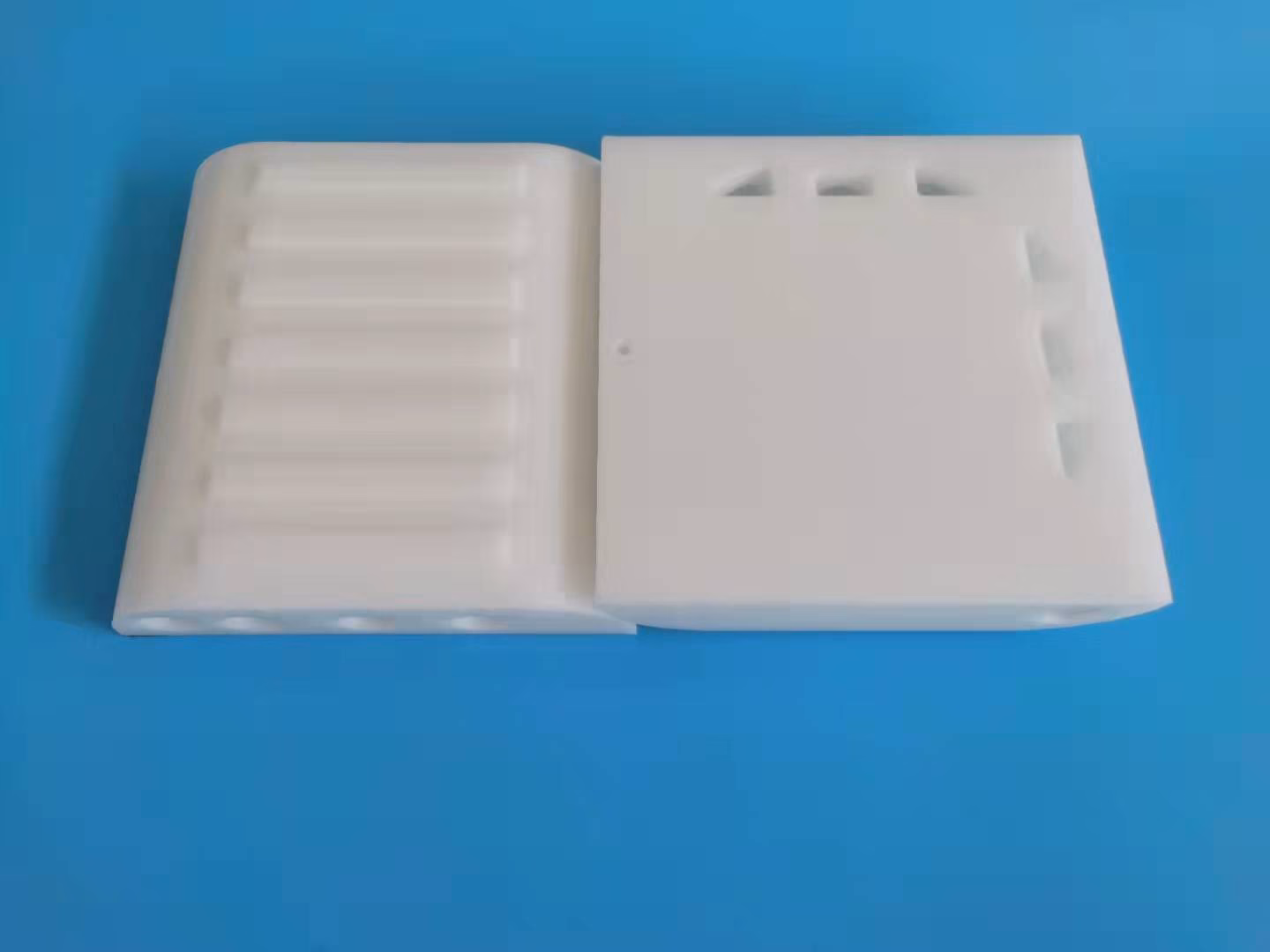

| Material | Surface speed (m/min) | Chip load per tooth | Note |
|---|---|---|---|
| 6061 aluminium | 300–500 | 0.05–0.15 mm | Runs fast; watch chip evacuation |
| 7075 aluminium | 200–350 | 0.04–0.12 mm | Harder, better finish, less gummy |
| 304 stainless | 80–150 | 0.03–0.08 mm | Work-hardens; keep feed up |
| 17-4PH stainless | 60–120 | 0.02–0.06 mm | Rigid setup matters more than speed |
| 1018 / 1045 steel | 100–180 | 0.04–0.10 mm | Use coolant; chip color tells load |
| Ti-6Al-4V | 40–80 | 0.02–0.05 mm | Heat stays in the tool; flood coolant |
| PEEK plastic | 150–300 | 0.05–0.15 mm | Sharp edges; avoid rubbing and melting |
Coolant, thermal growth and a tool workflow you can audit
Heat moves metal. A spindle that has run for two hours is not the same size as a cold one, and a part that measures 50.000 mm at 09:00 may measure 50.015 mm at 14:00 if the coolant temperature swings. For tight work, let the machine warm up with a spindle warm-up cycle, keep the coolant chiller at a stable setpoint, and avoid running a tight-tolerance feature immediately after a heavy roughing pass. Measure the part at a consistent temperature. If your inspection room is 20 °C and the machine is 28 °C, the numbers will never agree.
Coolant does two jobs: remove heat and clear chips. On titanium, Inconel and deep pockets, chip evacuation is the harder job. High-pressure through-spindle coolant helps, but so does a simple rule: aim the stream at the exit of the cut and do not let chips recut. On aluminium, a mist or air blast is often enough and keeps the work area cleaner. On cast iron, dry cutting with air blast avoids the sludge that clogs return lines.
Tool management is where most shops lose hours without noticing. A tool that has run 40 minutes past its wear limit will still cut, right up to the moment it tears a bore. Track each tool by pocket, by life and by the material it has run. Replace on a schedule, not on a hunch. Keep a shadow board or a labeled drawer so the same tool goes back to the same pocket, and log every regrind. When a finish problem appears, the tool log tells you whether the tool or the parameters changed.
- 1Warm up the spindleRun the warm-up cycle before tight-tolerance work. A cold spindle is a different size.
- 2Stable coolant temperatureA chiller setpoint that drifts moves the part size with it.
- 3Replace on life, not on feelTrack tool life by pocket and material. Log every regrind.
Simulation before the first cut, and what to verify in it
Simulation is not a replacement for a skilled operator. It is a check for the errors that are hard to see on a screen: a holder that collides with a fixture, a rapid move that passes through the part, a tool that is too short to reach the bottom of a pocket. Run the full program in simulation with the actual holder and fixture models, not just the tool. Then run the first part in single block with the feed override down, and watch the load meter. A load spike on the first pass usually means a parameter problem, not a material problem.
For a one-off prototype, simulation plus a single-block first run is enough. For a production run of 10,000 parts, the same check applies to the first article, and then the process is locked. Write down the parameters, the tool list and the offsets that produced a good first article. That record is what makes the tenth part match the first.
- 1Model the holder and fixtureTool-only simulation misses the most common 5-axis collision.
- 2Watch the load meterA spike on the first pass points to a parameter or setup issue.
- 3Lock the first articleRecord parameters, tool list and offsets. That record defines the process.
Operating questions engineers ask us
How do I know if my chip load is too low?
Look at the chip. A thin, powdery or dusty chip means the edge is rubbing rather than cutting. The surface may look polished but the tool wears fast and the material can work-harden.
Raise the feed per tooth, not just the spindle speed. If the machine cannot take more feed, reduce the number of teeth in the cut or use a tool with fewer flutes.
When is probing worth the cycle time?
Probing pays for itself whenever setup error is the dominant risk: castings and forgings with variable stock, parts with a tight datum relationship, and any job that runs across multiple shifts.
On a simple plate with a clean edge and a loose tolerance, a vise stop and an edge finder are often faster. Match the method to the risk.
Does coolant type change the tolerance I can hold?
It can. Coolant temperature affects the machine and the part size. A stable chiller setpoint reduces drift over a long run.
For tight work, measure the part at a consistent temperature and let the machine warm up before the first cut. Flood, mist and air blast each remove heat at different rates.
How often should tools be replaced?
Replace on a life count, not on a hunch. Track run time per pocket and per material, and log every regrind.
A tool that has run past its limit will still cut until it fails suddenly. The cost of an early change is usually lower than the cost of a scrapped bore.
Can simulation replace a first-article inspection?
No. Simulation checks the path and collisions. It does not tell you whether the part is to size.
Use simulation before the first cut, then inspect the first article against the drawing. For production, lock the process once the first article passes.
What tolerance can a well-run 5-axis machine hold?
At GreatLight, our process tolerance is ±0.005 mm, with surface finishes from Ra 0.2–0.8 μm on fine work.
Holding that on a real part depends on the setup, the material and the thermal state of the machine, not on the machine spec alone.
