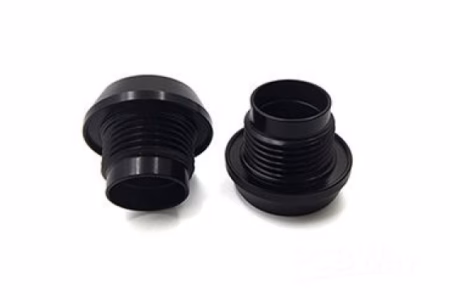

CMC PLA 210 is not a spool of desktop filament. It is a compounded material, usually a PLA matrix loaded with fiber or mineral filler, and that filler changes everything at the cutting edge. The polymer softens at a low glass transition temperature, so the window between a clean cut and a smeared one is narrow. Filler adds abrasion. Your tool wears on the flank, not the tip.

The practical consequence is that heat management drives every other decision. Metals pull heat into the workpiece and the chips. This material does not. The chip has to carry the thermal load away, and if a chip stays in the flute for two extra revolutions it re-welds to the wall. Once that happens, no feed override saves the part.

Almost all expensive scrapped parts we see start with a small rub mark that nobody stopped for. The operator hears a pitch change, keeps running, and forty minutes later the bore is 0.15 mm oversize. Treat sound and chip color as first-class process signals, not background noise.

If your shop has only run unfilled PLA or ABS, budget one scrap blank for setup. Run a test cut, measure the chip, and adjust from evidence. Guessing from a plastic cutting chart written for acrylic will cost you a part.

The first rule is to never take a full-width slotting cut. A cutter buried in the material has nowhere to throw the chip, and the chip is your only heat sink. Use a trochoidal or high-efficiency path with radial engagement kept low, typically 8–12 percent of cutter diameter, and let the axial depth do the work.

Climb milling is the default. Conventional milling on this material drags the edge across the surface and generates the fuzz you then have to deburr by hand. For thin walls, plan the path so the cutter always leaves material on both sides of the wall instead of finishing one face to final size and then fighting vibration on the second.

Entry matters more than most programmers expect. A straight vertical plunge acts like a drill with no point and packs chips under the tool. Use a helical or ramp entry with a 2–3 degree ramp angle. Peck drilling is a poor substitute in this material and usually produces a melted hole bottom.

Keep the tool moving. A dwell of even half a second at a corner lets the edge rub, and rubbing is what generates the local hot spot that turns into a smeared corner radius. If your control supports it, enable feed-rate optimization so corners do not slow to near zero.

A standard two-flute end mill ground for aluminum is the wrong choice. Its helix is too steep and its flute volume too small for the stringy, bulky chips this material produces. Look for single-flute or two-flute cutters with a high helix, a sharp positive rake, and a polished or uncoated flute surface.

Diamond-like carbon coating helps on abrasive filled grades because it reduces friction and slows flank wear. On unfilled or lightly filled stock, a sharp uncoated cutter often leaves a better finish, because the coating adds a micro-radius to the edge. Test both on your actual blank before you commit a batch.

Diameter should follow feature size, not habit. A Ø6 mm cutter on a 2 mm internal radius forces a larger toolpath radius and more heat. Step down to Ø3 mm or Ø2 mm for internal corners, accept a slower removal rate, and keep the finish pass in one continuous motion.

Replace tools on a schedule, not on failure. In filled CMC PLA 210 we normally see flank wear become visible well before the operator hears a problem. Track cutting distance per tool and swap at a fixed interval. A worn cutter is the most common hidden cause of a rough batch.

This material is flexible compared to aluminum and it does not like point loads. Three clamps on a thin plate will bow it, and the bow shows up as a tapered wall after the part relaxes. Support the underside across as much area as the geometry allows, and keep clamping pressure light.

Vacuum fixturing works well for flat plates. For prismatic parts, soft jaws machined to the actual profile give a full-contact grip without marking. If you must clamp on a finished face, put a sacrificial shim between the jaw and the surface.

Vibration is the second problem. Long tool stick-out amplifies chatter, and chatter on a plastic wall leaves visible witness marks that no amount of polishing removes without changing the dimension. Keep stick-out under four times the cutter diameter wherever the geometry permits.

For parts with thin ribs, machine in two operations. Rough to leave 0.3–0.5 mm on the ribs, let the part sit for a few hours, then finish. Stress relief between operations is slow but it is far cheaper than a scrapped cavity.

Flood coolant is usually the wrong answer. The fluid cools the tool but it also floats the chips back into the cut and can be absorbed by the material, which changes dimensions after machining. Compressed air aimed at the cut zone clears chips and removes heat without wetting the part.

Use a high-volume, low-pressure air blast positioned so the chip leaves the flute immediately. A short burst of mist lubrication can help on deep pockets where chip evacuation is difficult, but apply it as a mist, not a stream, and keep the flow low.

If the material is a filled grade that generates fine dust, add extraction at the enclosure. Airborne filler is a health issue and it also settles on the ways. Dry machining with extraction is the cleaner process.

Watch the chip form. Long, continuous strings mean you are cutting, not rubbing. Short, curled or powdery chips mean the edge is dull or the feed is too high. Fine dust with a brown tint means heat is building and the cut is already compromised.

Plastic moves after it cools. A bore measured hot will read smaller once the part reaches room temperature, and the difference is often larger than the tolerance you are trying to hold. Rough within 0.2 mm, let the part cool completely, then take the finish pass at the final size.

For a ±0.005 mm callout, be honest about what the material allows. This tolerance is achievable on metals in our shop and on stable features in filled grades, but a thin flexible wall will not hold it over temperature swings. Design the critical features as thick, supported geometry.

Moisture is the other slow drift. Blanks that have sat in humid air absorb water and grow slightly. Dry blanks before machining if the print is tight, and machine the critical features in the same setup so the part never relaxes between operations.

Surface finish follows tool condition more than spindle speed. A sharp cutter at moderate speed gives a consistent matte surface. Pushing speed to improve finish usually raises the temperature and produces a glossy smear that looks polished but measures wrong.

Measure the first article, then measure again after the part has cooled for at least an hour. The second measurement is the one that matters. Record both numbers so you can see how much the material moves and adjust the program accordingly.

For a production run, check one part per hour at minimum on the features that matter. Cutter wear in filled material is progressive, so a part that passes at hour one may fail by hour four with no visible change on the machine.

Use the same fixture and the same probing setup for inspection as you use for machining. Moving a flexible part to a surface plate and clamping it flat changes its shape and invalidates the reading. On-machine probing avoids that error entirely.

Keep the data with the job. When a batch does drift, the trend line tells you whether it was tool wear, thermal growth or moisture. Without the record you are guessing, and guessing usually means scrapping a run that could have been corrected at part three.
