7 Proven CNC Haas Tips to Maximize Efficiency and Avoid Costly Setup Mistakes

The first mistake is trusting whatever the CAM template produced. A trochoidal path that works well in 6061 aluminium can chatter in 17-4PH stainless, because the radial engagement and chip thinning assumptions change with the material. Before cycle start, check the arc-fit tolerance against the drawing. Tighten it only where the tolerance is called out. Loosening it elsewhere usually removes cycle time with no measurable loss on the part.

The second mistake is treating the Haas control as an execute-only box. Settings 84 through 86, the default feed and rapid rates, decide how the machine behaves on the first run. If they are left at conservative defaults, every new program starts slow and every operator overrides manually. Set them to values that match your typical stock and tooling, then let the program speeds govern.

High-speed machining mode is the other half of this. Many shops enable HSM and never touch the acceleration and deceleration profiles. On a Haas mill, smooth cornering behaviour with a light radial cut keeps the feed rate steady. The same settings on a heavy radial cut in tool steel will load the spindle and shorten insert life. Match the profile to the cut, not the other way around.

• 1
  Check arc-fit tolerance per featureTight only where the print demands it; loose where it does not.
• 2
  Set default feed and rapid ratesSettings 84–86; removes manual override at the start of every run.
• 3
  Match HSM profile to radial engagementLight cuts tolerate smoothing; heavy cuts need a stiffer profile.

Workholding decides dimensional stability more often than the cutter does. A standard vise with soft jaws looks fine on a short run. On a thin-walled housing, the clamping pressure distorts the bore while it is being cut, and the part springs back after release. That is the shrinkage fallacy: the measurement was taken under load and never matched the free state. Use low-pressure clamping, support the wall from inside, or move to a vacuum plate for flat parts.

Thermal drift matters on longer cycles. A part that measures in tolerance at minute ten can drift out by minute forty as the spindle and fixture warm. Rough in the morning, finish after a warm-up cycle, and leave a consistent stock allowance so the finishing pass removes a predictable load.

The measure-once-trust-forever trap is easy to fall into. One check with a caliper on a critical bore tells you almost nothing about a run. Use the Haas probe where it is available: set the work offset on the fixture, then probe the first article. For critical dimensions, collect data at the start, middle and end of the run, and compare against the same reference.

• 1
  Low-pressure clamping for thin wallsReduces spring-back after the vise is released.
• 2
  Warm up before the finishing passKeeps thermal drift out of the tight-tolerance cuts.
• 3
  Probe the first article, then sampleStart, middle and end of run on critical features.

Surface finish is not cosmetic. A Ra 1.6–3.2 μm as-machined face may need hand polishing before anodizing, and that polishing is a second operation with its own handling risk. If the print calls for Ra 0.8–1.6 μm, plan the finishing pass with a smaller stepover and a sharp tool rather than fixing it later. Deciding this at the CAM stage is cheaper than deciding it at the bench.

Hardcoat anodizing and electroless nickel both add thickness. On a bore with a ±0.005 mm tolerance, a 25 μm coating consumes a large share of the band. Mask the bore, or machine it undersize to suit the coating thickness. This is a setup decision, not a finishing decision, and it belongs in the process plan before the first cut.

Single-source validation fails quietly. One operator with one micrometer on one feature is not a measurement system. Use two instruments or two operators on critical dimensions, and keep the probe data alongside the manual checks. When the probe and the micrometer disagree, the fixture or the probe calibration is the first thing to check.

• 1
  Plan finish at the CAM stageSmaller stepover and a fresh tool beat bench polishing.
• 2
  Allow for coating thicknessHardcoat and nickel change the bore size after machining.
• 3
  Cross-check probe dataCompare probe and micrometer results on critical features.

Splitting a job across three vendors to save a few percent on rate usually costs more in the end. Each shop has its own Haas setup, its own work offsets and its own interpretation of the datum callouts. Parts that should mate arrive with small datum shifts, and assembly becomes a fitting exercise. One vendor means one setup standard from the first article to the last.

Centralized machining also keeps the process data in one place. When the same shop runs the prototype, the bridge run and the production order on the same Haas platform, the toolpath and workholding decisions carry forward instead of being re-learned. That is what makes a proven process repeatable rather than a lucky first run.

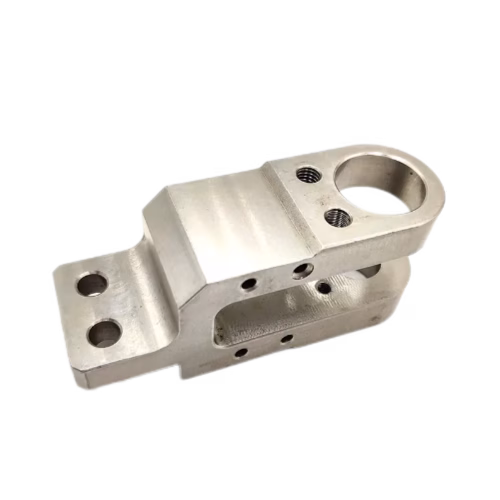

At GreatLight we run Haas and other high-precision platforms across 127 CNC machines, with 16 simultaneous 5-axis centers and a Ø400 mm rotary table for contoured work. Tolerances hold at ±0.005 mm, and every part is inspected before shipment. For a job that spans several operations, that single-source control is usually the cheapest efficiency gain available.

• 1
  One datum standardPrototype, bridge and production parts mate without rework.
• 2
  Process data stays with the partToolpath and workholding decisions carry across runs.
• 3
  127 CNC machines, 16 five-axisCapacity for prototypes through 10,000+ part runs.
