A CNC Cutting Machine: How It Actually Cuts Precision Parts

• 1
  What a CNC cutting machine removes, and how
• 2
  Which parts suit which CNC cutting machine
• 3
  Where the accuracy actually goes
• 4
  CNC cutting processes side by side

Every CNC cutting machine follows the same loop. A CAM program converts the model into tool paths, the controller drives axes to coordinates, a cutting tool or beam removes material, and the result is measured. What changes between machines is the removal mechanism: a spinning edge, a spark, a water jet, or a focused beam. That mechanism sets the tolerance, the edge finish, the heat affected zone and the material list you can work with.

Milling and turning cut with a hardened edge. A rotating cutter or a single-point tool shears material away in chips, which is why aluminum, brass, steel and most plastics machine cleanly this way. Surface finish lands around Ra 0.8–1.6 μm on a good setup, and shops hold ±0.005 mm on features that are reachable in one setup. Deep pockets, thin walls and long tools push that number looser.

Thermal and abrasive processes work differently. Wire EDM erodes conductive metal with a spark across a dielectric gap, laser melts and vaporizes along a kerf, waterjet carries abrasive grit in a 0.3–0.8 mm stream, and plasma cuts with an arc of ionized gas. No cutting force reaches the part in any of the four, so thin sheet and heat-sensitive alloys survive better than they do under a milling cutter.

• 1
  Subtractive by edgeMilling, turning, drilling. Best all-round accuracy and finish.
• 2
  Subtractive by sparkWire and sinker EDM. Hardened steel, sharp internal corners.
• 3
  Subtractive by beam or jetLaser, plasma, waterjet. Sheet and plate, low cutting force.

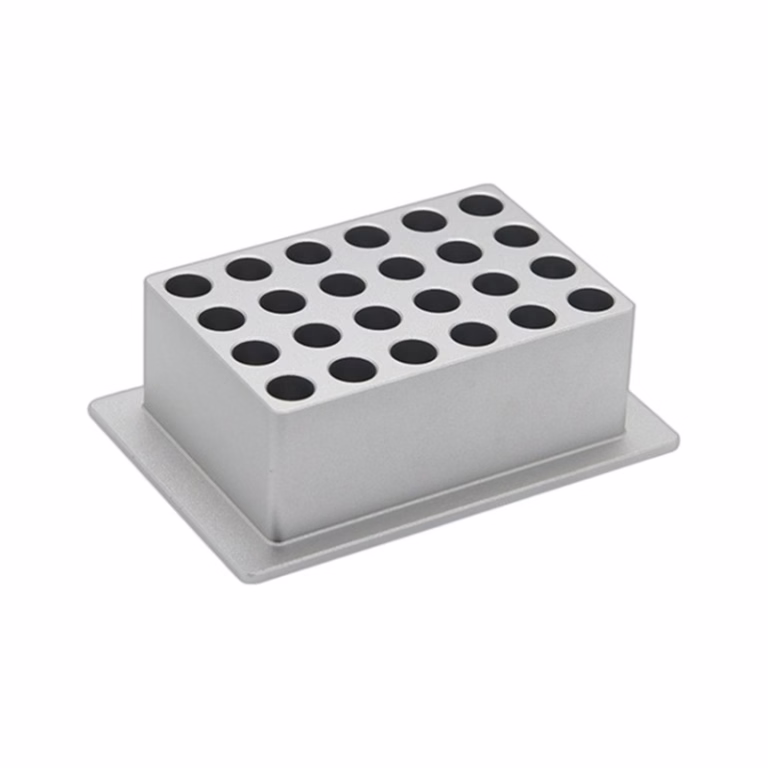

Pockets, bosses, threads and bores on a solid block belong on a mill. With 16 simultaneous 5-axis machining centers, angled faces and compound holes are cut without repositioning the workpiece, which removes one source of stack-up error. Work up to 4,000 mm can be handled, and mill-turn centers finish a part that needs both turning and milling in one cycle.

Flat profiles with sharp internal corners belong on wire EDM. A 0.2–0.3 mm wire cuts a slot narrower than any end mill, and it cuts hardened tool steel after heat treatment, so the part does not distort later. The trade is speed: wire EDM removes material slowly and a thick section takes hours, not minutes.

Sheet and plate under about 25 mm belong on laser or waterjet, where a 2D profile is cut flat and fast before any bending. Neither process holds a tight Z tolerance or a fine surface on the cut face, so plan a secondary machining pass on any face that has to seal or slide. Plasma is the coarse option for thick carbon steel where a rough edge is acceptable.

• 1
  3D geometry, tight bores3-axis, 4-axis and 5-axis milling.
• 2
  Sharp corners in hardened steelWire EDM, after heat treatment.
• 3
  Flat profiles in sheetLaser or waterjet, then a machining pass.

Tolerance on a drawing is not what the machine does. It is what survives the whole chain: stock condition, workholding, tool wear, thermal drift and measurement. A 5-axis center can hold ±0.005 mm on a feature machined in one setup, then lose half of that when the part is flipped and re-datumed. The fixture, not the spindle, is usually the weak link.

Wall thickness matters as much as tolerance. A 0.5 mm aluminum wall will deflect under cutting force and chatter, no matter how rigid the machine is. Rough the wall thick, then take light finishing passes. On titanium and Inconel, heat sits in the cut instead of leaving with the chip, so feeds drop and tool life shortens. Those alloys also need a wire EDM or finishing pass if the surface has to meet a fatigue spec.

Inspection closes the loop. At GreatLight every batch gets raw material checks, in-process monitoring and a final inspection before shipment, with reports on request. A first article on a CMM catches a datum error before a full run is cut, which is cheaper than sorting parts afterward.

• 1
  One setup beats tight toleranceEvery re-fixturing adds stack-up error.
• 2
  Thin walls need roughing stockLeave 0.3–0.5 mm and finish light.
• 3
  Measure before the runFirst-article check on a CMM.
