Turning removes material from a rotating workpiece with a single-point tool that feeds along one or two axes. On a basic lathe the tool moves in X and Z. Add a Y axis, a second spindle, or a live tool, and the same machine starts cutting flats, slots, and cross-holes without a second setup. That is the line between a lathe and a mill-turn center.

The choice of setup decides most of the cost. A part that can be finished in one spindle and one tool change is cheap. A part that needs four setups, a fixture, and a re-clamp between each cut is not. Before quoting, we ask one question: how much of this geometry can be cut while the part stays in one grip?

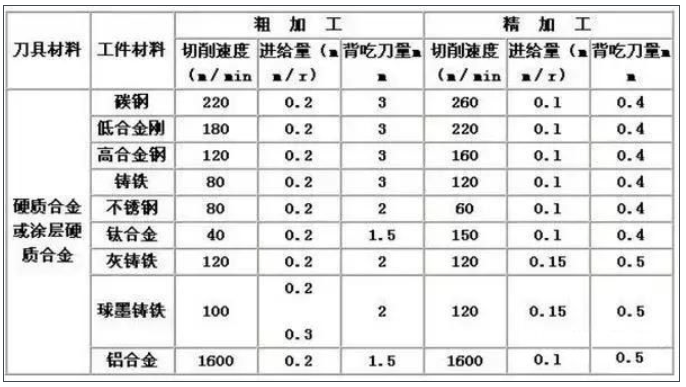

Material matters just as much. Aluminum 6061 cuts fast and holds a clean finish. 316L stainless work-hardens if the tool rubs instead of cuts, so feed per revolution must stay above a floor even when the finish looks acceptable. Titanium Ti-6Al-4V behaves the same way with more heat. In those materials, shallow passes at low feed are the main cause of short tool life.

• 1
  Good turning candidateRound or near-round parts, Ø0.5–Ø400 mm, turned features on one axis
• 2
  Good mill-turn candidateTurned body plus cross-holes, flats, or slots in one grip
• 3
  Poor turning candidateDeep pockets, thin walls under 0.8 mm, or sharp internal corners
• 4
  Watch the ratioLength-to-diameter above 4:1 needs a tailstock or steady rest

Insert shape sets the balance between strength and reach. A 80° diamond (CNMG) is strong and handles interrupted cuts and roughing. A 55° (DNMG) or 35° (VNMG) reaches into shoulders and profiles but has a weaker tip, so it belongs on finishing passes with light depth of cut. If a job needs one tool to do both, the corner radius usually decides the result.

Radius size controls finish and chatter. A 0.8 mm nose radius spreads the load and leaves a smoother surface at the same feed, but it also pushes the tool away from thin walls. On a slender shaft, a 0.2 mm or 0.4 mm radius with a higher feed often cuts cleaner than a heavy tool pushed slowly.

Chipbreaker geometry matters more than coating on most jobs. A breaker designed for finishing at 0.1 mm depth will not break a chip at 2 mm. Match the breaker to the depth-of-cut range you plan to run, then pick the coating: TiAlN for steel and stainless, uncoated or DLC for aluminum to stop built-up edge.

• 1
  RoughingCNMG 80° or WNMG 80°, 0.8–1.2 mm radius, strong edge
• 2
  FinishingDNMG 55° or VNMG 35°, 0.2–0.4 mm radius, sharp edge
• 3
  AluminumPolished top face, high rake, avoid coatings that grab
• 4
  StainlessPositive rake, sharp edge, feed above the work-hardening floor

A three-jaw chuck is fast but repeats around 0.05 mm. For tighter work, bored soft jaws give better roundness because the jaws are cut in place at the clamping diameter. Hard jaws on a finished diameter will mark the surface and add runout.

Between centers with a face driver or a drive dog holds concentricity well and lets you turn the full length in one pass. The trade-off is setup time and the need for center holes. For a shaft with a length-to-diameter ratio above 6:1, a steady rest or tailstock is not optional; without it the part deflects and the middle comes out oversize.

Thin-wall tubes and rings need low clamping pressure, a full-circle collet or a expanding mandrel. A three-jaw chuck on a 1 mm wall will distort the bore even at moderate pressure, and the distortion springs back after unclamping, so the measured diameter in the chuck is not the diameter you ship.

• 1
  Soft jawsBore them at the clamping diameter for roundness under 0.02 mm
• 2
  Collet chuckBest for bar work under Ø65 mm and thin-wall parts
• 3
  Expanding mandrelHolds a bore from the inside for rings and bushings
• 4
  Steady restRequired above 6:1 length-to-diameter on unsupported shafts

A chip that comes off as a short 6–9 shape is a sign the feed and depth match the breaker. Long stringers wrap the tool, scratch the finish, and stop the machine. If chips string out, raise feed per revolution before touching speed. If they turn to powder, the feed is too low for the depth.

Finish on a turned surface follows feed and nose radius. Roughly, a larger radius at the same feed leaves a lower Ra. When a drawing calls for Ra 0.8–1.6 μm, a 0.4 mm radius at 0.1 mm per revolution usually gets there in aluminum. Stainless may need a wiper insert or a second pass at half the feed.

Measure while the part is still in the machine when the tolerance is tight. OD micrometers and bore gauges catch taper and ovality before unclamping, when a correction pass is still possible. After unclamping, stress relief can move a thin part by more than the tolerance, so the final check should be done in the same free state the customer will see.

• 1
  Stringy chipsIncrease feed per revolution, check breaker range
• 2
  Chatter marksReduce depth, shorten overhang, add support
• 3
  Poor finishLarger nose radius or lower feed, check edge wear
• 4
  Size driftCheck tool wear and thermal growth after long runs

Turning wins on round parts with features on the axis of rotation. It loses as soon as the part is mostly flat, has deep pockets, or needs many holes on different faces. A mill or a 5-axis machine will finish those faster and with fewer setups, even though the cycle time per feature looks higher on paper.

Mill-turn changes that trade-off but does not remove it. A mill-turn center with a Ø400 mm rotary table and live tooling can drill, tap, and mill a turned body in one grip, which removes the concentricity error of a second setup. It still cannot reach a deep cavity that needs a long, thin tool.

Very small parts, under Ø3 mm, are often better on a Swiss-type lathe where the guide bushing supports the work right at the cut. Very long, flexible shafts are better between centers with a steady rest. And if the part needs a hardness above 45 HRC, plan the turning before heat treatment and leave grinding stock for after.

• 1
  Choose turningRound geometry, single axis, moderate length-to-diameter
• 2
  Choose mill-turnTurned body plus cross features in one setup
• 3
  Choose 5-axisComplex faces, deep pockets, tight angular position
• 4
  Plan heat treatmentRough turn, harden, then grind or hard turn to size
