Accurate Accuracy: The Future of CNC Machining
This article explains where machining accuracy actually comes from and how it is heading next. It is written for design engineers, quality engineers and sourcing managers who need to decide how tight a tolerance should be. After reading it, you can tell which features justify tight limits and which ones only add cost.
What this page covers
Accuracy is a system result, not a single machine spec.
Accuracy and repeatability are two different numbers
Accuracy is how close the finished feature lands to the nominal drawing. Repeatability is how close part 500 lands to part 1. A machine can be repeatable but biased, and that is common. The ball screw repeats well, yet thermal growth moves the whole envelope, so every part is a consistent 0.03 mm oversize. Checking one part proves nothing about the process.
A real print carries accuracy in three places: size, position and form. Size is the Ø25.000 mm bore. Position is the hole pattern relative to datum A. Form is roundness, flatness and perpendicularity. A shop can hold size easily and still fail position, because position stacks spindle growth, fixture shift and tool wear.
Repeatability is what makes a process trustworthy. If ten parts in a row sit within a 0.004 mm band, the process is stable and the offset can be corrected once. That correction is a normal part of setup. It is also why a shop with a mature process can hold tight limits on features that look difficult on paper.
Machines matter, but they are the starting point, not the answer. A 16-machine five-axis cell and a worn three-axis mill can both produce a 0.01 mm feature. Only one of them still does it at 4 pm on a long run.
Where five-axis earns its accuracy
Five-axis machining cuts features in one setup. Every extra setup adds a re-datum and a new stack of error. For a part with angled faces, undercuts or holes on five sides, that difference is measurable. A housing machined in one setup typically lands tighter on position than the same housing run across three fixtures.
Simultaneous five-axis is not always faster. A contoured impeller or a turbine blade needs the tool axis to follow the surface, and that is where simultaneous motion wins. A simple drilled plate does not. Running it on a five-axis center wastes spindle time and adds rotary backlash that a three-axis machine never has.

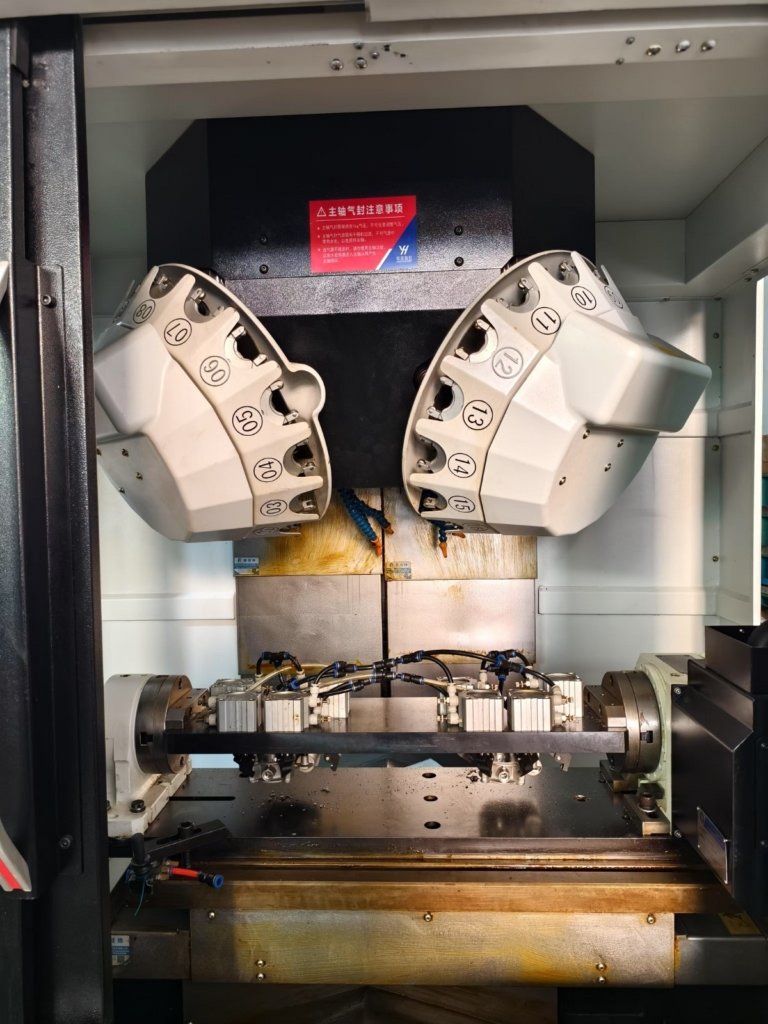

We keep 16 simultaneous five-axis machining centers, 12 four-axis mills and 27 three-axis machines because the right answer depends on the part. A Ø400 mm rotary table handles round and prismatic work. For long parts, travel reaches 4,000 × 400 × 150 mm, which is where a large frame or rail has to be machined in one pass rather than joined.
Tool access drives accuracy more than axis count. A short, stiff tool reaches without deflection. A long tool for a deep cavity bends under load, and the wall tapers. If a deep pocket needs a tight wall, we would rather open the corner radius than run a tool that flexes.
Thermal drift, fixtures and tool wear
Heat is the quiet error. A spindle warms up over the first hours of a shift, and the Z axis grows with it. On a tight job, the first part of the day and the tenth part can differ by more than the tolerance band. Preheating the machine before the first cut is not optional on a ±0.005 mm job.
Fixtures set the ceiling on accuracy. A part clamped on three points with thin walls will move when the clamps release. Soft jaws, vacuum plates and dedicated fixtures keep the part supported and reduce that spring-back. For thin-wall parts, we plan the clamping before we plan the toolpath.
Tool wear is predictable. A carbide end mill loses a few microns of diameter over a long run, so a bore that starts on size can drift high. In-process probing catches the drift and applies a tool offset before the next part. That is cheaper than sorting parts after the fact.
Material matters too. Aluminum 6061 and 7075 cut clean and hold size well. Inconel and Ti-6Al-4V push back, generate heat and wear tools faster, so the same tolerance needs more time and more checks. PEEK and other plastics move with temperature and moisture, and a plastic part measured hot will not match one measured a day later.
Accuracy by machine class and part type
Typical starting points, not promises. Each job is quoted on its own geometry.
| Part type | Best machine class | Typical tolerance | Notes |
|---|---|---|---|
| Angled faces, 5-side holes | Simultaneous 5-axis | ±0.005 mm | One setup, less datum stack |
| Round flange, turned OD | Mill-turn center | ±0.005 mm | Turn and mill in one cycle |
| Flat plate, simple holes | 3-axis mill | ±0.01 mm | Fastest and cheapest route |
| Long rails and frames | Large 3-axis | ±0.01 mm | Travel to 4,000 mm |
| Thin-wall housings | 4-axis with soft jaws | ±0.01 mm | Clamping plan decides result |
| Prototype, 1 to 20 pcs | 5-axis or 3-axis | ±0.005 mm | No tooling to amortize |
Choosing a tolerance that pays for itself
Tight tolerance is not free. A ±0.005 mm call on a mounting hole that only locates a cover adds cost and inspection time for nothing. The question to ask is what the feature does. If it sets a bearing fit, a seal gap or an optical axis, tight limits matter. If it clears a bolt, a general tolerance will do.
Form tolerances are often more important than size. A bore can be on size and still be out of round, which ruins a bearing fit. Flatness on a sealing face matters more than the thickness next to it. When a print is loose on form and tight on size, ask whether the designer meant it that way.
Drawings with tight limits on every dimension push a shop toward slow, safe cutting. A better print marks the critical few: datum features, mating bores, sealing faces and any surface that sets alignment. Everything else can sit at general tolerance. That focus usually lowers unit cost and improves the parts that matter.
If a design is still open, a DFM review early is cheaper than a rework later. We return a quotation and free DFM analysis within 12 hours, and production can start within 24 hours once the print is settled. From a single prototype to a 10,000+ part run, there is no minimum order quantity.
Common questions
What tolerance can you actually hold on a five-axis part?
On a well-supported feature in aluminum, ±0.005 mm is realistic. On a long, thin or unsupported wall, the part moves after clamping and the real limit is wider.
We quote the tolerance we can inspect and repeat, not the best number seen once.
Does a tighter tolerance always cost more?
Usually, yes. More checks, slower feeds and more scrap risk all add cost.
The exception is a feature that a good process already holds tightly. If the machine holds it in one setup, the extra print call costs little.
How do you check a ±0.005 mm feature?
CMM and optical measurement are the usual route, with a temperature-controlled room and a settled part. A part measured straight off the machine is still warm and reads small or large, depending on material.
We inspect 100% of parts before shipment, with raw material checks, in-process monitoring and a final inspection. Reports are available on request.
Which materials hold accurate accuracy best?
6061, 7075 and 6082 aluminum, plus 303 and 17-4PH stainless, hold size well and machine clean.
Inconel, Ti-6Al-4V and magnesium need more time, sharper tools and more frequent checks to reach the same limit.
Can you work from a 3D model instead of a fully dimensioned print?
Yes. A STEP file plus a note on critical features is enough for a DFM review and a quote.
If the model has no tolerance callouts, we flag the features we think are critical and ask before we cut.
How do you protect a design that has not been released?
Uploads are secure and confidential, and we sign an NDA on request. Files stay inside the project team.
We do not use customer parts or drawings in marketing material.
