Advanced ODM 3 Axis CNC Machining Solutions 2026

A 3-axis mill moves X, Y and Z while the part stays fixed. That sounds limited until you look at the parts most programs actually need: plates, housings, manifolds, brackets, heat sinks, enclosure panels, jigs and fixtures. Those parts have features that reach from one primary direction. A 3-axis machine accesses them all without a rotary table, and it does it with fewer setups, less fixturing mass and a shorter cycle.

The ODM part of the model is what changed after 2024. Instead of quoting a model file and returning chips, the supplier reads the drawing, questions the tolerances that cost money, and proposes the datum scheme before programming. On one bracket, switching two callouts from ±0.01 mm to ±0.05 mm removed a finishing pass. That kind of edit is normal in a real engineering relationship.

Three-axis geometry also keeps inspection simple. Every feature is measurable from one face or its opposite, so a CMM program takes an hour instead of a day. When a program runs to 10,000 units, that repeatability in metrology matters as much as the spindle.

• 1
  Good fitPrismatic parts with features on one or two faces
• 2
  Good fitLarge plates up to 4,000 mm that cannot be rotated
• 3
  Poor fitUndercuts, deep side pockets, compound angles
• 4
  Poor fitTurbine blades and impellers with continuous curvature

The honest answer is that 3-axis is cheaper per hour, but not always cheaper per part. If a part needs four setups on a 3-axis machine and each setup costs 25 minutes of load, unload and re-zero, you have spent over an hour before cutting. A 4-axis mill with a Ø400 mm rotary table can drop that to two setups. A simultaneous 5-axis center can do it in one.

Cost crossover usually lands around three distinct approach directions. Below that, 3-axis wins on fixturing cost and programming time. Above it, the extra machine rate pays for itself through fewer setups and tighter true position between faces. We keep 27 three-axis machines, 12 four-axis mills, 16 mill-turn centers and 16 simultaneous 5-axis centers, so there is no incentive to push a job onto the wrong platform.

One more factor is volume. At 1 to 50 parts, setup dominates. At 500 to 10,000 parts, cycle time dominates, and a dedicated 3-axis fixture with pneumatic clamping will beat a more flexible 5-axis setup on cost per part almost every time. The right question is not which machine is better. It is which machine matches your volume and geometry.

• 1
  1 approach direction3-axis, single setup, lowest cost
• 2
  2 to 3 directions3-axis with two setups or a 4-axis index
• 3
  4+ directions4-axis with tombstone, or 5-axis
• 4
  Freeform surfacesSimultaneous 5-axis, no substitute

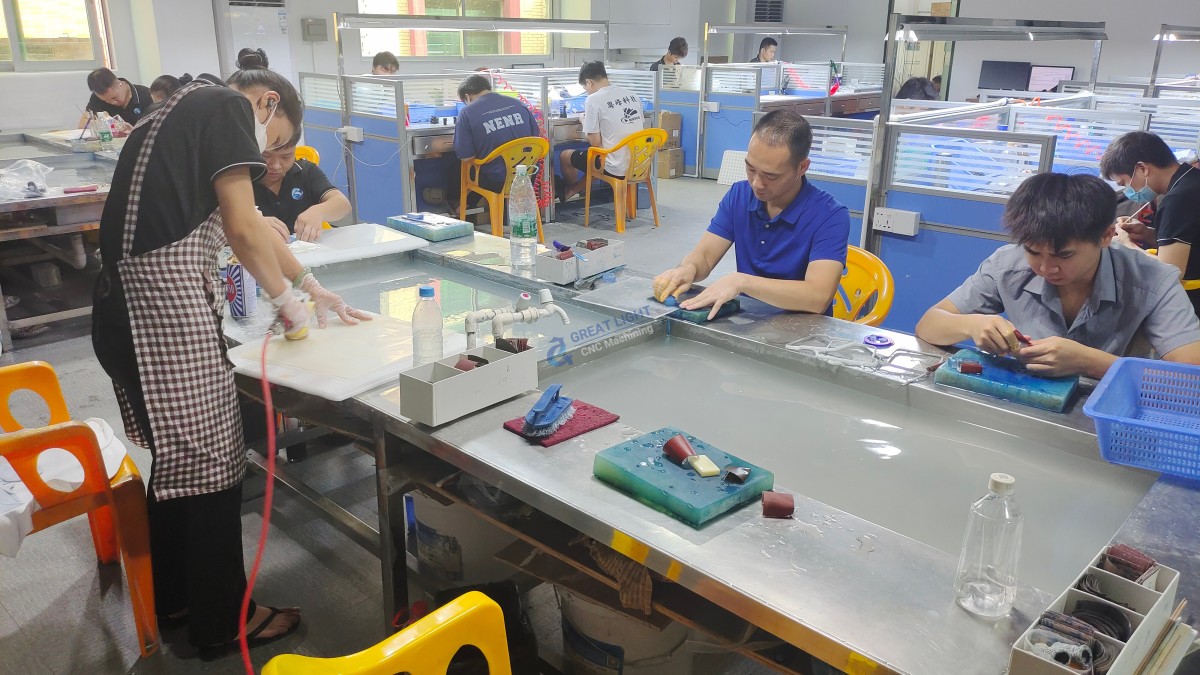

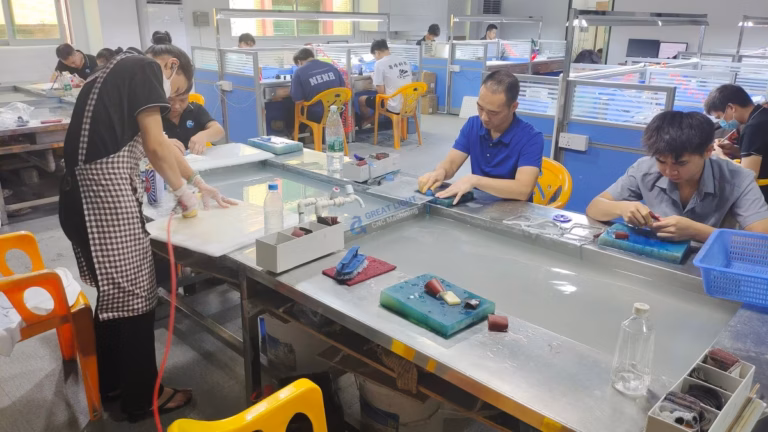

A large share of 3-axis quality problems trace back to handoffs. The machine shop blames the anodizer for a dimension change, the anodizer blames the heat treater. Keeping the chain in one plant removes that argument. We do machining, deburring, heat treat coordination, anodizing, plating, powder coating, laser marking and final inspection in the same building in Dongguan, with a second site in Singapore.

For thin-wall parts, the sequence matters more than the tolerance on the drawing. Rough at 1.5 mm stock, stress relieve, then finish in two light passes. Skip the stress relief and a 2 mm wall will move 0.05 mm overnight. We write that sequence into the traveler, not into a phone call.

Data security is part of the process too. Customer models stay on controlled servers, and we hold ISO 27001:2022 for information security. NDAs are available before you upload anything. For defense-adjacent and medical programs, that paperwork is usually the first thing procurement asks for, so it is worth settling early.

• 1
  Raw material checkMill certs verified against the drawing before cutting
• 2
  In-process monitoringFirst article plus periodic checks on critical dimensions
• 3
  Final inspection100% before shipment, reports on request
• 4
  TraceabilityMaterial lot linked to the finished part number

On aluminium we run 6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075 and ADC12. Stainless covers 303, 304, 316, 316L, 420, 430, 431, 440C and 17-4PH. Steel includes 1018, 1045, 4130, 4140, 4340, A36 and tool steel grades. Copper and brass run from C101 to C36000, and we also machine titanium TA1, TA2, TC4, Inconel and magnesium AZ31B and AZ91D. Plastics go up to PEEK and carbon fibre.

Achievable tolerance is ±0.005 mm on critical features, though most 3-axis parts do not need that, and paying for it on every dimension is a waste. As-machined finish sits at Ra 1.6–3.2 μm. Fine finishing gets to Ra 0.2–0.8 μm when a sealing face or bearing bore calls for it. Surface treatment options include clear, colour, hardcoat and conductive anodizing, electroless nickel, zinc, silver and gold plating, powder coating and black oxide, plus bead blasting, tumbling, brushing and polishing.

Laser marking has a practical limit worth knowing before you design a serial number onto a 10 mm boss. Minimum character height is 1.5 mm. Below that, legibility drops and the marking becomes a source of inspection disputes rather than a benefit.

• 1
  Prototype volumeNo minimum order quantity, one piece is fine
• 2
  Production volumeRuns beyond 10,000 parts on dedicated fixtures
• 3
  QuotationQuote and DFM analysis within 12 hours
• 4
  Production startCan begin within 24 hours of approval
