Machine Technology Explainer

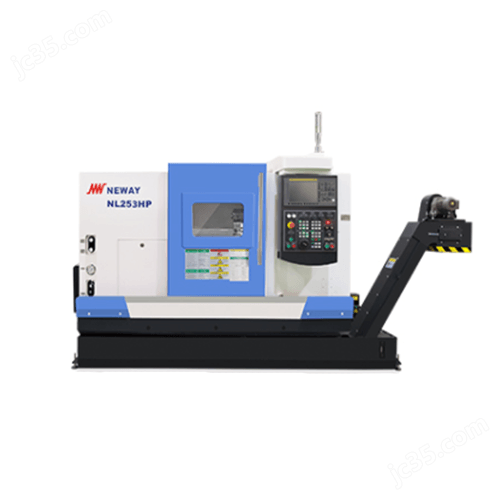

Analysis of key technologies of high-performance horizontal CNC lathes

Five subsystems decide what a lathe can actually hold: bed and structure, spindle, guideways, turret and thermal control. This page explains how each one works, where its limits sit, and what that means when you quote a turned part on high-performance horizontal CNC lathes. Written for engineers and buyers who need to judge a machine, not just read a spec sheet.

±0.005 mm toleranceØ400 mm rotary table4,000 mm max sizeISO 9001:2015
Analysis of key technologies of high-performance horizontal CNC lathes
Structure

Bed and structure: why damping beats stiffness on high-performance horizontal CNC lathes

A horizontal lathe carries the workpiece on a spindle and feeds a single-point tool along two axes. That layout is simple. The hard part is keeping the tool and the workpiece in the same relative position while cutting forces push them apart. Cast iron beds with a ribbed, box-shaped section absorb that energy. Welded steel frames resist bending better but ring longer, so they need filling or extra mass.

Damping matters more than raw stiffness for turning. A boring bar at 8 × diameter overhang will chatter long before the bed deflects. Dense cast iron converts that vibration into heat instead of letting it build. This is why a heavier bed often turns a cleaner surface than a stiffer but lighter frame at the same depth of cut.

Rib placement follows the load path, not the outline. Ribs run under the spindle nose, under the guideways, and around the turret mounting face. A bed with ribs only at the ends will twist when the turret sits mid-travel. Ask for the rib layout drawing, not just the casting weight.

Slant-bed machines shed chips by gravity. Flat-bed machines need conveyors and more manual clearing, but they hold long shafts better because the tailstock and steady rest align on one plane. For shafts over 1,000 mm, that alignment usually decides the purchase. On high-performance horizontal CNC lathes, the bed choice is a part-family decision, not a quality ranking.

Spindle

Spindle and bearings: the accuracy budget starts here

The spindle sets the floor for everything downstream. Its radial and axial runout show up directly on the turned diameter and on the face. A spindle with 2 μm runout cannot hold ±0.005 mm on a thin-wall part no matter how good the control is. Bearing type, preload and housing fits decide the number.

Angular contact pairs suit high speed and light cuts. Cylindrical roller plus thrust bearings suit heavy radial loads at moderate speed. Hybrid ceramic balls cut centrifugal growth at high rpm, which keeps preload stable as the spindle warms. The trade is cost and a smaller load window.

Preload is set at assembly and changes with temperature. A spindle that runs 20 °C above ambient will grow axially and add preload on its own. That is why warm-up cycles exist. Skipping the warm-up on a cold morning shifts the first ten parts and then settles.

Drawbar force matters as much as runout for milling on a lathe. Below roughly 8 kN on a 40-taper holder, the tool can creep in the cut. Creep shows up as taper on a bored hole that no offsets will fix. We check drawbar force on a schedule, not only when a part goes out of tolerance.

Guideways

Guideways and feed drives: how the tool reaches the number

Two families dominate. Hardened box ways with Turcite or bronze liners give high damping and heavy load capacity, but they need lubrication and they wear. Linear roller guides run fast and position precisely, but they damp less and are more sensitive to chips and coolant.

The choice shows up in different jobs. Box ways hold up on interrupted cuts and castings with hard skin. Roller guides win on small tools, high rapids and long contour work. A shop turning hardened 4140 in batches will notice the difference within a week.

Ball screws convert motor rotation into linear motion. Pitch error, thermal growth and backlash all land on the part. Ground screws with a preloaded double nut keep backlash near zero. C3 grade screws over a 1,000 mm travel hold about 0.010 mm accumulated error before compensation.

Linear scales close the loop on the slide, not the motor. They correct screw growth and pitch error, and they see the table position directly. On a lathe used for ±0.005 mm work, scales on the X axis are worth more than a higher-resolution encoder on the motor.

Feed drive tuning is the last 20%. A well-tuned machine follows the commanded path without overshoot at corners. A poorly tuned one leaves witness marks where the tool reverses. Ask for a circular test or a ballbar plot, not a positioning repeatability figure alone on high-performance horizontal CNC lathes.

Tooling

Turret, tooling and chip control: where cycle time is won

Turret indexing time is dead time. A 12-station turret indexing in 0.3 s beats a 0.8 s unit only if the process uses those stations. Many jobs run four tools. Extra stations help when a part needs drilling, boring, threading and grooving without a second setup.

Live tooling turns the lathe into a mill-turn platform. A radial live holder drills cross holes; an axial one mills flats. That removes a second operation and the re-fixturing error that comes with it. The limit is rigidity: live holders cut lighter than a dedicated mill.

Chip control decides whether the process runs unattended. Long stringy chips wrap the tool and stall the cycle. Pecking, high-pressure coolant through the tool, and a chipbreaker geometry matched to the material all help. On 316L, a chipbreaker that works on 6061 will fail.

Tool presetting off the machine saves spindle time. Setting a boring bar in a presetter and loading it with a known offset removes a trial cut. On a 30-part lot, that is several minutes per part. On a one-off, it is not worth the trip.

Thermal

Thermal behavior, measurement and the real accuracy budget

A lathe is a heat engine with a tool post. The spindle, the ball screws, the hydraulic unit and the cutting zone all add heat. The bed grows, the screw grows, and the tool tip drifts. Over a four-hour run, a small lathe can move 0.020 mm without any mechanical fault.

Coolant and oil temperature control the largest share. A chiller on the spindle and on the ballscrew keeps the loop stable. Flood coolant on the part controls the cutting zone. Air conditioning the room helps, but the machine's own heat output dominates.

Measurement closes the loop. Micrometers read at 20 °C; a part measured at 28 °C reads small and triggers an offset that is wrong when the part cools. We let parts stabilize before final inspection and record the temperature with the reading.

Put the budget together and it looks like this: spindle runout, guideway straightness, screw error, thermal drift and measurement uncertainty each take a slice. Tightening one slice alone rarely moves the total. The machine with the best balance holds the tolerance over a shift, not just on the first part.

Selection Criteria

Matching machine configuration to the part

Pick the row that matches the part first, then read across.

Part familyBest configurationWhyWatch out for
Long shaft, L/D over 10Flat bed + steady rest + tailstockSingle alignment plane for supportsBed twist under tailstock load
Thin-wall sleeveSlant bed + ceramic spindle bearingsChip shedding, low thermal growthChuck clamping distortion
Hardened 4140 batchBox ways + high-torque spindleDamping on interrupted cutsGuideway wear over years
Small brass fittingsRoller guides + live toolingFast rapids, one-setup millingLight cuts on live holders
Titanium medical partBox ways + through-tool coolantHeat removal at the edgeTool wear rate
Aluminum housing, high volumeSlant bed + 12-station turretShort index time, gravity chip fallLong stringy chips
Prototype, 1 to 5 partsAny rigid lathe + presetterSetup time dominatesOver-specifying the machine

Which configuration to choose

If the part is long or needs support along its length, choose a flat-bed machine with a steady rest and accept slower chip clearing. If the part is short, thin-walled or high volume, choose a slant bed with roller guides, live tooling and thermal control on the spindle and screw. There is no single best lathe, only a best match for a part family.

FAQs

Questions engineers ask about lathe technology

Does a higher spindle speed always mean better surface finish?

No. Surface finish follows feed per revolution more than rpm. At 0.05 mm/rev with a 0.4 mm nose radius, the theoretical Ra is well under 1 μm before any vibration.

Above a certain speed, centrifugal growth and thermal rise can push runout up. A stable 3,000 rpm spindle often finishes better than a marginal 6,000 rpm one.

How do I know whether box ways or roller guides suit my part?

Look at the cut, not the drawing. Interrupted cuts, hard skin and heavy depth of cut favor box ways because they damp. Small tools, long rapids and contouring favor roller guides.

If your parts mix both, pick the one that runs 80% of the volume and plan the rest for a different machine.

What causes a turned diameter to drift over a long run?

Thermal growth is the usual cause, not tool wear. The spindle and ballscrew warm up over the first hour and stabilize after two to three hours.

Run a warm-up cycle, keep coolant temperature stable, and check the first-off part after the machine has run for an hour rather than cold.

Can a lathe hold ±0.005 mm on a thin-wall part?

Only with the right sequence. Rough, stress-relieve or let the part stabilize, then finish with light passes and low chuck pressure.

Chuck clamping alone can distort a thin sleeve by more than the tolerance. Soft jaws bored to the part diameter are usually required.

Is live tooling worth it for a part with a few cross holes?

It depends on the hole count and position tolerance. If the cross holes must be square to the turned diameter, doing them in one setup removes a stack-up.

For two or three holes with loose position tolerance, a second operation on a mill is often cheaper than a live-tool turret.

How much does thermal drift actually move a part?

On a small lathe without temperature control, 0.015 mm to 0.025 mm over a four-hour run is realistic. Machines with chilled spindles and screws hold much tighter.

The number to ask for is drift over a shift, measured on a test part, not the positioning accuracy in the brochure.

Send us the drawing and the tolerance that matters

We quote turned parts in 3-axis, 4-axis and 5-axis mill-turn work, with 100% inspection before shipment and reports on request. Tell us which dimension controls the fit and we will say whether the process can hold it.
