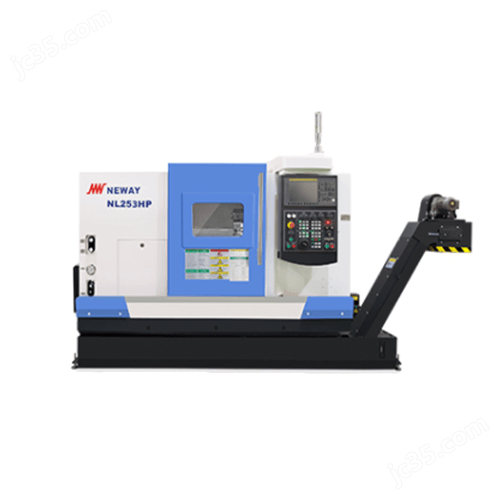

The future development trend of high-performance CNC horizontal lathes
This page explains where high-performance CNC horizontal lathes are heading and what that means at the spindle. It is written for process engineers, manufacturing engineers and buyers who quote turned parts. Read it to judge which machine features actually change part cost, and which ones only change the brochure.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
What makes a horizontal lathe high-performance
A horizontal lathe turns a part about a horizontal axis. The spindle holds the work, a turret carries the tools, and the bed sits low so chips fall away. That layout is old. What changed is how tightly the machine controls the cutting zone.
Three things separate a high-performance CNC horizontal lathe from a general-purpose turning center. First, thermal stability over a full shift. Second, the ability to hold ±0.005 mm on diameter without hand adjustments. Third, enough rigidity to run carbide at speeds that actually remove metal.
The work envelope matters too. A machine that swings Ø400 mm at the chuck but only travels 400 mm in Z is a different tool from one with 4,000 mm of Z travel. Disc parts and short shafts fit the first. Long shafts and tubes need the second.
So the trend line is not about bigger machines. It is about machines that hold tolerance while running unattended, on harder materials, for more hours per day.
- 1Rigidity firstHeavy cast beds and preloaded linear guides set the ceiling on surface finish.
- 2Thermal control secondCoolant through the spindle and ball screw cooling keep size drift small.
- 3Automation thirdBar feeders and gantry loaders only pay off when the first two are solved.
Thermal stability is the real accuracy story on high-performance CNC horizontal lathes
A lathe grows as it warms. The spindle housing, the ball screws and the bed all move a few microns per degree. On a 300 mm diameter part, a 3 °C rise in the spindle can push the diameter out by 0.01 mm. That is twice our normal turning tolerance.
Older machines handled this by letting the operator trim offsets. Every hour. That works for one shift and one operator, and it fails the moment you try to run lights-out.
Current machines attack the source. Spindle oil is chilled and circulated. Ball screws get hollow cores with coolant running through them. Scales on the X and Z axes close the loop on actual slide position rather than motor rotation.
The engineering payoff is simple. If the machine holds size for eight hours without an offset change, you can load a bar feeder and walk away. If it drifts, you cannot, no matter how fast the spindle is.
- 1Cooled ball screwsRemoves the largest single source of Z-axis drift on long parts.
- 2Linear scalesMeasure the slide, not the motor, so lead screw wear stops mattering.
- 3Warm-up cyclesA 20–30 minute spindle warm-up before first cut is still standard practice.
Mill-turn integration changes which parts belong on a lathe
A mill-turn center adds a rotary B axis and a live tool turret to the lathe. The result is that cross holes, flats, slots and even five-sided features get cut in the same setup as the turning.
The gain is not speed. It is position. Moving a part from a lathe to a mill means re-chucking, and re-chucking costs you 0.02–0.05 mm of concentricity on a good day. On a hydraulic manifold with six cross ports, that error compounds.
We see this most often on automotive and hydraulic work. A valve body that used to run on three machines now runs on one. Cycle time per part may be longer, but total lead time and scrap both drop.
The limit is tool access. A B-axis head cannot reach into a deep bore the way a dedicated boring bar can. If your part is mostly internal features, a plain lathe plus a mill is still cheaper.
- 1Good fitParts with cross holes, flats or angled ports that must stay concentric to a turned bore.
- 2Poor fitDeep internal bores, long slender shafts, or parts needing a large face mill.
Automation, bar feeding and lights-out turning
Unattended turning only works when the three conditions above are met. The machine must hold size, the chips must clear without a person, and the tools must be monitored.
Bar feeders handle Ø5–80 mm stock and run through the spindle bore. A 4,000 mm bar magazine can run overnight on a 30 second cycle. Gantry loaders handle billets and castings that are too short to bar feed.
Tool monitoring is the part most people skip. In-process gauging and spindle load monitoring catch a broken insert before it scraps forty parts. Without it, unattended running is just unattended scrap.
The honest limit: lights-out turning suits stable, high-volume parts. A one-off Ø600 mm flange with a 12 hour cycle still needs a person watching the first article.
- 1Chip controlHigh-pressure coolant through the tool breaks chips so they do not wrap the part.
- 2Tool life dataTrack insert count per edge. Replace on count, not on sound.
- 3First articleAlways inspect the first part after a setup change, automated or not.
Where high-performance CNC horizontal lathes hit their limit
Turning is a continuous cut, so heat goes into the chip rather than the tool. That favors lathes over mills on tough materials. Inconel and titanium turn well with the right grade and pressure.
The limit is stiffness to diameter ratio. A part that is 20 times longer than its diameter will deflect, no matter how good the machine is. A 500 mm long, Ø25 mm shaft needs a steady rest or a follow rest.
Hardened material above 45 HRC pushes you toward ceramic or CBN inserts and rigid setups. Below that, coated carbide covers most work in 6061, 304 stainless, 4140 and 17-4PH.
Thin-wall parts are the other boundary. A Ø200 mm tube with a 3 mm wall will move when the chuck closes. Soft jaws bored to the part diameter, plus low clamping pressure, are the usual fix.
- 1Length to diameterKeep unsupported turning under 5:1 where possible; use a rest beyond that.
- 2Thin wallsBore soft jaws to match the part and cut clamping pressure to the minimum.
- 3Hard materialAbove 45 HRC, switch to CBN or ceramic and expect shorter tool life.
Matching the lathe configuration to the part
Pick the configuration that removes the most setups without losing tool access.
| Part type | Best configuration | Why | Watch out for |
|---|---|---|---|
| Disc, Ø300 mm, two faces | 2-axis lathe, Ø400 mm chuck | One setup turns both faces | Face runout after re-chuck |
| Valve body with cross ports | Mill-turn with B axis | Ports stay concentric to bore | Deep bores out of reach |
| Shaft, 800 mm long | Lathe with tailstock and rests | Supports the part along its length | Deflection mid-span |
| High-volume Ø20 mm pin | Bar feed lathe, 4,000 mm magazine | Runs unattended overnight | Chip wrapping and tool wear |
| Hardened gear blank, 55 HRC | Rigid lathe, CBN inserts | Continuous cut handles hardness | Short insert life |
| Thin-wall Ø200 mm tube | Lathe with bored soft jaws | Low clamp pressure, no crushing | Wall collapse if over-clamped |
The trade-off in one line
If your part has cross features that must stay concentric to a turned bore, buy mill-turn. If it is a long shaft with no cross work, a rigid 2-axis lathe with a tailstock and a steady rest will beat it on cost per part. Thermal control and tool monitoring decide whether either one can run unattended.
Common questions
What tolerance can a high-performance CNC horizontal lathe hold in production?
On a stable part with a warm machine, ±0.005 mm on diameter is realistic. That is ±0.0002 in.
Surface finish lands at Ra 0.8–1.6 μm on a normal turning pass, and Ra 0.2–0.8 μm with a finishing insert and light depth of cut. Thin-wall and long-shaft parts are the usual exceptions.
Does mill-turn always reduce cost per part?
No. It removes setups, which removes re-chuck error and queue time. But a B-axis head is slower than a dedicated face mill, and it cannot reach deep internal features.
We quote both routes when the part allows it. For low volume the setup saving usually wins. For very high volume with simple geometry, two dedicated machines can still be cheaper.
When is lights-out turning worth it?
When the cycle is longer than about 30 seconds, the part is stable, and the machine holds size for a full shift without an offset change. Bar feeders cover Ø5–80 mm stock.
If the part needs manual gauging between passes, or the tool wear is unpredictable, unattended running simply moves the scrap to the night shift.
How do you handle thin-wall turning without distortion?
Bore soft jaws to the finished outside diameter, keep clamping pressure at the minimum the cut allows, and take light finishing passes with a sharp insert.
For very thin sections, a plug or expanding mandrel supports the wall from the inside. We check roundness after the chuck releases, not while it is clamped.
Which materials turn well on a horizontal lathe?
Aluminum 6061 and 7075, stainless 303, 304 and 17-4PH, steel 1045 and 4140, and brass C36000 all turn cleanly with coated carbide.
Titanium TC4 and Inconel turn well too, but they need lower surface speed, higher coolant pressure and a more rigid setup. Above 45 HRC, switch to CBN or ceramic.
Can you run a prototype and then the production order on the same setup?
Often yes. With no minimum order quantity, a single prototype and a 10,000 part run can use the same fixture and program.
Keeping the setup identical between the two stages is the cheapest way to avoid a second first-article inspection and new tolerance drift.
