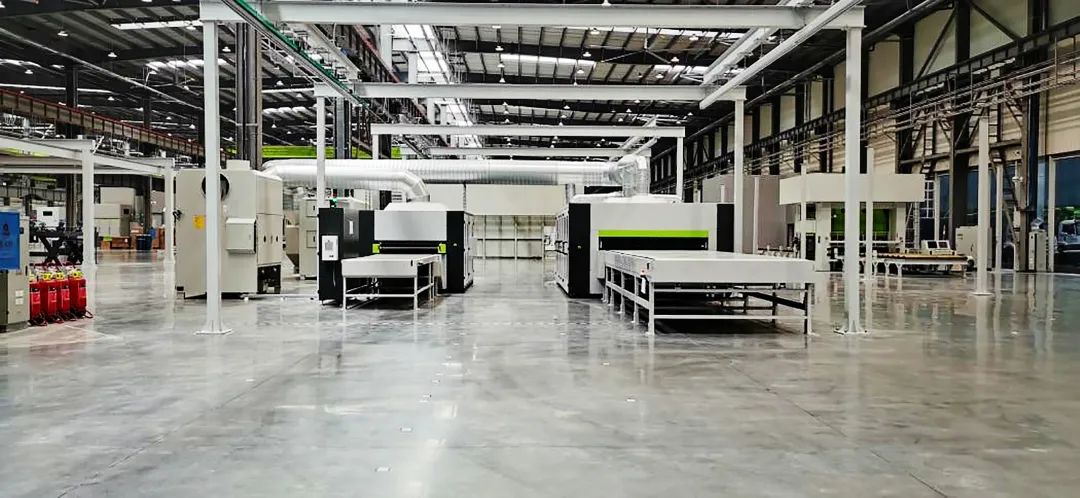

Application of deburring technology in processing medium and thick metal sheets

On plate from roughly 3 mm to 80 mm, the burr is not a thin foil. It is a wedge of displaced material sitting on the cut edge, and it often carries the same hardness as the base metal because the shear zone has already work-hardened it. A hand file that glides along 1 mm sheet will skip and skate across a 20 mm burr.

The source matters more than the size. Laser cutting on thick plate leaves dross and a slightly oxidized edge. Plasma leaves a rough, hardened dross line that chips in flakes. Waterjet leaves almost no thermal burr but produces a fine abrasive lip on the exit side. Sawing and shearing push a rolled lip to one face. Each one needs a different removal strategy.

Machining adds its own case. When a 5-axis or 3-axis mill faces a plate edge, the exit burr forms on the side where the cutter leaves the material. On a 4140 or 17-4PH part that burr can be hard enough to dull a deburring tool in a few strokes, so the deburring step has to be planned together with the cut, not after it.

• 1
  LaserDross and light oxide; edge usually soft enough for abrasive brush or disc.
• 2
  PlasmaHardened dross flakes; needs grinding or heavy chamfer first.
• 3
  WaterjetMinimal thermal damage; fine exit lip on the pierce side.
• 4
  Shear or sawRolled lip on one face; usually a single-pass chamfer removes it.

There is no universal head for plate work. Hand tools still make sense for one-off repair or for a weld prep on a single bracket. Once you repeat the same edge more than a few dozen times, the cost flips toward a machine, because the operator fatigue and the inconsistent chamfer width start to show up in the assembly line.

Robot deburring with a compliant spindle handles long, non-linear contours well. The tool follows the programmed path, the compliance absorbs the thickness variation of the plate, and the same program runs on every part. It is the usual choice on brackets, gussets and frame plates with many edges.

CNC deburring on the machining center works when the part is already fixtured. A chamfer mill or a radius cutter follows the same setup that produced the profile, so the edge and the face stay in one coordinate system. This is the tightest route for hole edges and pocket corners, and it holds ±0.005 mm on hole position while it cuts.

Thermal and abrasive flow methods remove the burr without touching the geometry. Electrochemical deburring reaches internal cross-drill intersections that no tool can enter. Abrasive flow machining pushes a loaded polymer through a passage and rounds the edge where it passes. Both are slower per part and better suited to hydraulic or fuel-system components where an internal burr is a functional failure, not a cosmetic one.

• 1
  Robot cellBest for long contours and repeated plate profiles.
• 2
  CNC chamfer millBest when the part is already on the machine and edge position is critical.
• 3
  ElectrochemicalInternal edges and cross-drill intersections no tool can reach.
• 4
  Brush and tumbleLight edge break on many small plate parts at once.

Most plate problems at assembly trace back to a drawing that says 'deburr all edges' and nothing else. That instruction means different things to a grinder, a robot programmer and a quality inspector. Define the edge as a chamfer width or a radius, with a tolerance, and name the edges it applies to.

A workable callout is something like: break all external edges 0.3 mm × 45° unless dimensioned, radius internal pocket edges 0.5 mm max, no visible burr on sealing faces. That gives the shop a target and gives inspection something to check with a radius gauge or an optical comparator.

Inspection on plate usually combines a visual pass at the edge, a radius or chamfer gauge, and a tactile check with a soft cloth or a gloved finger along the sealing face. For hydraulic and medical parts we add a bore scope or a cast of the internal edge. Every lot is inspected before shipment, and reports go out on request.

Surface finish after deburring is worth specifying too. A brushed or tumbled edge typically lands around Ra 0.8–1.6 μm, an as-machined chamfer around Ra 1.6–3.2 μm, and a polished edge can reach Ra 0.2–0.8 μm. On stainless and aluminium, the deburring step also removes the embedded iron or oxide that would otherwise start a corrosion cell.

• 1
  Name the edgesExternal, internal, sealing face, weld prep. Do not write 'all edges'.
• 2
  Give a numberChamfer width plus angle, or radius plus tolerance.
• 3
  State the finishRa band on the edge if the part sees flow or wear.
• 4
  Say what is rejectedVisible burr on a sealing face is a reject, not a rework note.

Aluminium plate such as 6061, 5052, 5083 and 7075 cuts fast but smears. The burr is soft and gummy, and it sticks to abrasive belts. A coarse grit will load in a few parts, so we run a lubricated brush or a slower feed on the robot cell. Hard-anodized edges cannot be deburred after coating without breaking the oxide, so the edge is finished before the anodizing line.

Stainless 304, 316 and 17-4PH work-harden at the cut. Light passes with sharp tooling work; heavy pressure with a dull tool turns the edge harder and can leave a rolled lip that looks deburred but fails a wipe test. On 17-4PH in the H900 condition we plan the chamfer as part of the milling cycle rather than as a second operation.

Titanium and Inconel are the slow cases. Heat stays at the edge, tool life drops, and a burn mark is a reject on most aerospace and medical drawings. Lower speed, more coolant, and a fresh cutter on every batch. On these materials we often deburr on the same 5-axis setup that produced the profile, which avoids a second fixturing and the risk of marking the finished face.

Copper and brass plate burr heavily but cleanly. The lip is easy to remove and the exposed edge stays bright, which matters on busbar and electrical parts where contact resistance is checked after deburring.

• 1
  AluminiumSoft, gummy burr; lubricated brush, avoid belt loading.
• 2
  StainlessWork-hardens; sharp tools, light passes, no heavy pressure.
• 3
  Titanium and InconelHeat and tool life limit; deburr in the same setup, fresh cutter.
• 4
  Copper and brassFast removal; edge brightness checked on busbar parts.

The order of operations decides how much deburring costs. If the plate is cut, then deburred, then machined, the machining step can raise a new burr on every edge it touches. If the part is machined first and deburred last, one pass covers everything. The exception is a part that needs a stress relief or a coating between steps, because both can change the edge.

Fixturing matters as much as the tool. Plate parts are often large and thin relative to their size, so clamping force can bow the part and change the tool contact. On the 4,000 × 400 × 150 mm travel machines we support long plate with a vacuum or magnetic bed where the material allows it, keeping the edge in one plane while the cutter follows the contour.

Throughput depends on edge length, not part count. A bracket with 600 mm of edge takes longer than a small block with 80 mm, even if both weigh the same. When we quote plate work, we estimate the deburring time from the total edge length and the number of setup changes, not from the weight of the part.

For runs from one prototype to 10,000+ parts, the same deburring program scales. The first article sets the edge, and later lots run the same path. There is no minimum order quantity, so a single plate can be deburred and inspected on the same criteria as a production lot.

• 1
  Deburr lastOne pass covers every edge raised by earlier operations.
• 2
  Mind the clampLight clamping avoids bow that changes edge contact.
• 3
  Quote by edge lengthEdge length and setups drive cycle time, not part weight.
• 4
  Same program scalesPrototype and production run the identical deburring path.
