Break Monopoly: CNC Tool Grinding Machines in China

A CNC tool grinder is not a general-purpose machine. It grinds the flute, the relief, the gash and the cutting edge of a rotating tool, and every one of those features is defined by a few microns of geometry. Get the relief angle wrong by 0.5° and the tool rubs instead of cutting. Get the edge radius wrong and the coating cracks at first contact.

So the grinder sets the ceiling for the tool. Spindle runout, thermal drift in the wheel head, the resolution of the rotary axes, and the accuracy of the wheel dressing cycle all show up on the finished edge. A tool grinder that holds its position can produce a consistent edge; one that drifts produces a batch that cuts differently from the first part to the last.

This is why the machine was treated as strategic equipment for years. The builders who could hold sub-micron positioning on a five-axis tool grinder controlled who got to make high-end cutters.

• 1
  Spindle runoutSets the minimum edge radius a machine can hold repeatably.
• 2
  Rotary axis resolutionDetermines how fine the relief and gash angles can be indexed.
• 3
  Thermal stabilityKeeps the wheel-to-work relationship stable across a long batch.

The shift did not come from one breakthrough. It came from several supply chains maturing at the same time. Linear motors, glass scales, high-speed spindles and motion controllers became available to any builder who could integrate them well. Domestic machine builders in China spent the last decade doing exactly that integration work.

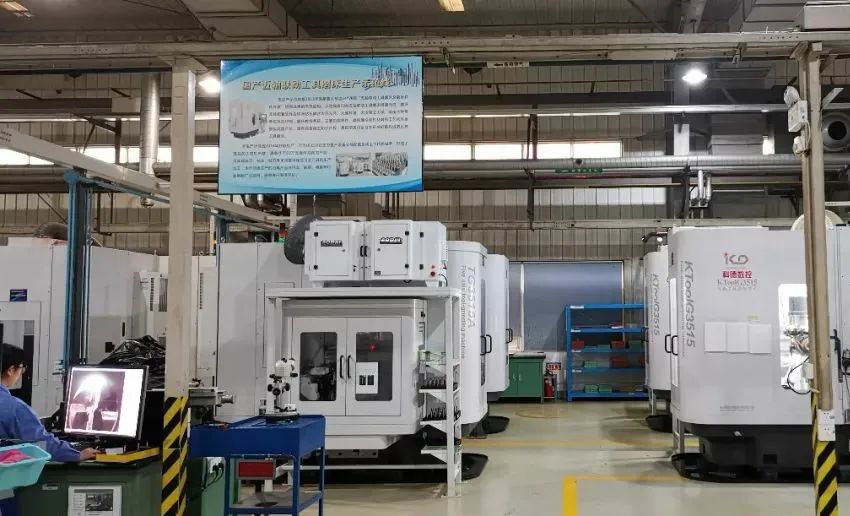

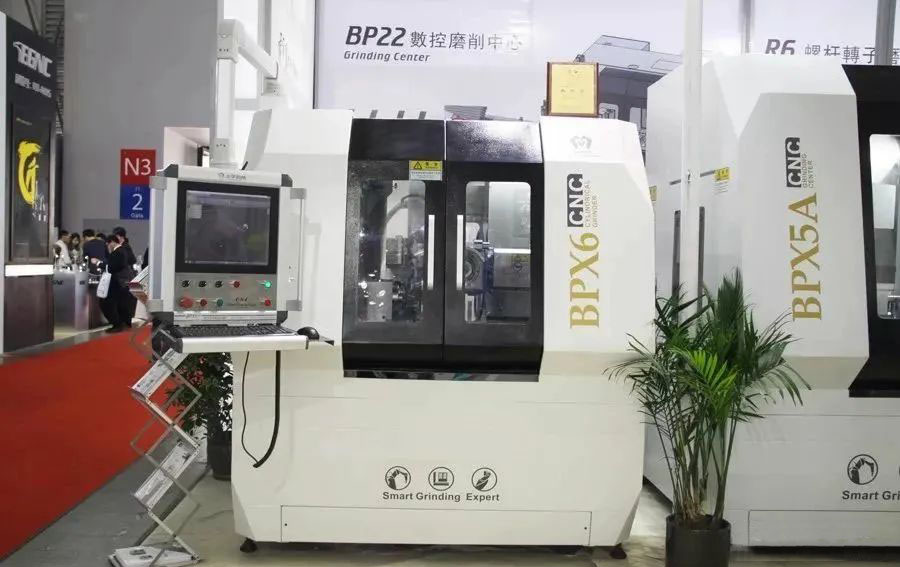

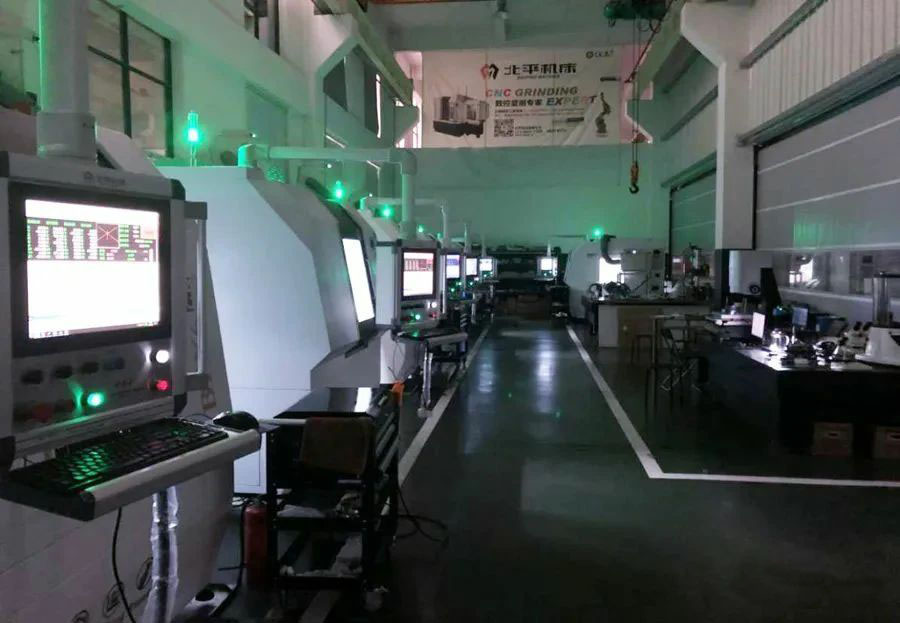

The result is that a current Chinese five-axis tool grinder can hold positioning and repeatability that would have been considered premium-only ten years ago. The same machine class that once came with a long import lead time and a service contract tied to a distant support team is now built locally, with local spares and local application support.

The word monopoly is not quite right anymore. It is more accurate to say the entry barrier moved. It used to be about who could buy the machine. Now it is about who can run it.

• 1
  Motion hardwareLinear motors and glass scales are now widely sourced, not proprietary.
• 2
  Control integrationTool grinding software matured alongside the hardware.
• 3
  Support distanceLocal service shortens the loop when a wheel or axis drifts.

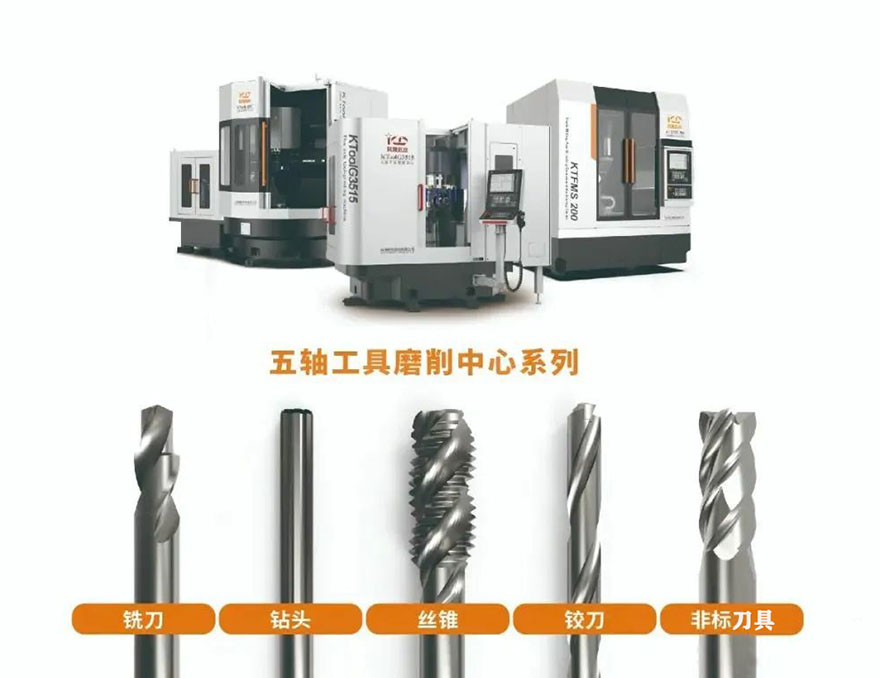

Take a Ø12 mm carbide end mill. The grinder indexes the blank to the flute angle, roughs the gash, then finishes the primary and secondary relief. Each pass removes a controlled amount of carbide. If the machine holds position, the edge lands where the drawing says it should. If it does not, the edge thickens and the tool starts to push material instead of shearing it.

The finishing pass matters most. The edge radius left by the final wheel pass sets how the tool behaves in the cut. A sharp edge cuts cleanly in aluminium but chips in hardened steel. A honed edge survives interrupted cuts but raises cutting force. The grinder has to reproduce the intended radius, part after part.

Coating goes on after grinding, so any geometry error is locked in before the tool ever touches a workpiece. That is the reason tool grinding is treated as a precision process rather than a sharpening step.

• 1
  Gash and fluteControls chip evacuation and the effective rake angle.
• 2
  Primary reliefSets clearance behind the cutting edge.
• 3
  Edge preparationSharp, honed or chamfered, chosen for the workpiece material.

You do not need a tool grinder to check whether a tool was ground well. You need a tool maker's microscope or a decent optical comparator and a few minutes. Look at the edge under magnification. A consistent edge shows even width along the flute, no chipping, no burn marks and no chatter pattern on the relief.

Run a test cut. Measure the slot width, the surface finish and the burr height. Then run the same cut on the tenth tool from the batch. If the numbers move, the grinder or the process drifted.

For a shop that machines parts rather than makes tools, the practical question is simpler: does the tool cut to the same dimensions from the first part to the last? Everything upstream of that question is the tool supplier's problem. What matters on the floor is repeatability.

• 1
  Edge checkLook for even width, no chipping, no burn.
• 2
  Test cutMeasure slot width, finish and burr on first and tenth tool.
• 3
  Batch checkCompare the same feature across the lot, not just one part.

At GreatLight we run 127 high-precision CNC machines, including 16 simultaneous 5-axis machining centers and 16 mill-turn centers. Those machines cut the parts; the cutting tools decide how well they cut. When tool geometry is consistent, we hold ±0.005 mm and Ra 0.8–1.6 μm without fighting the process.

A tool that varies from batch to batch shows up as dimensional scatter, poor finish or unexpected tool wear. We would rather catch that at incoming inspection than on a part that is already 80% machined. That is why tool consistency is part of our process control, not just a purchasing decision.

The practical effect of the grinder story is that good cutting tools are no longer gated by a small group of builders. Any shop willing to qualify its tool supply can get consistent geometry. The work moves to the process side: inspection, documentation and control.

• 1
  Incoming checksTool geometry verified before it reaches a spindle.
• 2
  Process controlIn-process monitoring catches drift before final inspection.
• 3
  TraceabilityTool batch recorded against the parts it produced.
