Can the X Carve CNC Machine Cut Out Gears?

• 1
  How a Belt-Driven Router Cuts a Gear
• 2
  What Tolerance an X Carve CNC Machine Gears Job Can Hold
• 3
  Materials That Suit a Desktop Router
• 4
  Gear Types and Sizes That Work
• 5
  When a Desktop Router Is the Right Tool
• 6
  What to Prepare Before You Send a Gear Out
• 7
  Desktop Router vs Industrial CNC for Gear Work

A gear is not a flat shape with teeth drawn on it. The tooth flank is a curve that has to roll against a mating curve at a fixed center distance. Get the flank profile right and the gear turns quietly. Get it wrong by 0.1 mm and the pair binds at one point on the pitch circle and rattles everywhere else.

The X Carve is a three-axis gantry router. The spindle moves in X and Y on belts, and Z on a lead screw or ball screw. A 2.5D gear profile is a pocketing and contouring job: the tool follows the tooth outline, then you flip the blank or run a second setup to relieve the web. That part works.

What makes gears hard on any machine is not the outline, it is the relationship between tooth thickness, pitch diameter, and center distance. Those three numbers have to agree with the mating part. A router can trace the outline, but it cannot correct a number that was wrong in the CAD model.

The cutting mechanics matter too. A 3 mm two-flute end mill running 12,000 rpm in POM removes material fast and clean. The same cutter in 6061 aluminum has to slow to roughly 8,000 rpm with a shallow 0.3 mm depth of cut, and the belt drive starts to show deflection on the tooth tips.

• 1
  Rigidity sets the ceilingBelt and gantry flex shows up as tooth flank error, not as a visible scratch.
• 2
  Profile accuracy is a CAD problemInvolute, cycloid, or a lazy arc? The machine only copies what you drew.
• 3
  Tool diameter limits root widthA narrow gear root needs a cutter small enough to reach it without rubbing.

Desktop routers in this class typically hold about ±0.05 mm on a well-trammed machine with a sharp cutter and a rigid fixture. That is a realistic number for wood, MDF, acrylic, and POM. Aluminum is possible but the window narrows once you account for tool deflection and thermal drift over a long program.

Now put that against a gear. A module 2 spur gear with 20 teeth has a total composite tolerance of roughly 0.05 mm to 0.08 mm for quiet running. The router is already at the edge of the budget before you add fixture error, runout, and a second setup for the web relief.

Grade matters more than size. A printed display gear on a hobby robot tolerates backlash of 0.3 mm and still turns. A timing gear in a servo reducer does not. The question is never 'can it cut teeth' but 'which grade of gear does this application actually need'.

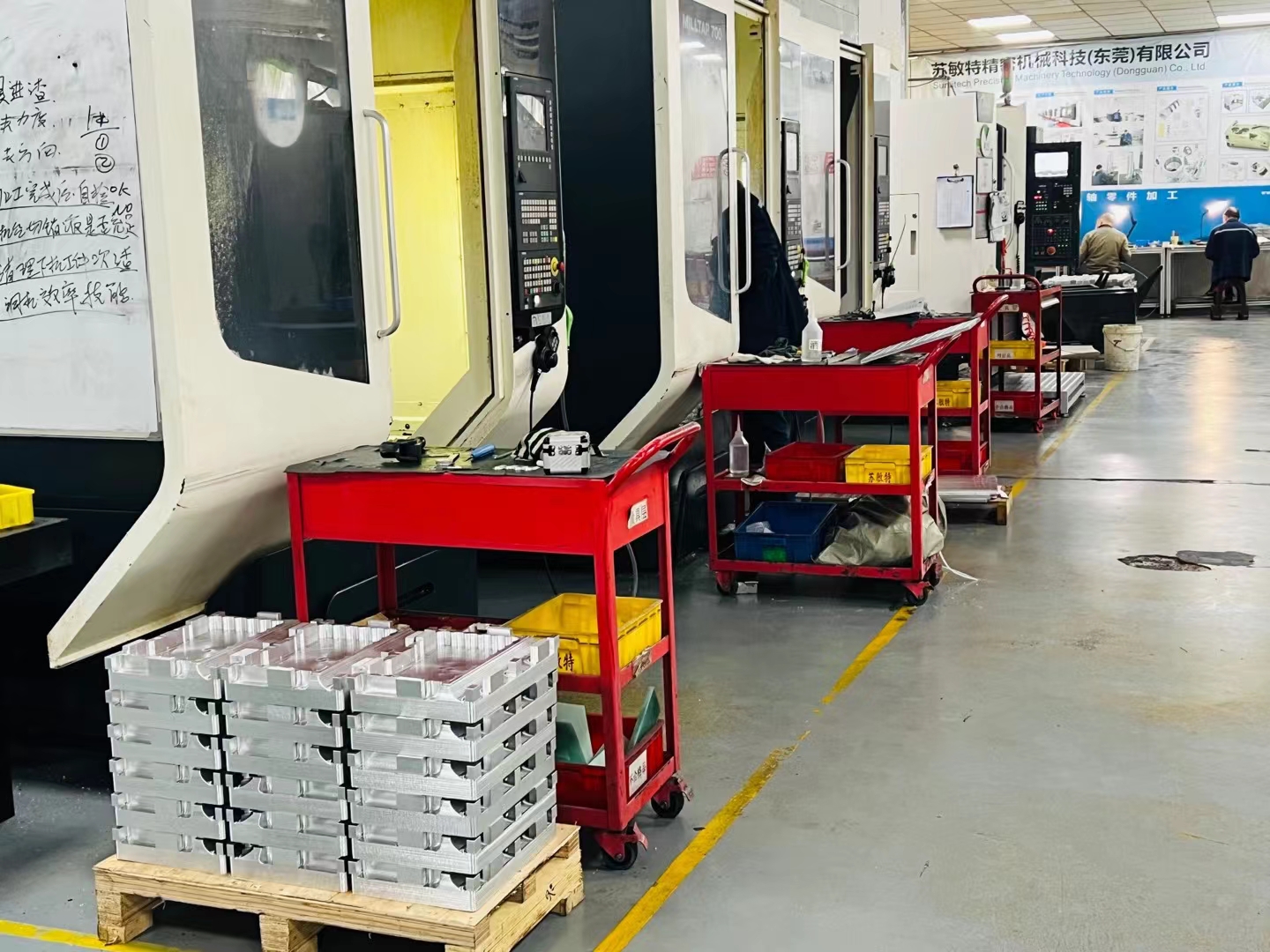

For reference, production gear work at GreatLight runs on 16 simultaneous 5-axis machining centers and 27 three-axis machines, with a standard tolerance of ±0.005 mm and surface finish down to Ra 0.2–0.8 μm when the drawing calls for it.

Soft plastics are the natural fit. POM, HDPE, ABS, and PA all cut cleanly, resist chip welding, and let you run a single-flute cutter at high rpm. Delrin (POM) is the best starting point because it holds a sharp tooth edge and does not need coolant.

Wood, MDF, and plywood are even easier, and this is where most hobby gear projects live. Expect the teeth to wear within a few hundred cycles, especially if the pair runs dry. Add a light grease and the same gear lasts much longer.

Aluminum is where the trade-off bites. 6061-T6 cuts fine on a router with a 3 mm carbide cutter, but heat builds in the tooth root where the tool engages the longest arc. Air blast helps. Flood coolant on a belt-driven router usually makes a mess and does not fix the underlying rigidity problem.

Steel is out of scope for this class of machine. So are stainless, titanium, and hardened alloys. A router spindle does not have the torque or the damping to push a carbide cutter through 4140 at any reasonable rate.

• 1
  Best fitPOM, HDPE, ABS, PA, acrylic, MDF, hardwood
• 2
  Workable with care6061-T6, 5052 with shallow passes and air blast
• 3
  Do not attemptSteel, stainless, titanium, hardened or heat-treated blanks

Spur gears are the easiest. A straight tooth profile can be cut with a standard end mill in two or three passes, and there is no helix to index. If you are learning, start here with a module 2 or module 3 gear in POM.

Helical gears add an axis problem. The tooth leans across the face width, so a three-axis router has to approximate the helix by stepping the tool in Z, which leaves a staircase on the flank. That staircase is a stress riser and a noise source. A four-axis or five-axis machine cuts the true helix in one continuous path.

Internal gears and ring gears are worse. The cutter has to reach inside the bore and clear the opposite wall. On a small desktop machine the tool holder itself becomes the limit. Most internal gear work under 40 mm bore diameter simply cannot be reached.

Bevel gears, worm gears, and hypoid sets are out. They need coordinated rotary motion that a three-axis gantry cannot produce. Any design that requires the tool axis to tilt relative to the tooth flank belongs on a machine with at least one rotary axis.

The desktop router wins in three situations. You need one or two parts today and the gear is not safety-critical. You are testing a mechanism and expect to change the tooth count next week. Or the gear is a display piece, a template, or a mold pattern where cosmetic accuracy beats dimensional accuracy.

It also wins on cost of iteration. A blank of POM costs a few dollars. A setup on an industrial mill costs time and usually a minimum order. If you plan to cut ten versions before you settle on a design, cut the first nine at home.

Move the job off the router when the gear transmits real torque, runs at high speed, or pairs with a purchased gear. A mismatched pair is the most common failure we see. The purchased gear is ground to a known profile, and a hand-drawn flank will not match it.

The other trigger is material. Once the drawing calls for 4140, 17-4PH, or a case-hardened surface, the desktop machine is finished. That is a hardness and torque problem, not a skill problem.

• 1
  Keep it on the routerOne-off fixtures, prototypes, display gears, mold patterns, non-critical drives
• 2
  Move it to a millTorque transmission, matched pairs, metal gears, anything with a tolerance callout
• 3
  Move it to 5-axisHelical, bevel, or internal geometry that needs a tilted or rotary tool axis

A gear drawing that a shop can quote in one pass has four things on it: the module or diametral pitch, the tooth count, the pressure angle, and the backlash allowance. Without those, the shop has to guess, and guessing costs you a revision cycle.

Add the material and the heat treatment. A gear cut from 4140 and left soft behaves nothing like the same gear nitrided to 60 HRC. The machining allowance for post-heat-treat grinding has to be in the model from the start, not added later.

Also state the quality grade you actually need. AGMA or DIN grades translate directly into tolerance and inspection cost. Asking for a DIN 6 gear when the application runs at 200 rpm is money spent for nothing.

Send the mating gear too, or at least its measured profile. If the pair has to run together, the shop can match the backlash to the real counterpart instead of to a nominal number. Drawings alone rarely tell the whole story.
