Changzhou plastic trails: flexible guards in industrial automation

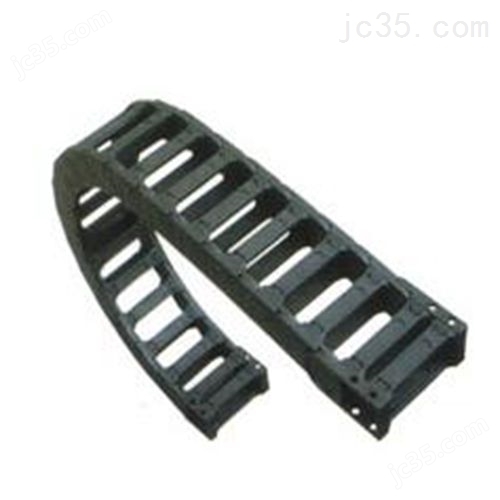

A plastic trail, also called a drag chain or cable carrier, is a segmented loop that carries cables and hoses along a moving axis. Each link has side plates, a cross bar and a pivot. The links snap together into a continuous chain that straightens on the machine bed and curls through a fixed arc at the moving end. The cables sit inside the cavity and never touch the floor, the chips or the operator.

Link pitch sets how tightly the chain can bend. A 28 mm bend radius suits small sensor cables; a 75 mm radius handles servo power cable with a thick jacket. Push the radius below the cable maker's minimum and the copper work-hardens, then the shield breaks. Cross bars come in two forms: snap-open, which lets you lay cable in without pulling it end to end, and closed, which keeps fine wire and swarf out.

Side plates are usually glass-filled PA66 or POM. POM runs quieter and wears slower against itself, so it suits long strokes and high cycle counts. PA66 takes more impact and costs less. Neither material likes welding spatter or hot chips above roughly 120 °C, and neither is a structural member. The chain guides cable; it does not carry the load of the axis.

• 1
  Pitch and radiusRadius follows pitch, so pick the radius before the part number.
• 2
  Cross bar typeSnap-open for service, closed for dirty or fine-wire routes.
• 3
  MaterialPOM for long life, PA66 for impact and cost.

Travel length drives the chain length. For a self-supporting horizontal run, a practical starting point is chain length ≈ travel ÷ 2 + π × radius + one link pitch of slack. Beyond about 2 m of unsupported travel, the chain sags and scrapes its own lower run. That is when you add a glide bar or move to a roller-chain design.

Speed and acceleration decide whether the chain runs quietly or destroys itself. Above roughly 2 m/s, plastic links slap against the glide surface and noise climbs fast. Gliding motion is normal up to about 2 m/s; rolling motion with steel pins suits higher speeds. Tell the supplier the axis acceleration, not just the top speed. A 10 m/s² move on a short stroke wears a carrier faster than a slow 4 m traverse.

Mounting height matters as much as the chain itself. The two end brackets must sit so the neutral axis of the chain aligns with the cable exit. A 5 mm step between the fixed bracket and the moving bracket will kink the chain at every stroke. On a 60-stroke-per-minute machine that is 60 kinks per minute, and the link pins will oval out within weeks.

The trail itself is molded, but the parts that bolt it to your machine are usually machined. Each carrier needs a fixed bracket and a moving bracket, and both have to match your frame hole pattern, not the carrier maker's. A bracket is typically a small 6061-T6 or 304 stainless plate with a pocket for the link end, two or four clearance holes, and a lip that stops the chain walking sideways.

Tolerances on these brackets are modest by machining standards. Hole position within ±0.1 mm is normally enough because the link end has play built in. The features that matter are squareness of the chain seat and flatness of the mounting face. A bracket that is 0.3 mm out of flat will tilt the chain, and the misalignment shows up as uneven wear on one side plate after a few hundred thousand cycles.

We machine brackets from 6061-T6, 7075, 304 or 316L, and from POM or PEEK when the bracket must be non-metallic. Typical work is a 5-axis cut of the pocket and profile, then bead blasting or clear anodizing. Runs start at one piece. Batch sizes go to 10,000 and beyond.

If the bracket sits near a weld cell or an induction heater, keep it metal. Machined aluminium sheds heat and holds its shape. A molded plastic bracket will creep under the same load at 100 °C and lose its preload.

• 1
  Hole patternMatch the machine frame, not the carrier catalog.
• 2
  Critical featureChain seat squareness and mounting face flatness.
• 3
  Materials6061-T6, 7075, 304, 316L, POM, PEEK.

Automation cells, gantries, robot seventh axes and CNC tool changers are the usual homes. Cable count is low to moderate, the environment is dry, and the stroke is under a few metres. Food and packaging lines also use them, often in white POM with stainless brackets, because the assembly can be hosed down and does not corrode.

Woodworking, stone cutting and foundry work are harder. Fine dust gets into open cross bars and grinds the pins. For those jobs, specify closed cross bars and add a bellows cover, or move to a steel carrier with a sealed design. The plastic trail is not the weak point there; the open cavity is.

High-temperature zones above roughly 120 °C are out of scope for standard PA66 and POM. Special grades exist, but at that point a steel or hybrid carrier is usually cheaper than a custom compound.

Machine tools with flood coolant need a drain path. If coolant pools inside the chain, it carries chips down to the fixed end and packs the cavity. Either run the chain with the open side down or drill the cross bars.
