5axiscnc Automobile Machining: How It Actually Cuts Parts

• 1
  What the fifth axis changes on an automobile part
• 2
  Fixturing decisions that decide the tolerance
• 3
  Reach, tool length and the limits of tilting
• 4
  Material behavior on a trunnion
• 5
  How to verify a 5-axis automobile part
• 6
  Which process fits which automobile part

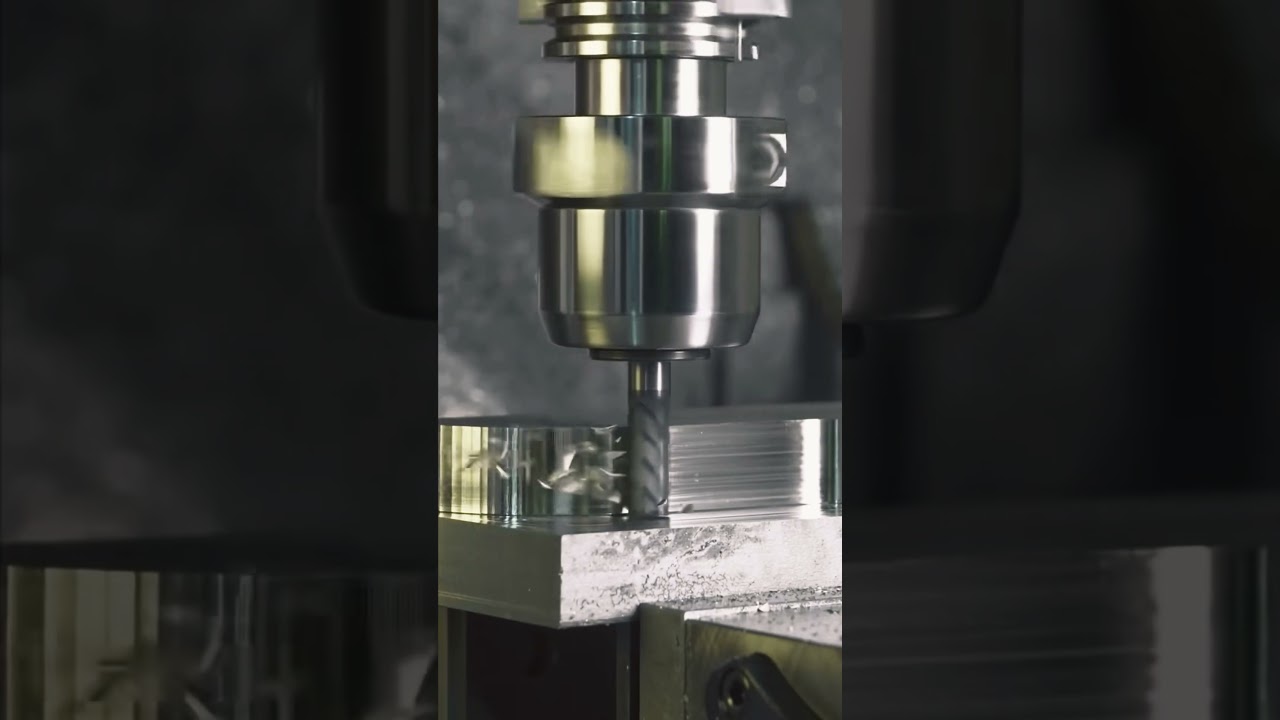

A 3-axis mill moves the part in X, Y and Z while the spindle stays vertical. A 5-axis machine adds two rotary motions, so the tool can approach a face from an angle instead of only from the top. On an automobile part that means one setup can reach a cylinder head's five faces, an intake port, and a bolt pattern that would otherwise need three or four separate fixtures.

The gain is not speed on every cut. The gain is fewer setups. Each time you unclamp a part and re-fixture it, you add a new datum error. Stack four setups and a ±0.01 mm feature can drift past ±0.03 mm before the last op runs. Simultaneous 5-axis work keeps the part in one coordinate frame, so bore-to-bore position stays tied to the same origin.

There is a real cost too. Rotary axes are less rigid than a solid block and vise. Roughing loads that a 3-axis machine absorbs easily will chatter on a trunnion. Shops that know this take light radial cuts at higher feed, then finish with a short, stiff tool. We run 16 simultaneous 5-axis machining centers, and the roughing strategy on each is set per part, not copied from a template.

The first question is not which machine. It is how many times the part must move. A single-op part with all features reachable from one direction is a 3-axis job. A part with angled bosses, deep pockets on two sides, or cross-drilled oil galleries usually needs the rotary axes, or a tombstone with multiple setups done in one cycle.

Workholding on a trunnion is the hard part. Thin-wall housings and brackets deflect when a chuck or vise clamps them. Soft jaws bored to the part's actual stock size hold better than a standard vise, and a low-profile fixture plate keeps the tool clear of the rotary table. For a part under 200 mm long we often leave a tab and cut it off in a second op.

Datum choice matters more than most people expect. If the drawing dimensions from a machined face, that face should be the primary datum in the fixture. If it dimensions from a cast surface, hold the cast surface and machine the reference face first. Getting this backwards is the most common reason a 5-axis part measures well on the machine and fails on the CMM.

A tilted spindle lets a short tool reach a face that would need a long tool on a 3-axis machine. That matters because tool deflection scales with the cube of length. A Ø10 mm end mill held 40 mm out cuts cleanly. The same cutter held 100 mm out will rub and leave taper in a deep pocket.

The rotary table also has a swing limit. We use a Ø400 mm rotary table on several cells, and a part that clears 400 mm in one orientation may foul the table when the A axis tilts 90°. Check the part envelope against the machine travel before quoting, not after the first article. Large frames up to 4,000 mm run on our gantry-style machines, where the rotary work is limited to specific orientations.

Undercuts, back-side chamfers and port blending are where 5-axis earns its keep. A ball-nose tool tilted 30° can blend an intake port floor in one continuous pass. The same blend on a 3-axis machine becomes a series of scallops that need hand polishing, and hand polishing is where surface finish and edge geometry start to drift.

Aluminium is the easy case. 6061-T6 and 7075 cut fast with high positive rake tools and air blast. The risk is thermal growth on long roughing cycles. A part that measures ±0.005 mm at 8 a.m. can drift as the casting warms, so we leave a finishing allowance and let the part stabilize before the last pass.

Stainless and titanium change the calculus. 17-4PH in the H900 condition and Ti-6Al-4V both work-harden, so a light rubbing cut is worse than a heavy one. On a trunnion the tool must stay engaged. We reduce radial depth, keep feed per tooth up, and flood coolant hard. Inconel on a 5-axis cell needs a rigid setup and a conservative stepover, or the insert life collapses.

Magnesium AZ31B and AZ91D cut quickly but need chip control and a fire-safe procedure. Automotive brackets in AZ91D are common on weight-reduction programs. Castings like ADC12 machine well but often have porosity that shows up as a blotchy anodized finish. If the part will be anodized, tell the machine shop before roughing so the stock allowance accounts for it.

In-process probing catches a datum shift before the part is finished. We probe the primary datum and one secondary feature after the first roughing pass. If the stock condition differs from the model, the operator can shift the work offset instead of scrapping the part. That single step removes most first-article surprises.

Final inspection on a CMM checks the features the drawing actually tolerances. A general profile tolerance of ±0.1 mm on a casting surface is normal. A bearing bore at ±0.005 mm is not. Mixing those two in one report without labeling them is a common source of argument. We report both, with the datum scheme written out.

For automotive work, IATF 16949:2016 shapes the paperwork as much as the machining. Control plans, traceability and change notification are part of the flow. Our quality system also holds ISO 9001:2015, ISO 13485:2016 and ISO 27001:2022, which matters when a program crosses into medical or defense-adjacent parts. Inspection is 100% before shipment, with reports on request.
