Most automotive parts are judged by fit and strength. A lamp is judged by light. The reflector bowl, the bezel edge and the light guide all sit on the optical path, so any tool mark, step or burr shows up as a bright line in the beam pattern. That single fact drives almost every machining decision on this page.

The second difference is wall thickness. Lamp housings are thin, often 1.5–3 mm at the outer shell, because the part must stay light and must not distort when it clips into the body. A thin wall flexes under cutting force. We plan the toolpath around that, not around the fastest metal removal rate.

The third difference is the mix of surfaces on one part. A single lamp bezel can carry a polished Class A face, a matte textured grip, a sealing groove and two mounting bosses. Each surface has its own finish callout, so the same part may need three different cutting strategies before it leaves the machine.

That mix is also why lamp work rarely fits a single setup. Turning the part over to reach the back face risks a mismatch on the front edge. Five-axis work lets us keep one datum and reach both sides without breaking the setup.

• 1
  Optical surfacesReflector bowls and light guide faces are cut last, with a fresh tool.
• 2
  Thin walls1.5–3 mm shells need light radial cuts and supported fixturing.
• 3
  Mixed finishesOne part may carry polished, textured and as-machined zones.

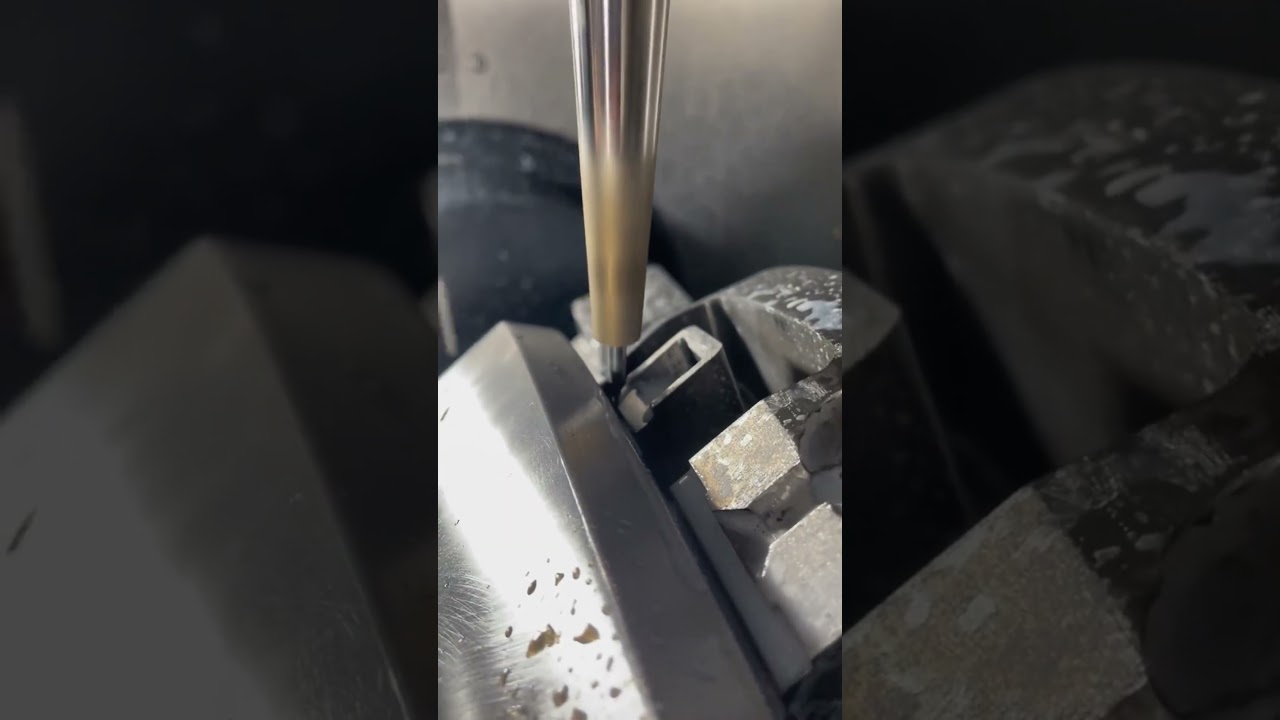

A reflector bowl is a freeform surface. A three-axis machine has to tilt the part or use a ball nose cutter at a fixed angle, which leaves a scallop pattern that the polishing step then has to remove. On a simultaneous five-axis center the tool stays normal to the surface, the step-over stays even, and the scallop height drops.

Step-over is the number that matters most. For a bowl that will be polished, we typically run 0.1–0.3 mm step-over with a Ø6 mm or Ø8 mm ball nose cutter, which keeps the cusp low enough that polishing removes it in one pass. Tighter step-over gives a better surface but multiplies cycle time.

Cutting direction matters too. Climb milling on the finishing pass pushes the chip behind the tooth and leaves a cleaner edge on thin sections. On the sealing groove and mounting faces we slow the feed at entry so the tool does not deflect into the wall.

We keep the optical surfaces in the last operation. Any earlier cut that touches them risks a scratch from a chip that was trapped in the fixture. This is also why the finishing pass gets a clean coolant flow and a tool that has not run a roughing cycle.

• 1
  Tool normal to surfaceSimultaneous 5-axis keeps step-over even across a bowl.
• 2
  0.1–0.3 mm step-overTypical finishing range before polishing.
• 3
  Climb millingBetter edge quality on thin shells and open grooves.

Aluminium 6061-T6 is the default for housings and bezels. It machines clean, holds a sharp edge, and anodizes well. If the part also acts as a heat sink for an LED board, 6061 carries heat away well enough for most lamp assemblies. We also run 6082 and 7075 when the customer needs higher strength on a bracket.

PC and PMMA are common where the part itself must transmit light. Both cut cleanly at moderate spindle speed but are sensitive to heat. A dull tool melts the chip and smears the edge, which is exactly the defect you cannot hide on a light guide. We keep the tool sharp and use air blast rather than flood coolant on these plastics.

For high-temperature areas near the bulb or the LED driver, stainless 304 or 316L may be specified, and Inconel appears in a few exhaust-adjacent lamp brackets. Stainless work-hardens quickly, so we take a deeper radial cut and avoid dwelling in the cut.

Copper and brass show up in electrical contacts and heat spreaders inside the lamp. C110 copper is gummy and needs high rake angles and generous chip clearance. C36000 brass is far easier and often the better choice when the part is not a pure thermal path.

• 1
  6061-T6Default for housings, bezels and LED heat sinks.
• 2
  PC / PMMAOptical plastics; keep the tool sharp, use air blast.
• 3
  304 / 316LHigh-temperature brackets; watch work hardening.
• 4
  C36000 brassEasier than C110 copper for contacts and spreaders.

A lamp bezel that will be seen from outside usually needs a Class A look. We machine to Ra 0.8–1.6 μm and then polish or bead blast depending on the drawing. A reflector bowl that will be coated gets machined to Ra 0.2–0.8 μm so the coating has a uniform base. Non-visible internal faces stay at Ra 1.6–3.2 μm as-machined.

Surface roughness is only half the story. Burrs on the sealing groove or around a light guide entry point can break the light path or prevent the lens from seating. We deburr by hand on optical edges and use tumbling only where the edge is not critical, because tumbling rounds edges that may need to stay sharp.

Inspection follows the same logic. Raw material certificates come in with the stock. In-process checks catch a drift in wall thickness before the finishing pass. Final inspection runs on every part before shipment, and we can supply reports with the dimensional results on request.

The tolerance we hold in normal production is ±0.005 mm (±0.0002 in) on critical features. That number is not free. It needs a stable setup, temperature control and a probe check on the machine. We quote it where the drawing needs it, not by default on every feature.

• 1
  Ra 0.2–0.8 μmReflector bowls before coating.
• 2
  Ra 0.8–1.6 μmVisible bezels before polish or blast.
• 3
  Ra 1.6–3.2 μmNon-visible internal faces.
• 4
  100% inspectionEvery part checked before shipment; reports on request.
