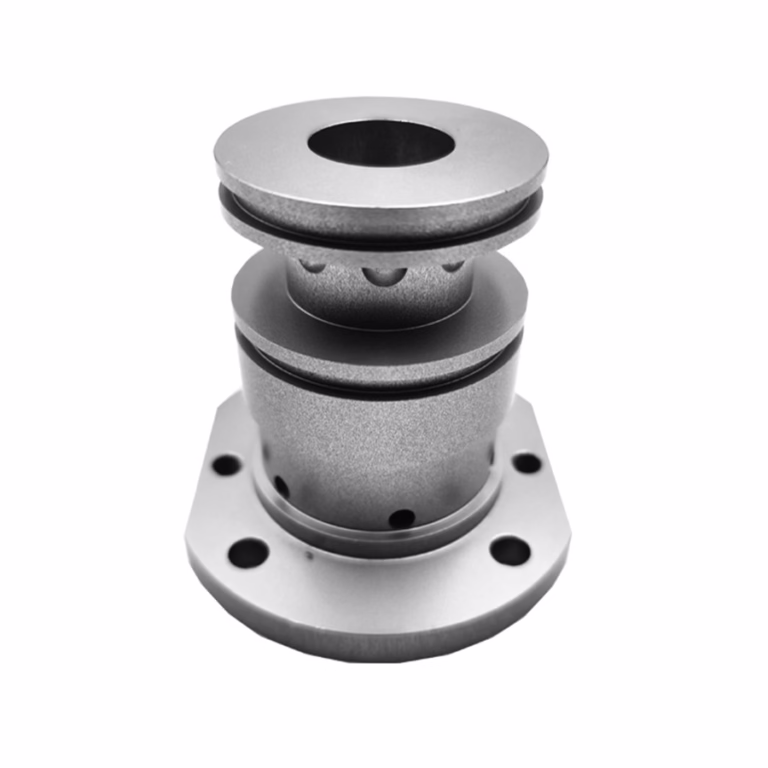

A general tolerance block on the drawing is not the real requirement. On most HVAC and refrigeration hardware, one or two features carry the function: the bore that holds a bearing or rotor, the seat where a seal or O-ring sits, and the flat face that mates with a gasket. Those are the features worth controlling to ±0.005 mm. Everything else can sit at ±0.1 mm and the assembly still works.

Surface finish is tied to the same features. A seal face at Ra 0.2–0.8 μm holds pressure over time. A general machined surface at Ra 1.6–3.2 μm is fine for a bracket or a cover. When a drawing asks for Ra 0.4 μm across a whole aluminum housing, that is usually a sign the spec was copied from another project. We quote the tight finish only where the drawing shows a seal or sliding contact.

Material choice changes what is achievable. Aluminum 6061 and 6061-T6 cut cleanly and hold a fine finish on a face mill or a bored hole. Stainless 303 and 316 machine well but work-harden if the feed is too light, which shows up as a torn finish on a seal face. Copper and brass parts for refrigerant lines need sharp tooling and a controlled chip load to avoid smearing.

Flatness is the tolerance that gets forgotten. A housing with a 0.05 mm bow will leak at the gasket even when every hole is in position. Thin aluminum covers and stamped-then-machined plates are the usual offenders. If the part is wider than 200 mm and thinner than 6 mm, flatness belongs on the drawing next to the bore tolerance.

Aluminum covers most AC hardware. 6061-T6 gives the best balance of strength and machinability for housings and brackets. 7075 is worth the extra cost only when a part sees high load at a small cross-section, such as a compressor mount in a vibrating frame. 2024 machines well but has poor corrosion resistance unless it is anodized or plated, so it rarely suits outdoor condenser units.

Stainless appears where corrosion or refrigerant compatibility rules out aluminum. 303 is the free-machining grade and the cheapest to run. 316 and 316L handle chloride exposure, which matters for marine and coastal installations. 17-4PH (SUS630) is used for valve stems and other wear parts that need hardness after heat treatment. A shop that lists these grades on the quote is usually stocking them; one that quotes every grade the same way is not.

Titanium and Inconel are rare on AC parts and normally a sign the part belongs to an aircraft bleed-air system or a high-temperature test rig. TC4 (Ti-6Al-4V) and Inconel cut slowly and wear tooling, so the price per part is several times that of aluminum. If the application does not need the temperature or weight, an aluminum or stainless redesign usually costs less.

Finishing follows the environment. Anodizing, clear or colored, protects aluminum outdoors and gives a consistent appearance. Hardcoat anodizing adds wear resistance on sliding surfaces. Electroless nickel and zinc plating suit steel and brass hardware. Powder coating hides tool marks on covers but adds thickness, so mask any sealing face before coating. Laser marking works for part numbers and date codes, with a minimum character height of 1.5 mm.

Start with the machine list. A shop running 5-axis centers can hold position on a housing with angled ports in one setup, which removes the stack-up error you get from three separate fixtures. GreatLight runs 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines, and 16 mill-turn centers across 127 machines. The largest parts can reach 4,000 mm, and the shop holds ±0.005 mm on critical features.

Ask how inspection is handled. A supplier that inspects only the first article can ship a bad batch when a tool wears mid-run. GreatLight inspects 100% of parts before shipment, with raw material checks, in-process monitoring, and a final inspection, and shares reports on request. For an AC housing, the report should show bore diameter, seal face finish, and flatness, not just a pass stamp.

Look at the quote timeline. A week to return a quote usually means the shop is not sure it can make the part. GreatLight returns a quotation and a free DFM analysis within 12 hours, and production can start within 24 hours. Parts ship in 3–5 days, and the historical late-delivery probability is below 2%. Those numbers are worth asking about in writing, because a verbal promise does not survive a schedule slip.

Certificates narrow the field fast. ISO 9001:2015 is the baseline for general industrial parts. IATF 16949:2016 applies to automotive and EV programs, ISO 13485:2016 to medical devices, and ISO 27001:2022 to data security when drawings and CAD files are sensitive. A supplier holding all four has already been audited on process control and document handling, which shortens your own supplier qualification.

There is no minimum order quantity at GreatLight. One prototype and a 10,000+ part run go through the same quoting process. That matters for AC hardware because the first article often reveals a fit problem that a drawing review misses. Making one piece, testing it on the bench, and then releasing the volume order costs less than scrapping a full run of housings.

Tooling and fixtures set the floor price, not the cycle time. A compressor housing that needs a custom soft jaw and a support plate will cost more on the first order than on the fifth, because the setup is already written. If the part is likely to repeat, ask what the fixture costs separately. A shop that hides fixture cost in the piece price is hard to compare against another quote.

Volume discounts come from setup amortization, not from cheaper material. Five hundred parts of a simple bracket may not be cheaper per piece than fifty, because the cycle is short and the setup is small. Five hundred parts of a complex valve body usually are cheaper, because the fixture and the first-article inspection spread over more units. Send the annual quantity, not just the first release, when you want a realistic number.

Freight and finishing are the two lines buyers underbudget. Anodizing and plating are often done by a partner shop, which adds days to the schedule. If the finish is cosmetic, ask for the color and gloss target in writing. If it is functional, such as hardcoat on a sliding bore, the thickness range and masking plan belong on the purchase order.

The most expensive mistake is a drawing with no datum scheme. When the bore, the seal face, and the mounting holes each reference a different surface, the shop has to guess which one drives the assembly. Adding a clear datum and a true-position callout on the hole pattern removes the guesswork and usually lowers the quote, because inspection gets simpler.

Second is an unfinished thread callout. AC parts use many small threaded ports for fittings and sensors. A callout of M5 × 0.8 with no depth and no class leaves the shop to pick. Fit problems show up at assembly, after the parts are anodized, and the fix is a rework or a new batch. Specify thread class and minimum full-thread depth.

Third is ignoring chip evacuation on cross-drilled passages. A manifold with internal intersecting holes can pass a visual check and still trap aluminum chips that later block a refrigerant line. A defined deburring and cleaning routine, such as tumbling plus a brush pass, belongs in the process plan. Ask how the shop proves the passage is clear.

Fourth is a finish spec that fights the tolerance. Hardcoat anodizing builds 25–50 μm per surface, which can close a bore that was machined to nominal. Mask the bore, or machine it undersize by half the coating thickness. This is a one-line note on the drawing and it saves a rejected lot.
